Description

Overview

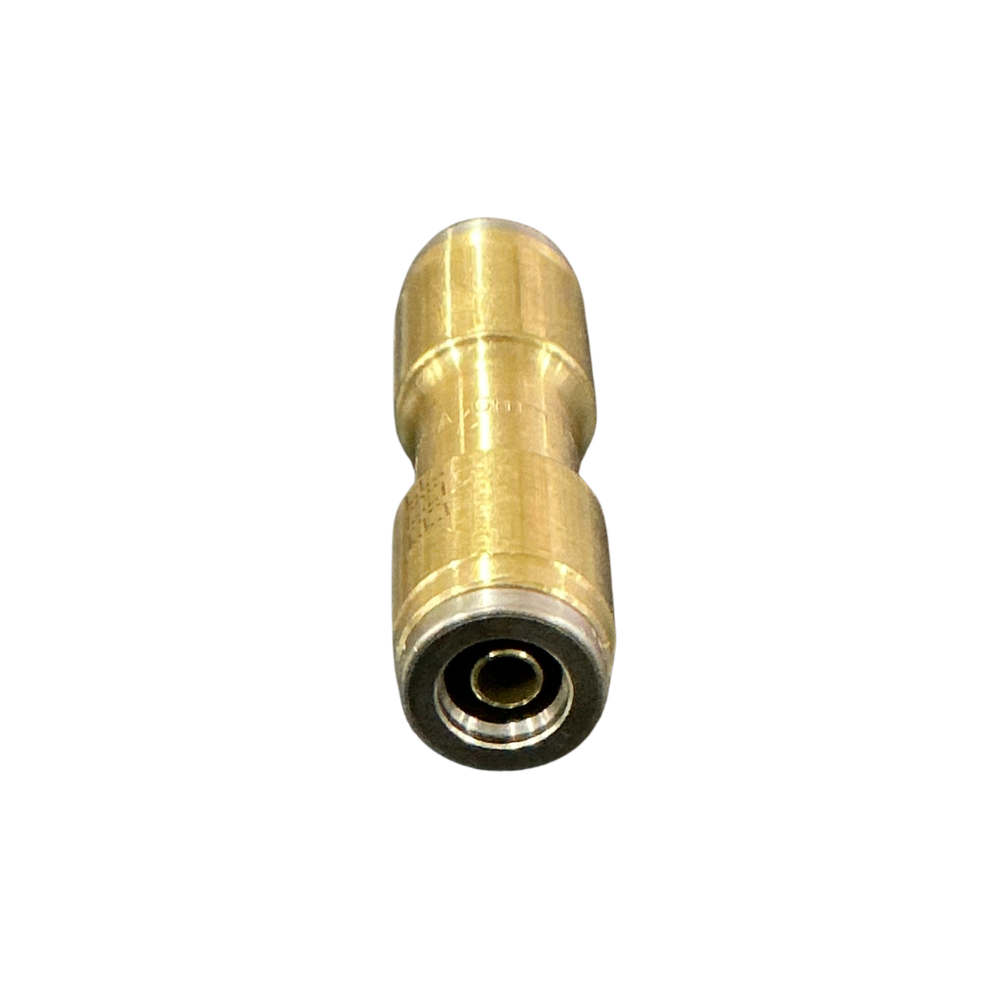

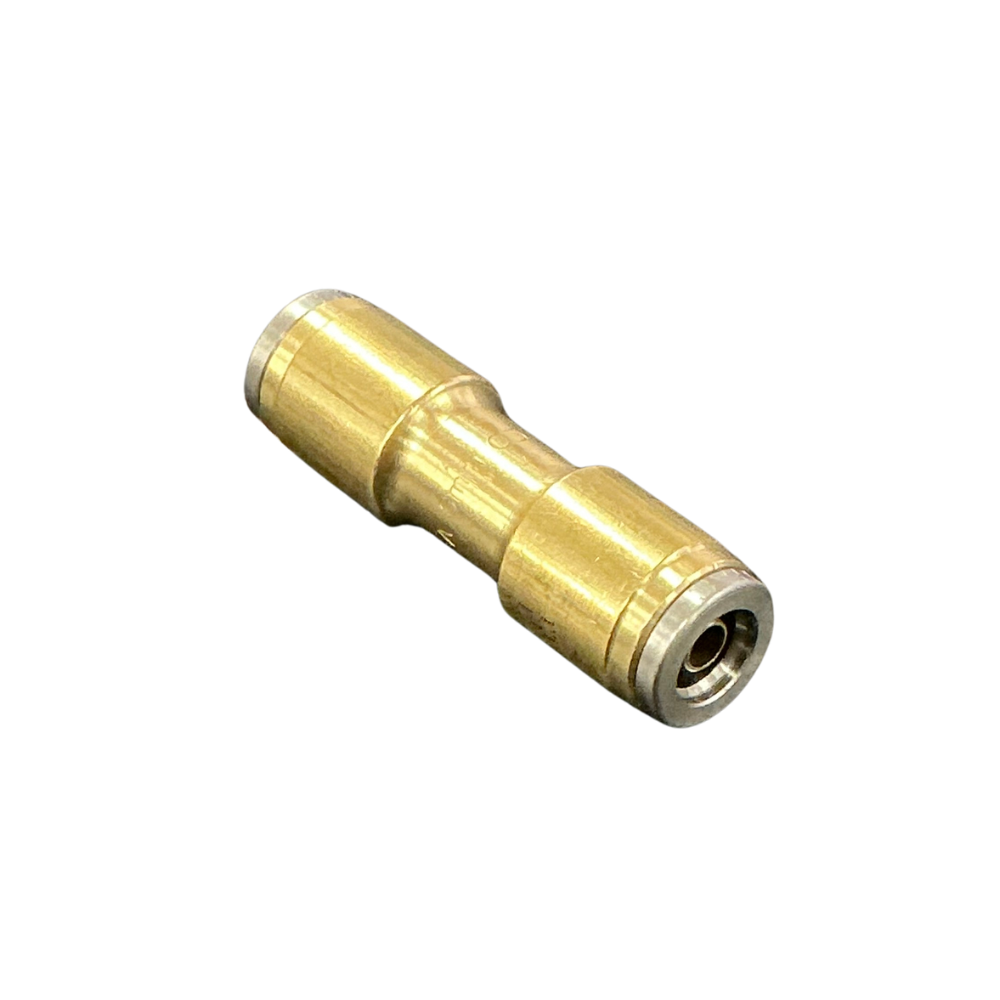

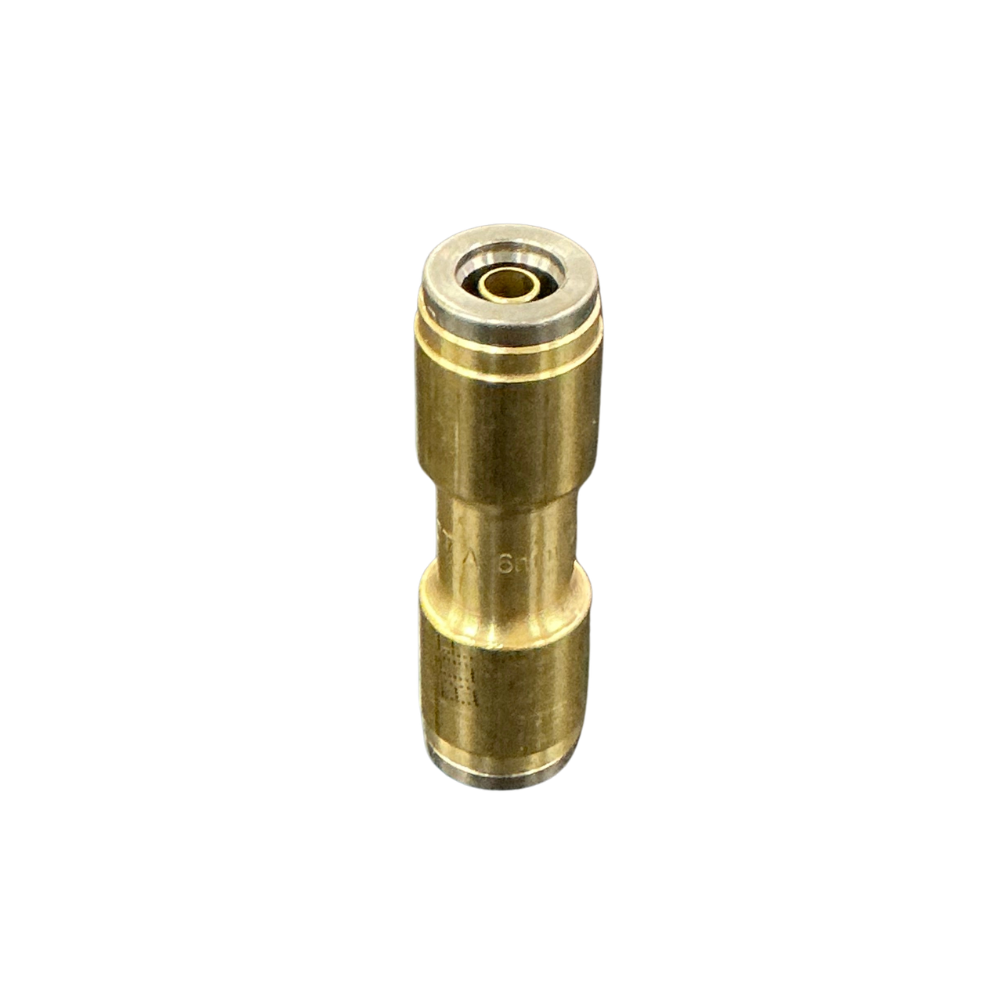

The 6mm air brake union connects two matching sections of 6mm metric nylon tube in a straight line. It repairs or extends a pneumatic run without adding a threaded port or changing the line direction.

Features

• Equal push-in connections suit 6mm outside-diameter metric tube.
• Straight double-union layout maintains the existing air-line route.
• Brass body contains a gripping collet and pneumatic seal at each end.
• Release collars allow the tube to be removed during later servicing.

Specifications and Materials

This fitting comes as one complete brass union with two equal push-to-connect ports and an open internal air passage. Tube installs directly without separate compression nuts, olives or ferrules.

Part number: 88-M004-06.

See the official D.O.T. push-in fitting guide

Compatibility and Fitment

Measure both tube sections across the outside diameter and confirm each one is 6mm metric tube. Do not select this fitting for 1/4in imperial tube, a reducing union, an elbow or a threaded connector. Cut tube ends square and remove scored, crushed, oval or heat-damaged sections before insertion. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. MDQ62DOT6, M1862X6, MAQ62-DOT-6, MAQ62DOT6, HPMTB6, 97450304, 35-M6206, 35M6206

Related Parts

Check the related size versions below against the measured tube outside diameter.

Compliance and Safety

Fully depressurise the circuit before cutting the line or pressing either release collar. Push each prepared tube firmly to the internal stop, then pull back gently to confirm both collets have engaged. Support the repaired line so vibration or movement does not pull against the union. Restore air pressure gradually and leak-test both ends before returning the vehicle or trailer to service.

Trailer Applications

Workshops fit this 6mm air brake union when repairing small metric lines in trailer brake controls, air-suspension controls and auxiliary pneumatic equipment. The equal connections suit a straight run where no branch, bend or threaded adaptor is required.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

Metric push-in unions can be mistaken for nearby imperial sizes when checked by eye. Confirm the tube outside diameter with callipers, or send a clear photo and measurement if the existing fitting is difficult to identify.
