Description

Overview

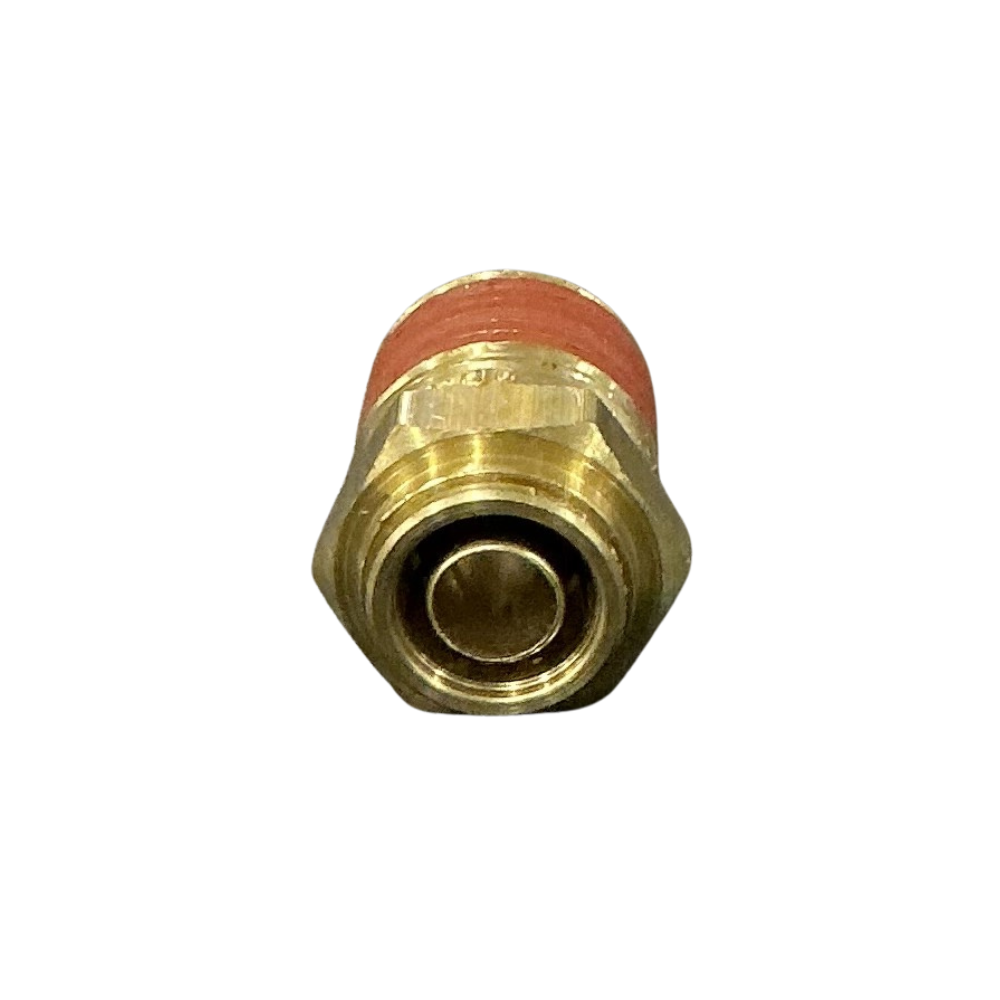

The 1/2 tube x 1/2 NPT push-in male connector joins 1/2″ outside-diameter nylon air-brake tube directly to a matching female threaded port. Unlike reducing connectors, this version uses a full 1/2″ tube connection and 1/2 NPT thread for pneumatic equipment with the same nominal size at both ends.

Features

• Push-in connection accepts 1/2″ outside-diameter imperial nylon tube
• 1/2 NPT male thread connects to a compatible female port

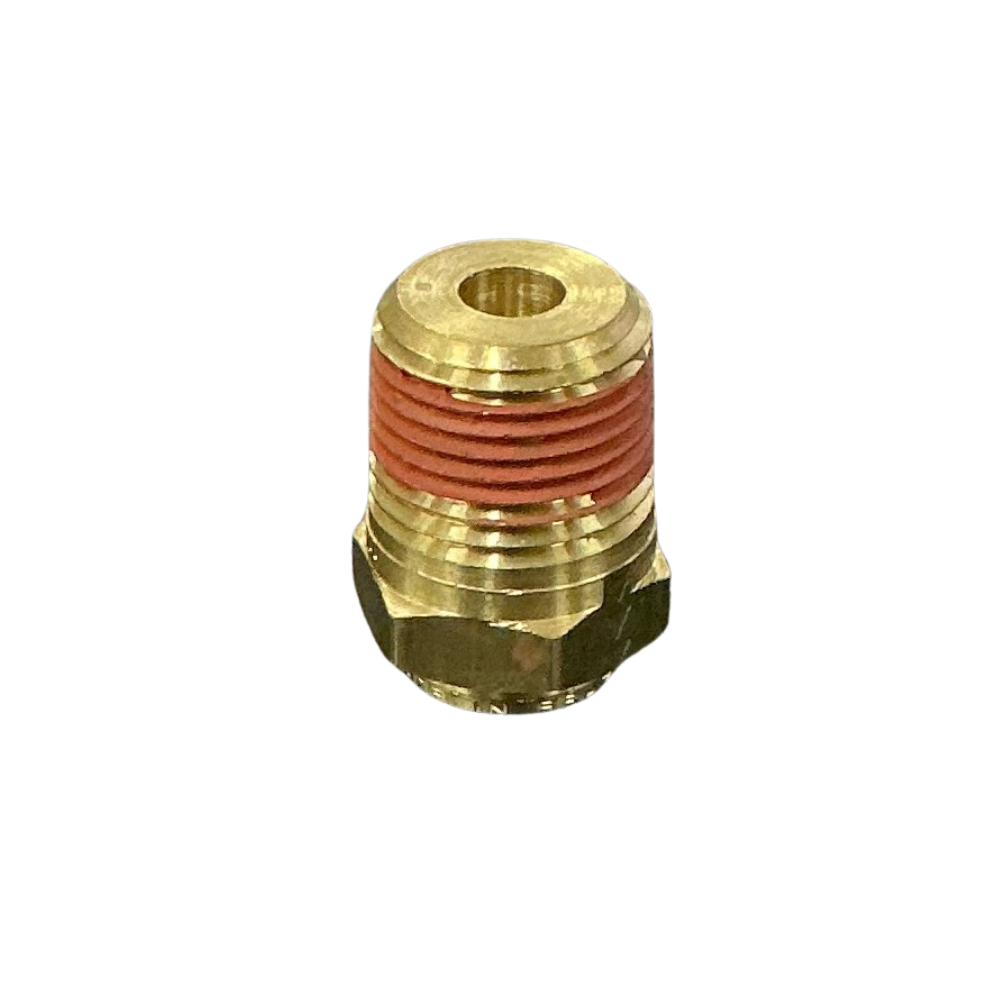

• Red pre-applied thread sealant covers the tapered male thread

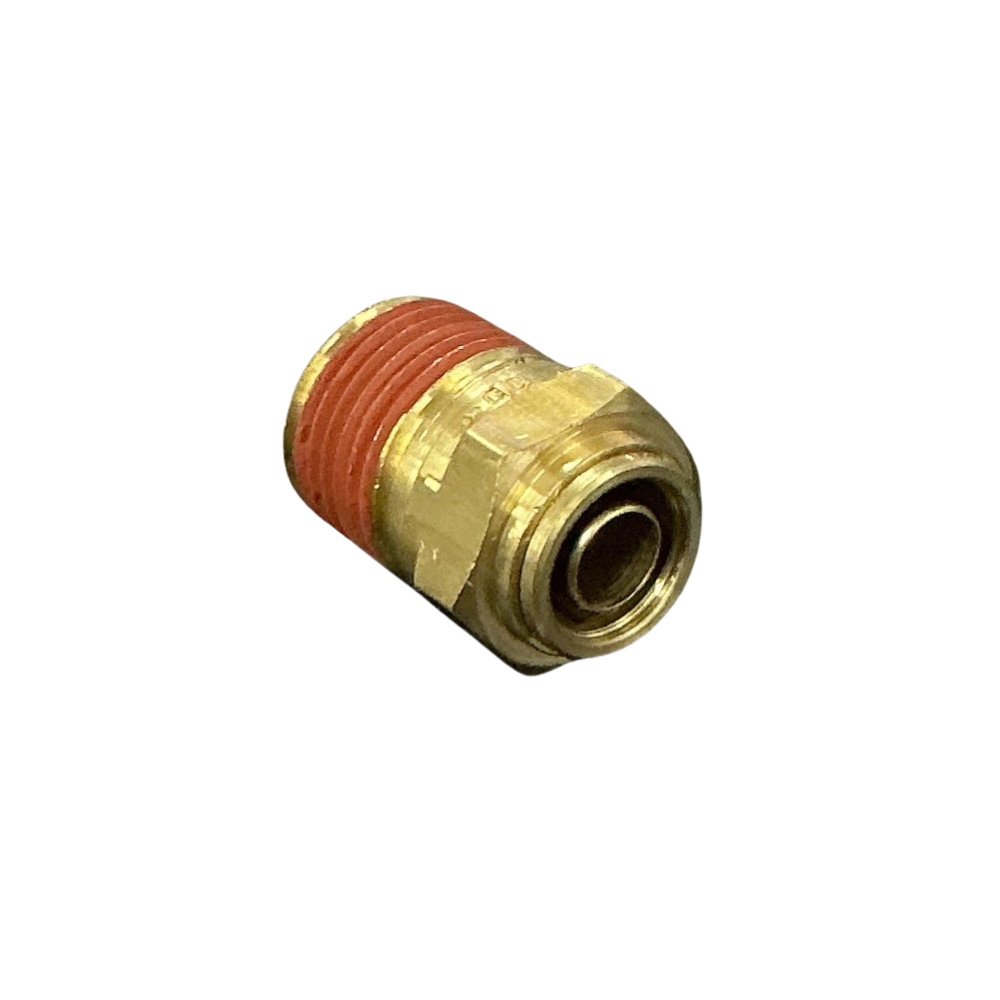

• Straight brass body includes a hex section for controlled tightening

Specifications and Materials

This straight D.O.T. air-brake connector combines a 1/2″ push-in tube port with a 1/2 NPT male thread. The push-in end incorporates the gripping and sealing components required to retain compatible nylon tube, so separate compression nuts, olives and tube inserts are not required. Part number: 88-003-0808.

See the official D.O.T. push-in fittings guide

Compatibility and Fitment

Confirm that the air line measures 1/2″ across its outside diameter and that the receiving component has a 1/2 NPT female port. The tube and thread share the same nominal size but use different connection methods. Do not substitute 12mm metric tube, a 1/2 BSP fitting or a tube-to-tube union.

Cut the nylon tube square, remove burrs and push it fully through the collet until it reaches the internal stop. Pull back lightly to confirm engagement. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. DQ68DOT0808, 1168X8X8

Compliance and Safety

Depressurise the complete pneumatic circuit before installing the fitting or releasing the tube. Inspect the tube near the sealing area for scoring, flattening, contamination or heat damage, as a damaged surface may leak even when fully inserted.

Apply tightening force through the body hex and keep additional sealing material away from the air passage. Route the tube without side load, then pressurise the circuit gradually and leak-test both connections before returning the vehicle to service.

Trailer Applications

Workshops fit this connector where a 1/2″ nylon supply or delivery line enters an air reservoir accessory, valve, manifold, suspension control or other component with a 1/2 NPT female port. The straight layout suits installations where the tube approaches the threaded component in line and sufficient clearance is available behind the fitting.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supplies straight connectors, elbows, tees, unions and threaded adaptors for heavy vehicle pneumatic repairs. To identify an existing connector, send a clear photo and confirm the tube outside diameter, thread diameter and thread type.
