Description

Overview

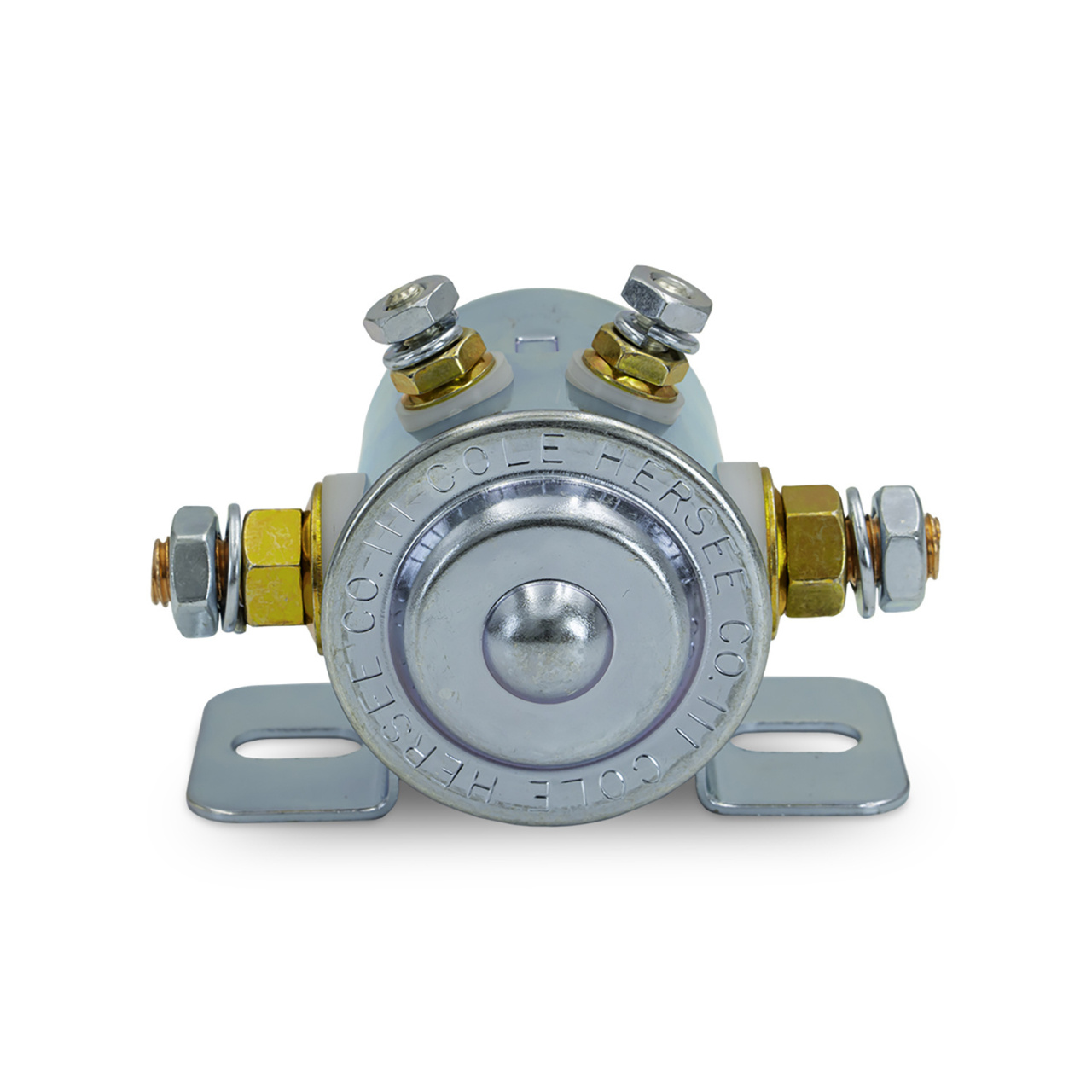

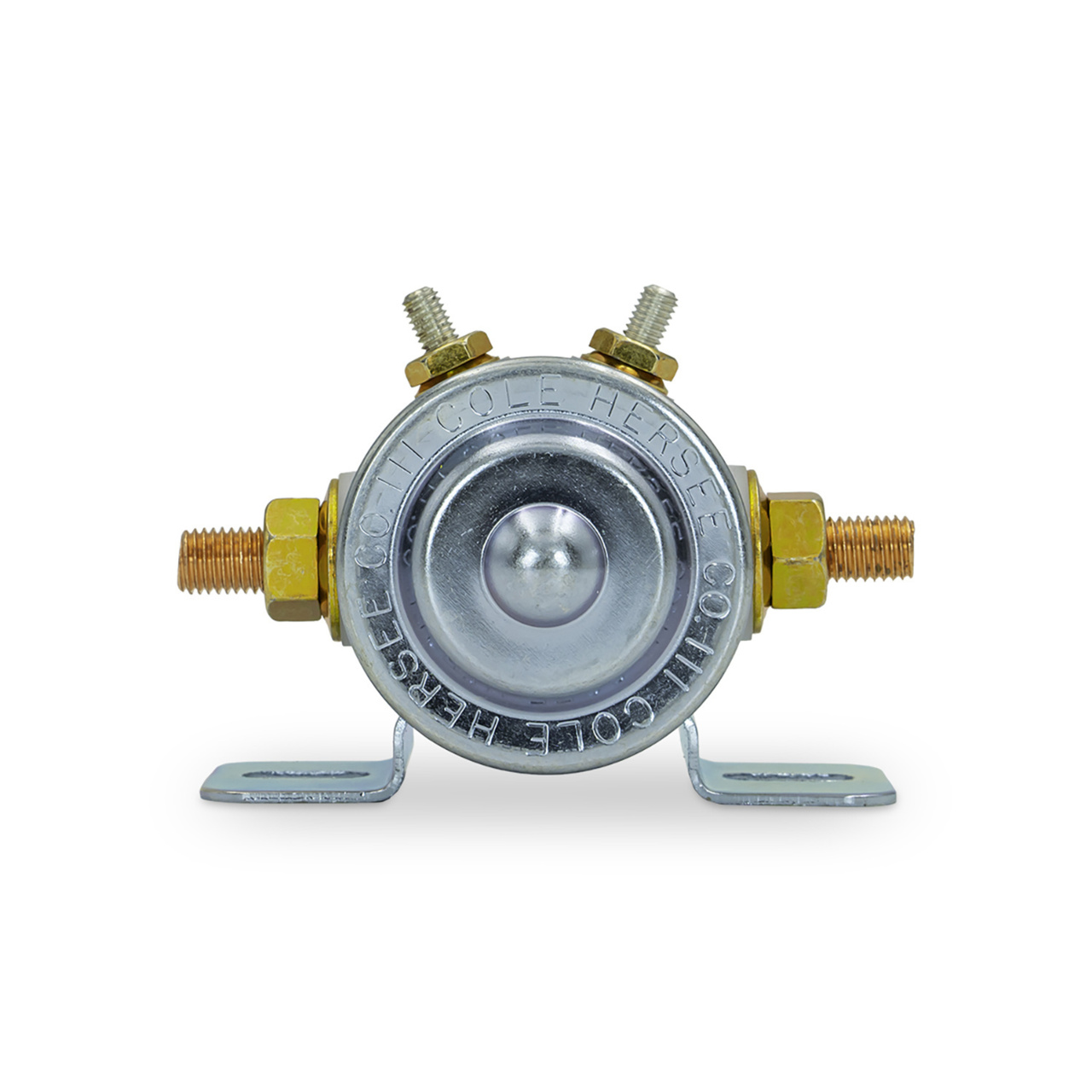

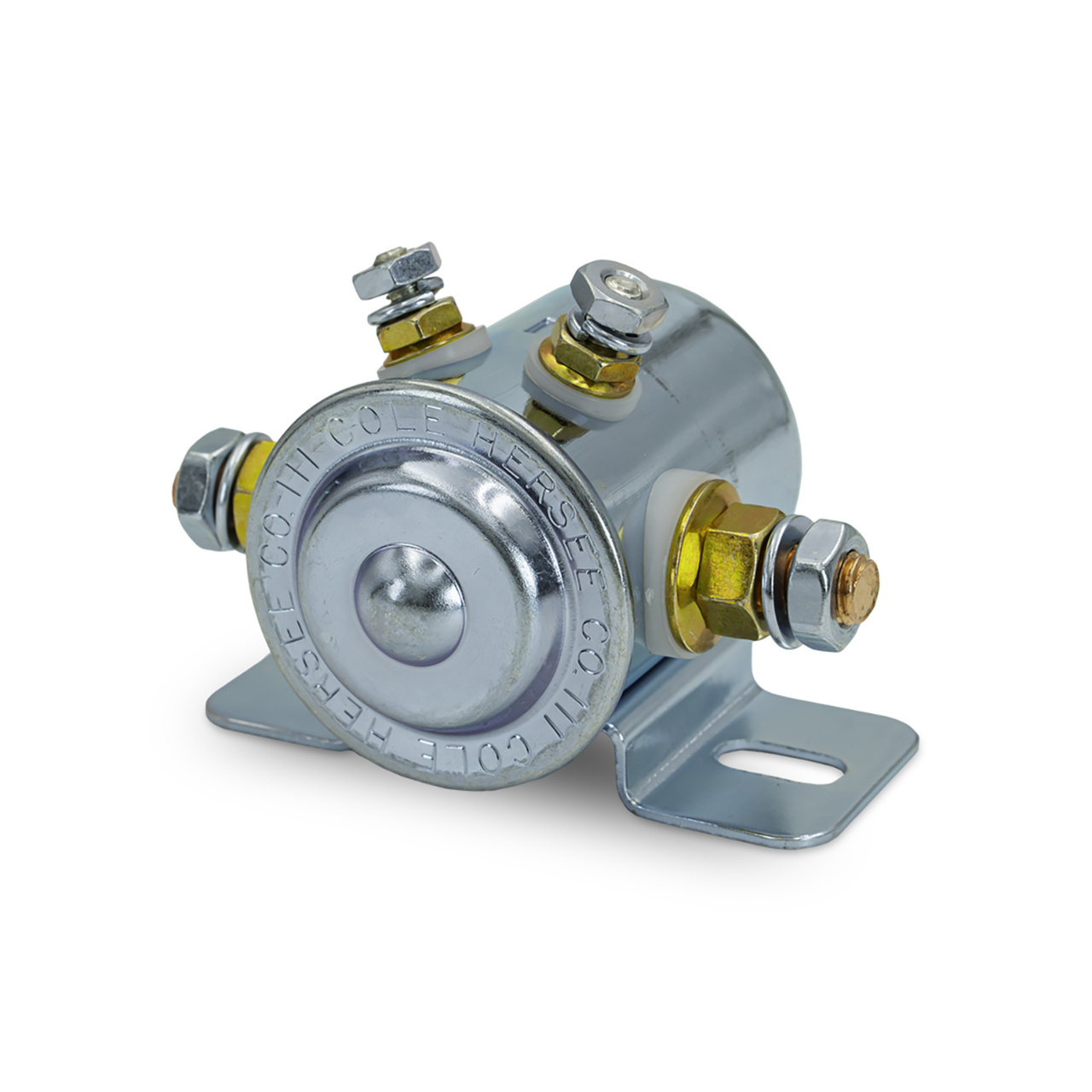

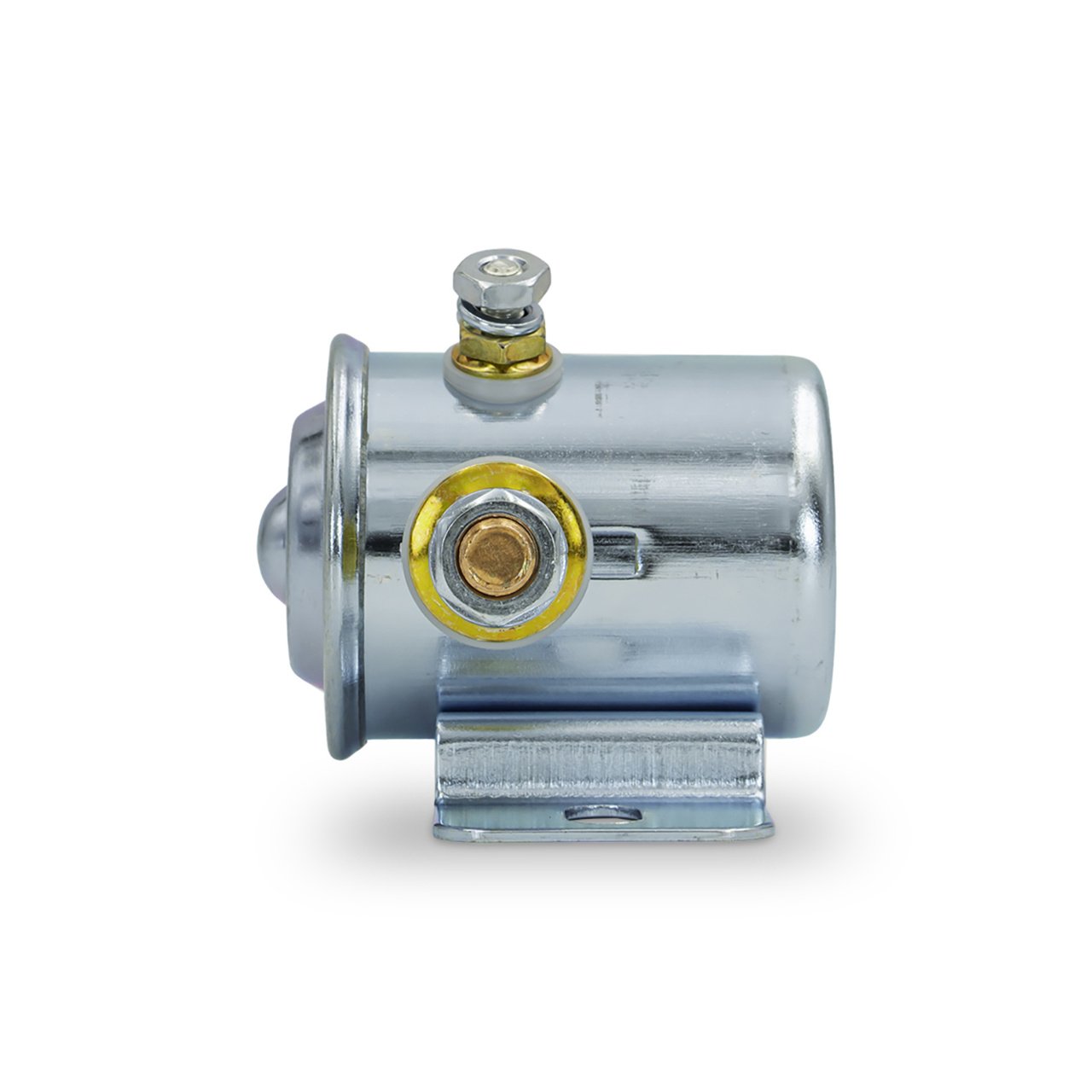

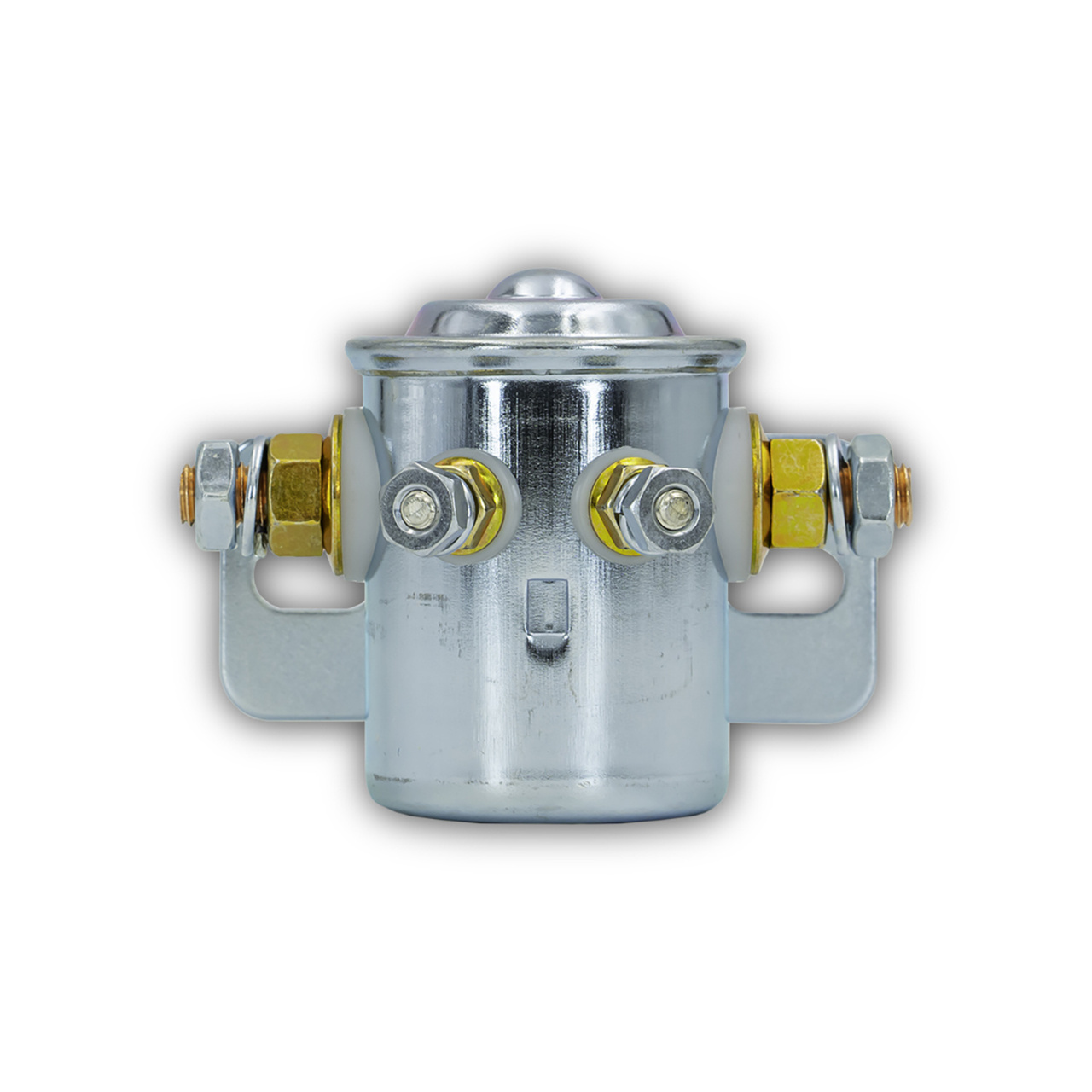

The 12V 85A continuous duty solenoid lets a low-current control circuit switch a high-current DC load. Its normally open SPST contact closes when the insulated coil energises for auxiliary power and control circuits.

Features

• 12V insulated coil with 17.5-ohm resistance
• 85A continuous rating with normally open SPST switching
• Copper 5/16″-24 load studs and steel 10-32 coil terminals
• Plated steel housing with terminal nuts and washers included

Specifications and Materials

The body measures 84mm wide, 64mm deep and 60mm high. Its flat bracket has 8mm x 15mm mounting slots on 56mm centres. Terminal nuts and washers are included.

Part number: 24059B.

See the manufacturer product guide

Compatibility and Fitment

Confirm the vehicle uses a 12V coil, an 85A continuous load rating, a four-stud insulated configuration and normally open SPST action. The main mismatch risks are selecting a grounded-coil or 24V solenoid, or choosing different terminal threads or bracket spacing.

Compliance and Safety

Disconnect the battery before installation. Size the cable and circuit protection for the actual load, keep the continuous current within the rated limit, and tighten the terminal hardware without allowing the studs to rotate.

Trailer Applications

Workshops fit this solenoid where a small switch or control feed must operate a higher-current 12V circuit on trailers, trucks, agricultural equipment and material-handling machinery.

Why Choose ICS Trailers

Steel-can solenoids can look alike while differing in coil voltage, grounding method, duty rating and stud layout. ICS Trailers can compare the old unit’s markings, terminal arrangement and 56mm bracket centres before replacement.

• Check the surrounding cable, fuse and switched load against the 85A continuous rating.
• Send clear photos and terminal measurements when old markings are difficult to read.
