Description

Overview

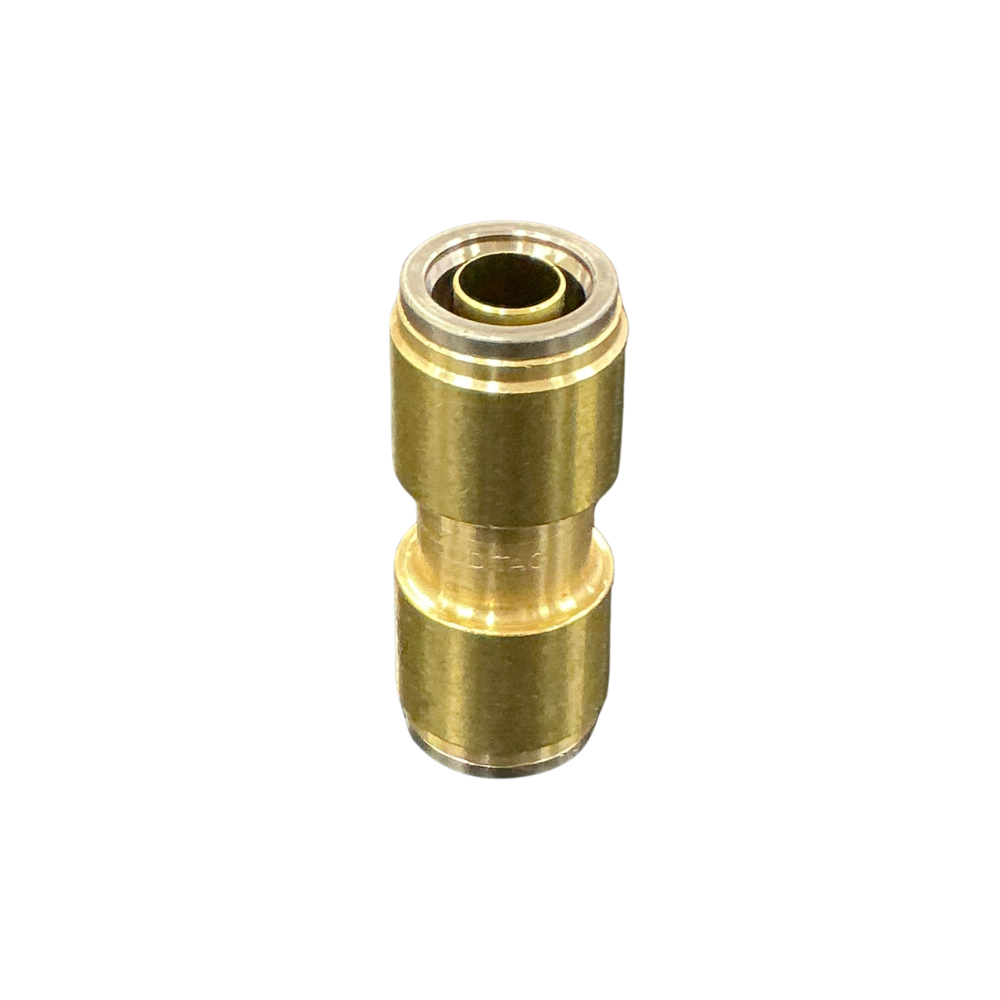

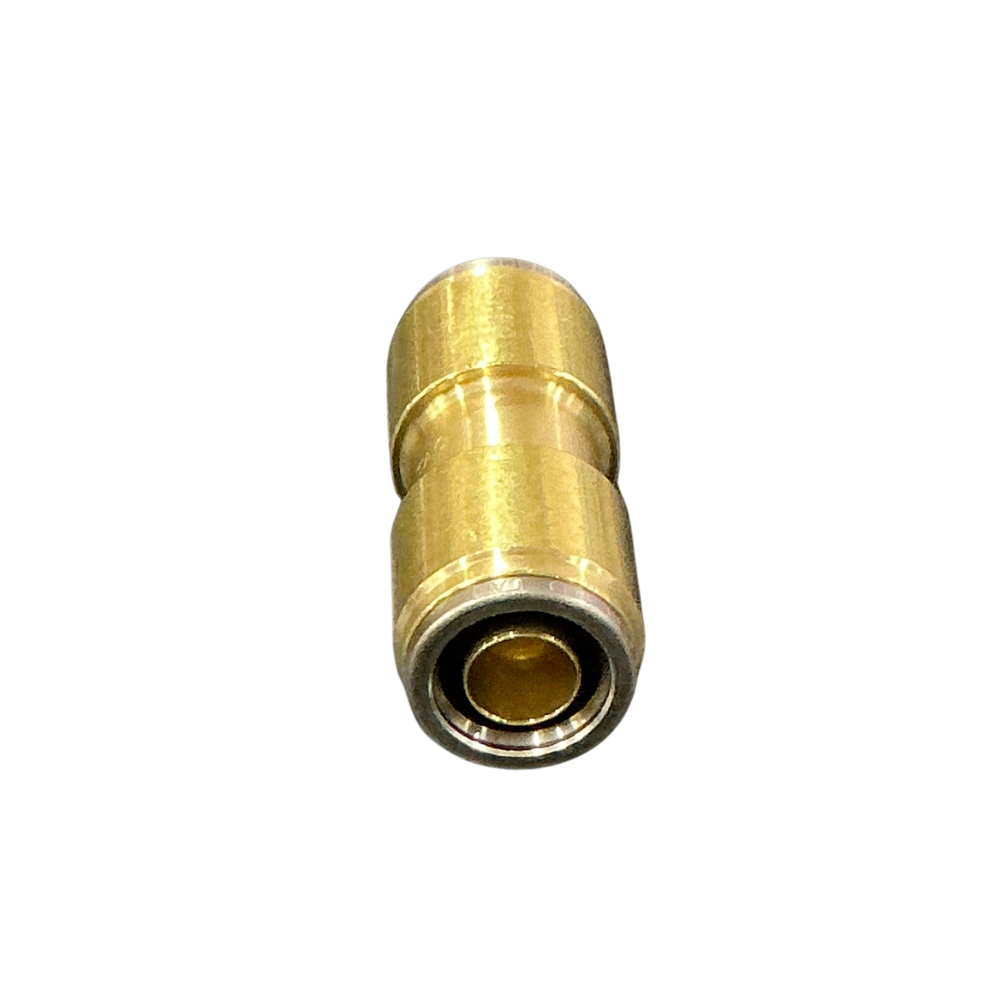

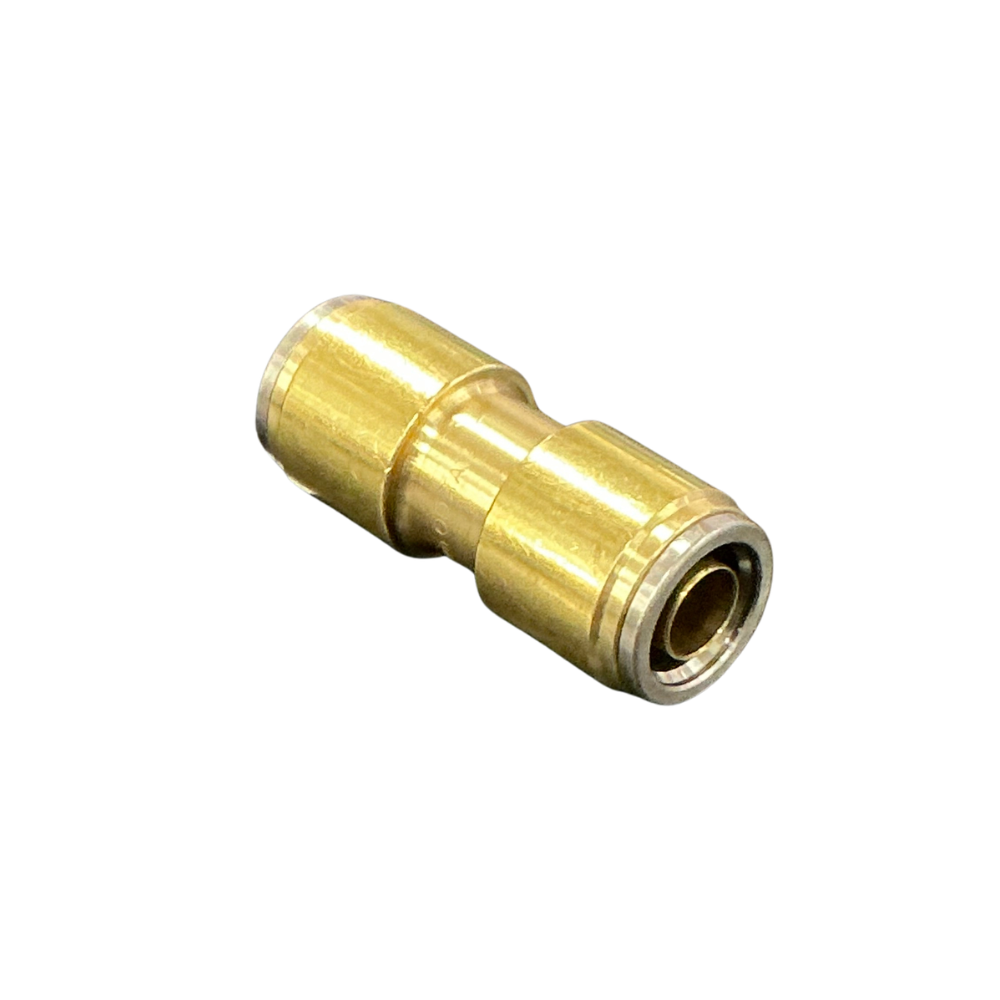

The 12mm air brake union joins two matching sections of 12mm metric nylon tube in a straight pneumatic line. It provides a direct tube-to-tube repair or extension without changing the line diameter, direction or connection type.

Features

• Two equal push-in ports suit 12mm outside-diameter metric tube.
• Straight union configuration maintains the existing air-line route.
• Brass body contains reusable gripping collets and internal pneumatic seals.
• No threaded adaptor, compression nut, olive or ferrule is required.

Specifications and Materials

This straight push-to-connect union uses a brass body with NBR internal seals and a release collet at each end. An equivalent configuration carries a maximum pressure rating of 150 psi when installed with suitable air brake tubing.

Part number: 88-M004-12.

Review the manufacturer specifications for the equivalent 12mm union connector

Compatibility and Fitment

Confirm both tube sections measure 12mm across the outside diameter. Do not substitute 1/2in imperial tube, which measures 12.7mm, or nearby 11mm and 15mm metric sizes. Check that the repair requires an equal straight union rather than a reducer, elbow, tee or bulkhead fitting. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. MDQ62DOT12, 35-M6212, 35M6212, MAQ62-DOT-12, MAQ62DOT12, M1862X12, HPMTB12, 97450307

Related Parts

This 12mm joiner is also used as a replacement component within the fitting kits below.

Compliance and Safety

Release all air pressure before cutting or disconnecting the line. Cut each tube end square and remove any scored, crushed, oval or heat-damaged section. Push both tubes fully to the internal stops, then pull back gently to confirm the collets have engaged. Support the repaired line and leak-test both connections after restoring pressure.

Trailer Applications

Workshops use this joiner to repair or extend 12mm metric tube in trailer air brake controls, air suspension plumbing, pneumatic manifolds and auxiliary air circuits. Its equal straight-through connections retain the original tube size where no branch or directional change is required.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

Metric and imperial air tube can look similar without measurement. Check the tube outside diameter with callipers, or send through a clear photo and measurement when replacing an unidentified fitting.
