Description

Overview

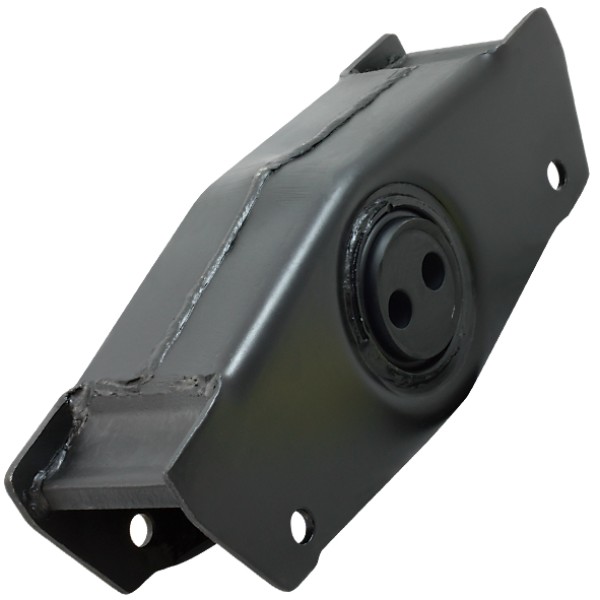

Freighter TAA39 TAA49 suspension rocker is a load-sharing suspension component used in mechanical spring trailer suspension. As the suspension moves, the rocker helps transfer load between the spring sets and keeps axle movement balanced. When the pivot point wears or loosens, bush life can suffer, so the correct rocker needs to be matched before rebuild work starts.

Features

• Suits Freighter TAA39 and TAA49 90 spring suspension setups

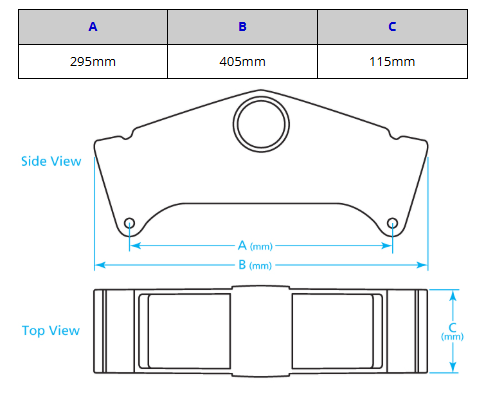

• Dimensional guide of A 295mm, B 405mm and C 115mm for part matching
• Pairs with bush SP1108, pin SP1206 and nut CH5504
• Used in mechanical trailer suspension service and rebuild work

Specifications and Materials

This Freighter TAA39 TAA49 suspension rocker suits 90 spring suspension assemblies and uses a dimensional guide of A 295mm, B 405mm and C 115mm. It is a suspension rocker for mechanical trailer spring setups, so the main selection point is matching the shape and dimensions to the removed part. Part number: SP1152.

For general trailer suspension service guidance, see the Hendrickson trailer suspension overview

Compatibility and Fitment

Before ordering, match the suspension family, spring setup and rocker dimensions against the original part. This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. 16107052, FL82.2105, FL822105, 3A6643

Compliance and Safety

Replace worn bushes, pins and retaining hardware at the same time, because a loose pivot can shorten rocker life and affect suspension movement. If the suspension family or measured dimensions do not match, do not install this part.

Trailer Applications

This Freighter TAA39 TAA49 suspension rocker is used in mechanical trailer spring suspension where the equaliser shares load between axles as the trailer moves. It suits TAA39 and TAA49 layouts, so it is relevant during suspension rebuilds, accident repairs and major bush and pin service work. It also helps when a worn rocker is creating uneven movement through the suspension assembly.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers also carries the related bush, pin and fastening hardware, so you can replace the key pivot components together instead of piecing the job together later.
