Description

Overview

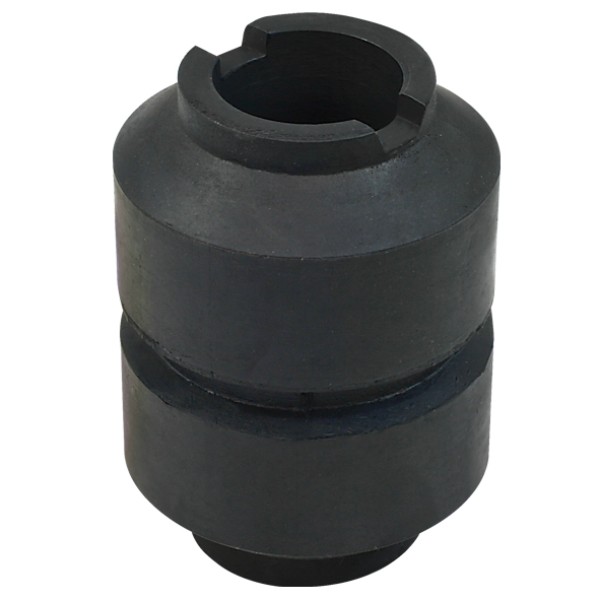

Reyco rocker bush is a rubber equaliser bush for Reyco 101, 101A and 102W suspension rocker positions. It supports the rocker pivot under load, so the inside diameter, outside diameter and overall length must match before you press in the replacement bush.

Features

• 81mm outside diameter for rocker housing fit
• 38mm inside diameter for the matching equaliser pin size
• 114mm overall length for the listed Reyco suspension applications
• Rubber bush construction for rocker pivot service work

Specifications and Materials

This part is a rubber rocker bush for Reyco mechanical suspension service work. Match 81mm OD, 38mm ID and 114mm length before ordering. Part number: SP1133.

See Reyco Granning technical literature for broader suspension service reference

Compatibility and Fitment

Check the existing bush dimensions and suspension family before ordering. This Reyco rocker bush suits Reyco 101, 101A and 102W suspension applications where the listed bush size matches the rocker eye and equaliser pin setup. This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. 08363-01, 0836301, 14713-01, 1471301, BP1109, FL80.2008, FL802008, IT1109, WT1109

Compliance and Safety

Press the bush in squarely and inspect the rocker eye and pin for wear at the same time. A worn housing or pin can shorten bush life, so replacing the bush alone does not always remove movement from the rocker assembly.

Trailer Applications

Use this Reyco rocker bush when servicing worn rocker pivots on Reyco mechanical suspension. It suits repair work where the existing bush has play, cracked rubber or poor support around the equaliser pin.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

Reyco suspension repairs go smoother when the bush size already matches the job, especially on older mechanical suspension where worn pins and rockers often show up together.
