Description

Overview

Right Weigh exterior load scale monitors axle group weight on BPW D36 large air bag trailer suspensions. After loaded calibration, the exterior mechanical gauge helps operators check axle group weight in kilograms from a weather resistant enclosure.

Features

• 30,000kg maximum weight display for axle group weight.
• Suits BPW D36 large air bag trailer suspensions.

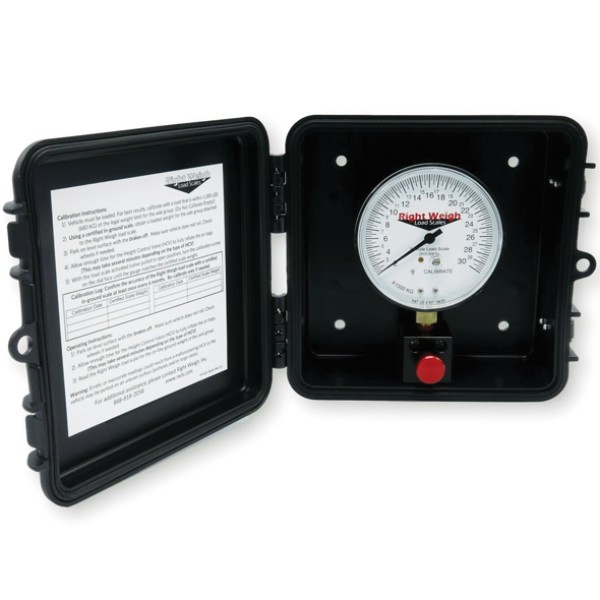

• Easy-to-read 3.5″ dial face with kilogram display.
• Weather resistant enclosure with push / pull air valve protection.

Specifications and Materials

Product type: exterior mechanical load scale.

Part number: SP0333.

This model monitors one axle group through one height control valve setup.

It supports up to three axles per axle group, so it suits tri-axle trailer arrangements with the correct BPW D36 large air bag suspension.

Enclosure: black polypropylene.

Use the Right Weigh 310-PP installation manual for installation, calibration and operation checks

Compatibility and Fitment

Match this gauge to BPW D36 large air bag suspension before ordering. Also check the axle group count, height control valve setup and available mounting position, because this version suits trailer large air bag applications only.

Calibrate the gauge with the vehicle loaded at a certified ground scale. Then operate it on level ground with the suspension fully inflated, because brake load, air leaks or uneven ground can affect the reading.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. B310-30KG-PP, B31030KGPP

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Do not rely on an uncalibrated gauge reading. Before service use, inspect the air line, fittings and gauge connection for leaks, then confirm the display against the certified axle group weight during loaded calibration.

Trailer Applications

Trailer fleets use the Right Weigh exterior load scale on BPW D36 large air bag suspension setups where axle group weight needs a visible exterior mechanical display. As a result, this model suits operators who need quick load checks after the gauge has been correctly installed and calibrated.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers can help match load scale type, axle group setup, height control valve layout and air bag application before ordering. See more parts in ICS Trailers Right Weigh load scales
