Description

Overview

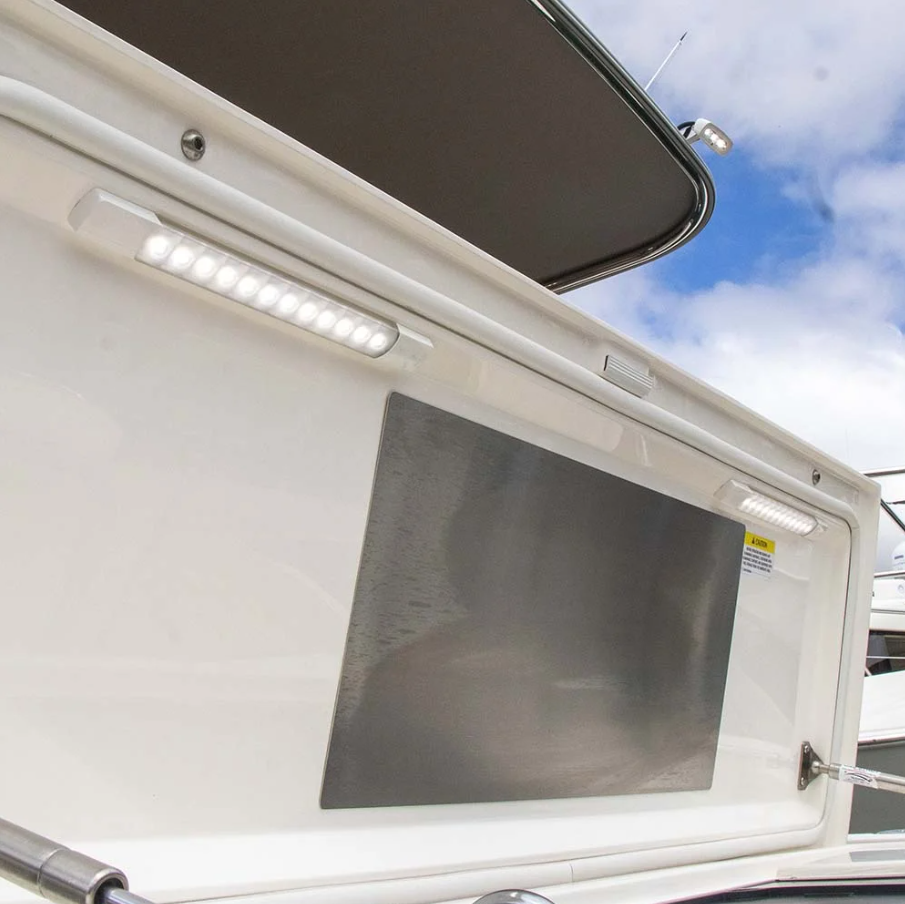

Hella Marine 24V strip lamp gives bright white lighting in a slim surface mount body with a sealed integrated switch. It suits marine interiors, utility compartments, canopy fit-outs, lockers, service areas and other 24V setups where a compact lamp needs to handle moisture and vibration.

Features

• 250 lumen white output with 5000K colour temperature.
• Integrated sealed on/off switch for simple local control.
• IP67 sealed housing for wet or dry interior and exterior locations.
• Low-profile 283mm body with pre-wired cable for surface mounting.

Specifications and Materials

Product type: surface mount LED strip lamp with switch.

Part number: 2JA 958 123-401.

Voltage: 24V DC.

Light output: 250 lumens.

Colour temperature: 5000K white.

Power consumption: under 3W.

Dimensions: 283mm length, 25mm width and 11mm height.

Material: UV-resistant enhanced impact acrylic housing and lens.

Use the Hella Marine surface mount strip lamp technical page for full product specifications and installation details

Compatibility and Fitment

Match this lamp to a 24V DC electrical system before ordering. Also check the mounting space, cable path and switch access, because the slim body suits tight locations where a bulky lamp would be harder to fit.

For a clean install, use the listed mounting centres and cover the fixing screws with the end caps. If dimming is needed, confirm the dimmer setup suits Hella Marine PWM-compatible strip lamps.

Compliance and Safety

Disconnect power before installation and confirm polarity before final testing. The lamp includes reverse polarity protection, but correct wiring, suitable circuit protection and sealed cable routing still matter in damp or exposed areas.

Trailer Applications

This is a marine-grade strip lamp rather than a dedicated trailer marker or road lamp. However, it can suit 24V accessory lighting jobs such as boat interiors, service bodies, storage areas, enclosed canopies and utility compartments where compact white lighting is needed.
