Description

Overview

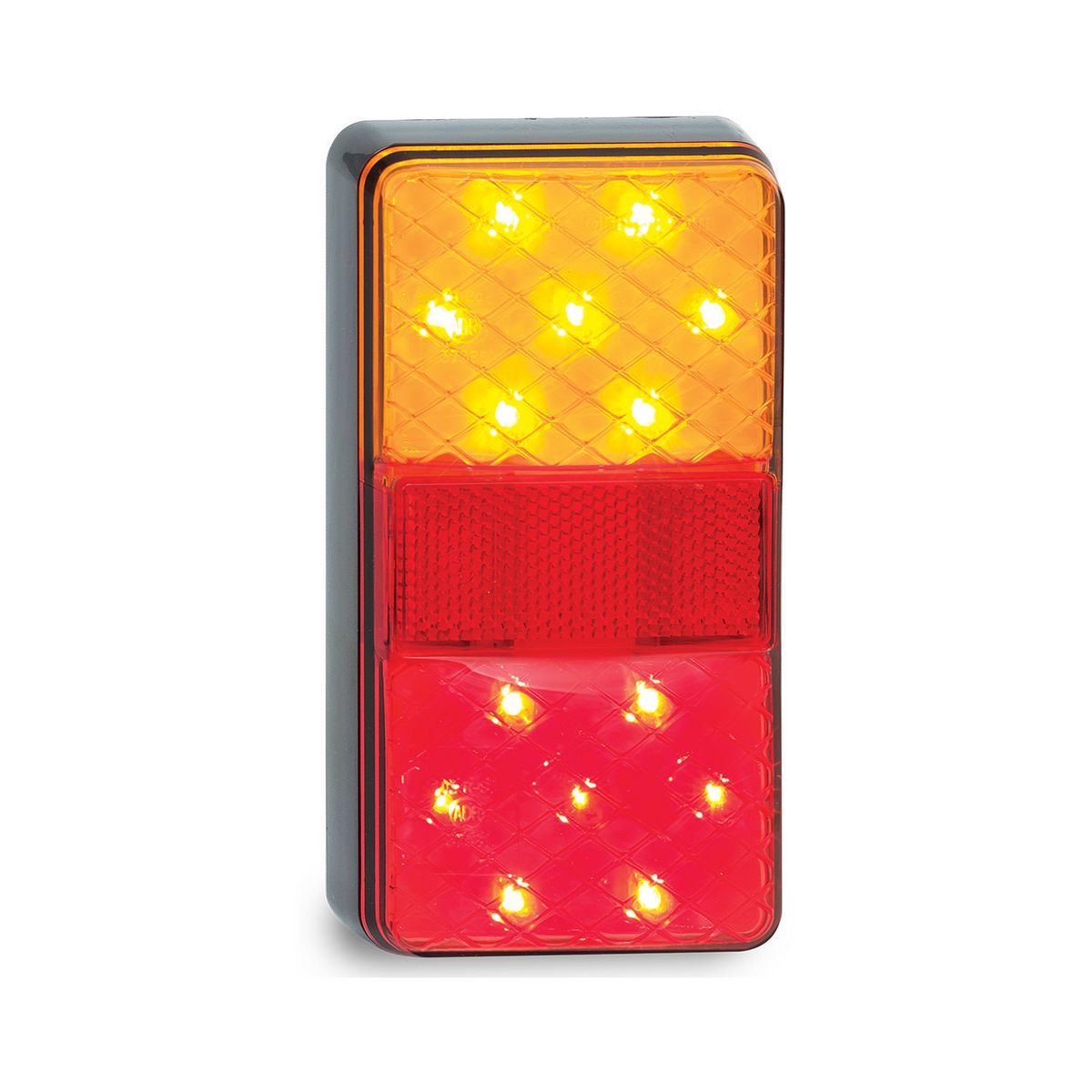

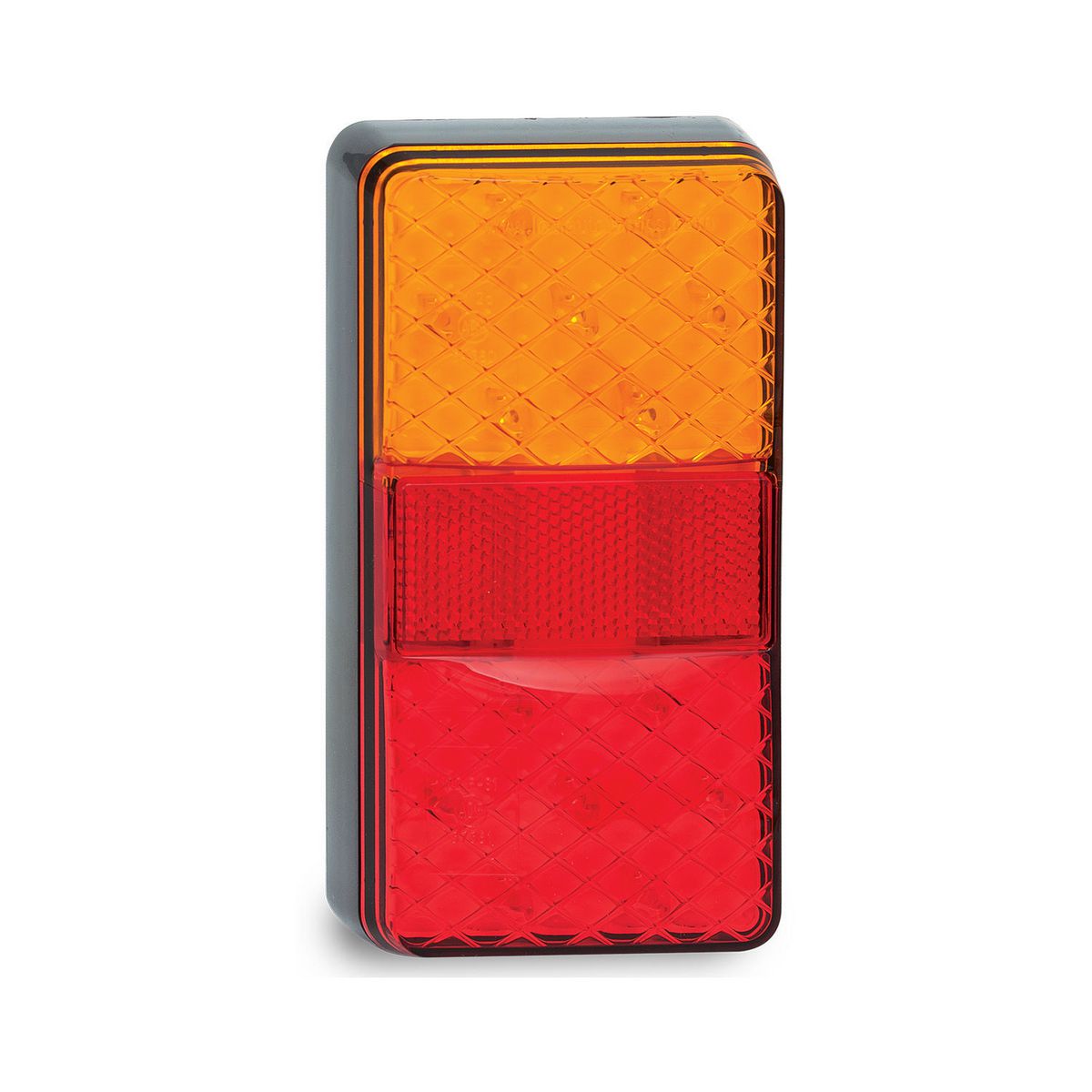

Stop tail indicator lamp handles rear trailer lighting with stop, tail, indicator and reflex reflector functions in one compact unit. The diamond pattern lens and low profile body suit small trailer rear panels where space is tight but full rear signalling still matters.

Features

• Stop, tail, indicator and reflector functions in one rear lamp
• 12-24V multivolt operation for trailer and vehicle electrical systems
• Low profile 150mm x 80mm body with diamond pattern lens
• 14 LED layout with IP67 rated sealing and ADR approval

Specifications and Materials

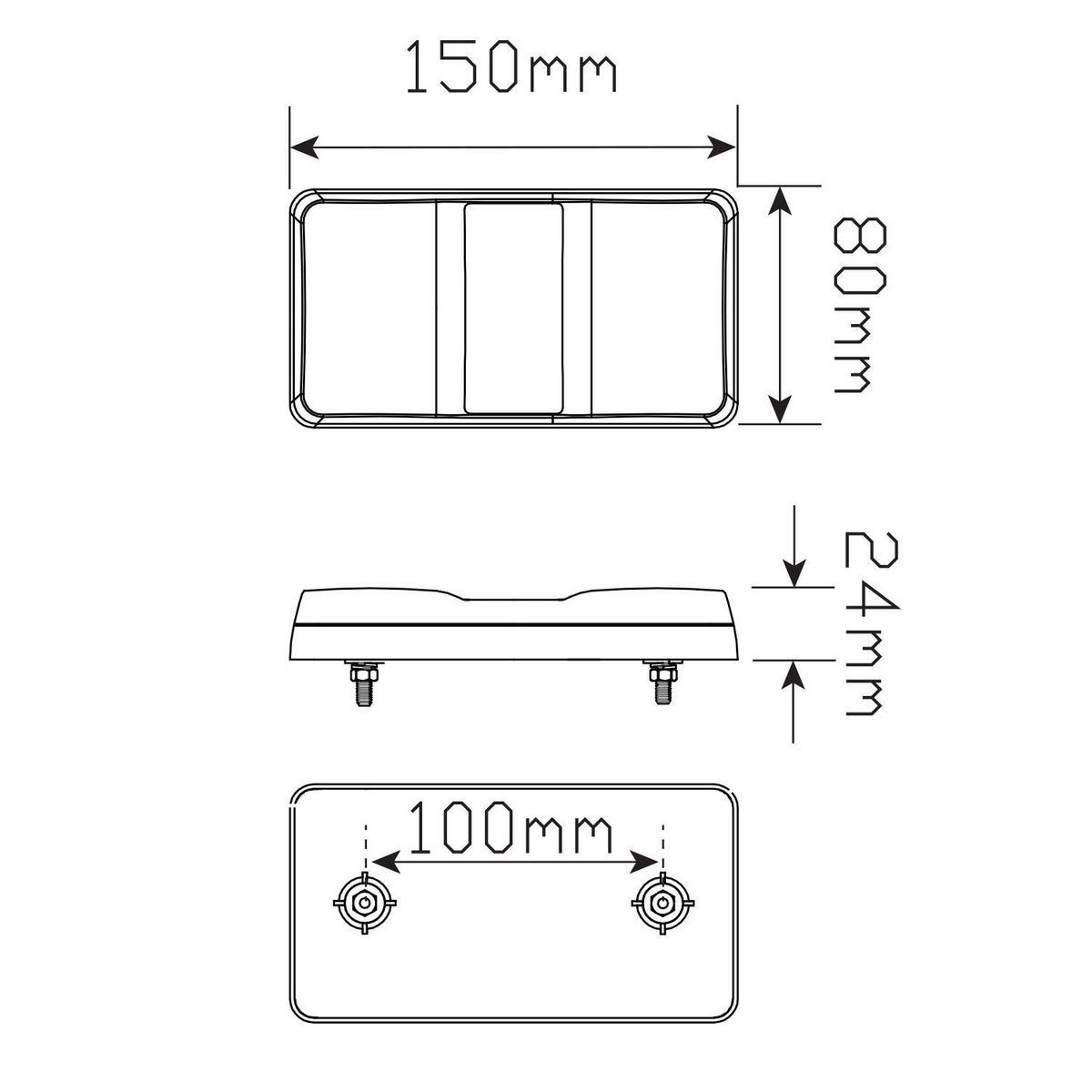

This rear combination lamp measures 150mm x 80mm x 24mm and carries 14 LEDs. It includes a 30cm cable with plug, hardened acrylic lens and ABS base.

Part number: 150ARM.

Current draw is 0.13A stop, 0.04A tail and 0.12A indicator at 13.8V. At 28V, draw is 0.12A stop, 0.06A tail and 0.07A indicator.

See the manufacturer technical guide

Compatibility and Fitment

Check the mounting space, voltage range and rear lamp layout before ordering. Mount the lamp vertically on a flat surface with the indicator at the top, then run the wire and plug through a 10mm hole in the fixing surface.

Related Parts

Check the related versions below against the trailer setup before ordering.

Compliance and Safety

Confirm the stop, tail, indicator and reflector positions after installation. Also check the cable route and mounting pressure, because trapped wiring or uneven fastening can affect how the lamp sits against the rear panel.

Trailer Applications

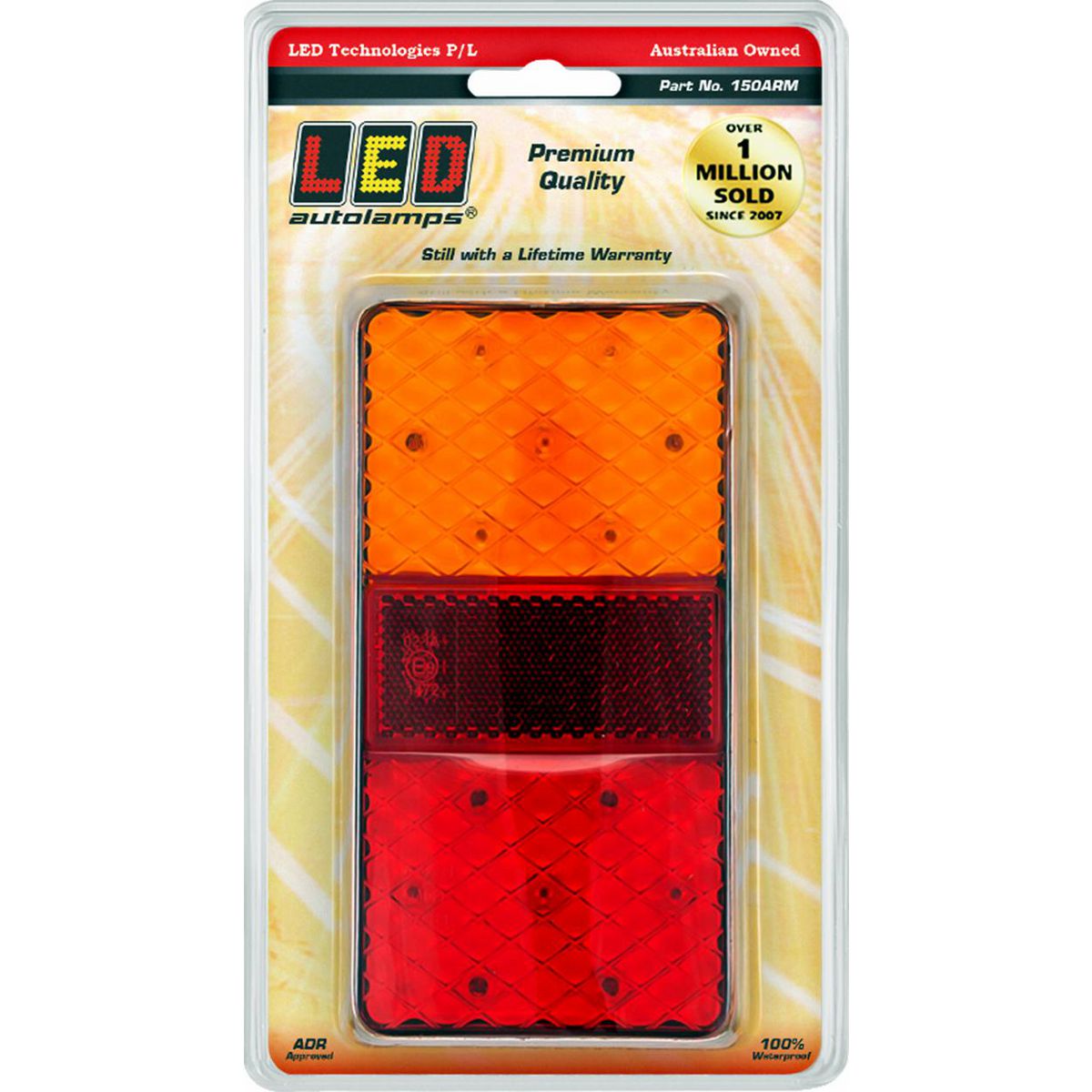

Workshops fit compact rear combination lamps on box trailers, utility trailers, small plant trailers, tray bodies and caravan rear panels. This single blister version suits one-side replacement work or matched left and right repairs when the same lamp style runs on both sides.
