Stop Tail Lamp Multi Volt 135mm
Stop Tail Lamp Multi Volt 135mm
$39.00

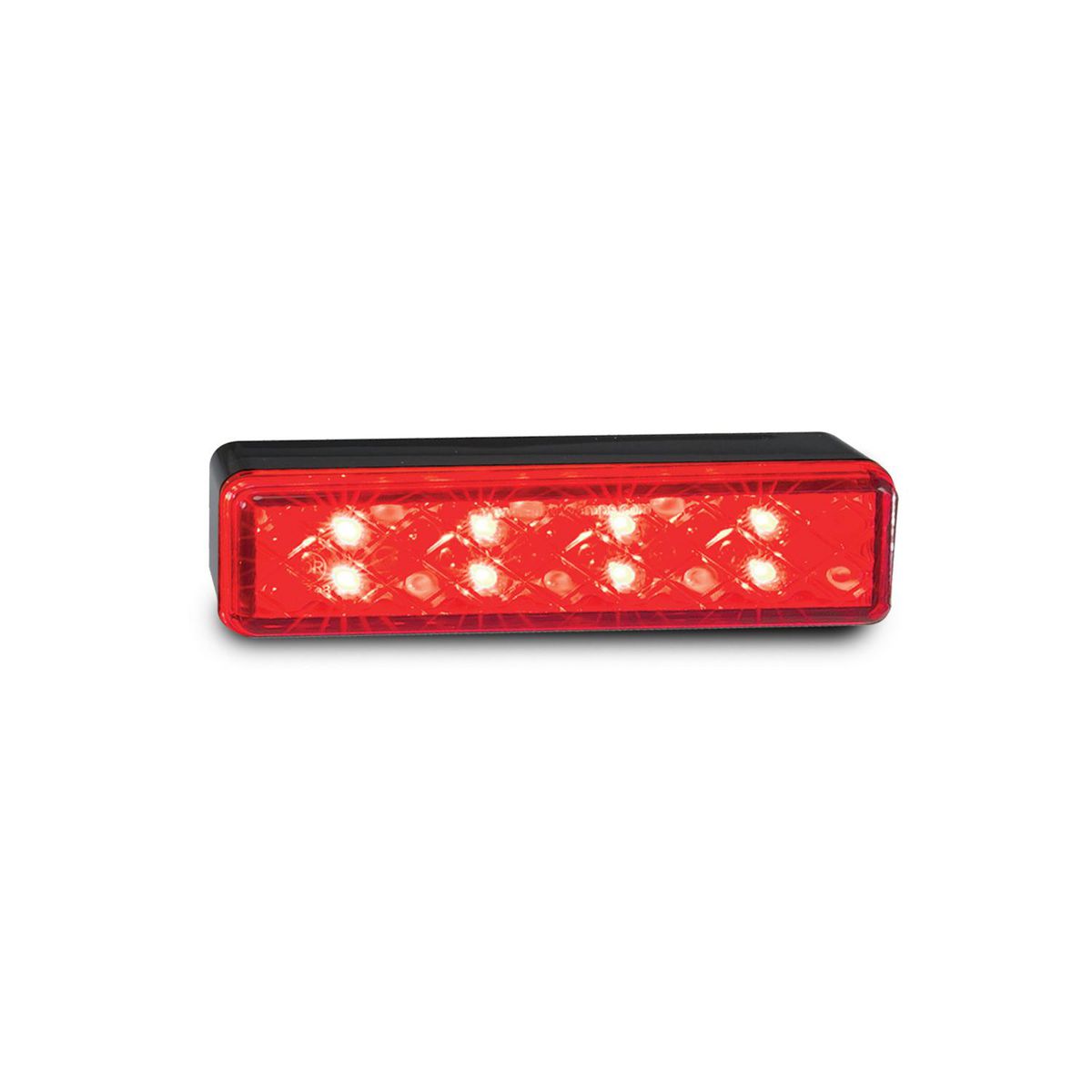

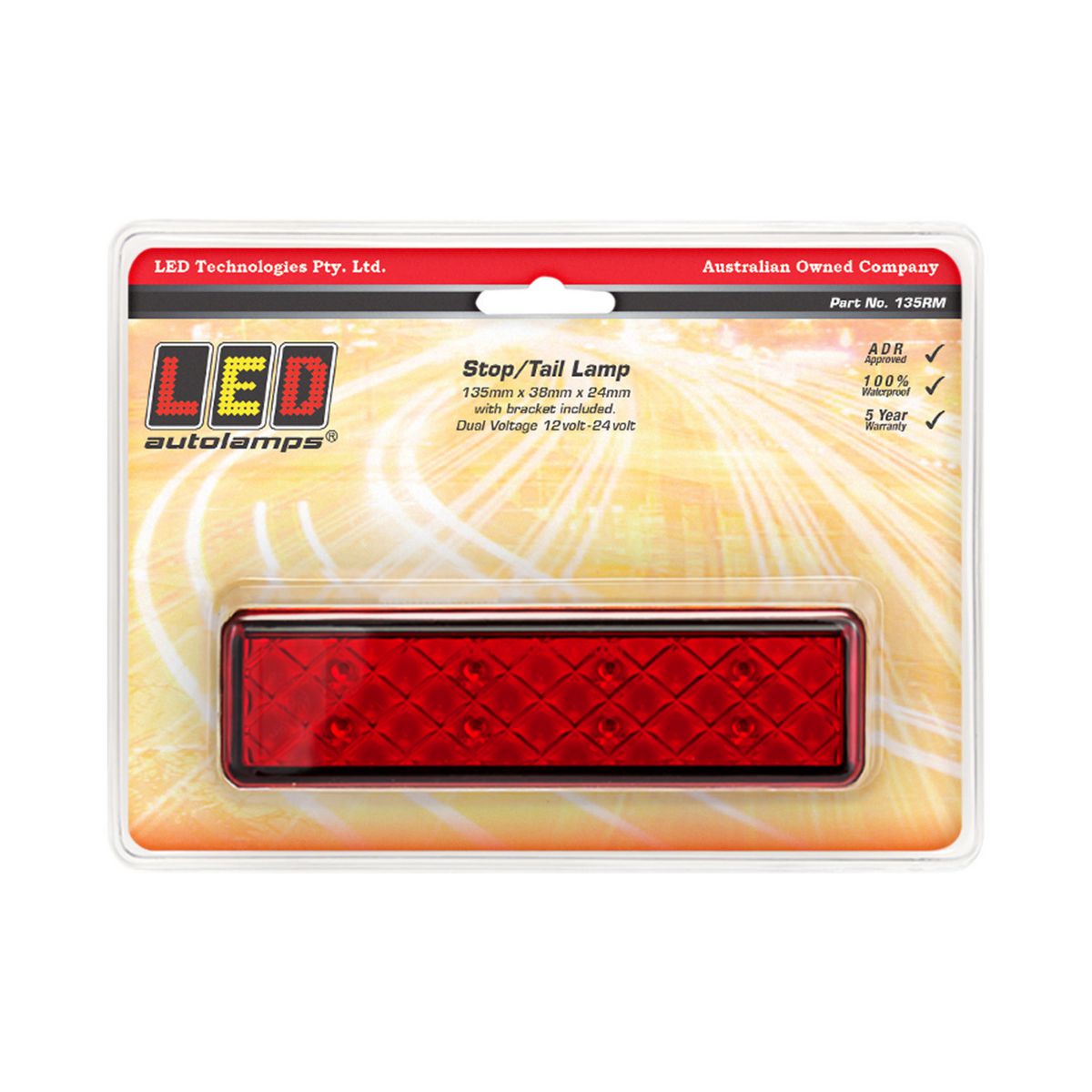

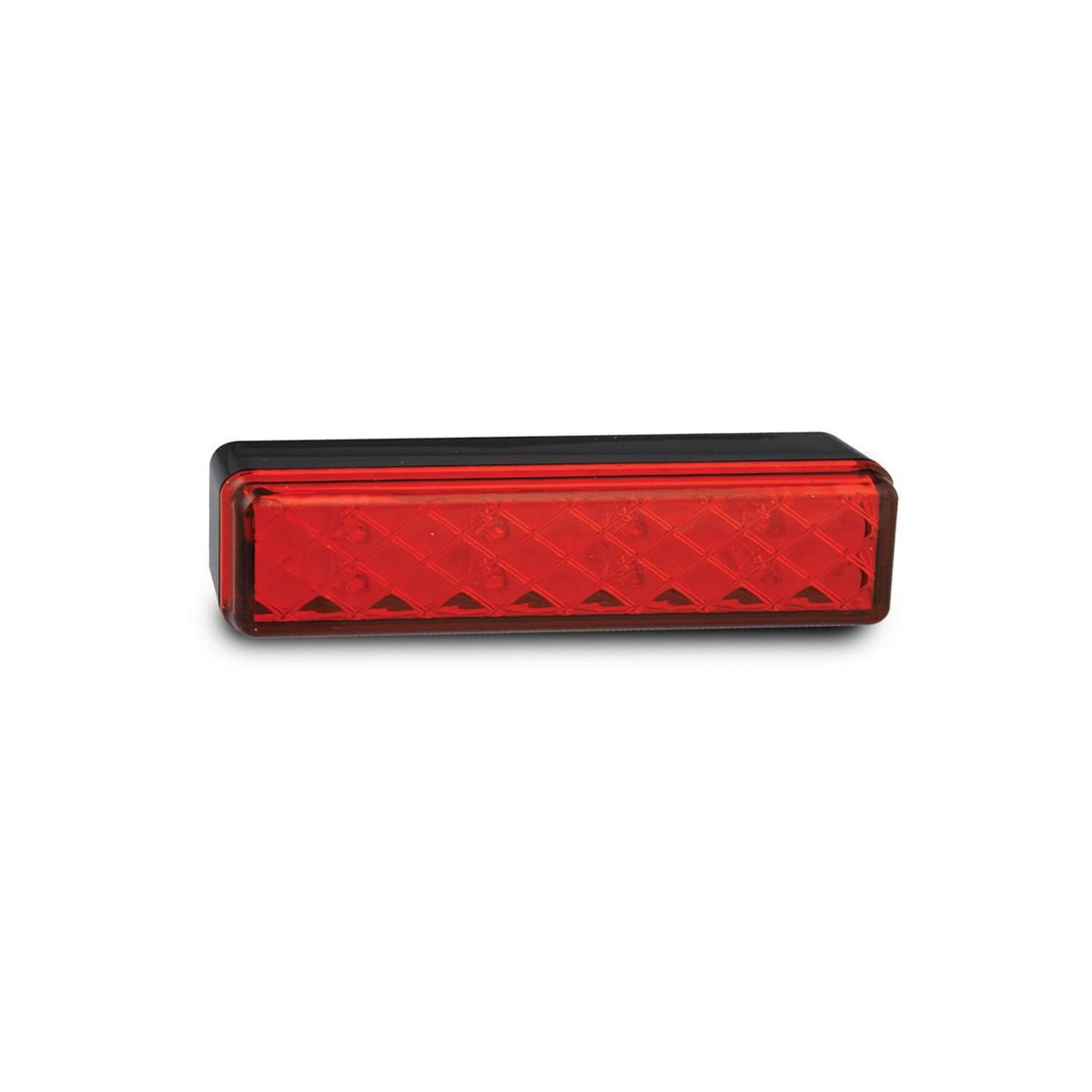

Stop tail lamp suits compact trailer rear lighting with 8 LEDs, 12-24V operation, surface mounting and a 135mm x 38mm body.
Part number 135RM.
Description
Overview
Stop tail lamp restores rear stop and tail light function in a compact multi volt housing. The slim body suits tight rear mounting points. It also gives a clean option where a small surface-mount rear lamp is needed.
Features
- 8 LED layout for stop and tail functions.
- Surface-mount design with black base.
- Multi volt operation for 12V and 24V systems.
- IP67 sealing and ADR approval for rear lighting use.
Specifications and Materials
Part number: 135RM.

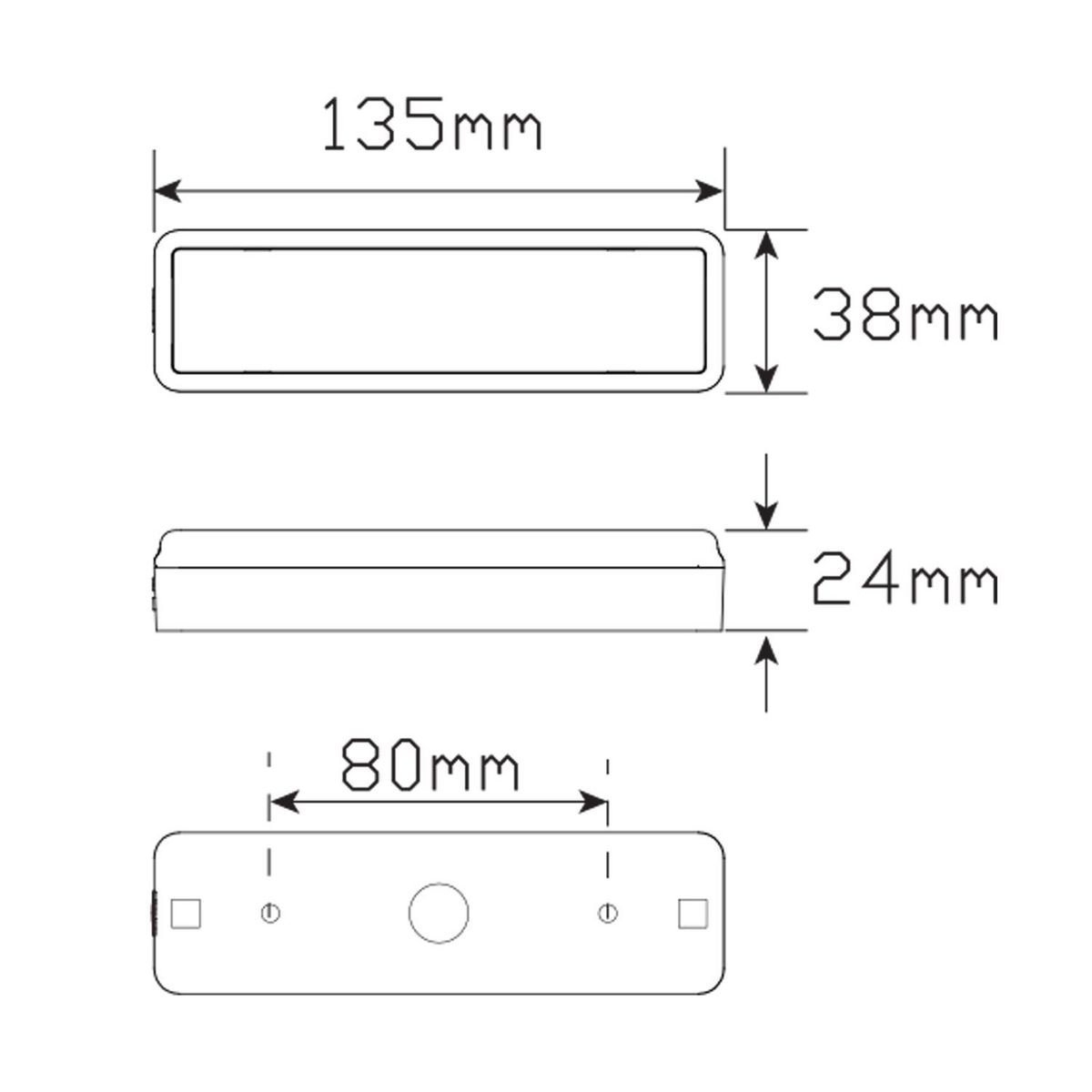

This stop tail lamp measures 135mm x 38mm x 24mm and uses 8 LEDs with a 40cm cable. Current draw is 0.11A for stop and 0.02A for tail at 13.8V. At 28V, draw is 0.08A for stop and 0.02A for tail. The lamp mounts on a surface bracket, and it also accepts a recess-mount grommet when that setup suits the job.
See the LED Autolamps 135 Series technical page
Compatibility and Fitment
Match the lamp size, voltage range, rear light function and mounting style before ordering. This lamp suits rear stop and tail applications on trailers, service bodies and commercial vehicles. Check the mounting face and cable path as well, especially when changing from a larger lamp.
Related Parts
Check the related service parts below against the trailer setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Grommet to suit | 135G-1 | Rubber grommet |
Compliance and Safety
Inspect the mounting bracket, cable entry and earth connection before fitting. Replace cracked lenses, damaged wiring and loose fixings at the same time. Good rear stop and tail performance matters because other drivers rely on a clear brake and tail signal.
Trailer Applications
Workshops fit this stop tail lamp on trailers and light commercial bodies that need a small rear combination lamp. It suits compact rear bars, mudguard brackets and other narrow mounting areas. It also works well when fleets want one multi volt lamp across mixed 12V and 24V equipment.
Why Choose ICS Trailers
ICS Trailers supplies practical lighting parts for trailer repairs and workshop replacements, with attention on function, size and mounting style. Browse more products in LED Lights
Online prices apply to website orders only. In-store pricing may differ.
