Description

Overview

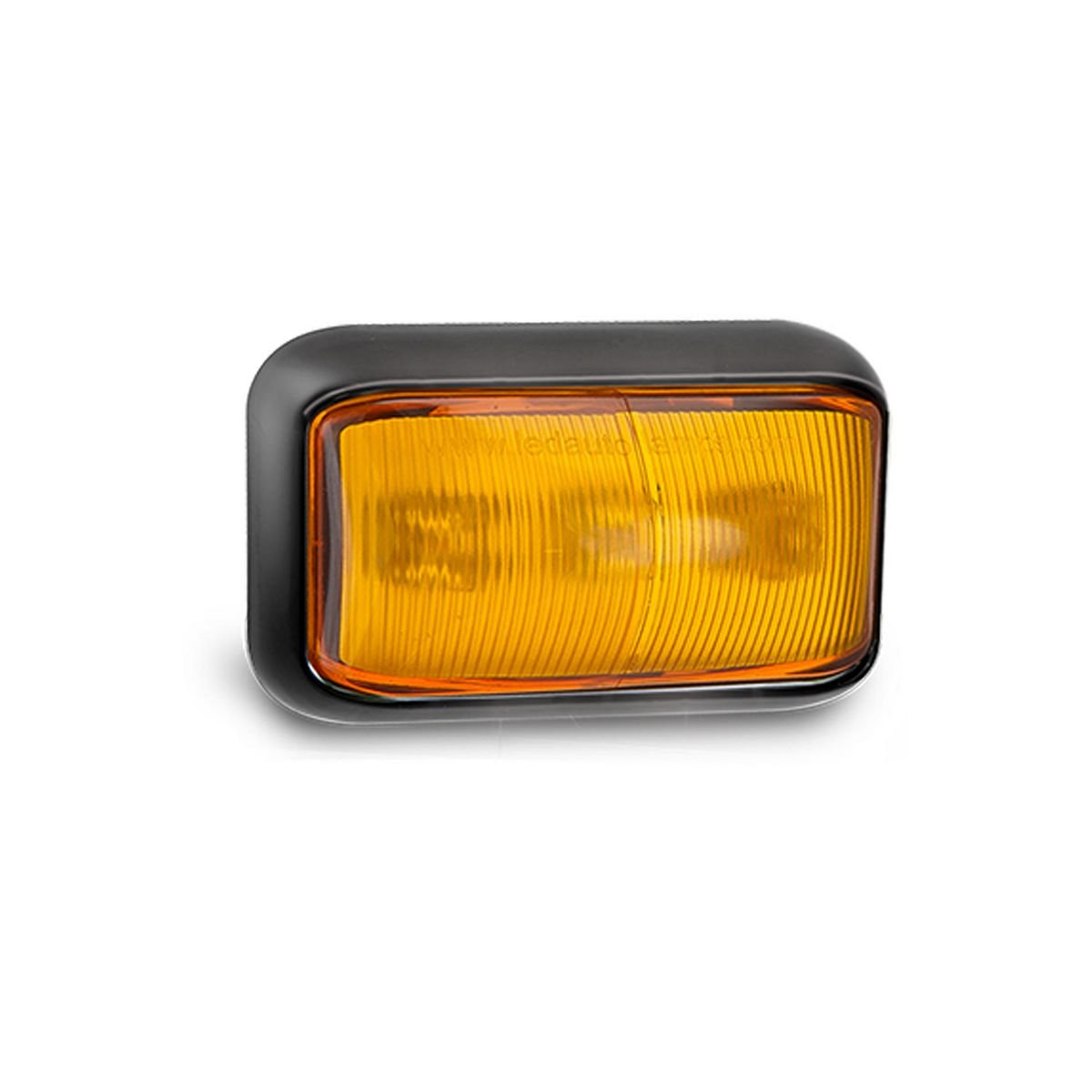

Side direction indicator lamp gives trailer and vehicle body sides an amber turn signal with a compact low profile housing. The 58mm body suits tight side marker positions where the lamp needs to sit neatly against the body and still remain easy to service.

Features

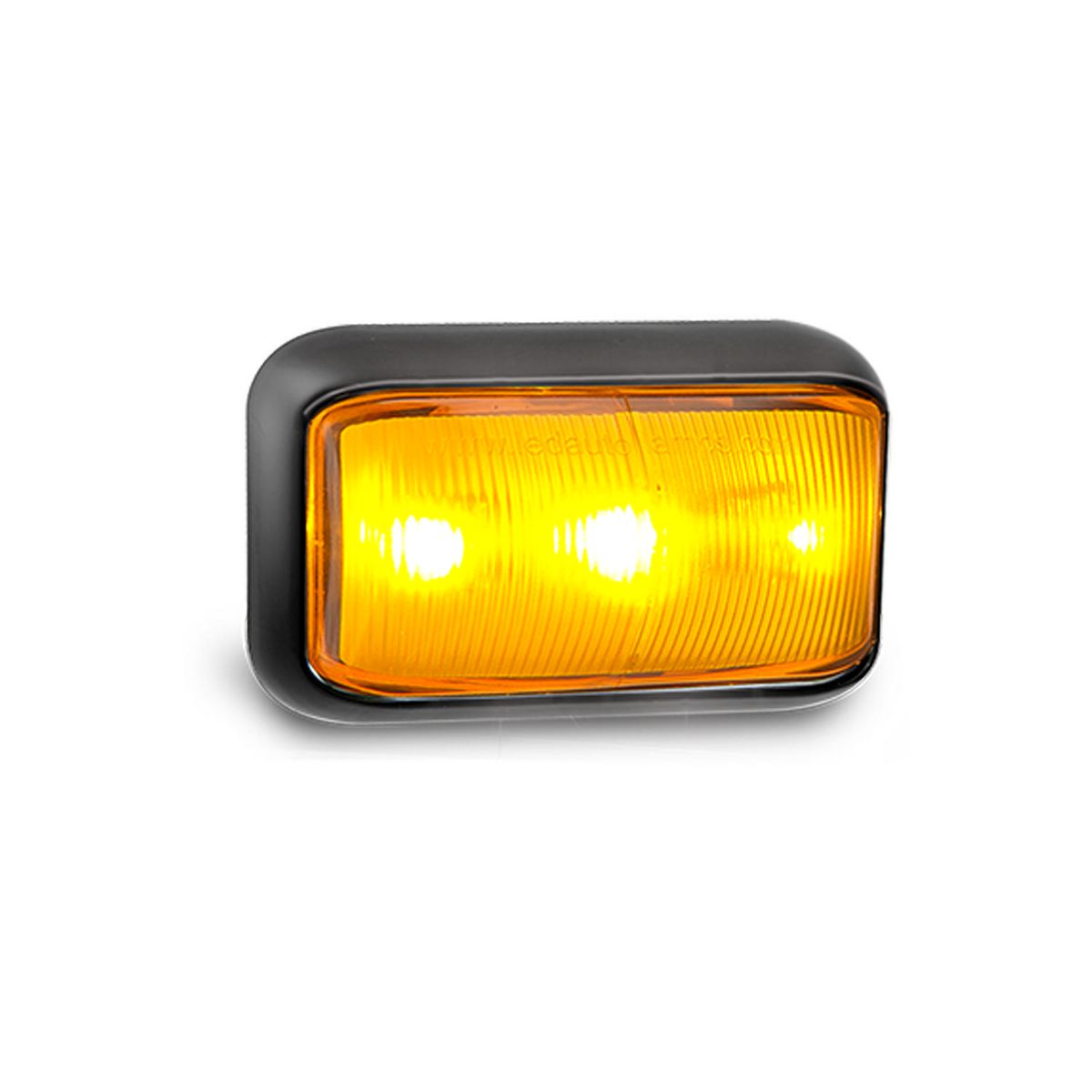

• Amber side direction indicator with 3 LEDs.
• Low profile 58mm body for compact side light positions.
• Clip-in replaceable lens for easier lens servicing.
• ADR approved, IP67 rated and covered by a 5 year warranty.

Specifications and Materials

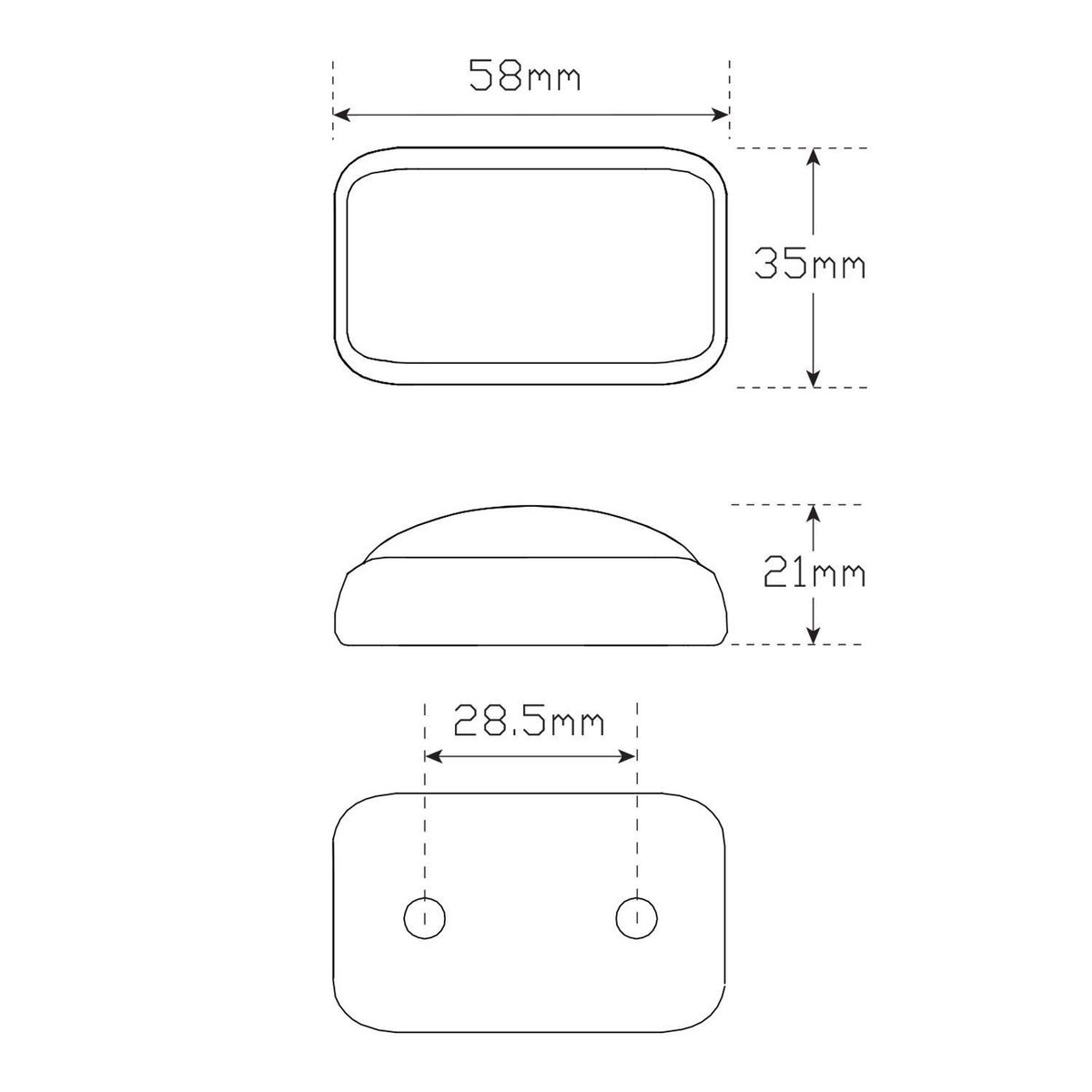

This side direction indicator lamp measures 58mm x 35mm x 21mm and draws 0.10A at 13.8V or 0.04A at 28V. It mounts with a surface bracket and uses a clip-in lens.

Part number: 58AM.

Approval details include ADR Side Direction 6/00/5 and CTA 060030.

See the manufacturer technical details

Compatibility and Fitment

Match the side direction indicator lamp to the trailer voltage, side indicator position, amber lens requirement and available mounting space before ordering. Surface mount the bracket onto a flat section of the body, then run the wiring through the rear before clipping the lens into place.

Check visibility from the side before drilling, especially around guards, mudflaps, toolboxes and tray hardware. Also confirm polarity and earth path before final fitment.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Confirm the lamp colour, mounting side and indicator function before the trailer returns to road use. If the lamp replaces a damaged side indicator, inspect the wiring and bracket at the same time because impact damage can loosen both.

Trailer Applications

Trailers use a side direction indicator lamp where side visibility matters around longer bodies, trays, service trailers and light commercial builds. The compact housing suits trailer sides where a larger lamp would sit too proud or clash with body hardware.

Why Choose ICS Trailers

Side indicator lighting needs to match the body position, voltage and mounting surface before it goes on. ICS Trailers can help line up marker lamps, indicator lamps and trailer electrical hardware for repair, refit and build work.
