Description

Overview

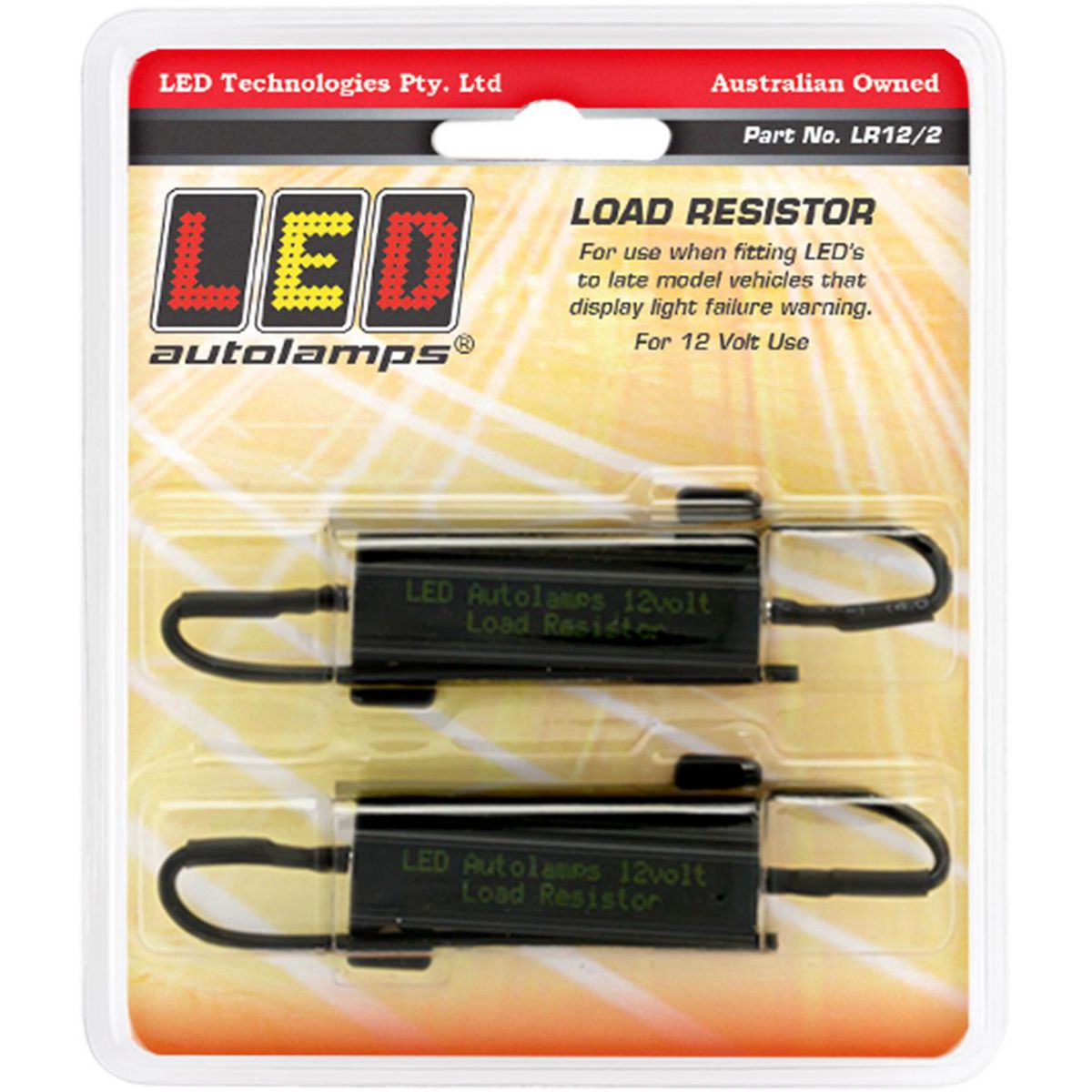

12V load resistor helps correct LED indicator warning faults and fast flash issues on vehicles that expect the current draw of a standard globe. The twin blister pack suits left and right side lighting circuits where a resistor needs to simulate a 21 watt globe load.

Features

• Pair of 12V load resistors for LED indicator correction work.
• 50 watt 6Ω specification to simulate the load of a standard globe.
• IP67 shock, dust and water protection for exposed vehicle and trailer areas.
• Designed for late model vehicles with light failure warning systems.

Specifications and Materials

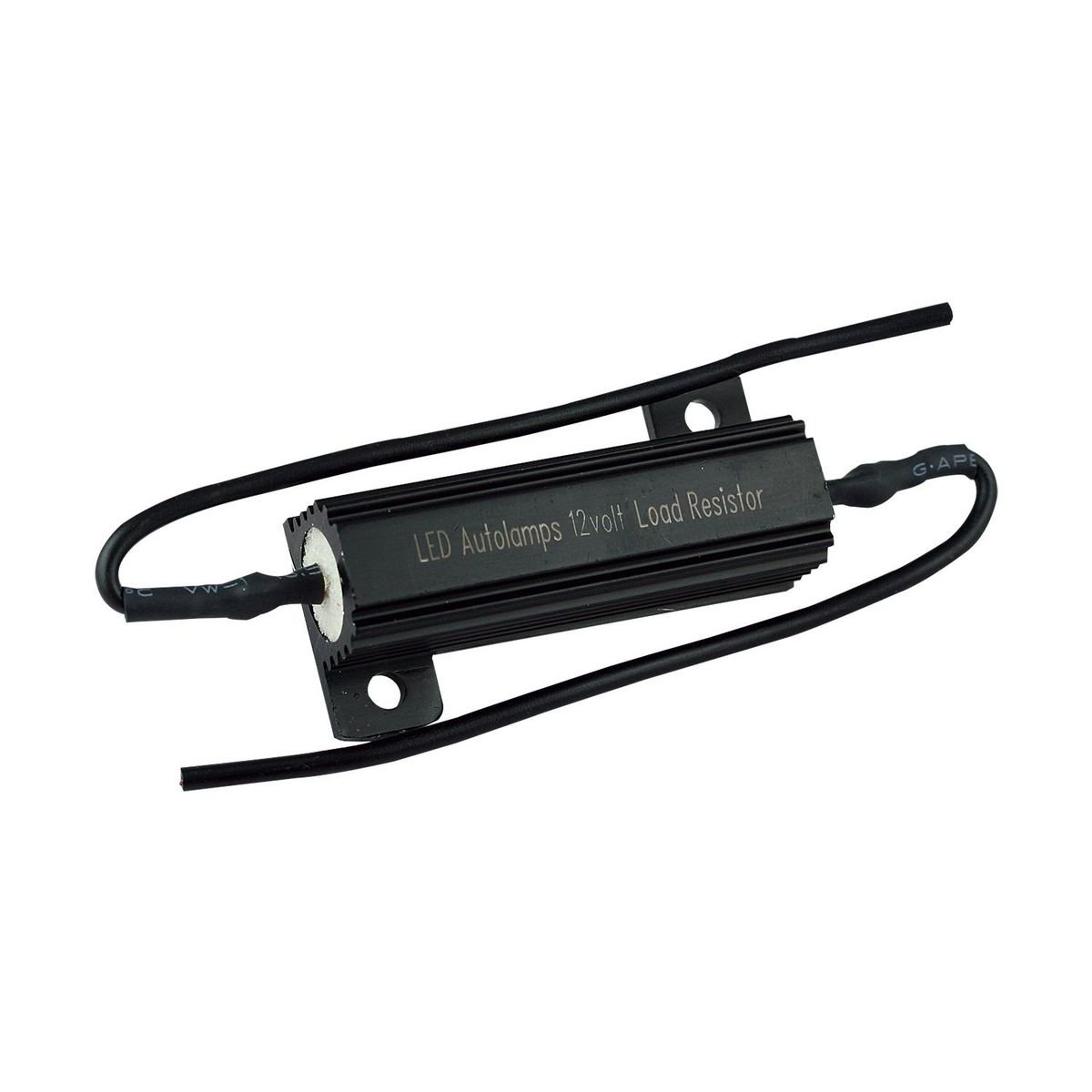

This 12V load resistor twin pack includes two 50 watt 6Ω resistors. Each resistor must mount to a metal surface because the body can become very hot during operation.

Part number: LR12/2.

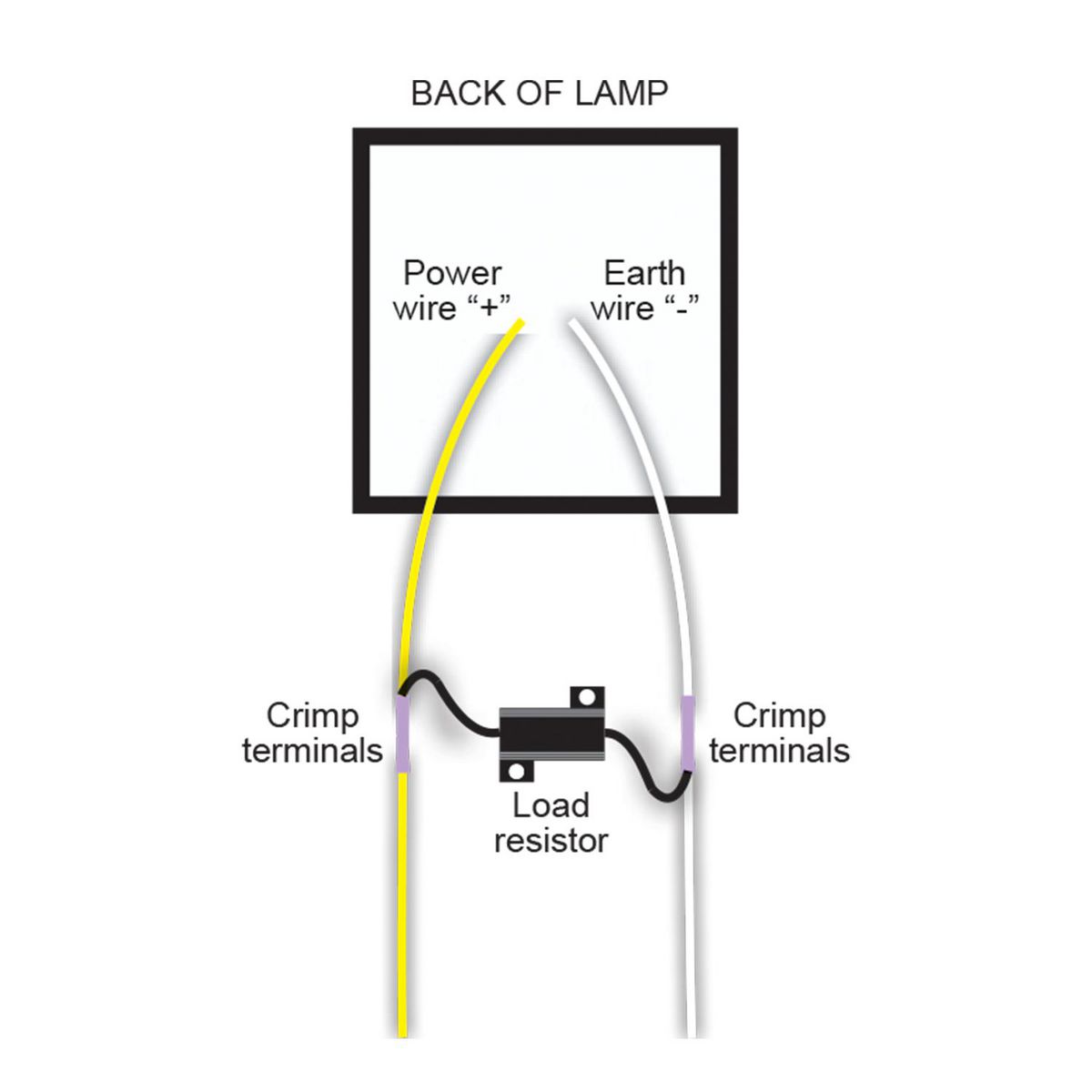

Use one resistor per affected lighting function and side where the vehicle needs load correction. Wire the resistor between the input wires of the lamp, not directly to the chassis.

See the manufacturer technical details

Compatibility and Fitment

Match the 12V load resistor to a 12V lighting circuit, LED lamp conversion and the warning or flash fault being corrected. Before fitting, confirm whether the problem comes from low current draw rather than a poor earth, damaged plug or incorrect wiring.

Mount the resistor away from plastic, wiring insulation, fuel lines and other heat-sensitive parts. If the trailer uses multiple LED functions, check which circuit needs correction before adding extra resistors.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Confirm the resistor sits firmly on a metal mounting surface before powering the circuit. Because load resistors generate heat, keep the body clear of loom tape, plastic guards, rubber, paint-sensitive surfaces and anything that could melt or burn.

Trailer Applications

Workshops use a 12V load resistor when LED trailer or vehicle lamps cause dash bulb warnings, rapid flashing or lamp monitoring faults. It suits LED lighting conversions where the vehicle still expects the draw of an older incandescent globe.

Why Choose ICS Trailers

Load correction needs to match the voltage, lamp function and wiring fault before parts get added. ICS Trailers can help line up resistors, LED lamps and trailer electrical hardware for repair, refit and build work.
