Description

Overview

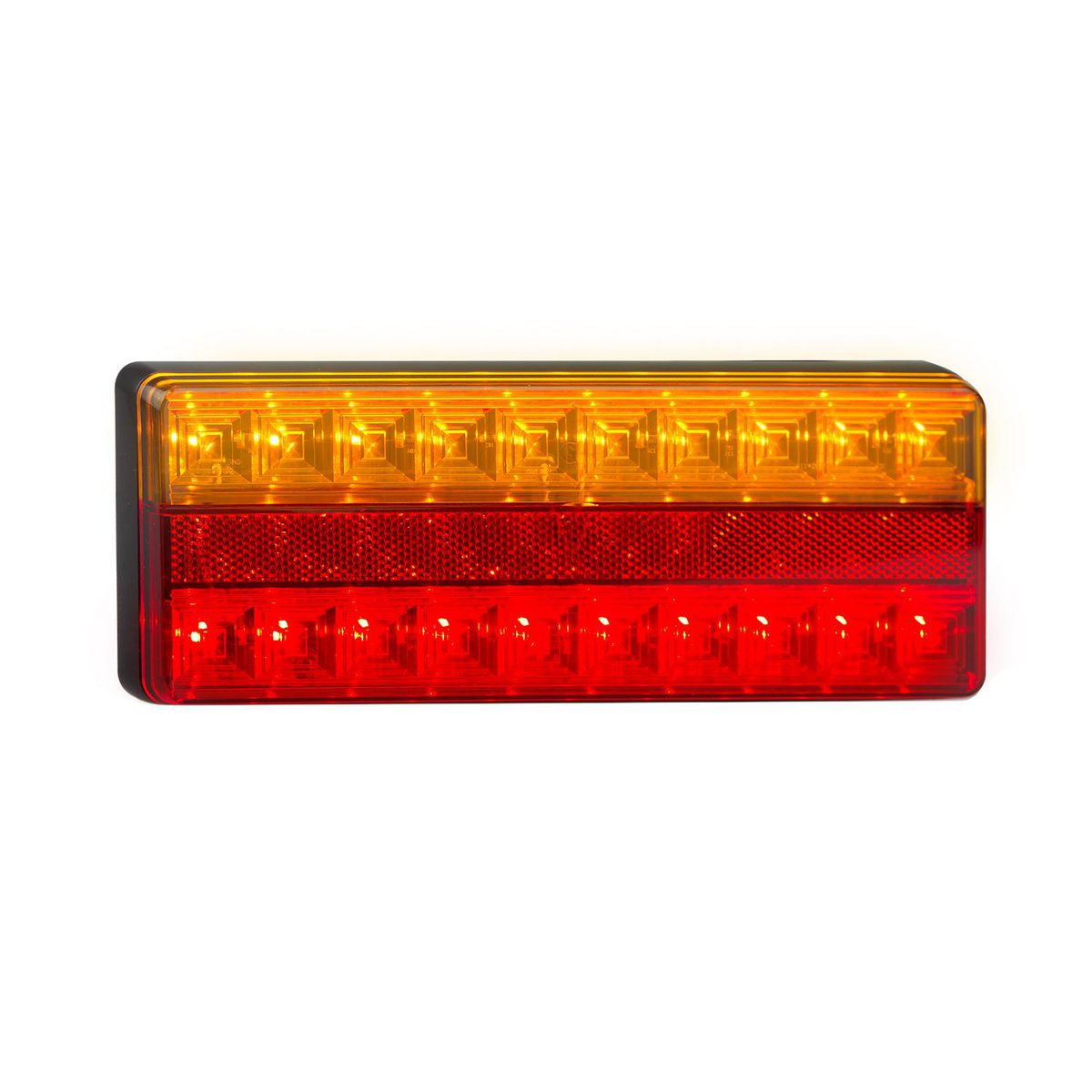

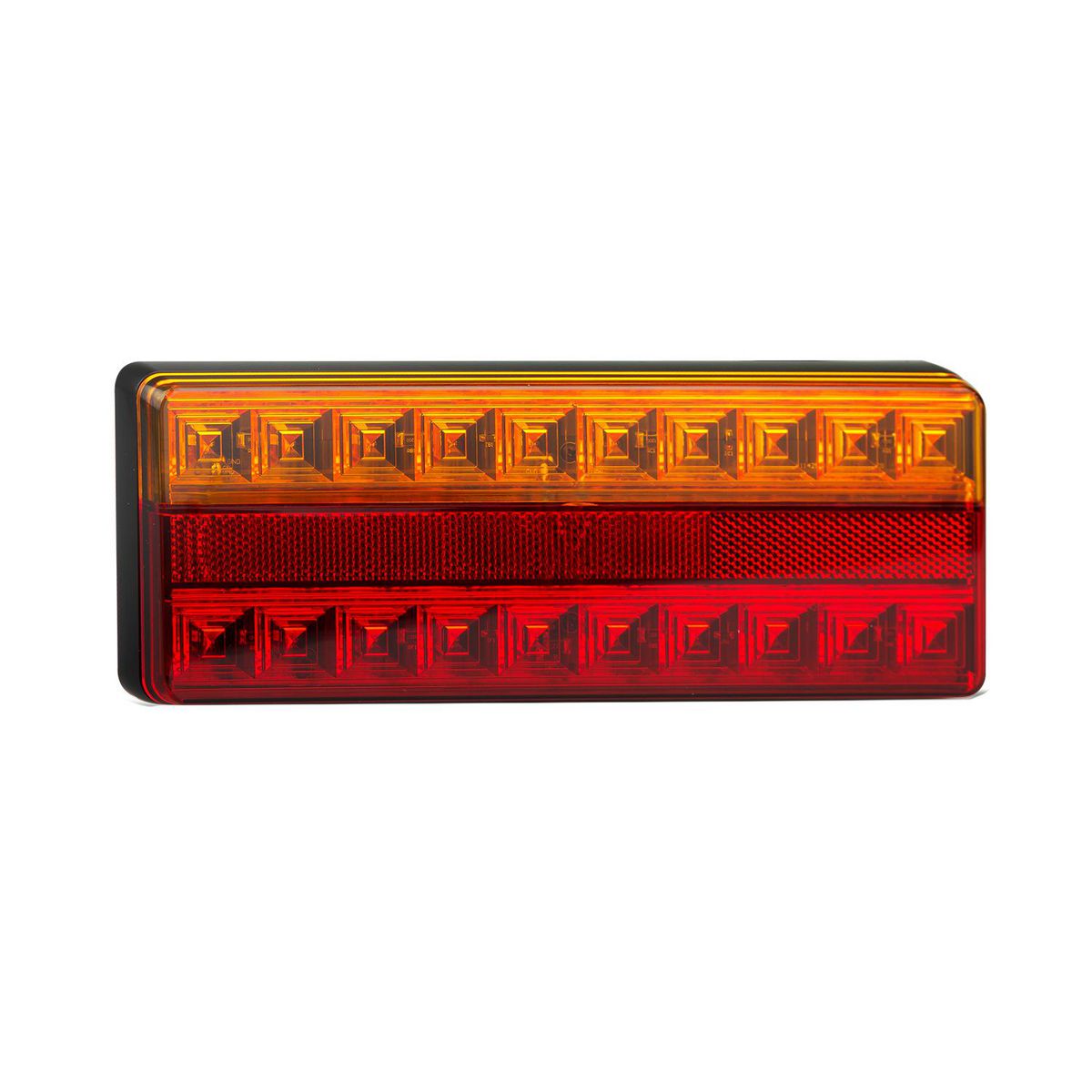

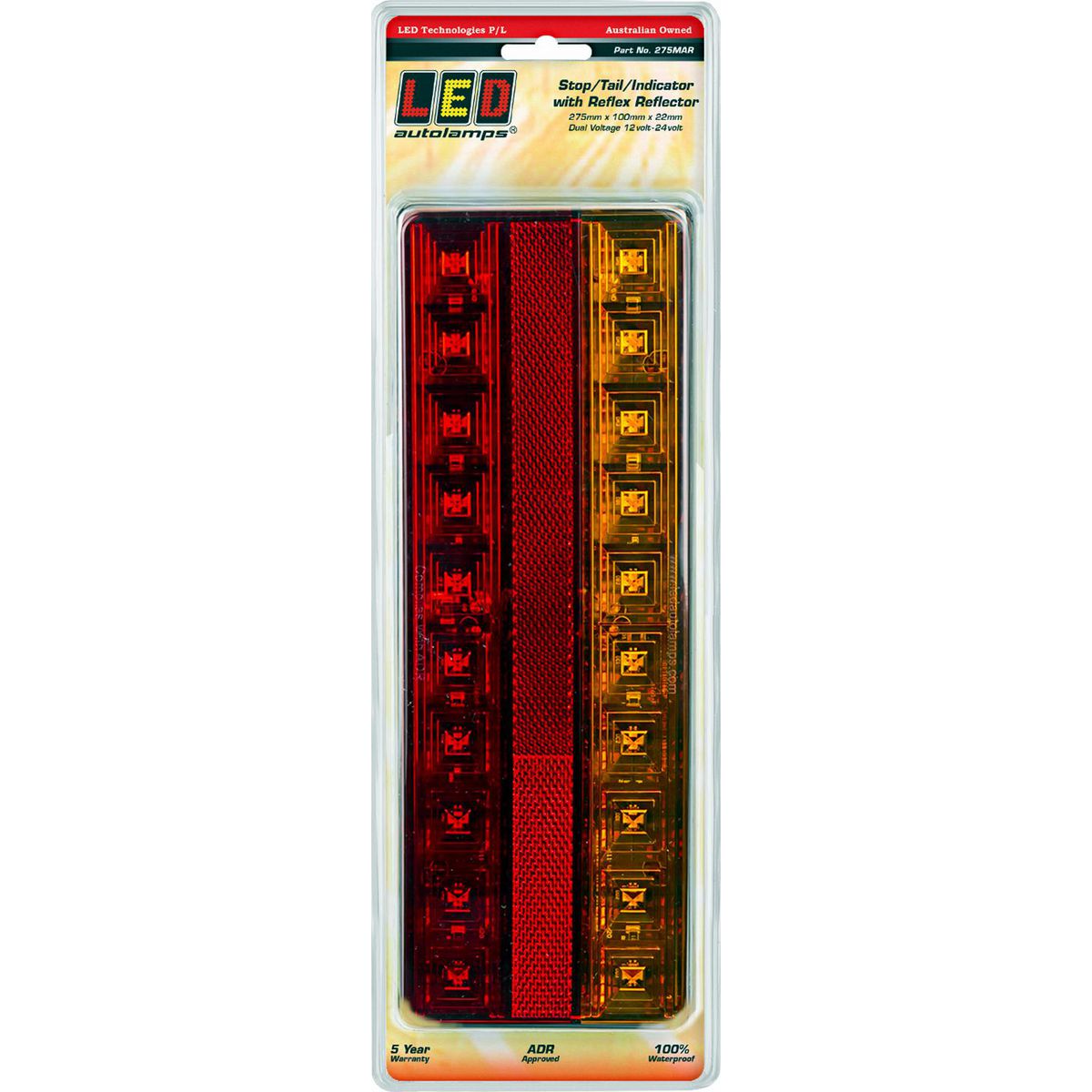

Rear combination lamp combines stop, tail, indicator and reflex reflector functions in one low profile rear lighting unit. The 12-24V multivolt design suits trailer, tray and small truck rear panels where a single lamp needs to cover the main rear lighting duties without adding a separate reflector.

Features

• Stop, tail, indicator and inbuilt reflex reflector functions.
• Low profile 275mm body for rear panels, trays and light commercial builds.
• 12-24V multivolt operation for mixed vehicle and trailer systems.
• ADR approved, IP67 rated and covered by a 5 year warranty.

Specifications and Materials

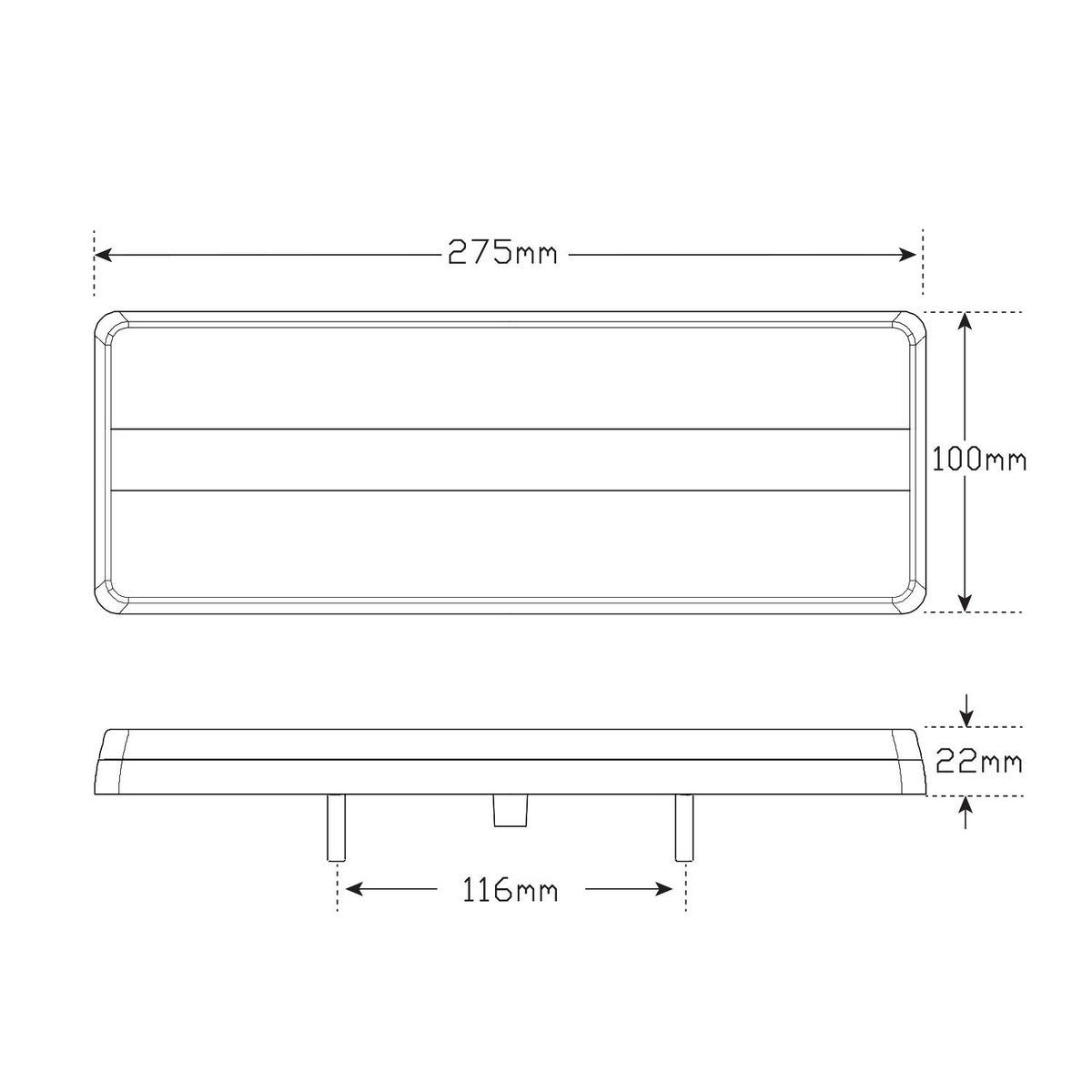

This rear combination lamp measures 275mm x 100mm x 22mm and carries a 28cm sheathed cable. It uses 20 LEDs, with a PMMA lens and ABS base.

Part number: 275MAR.

Current draw is 0.23A stop, 0.04A tail and 0.22A indicator at 13.8V, then 0.12A stop, 0.04A tail and 0.12A indicator at 28V.

See the manufacturer technical details

Compatibility and Fitment

Match the rear combination lamp to a 12V or 24V rear lighting circuit, surface mount position and stop, tail, indicator and reflector layout before ordering. Mount the lamp horizontally on a flat surface with the indicator at the top, then run the wire and plug through a 10mm hole in the fixing surface.

Before drilling, check rear clearance, bolt position and visibility around guards, ramps, tray sides and body hardware. Also confirm the wiring path keeps the cable protected from rubbing and sharp panel edges.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Confirm stop, tail, indicator and earth connections before final fitment. For road registered trailer work, follow the required rear lighting layout and keep the reflector face visible after any tray, ramp or rear body hardware gets fitted.

Trailer Applications

Workshops fit a rear combination lamp to small trays, utility bodies, service trailers and light truck rear panels where compact multivolt lighting matters. Because the lamp includes a reflex reflector, it helps simplify rear lighting layouts on panels with limited space.

Why Choose ICS Trailers

Rear lighting needs to match the voltage, lamp function, mounting surface and body layout before it goes on. ICS Trailers can help line up combination lamps, brackets and trailer electrical hardware for repair, refit and build work.
