Sequential Indicator Rear Combination Lamp Twin Pack 12/24V
Sequential Indicator Rear Combination Lamp Twin Pack 12/24V
$376.00
Sequential indicator rear combination lamp twin pack suits 12/24V trailer and truck rear lighting, with diffused tail, reverse function, IP67 sealing and a slim base-mounted housing for matched left and right lamp replacement.
Part number 38541ARWM-2.
Description
Overview

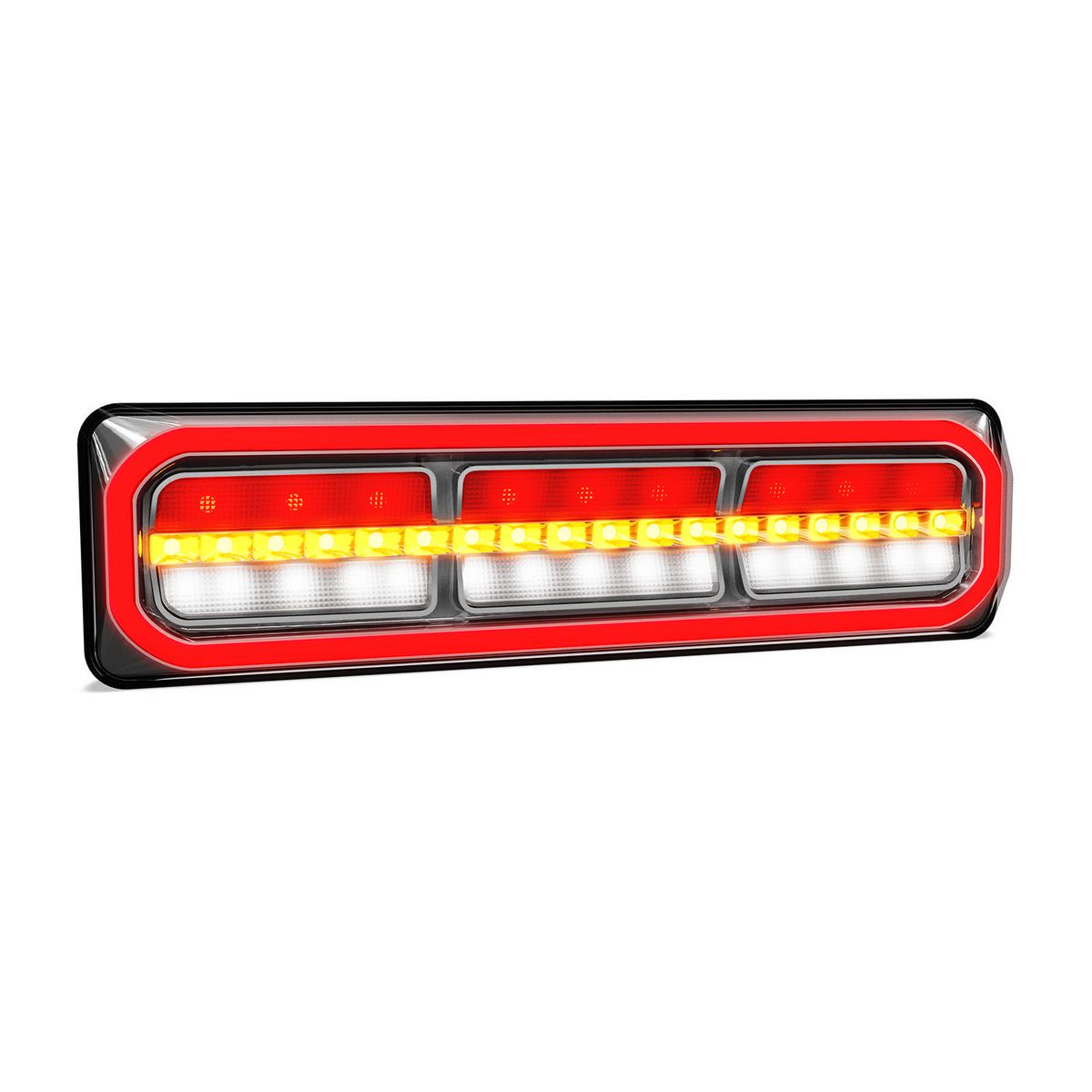

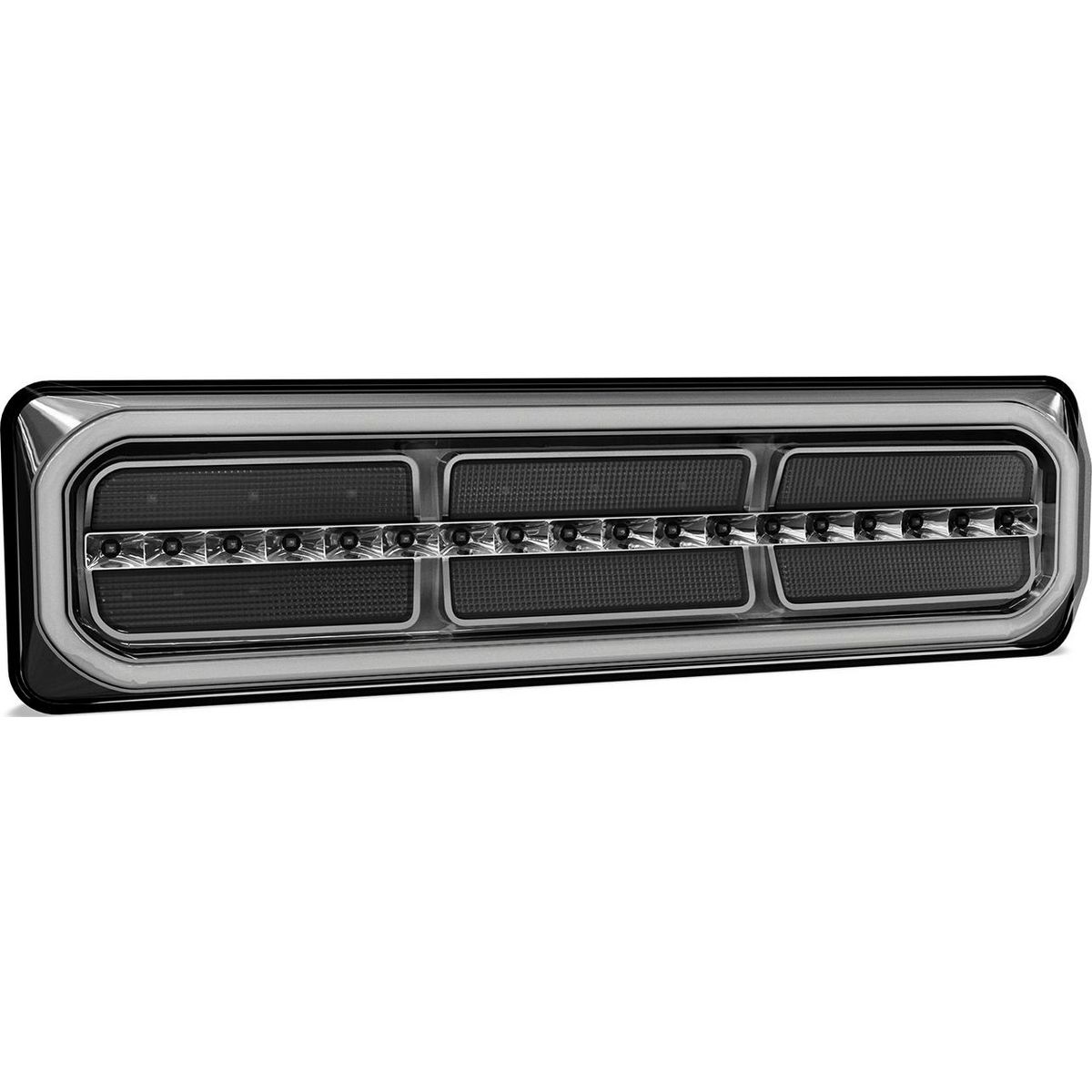

Sequential indicator rear combination lamp twin pack restores stop, tail, indicator and reverse lighting in one matched left and right rear lamp set for trailers and rigid bodies. It keeps the rear end looking cleaner, and the diffused tail effect gives the lamp a more modern light signature without adding a bulky housing.
Features
- Sequential indicator and diffused tail function in a matched twin pack.
- 12-24V multivolt operation suits common trailer and heavy vehicle systems.
- IP67 sealing helps protect the lamp in exposed rear mounting positions.
- Clip-on mounting base lets the lamp sit neatly on a flat rear panel.
Specifications and Materials

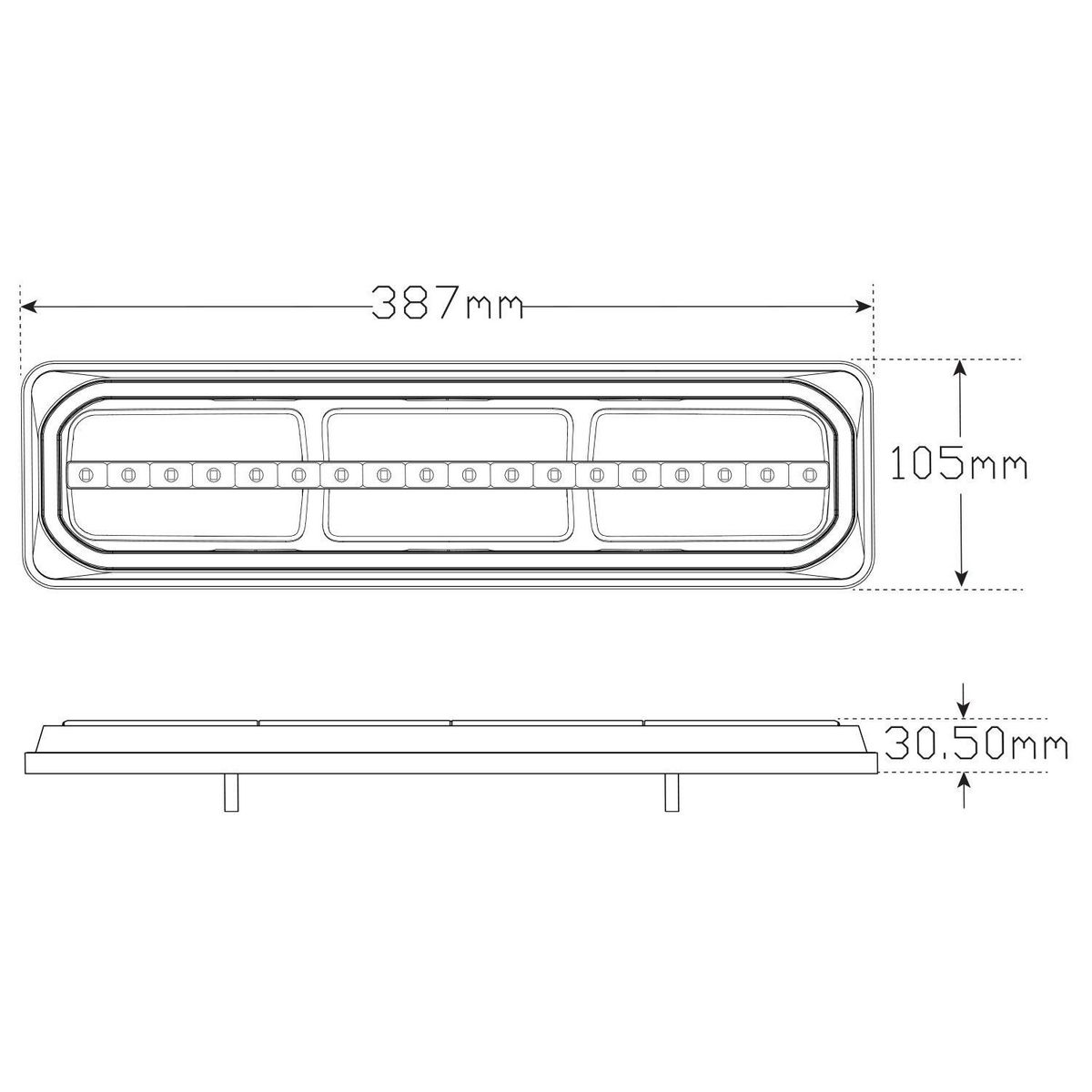

This lamp set measures 387mm x 105mm x 30.5mm, uses 102 LEDs per lamp and runs a 40cm cable lead. PMMA lenses and ABS bases keep the assembly light, while stop, tail, indicator and reverse functions are built into the one housing. Part number: 38541ARWM-2.
See the official datasheet
Compatibility and Fitment
Check the mounting space, panel shape and wiring path before ordering. This set mounts horizontally onto a flat surface, then clips into the base plate, so it suits rear bar and body installs where a slim left and right lamp pair is needed. If one side is damaged and the other side is still serviceable, check the matching single-lamp versions below.
Related Parts
Check the related service parts below against the trailer setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Related version | 38541ARWMLCSB | Left-hand lamp with 7 core plug |
| Related version | 38541ARWMRCSB | Right-hand lamp with 7 core plug |
Compliance and Safety
Test stop, tail, indicator and reverse functions after fitting, and make sure each lamp locks fully into the base plate before the trailer goes back into service. Also check cable routing and mounting position against ADR 13/00 so the rear lighting stays visible and secure.
Trailer Applications
Sequential indicator rear combination lamp twin pack suits trailers, caravans and rigid-body builds that need a slim rear lamp with reverse function built in. Workshops also fit sequential indicator rear combination lamp twin pack sets when replacing both rear lamps together for a cleaner matched finish.
Videos
This video shows the 3854 series lamp design and lighting pattern.
Why Choose ICS Trailers
Choose sequential indicator rear combination lamp twin pack when you want both sides replaced in one hit and want the matching single-side service options ready for follow-up repairs. Browse more rear lighting in our LED Lights
