Rear LED Indicator Lamp With Reflector 12/24V
Rear LED Indicator Lamp With Reflector 12/24V
$50.00

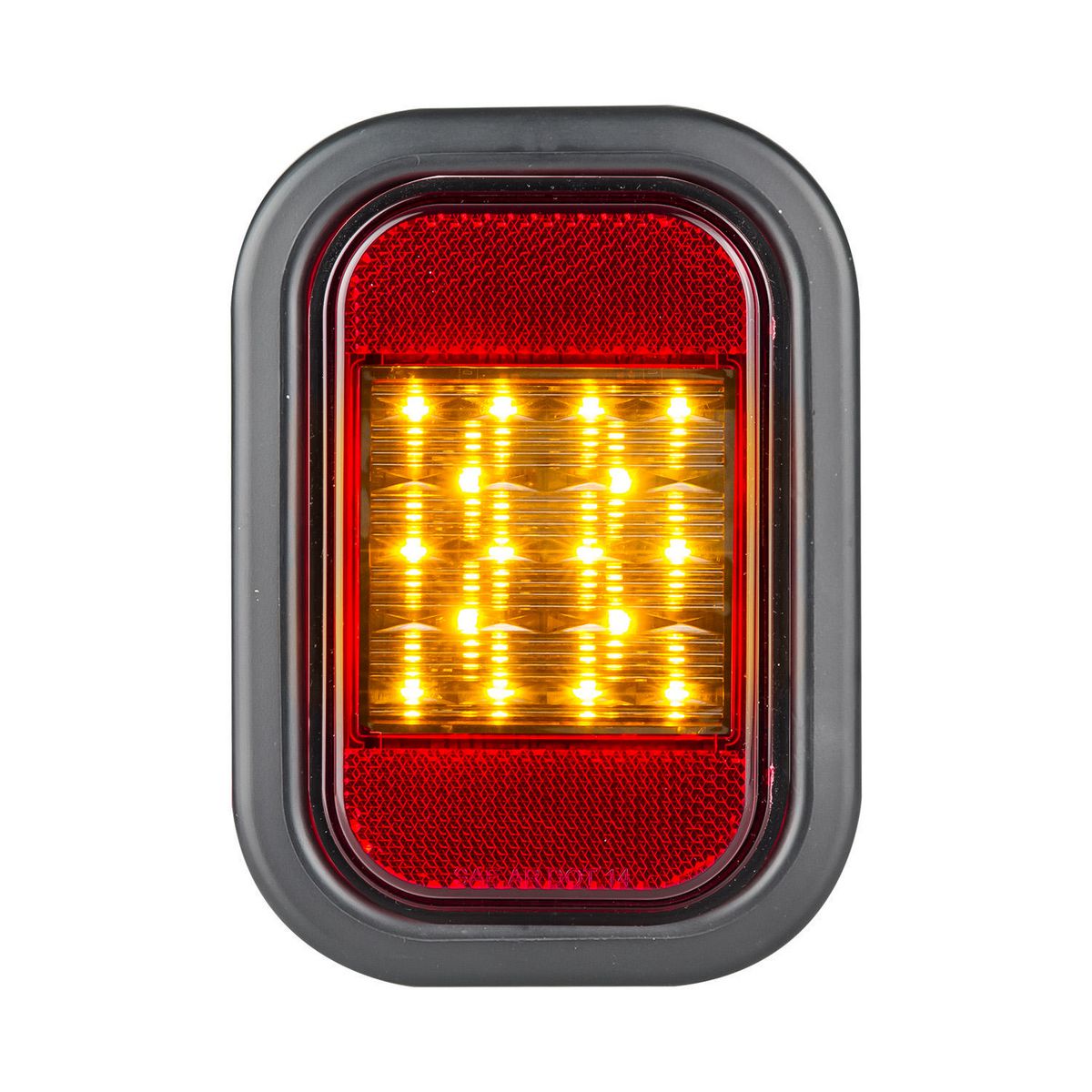

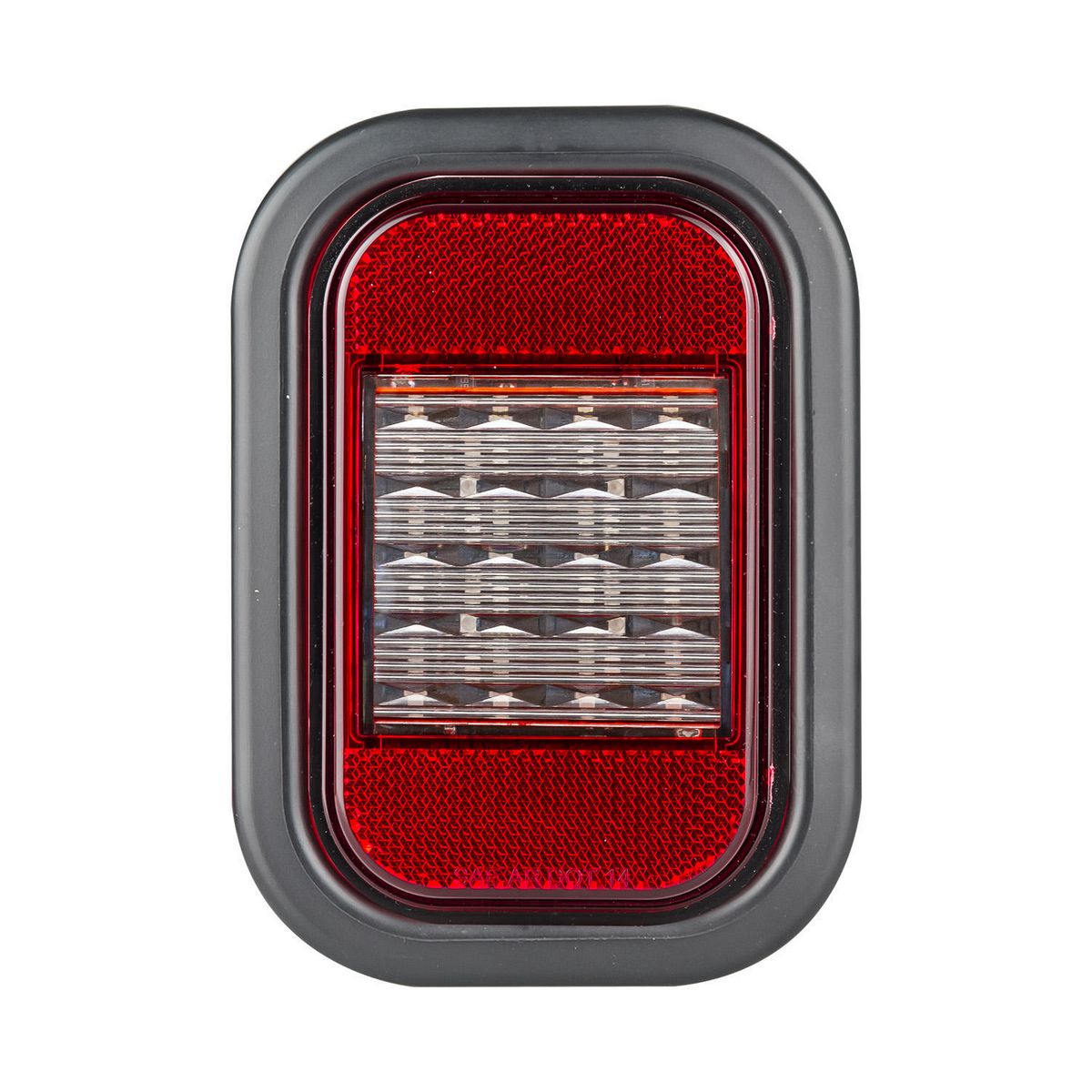

Rear indicator lamp with reflector suits 12/24V trailer lighting setups, using a low profile recessed body with 16 LEDs, IP67 sealing and a blister pack that includes the matching grommet and plug for clean replacement on rear panels.
Part number 134AMG.
Description
Overview
Rear indicator lamp with reflector provides rear turn signalling for trailer and heavy vehicle lighting panels. The low profile recessed body suits panel mounted repairs where a neat lamp face and sealed fit matter. Because the blister pack includes the grommet and plug, it helps when replacing a damaged lamp or fitting a fresh rear panel setup.
Features
- Low profile recessed fitting for rear panels
- 16 LED indicator with integrated reflector
- 9-32V operating range for 12/24V systems

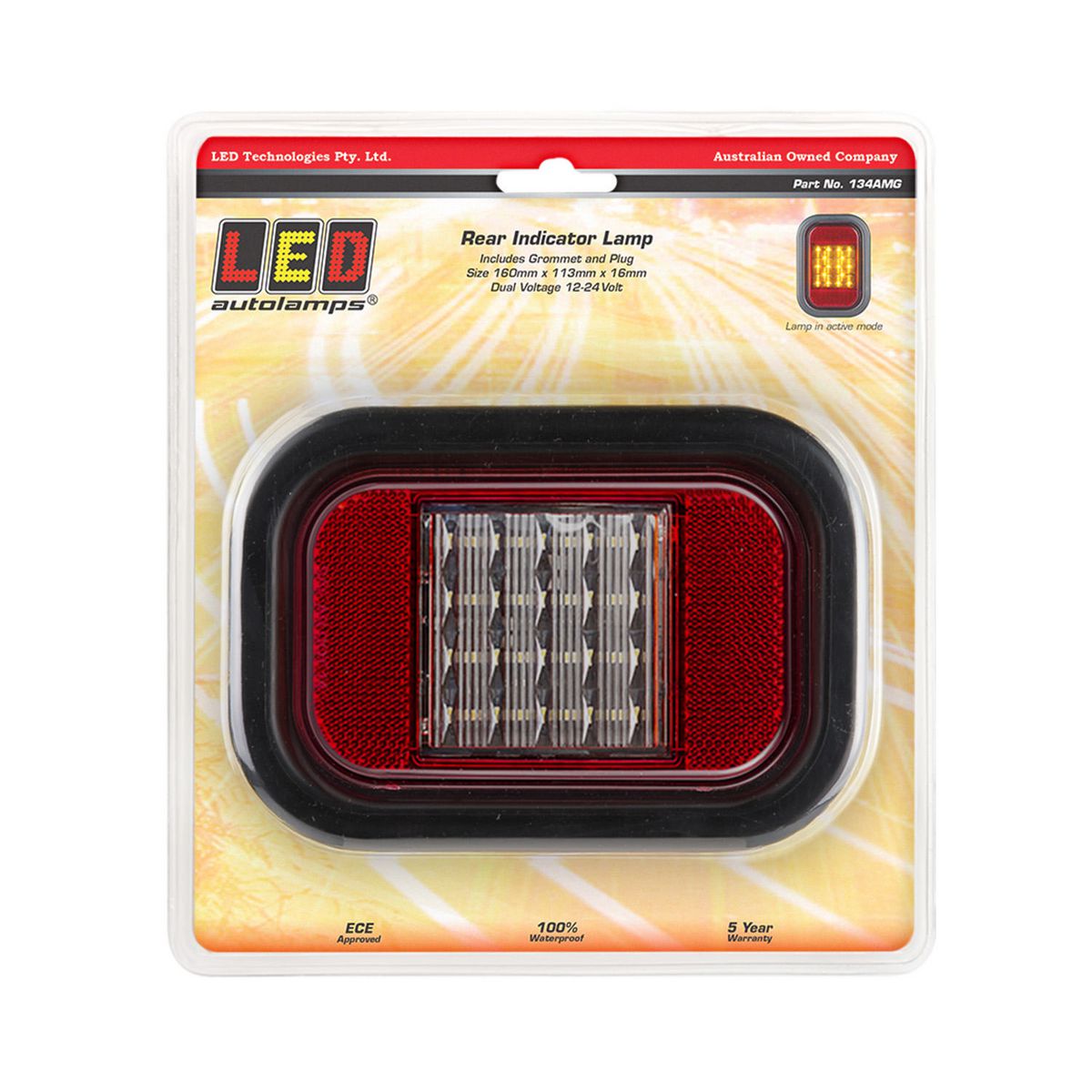

- Blister pack includes grommet and 3 pin plug
Specifications and Materials

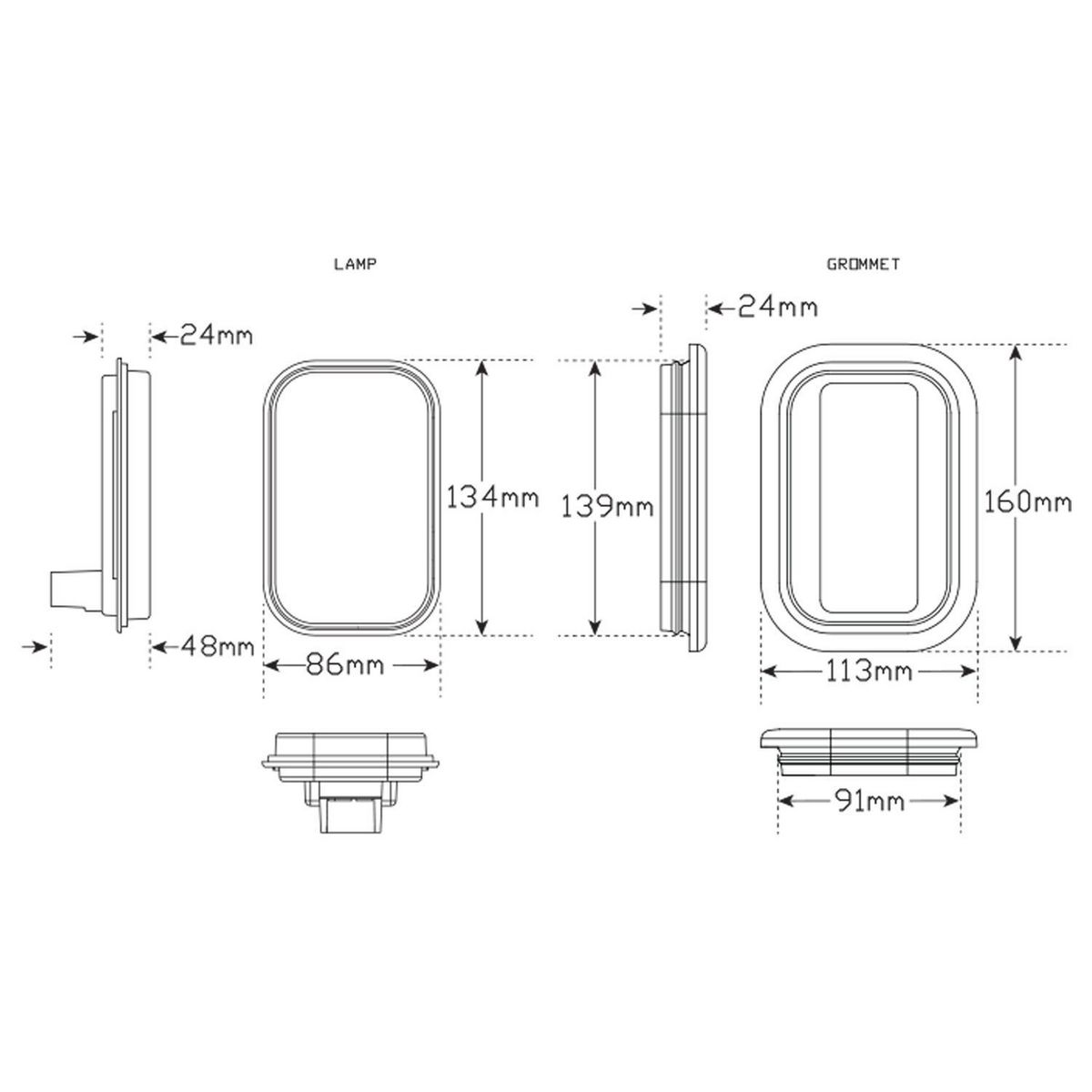

The lamp body measures 87 × 135 × 22mm, while the grommet measures 113 × 160 × 12mm. The cut out measures 139 × 91mm with a 23mm radius when using the grommet. The lens uses hardened acrylic, and the indicator draw measures 0.28A at 13.8V and 0.12A at 28V. Part number: 134AMG.
Use the manufacturer 134 series page before cutting new panels
Compatibility and Fitment
Match the rear indicator lamp with reflector against the existing cut out, lamp body and mounting style before ordering. If the trailer already uses the 134 series recessed lamp shape, check whether the rubber grommet, plug or bracket also needs replacement. For new work, fit the grommet or flange into the cut out, connect the plug, then push the lamp into the mount.
Related Parts
Check the related service parts below against the trailer setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Used with | 53102 | 3 pin plug |
| Mounting part | 59401 | Rubber grommet |
| Alternative mount | 59401B | Black bracket |
| Alternative mount | 59401C | Chrome bracket |
Compliance and Safety
Check the lamp seal, wiring route and indicator flash operation after fitting. The lamp carries ECE Indicator/Ref approval E9*6R01/28*22150*00 and CTA Indicator/Ref approval CTA-060264. Also follow ADR 13/00 mounting guidance when positioning lamps on new installations.
Trailer Applications
Workshops fit this rear indicator lamp with reflector to trailers, rigid bodies and rear lighting panels that run recessed rectangular lamps. It suits repairs where the lamp, grommet and plug need to be renewed together instead of replacing only the light body.
Why Choose ICS Trailers
ICS Trailers supplies lighting parts for transport operators, trailer workshops and fleet repair jobs where the lamp body, cut out and mounting hardware need to line up cleanly. Browse more trailer lighting parts in LED Lights for trailer repair and fitout work
