Description

Overview

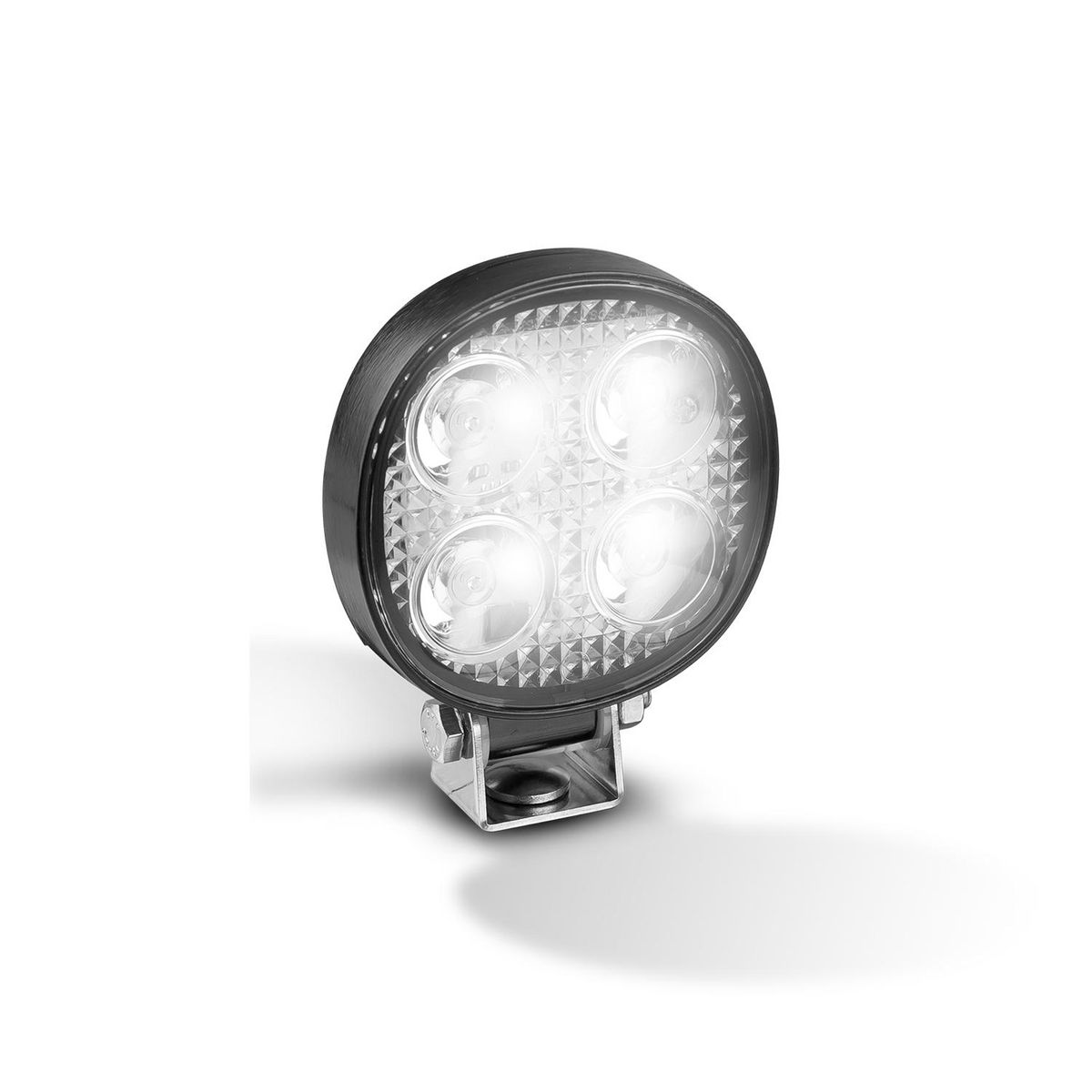

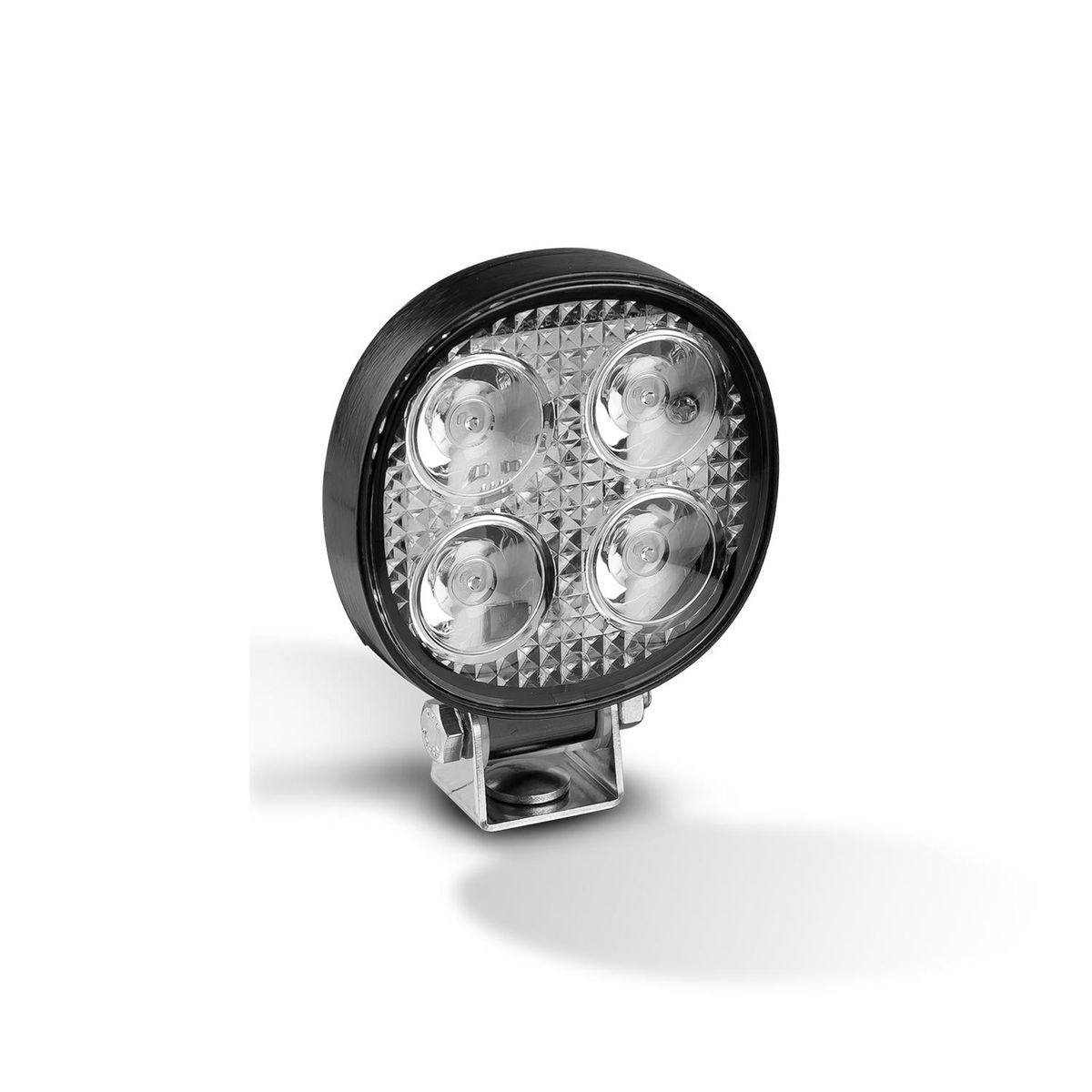

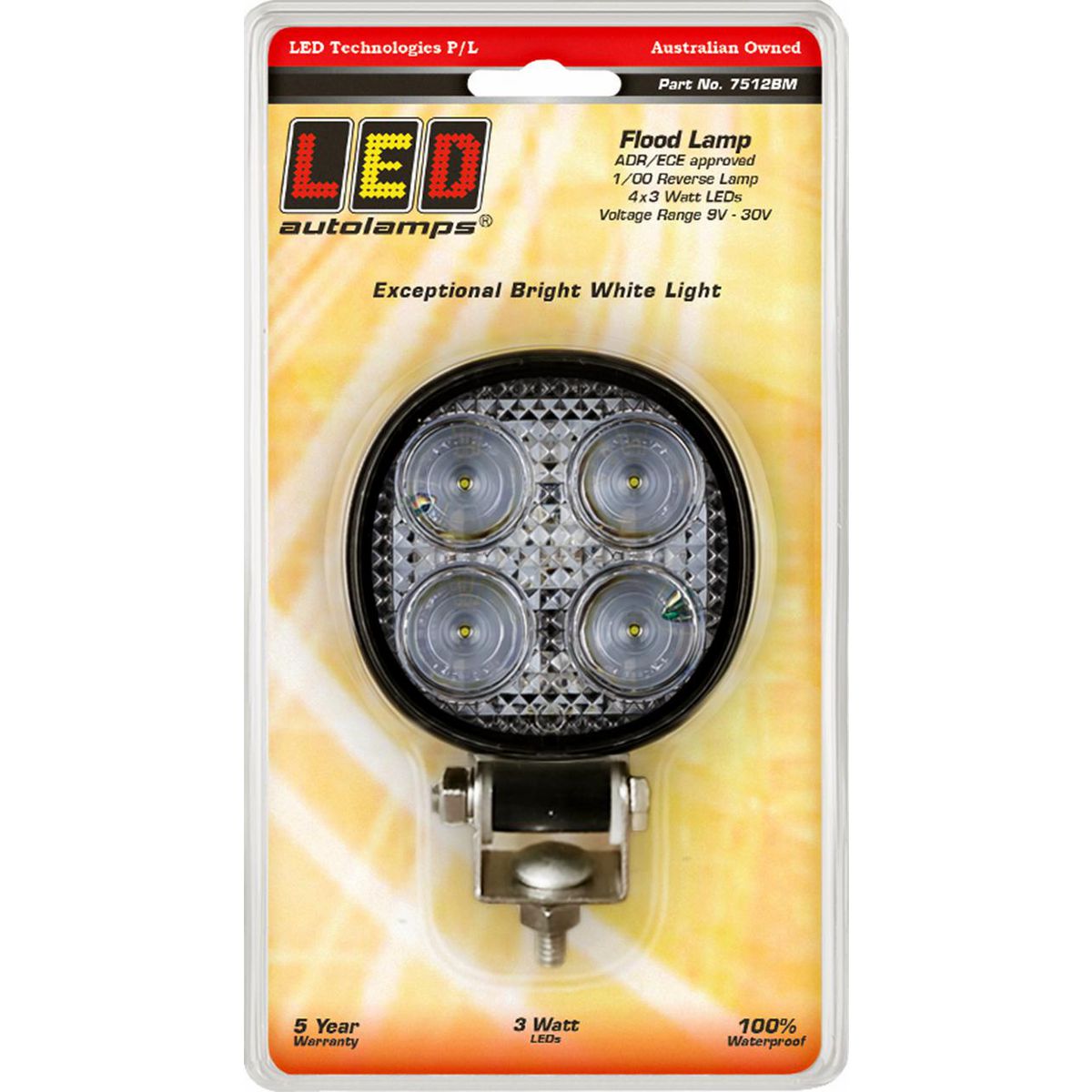

Round work reverse lamp provides a compact 12W flood beam for trailer, truck body and service vehicle lighting. It handles work light duties and reverse lamp use, so it suits rear body positions where bright white flood illumination matters.

Features

• 4 x 3W high brightness LEDs deliver 489lm effective output.
• Flood beam gives broad rear-facing light for reversing and work areas.
• Black e-coated die cast alloy base suits exposed vehicle body mounting.
• IP67 sealing helps protect the lamp against water, spray and road grime.

Specifications and Materials

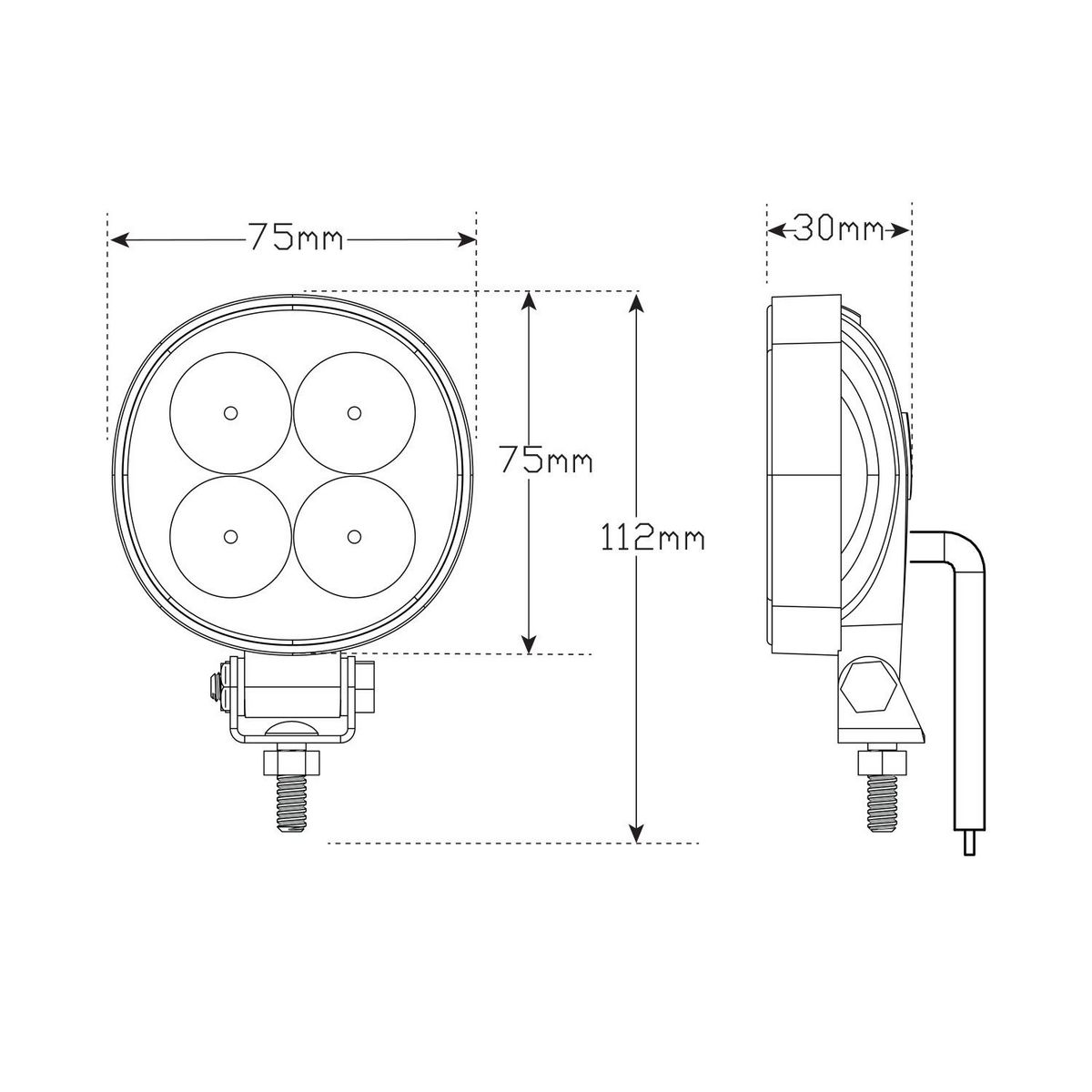

This round work reverse lamp uses a polycarbonate lens, e-coated die cast alloy base, stainless steel fittings and a 40cm cable. It measures 75mm x 75mm x 30mm and carries ECE/ADR approval for 1/00 reverse lamp use.

Part number: 7512BM.

The lamp runs across a 9-30V operating range. It draws 0.59A at 13.8V and 0.27A at 28V, with 660lm raw output and 489lm effective output.

Use the official datasheet to check current draw, lighting diagram and fitting detail.

Compatibility and Fitment

Match the round work reverse lamp to the available rear mounting position, wiring route and required light direction before ordering. The adjustable stainless steel bracket lets the lamp angle be set after mounting.

Fix the lamp to the mounting surface using the supplied stainless steel bolts and bracket. Then confirm the beam angle before final tightening, because a small change at the bracket can shift the useful flood pattern.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

When fitting the lamp for reverse use, confirm the lamp position, switching and wiring suit the vehicle build. Also inspect cable protection around sharp edges, body holes and exposed chassis points before returning the trailer to service.

Trailer Applications

Workshops fit this lamp to trailers, truck bodies, service bodies, trays and equipment builds where a compact white flood lamp needs road-approved reverse function. The round work reverse lamp also suits body repairs where the existing bracket-mounted reverse light has failed or corroded.
