Description

Overview

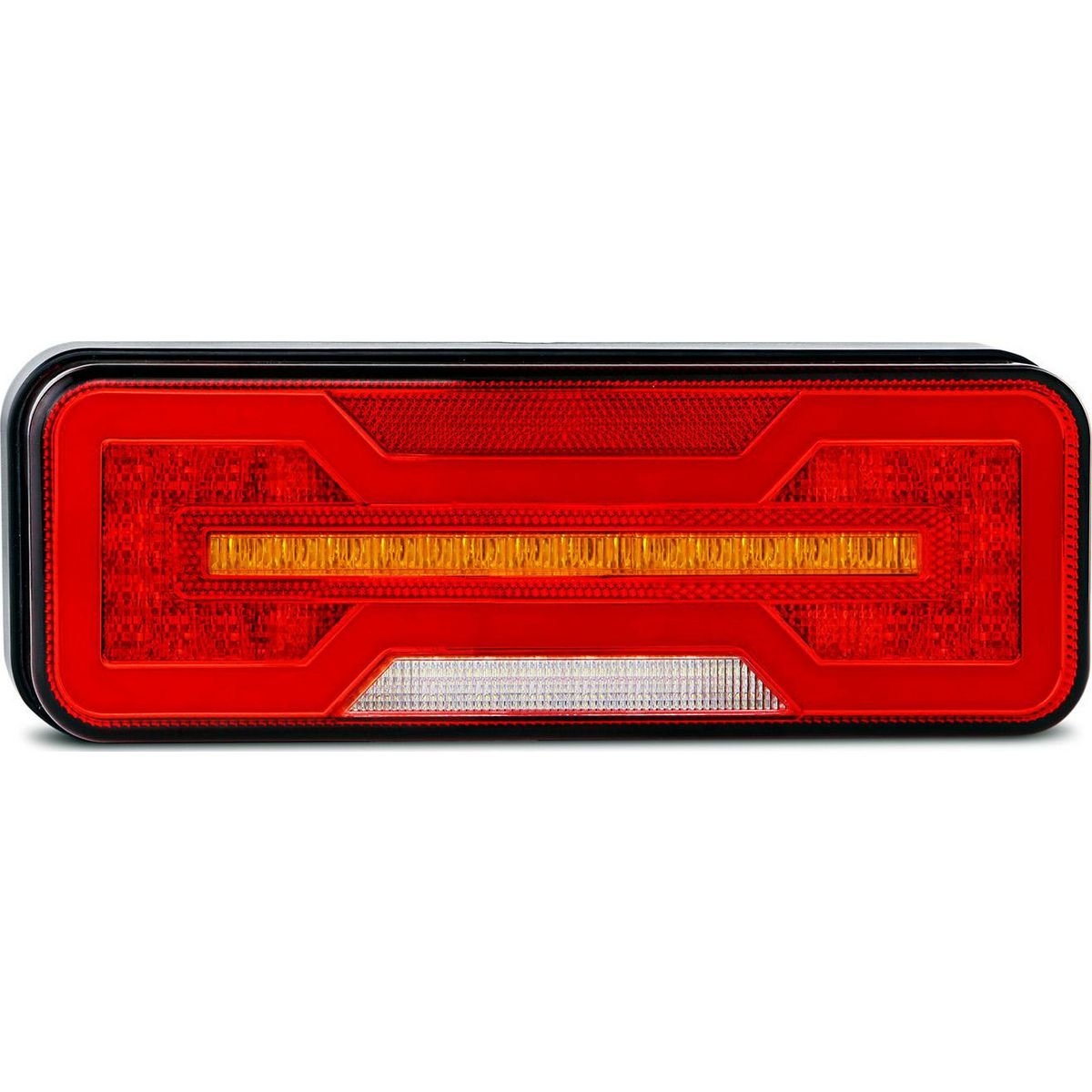

Rear combination lamp LHS handles stop, tail, indicator, reverse and reflector functions in one left-hand rear lamp for trailer and vehicle body lighting. It suits 10-30V electrical systems, so workshops can fit the same lamp style across 12V and 24V trailer setups.

Features

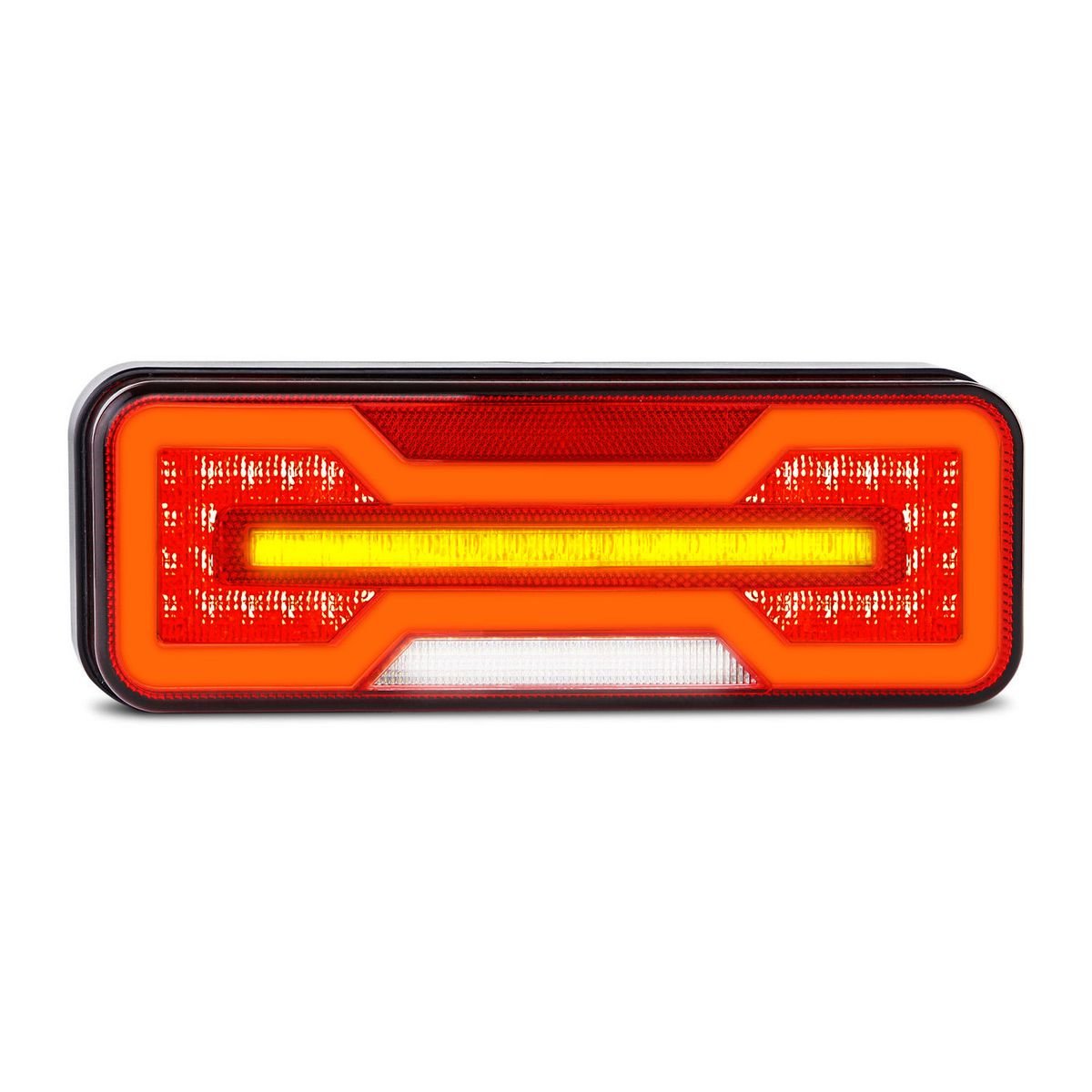

• Sequential indicator improves the visible turn signal pattern.
• Diffused tail function gives the rear lamp a clean, even light spread.
• Inbuilt reflex reflector reduces the need for a separate rear reflector.
• IP67 rating suits exposed trailer and truck body mounting positions.

Specifications and Materials

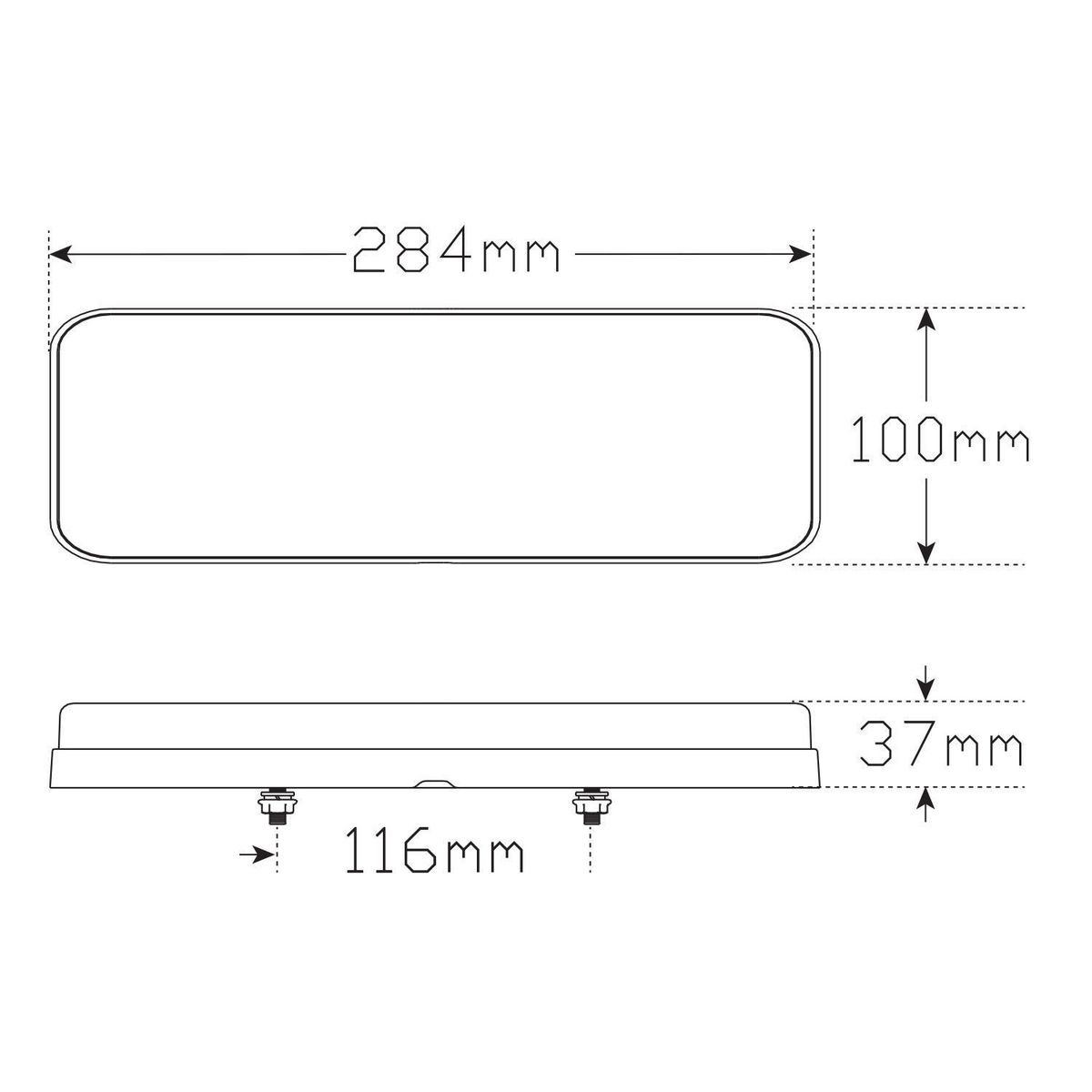

This rear combination lamp LHS measures 284mm x 100mm x 37mm and uses a 28cm cable. It carries stop, tail, indicator, reverse and reflector functions in a polycarbonate lens and polycarbonate base.

Part number: 284ARWMLB.

The current draw is 0.18A stop, 0.14A tail, 0.30A indicator and 0.14A reverse at 13.8V. At 28V, it draws 0.08A stop, 0.07A tail, 0.15A indicator and 0.08A reverse.

Use the manufacturer technical page to check approval numbers, current draw and fitting details.

Compatibility and Fitment

Match this lamp to the left-hand rear position before ordering. Also check the bolt spacing, body cut-out, cable routing and available depth behind the mounting surface.

Surface mount the lamp horizontally using the bolts in the back of the lamp, then run the wire and plug through a 10mm hole in the fixing surface.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Confirm the lamp position, wiring colours and mounting layout before drilling. In addition, follow ADR 13/00 mounting guidance so the rear lighting functions sit in the correct vehicle positions.

Trailer Applications

Trailers, tray bodies, service bodies and truck bodies use this style of rear lamp where one left-hand assembly needs to cover multiple rear lighting functions. The rear combination lamp LHS suits repairs, upgrades and new body fit-outs where a compact rectangular lamp is preferred.
