Description

Overview

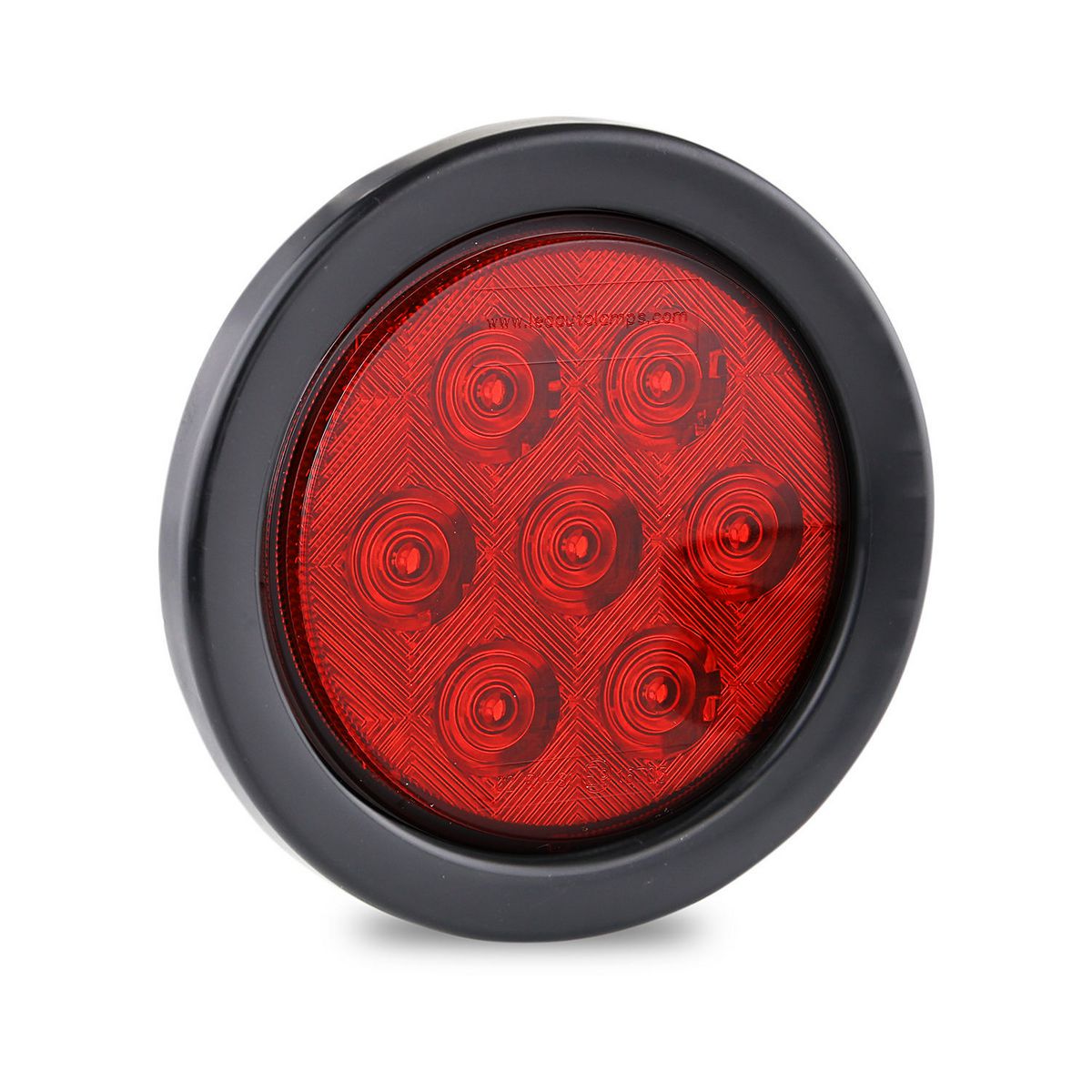

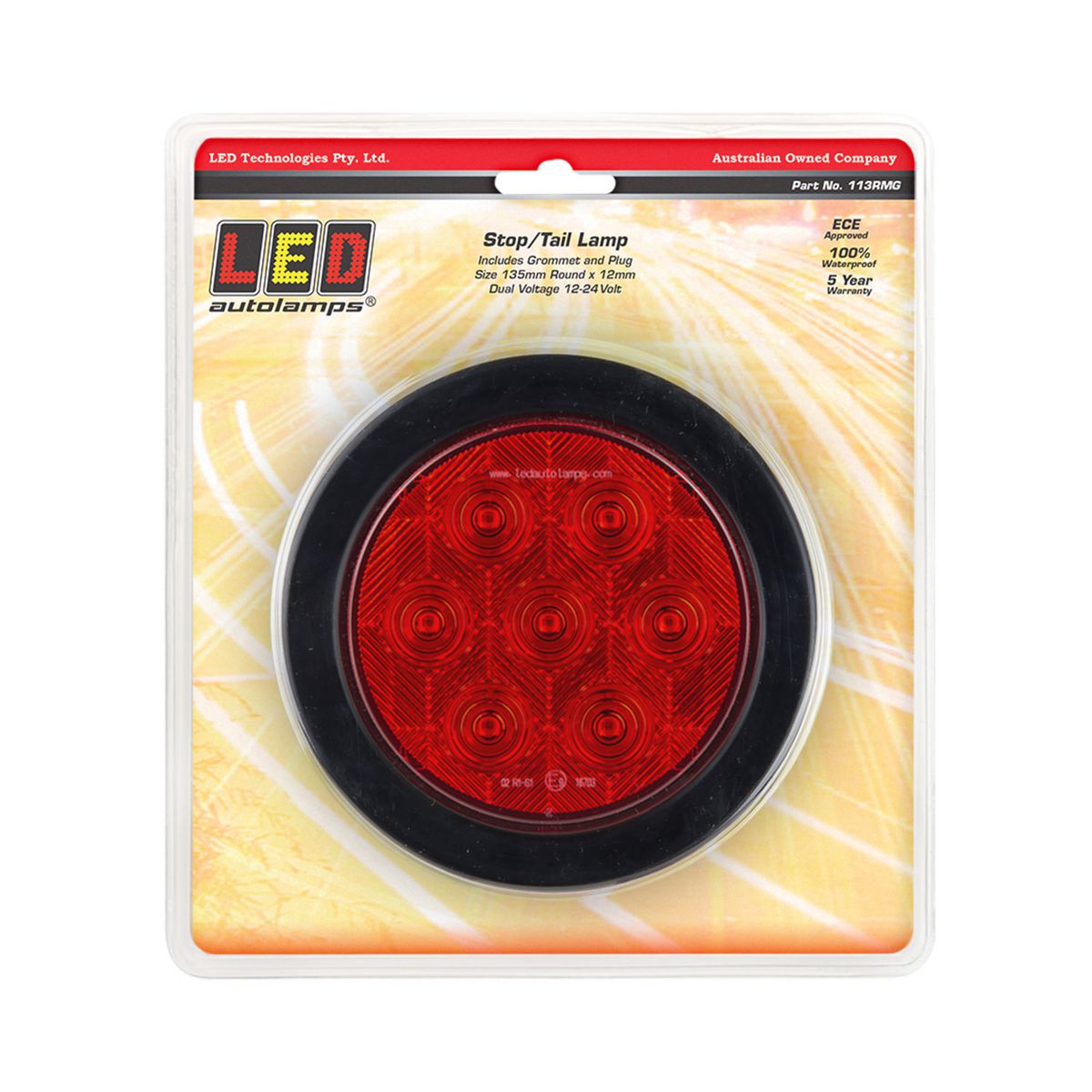

Round stop tail lamp handles rear stop and tail lighting in one low profile recessed LED unit. The red lens, grommet and plug suit trailer rear panels that need a sealed round replacement lamp for 12V or 24V systems.

Features

• Red lens round stop and tail lamp for rear trailer lighting.
• Low profile recessed fitment with rubber grommet and plug.
• Dual voltage 12/24V operation for mixed trailer and vehicle systems.
• IP67 rated, ECE approved and covered by a 5 year warranty.

Specifications and Materials

This round stop tail lamp has a 113mm lamp face and uses 7 LEDs. The lamp draws 0.19A stop and 0.02A tail at 13.8V, then 0.08A stop and 0.01A tail at 28V.

Part number: 113RMG.

Approvals include ECE Stop/Tail R1-S1-E9-02.16703 and CTA Stop/Tail 49/00 CTA-060107.

See the manufacturer technical details

Compatibility and Fitment

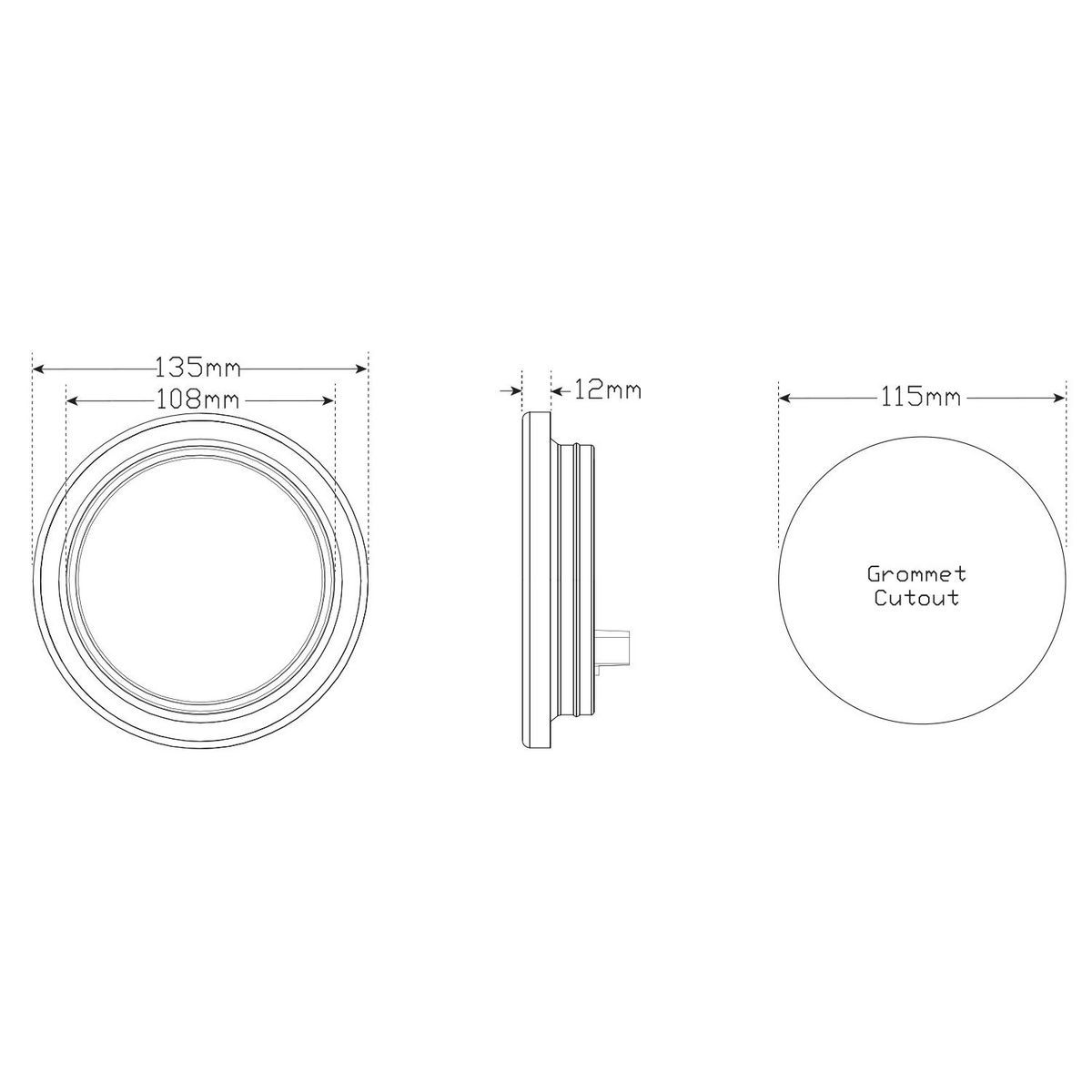

Match the round stop tail lamp to a red rear stop and tail circuit, 12V or 24V voltage and recessed mounting position. The grommet cutout is 115mm diameter, so check the existing panel hole before ordering.

For new installations, confirm the rear panel depth, plug clearance and cable route before cutting. If the trailer already runs round 4 inch style rear lamps, compare the lamp face and grommet size against the old unit.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Confirm stop, tail and earth connections before final fitment because poor trailer earths can make rear lights behave erratically. Also check that the red lens remains visible from the rear once guards, ramps or body hardware sit in place.

Trailer Applications

A round stop tail lamp suits trailers, truck bodies, service bodies and retrofits that use recessed round rear lights. Because the lamp runs on 12V and 24V, it can suit both light trailer and heavy vehicle trailer setups where the rear panel accepts the grommet mount.

Why Choose ICS Trailers

Rear trailer lights need to match the voltage, lens colour, cutout and wiring before they go in. ICS Trailers can help line up lamps, plugs and rear lighting hardware for trailer repair, refit and build work.
