Description

Overview

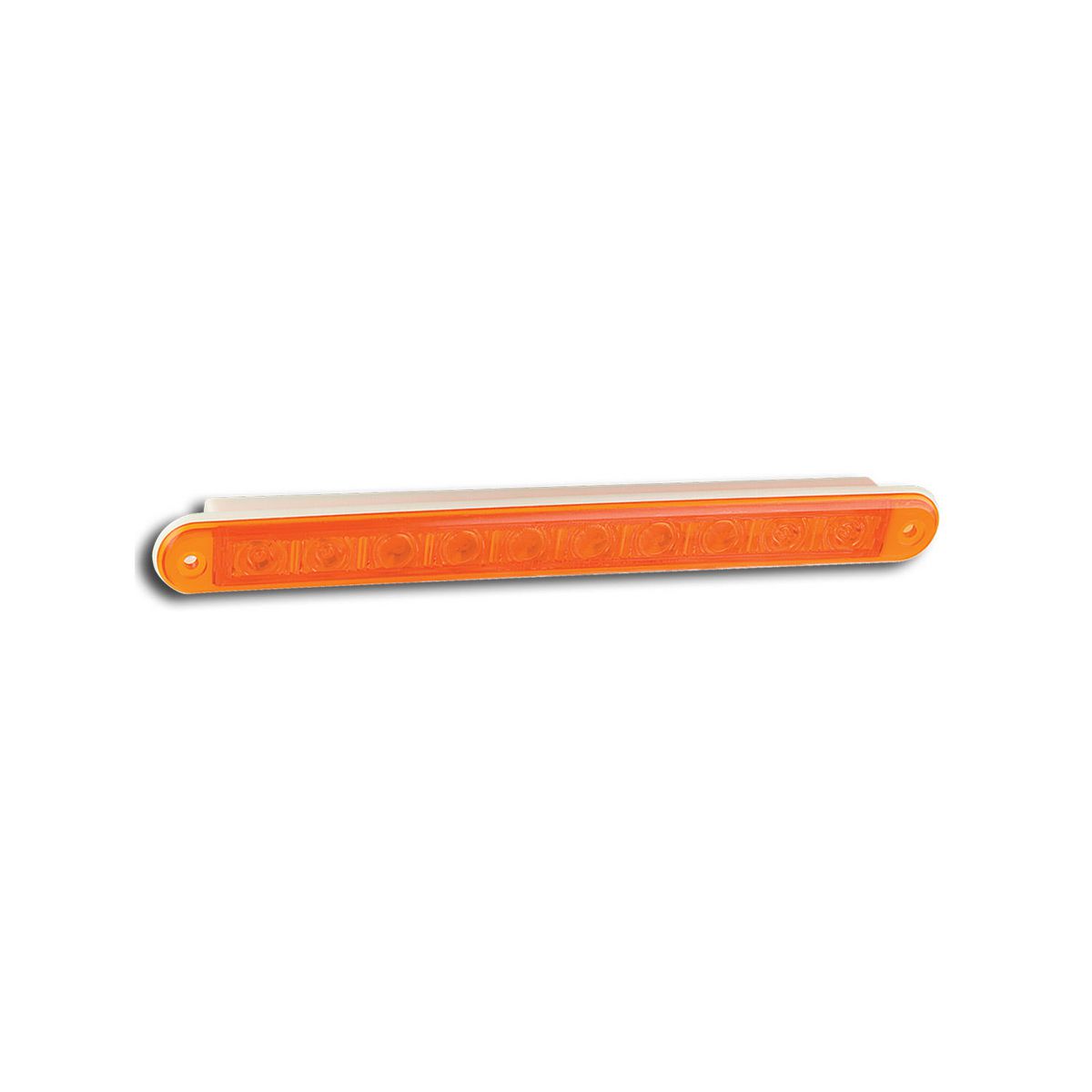

Rear indicator strip lamp gives trailer rear lighting a slim amber indicator with 10 square LEDs. The low profile body suits recessed mounting where the rear panel needs a narrow lamp instead of a larger round or oval indicator.

Features

• Amber rear indicator strip lamp for 12V trailer lighting.
• 10 square LEDs with 40cm cable for rear panel wiring.
• Low profile recessed body for compact trailer light positions.
• IP67 rated, ADR/ECE approved and covered by a 5 year warranty.

Specifications and Materials

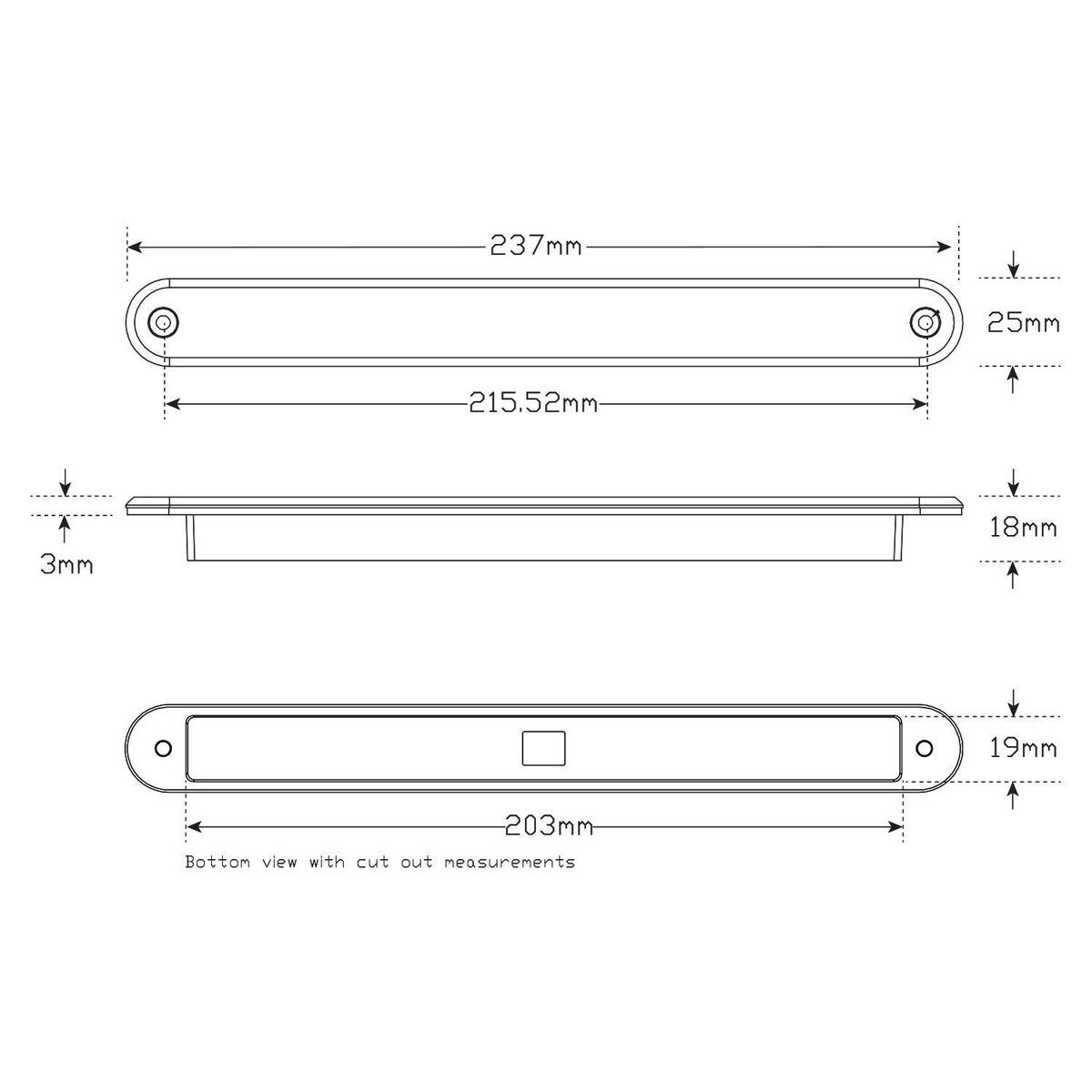

This rear indicator strip lamp runs on 12V only and measures 237mm x 25mm x 3mm. Indicator draw is 0.16A at 13.8V.

Part number: 235A12.

Approvals include ADR Indicator 6/00 category 2a CRN 39092 and CTA Indicator 6/00 category 2a CTA-060128.

See the manufacturer technical details

Compatibility and Fitment

Match the rear indicator strip lamp to a 12V rear indicator circuit, amber lens requirement and recessed mounting position. The lamp fits a 203mm x 19mm cutout, so check the existing rear panel opening before ordering.

For new fitment, mount the lamp on a flat horizontal or vertical surface, then run the wiring through the rear of the panel. Surface mounting needs separate 235 Series bracket or housing hardware.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Confirm the indicator side, lamp orientation and wiring polarity before final fitment. Also check that the lamp remains visible once guards, ramps, toolboxes or rear body hardware sit in place.

Trailer Applications

A rear indicator strip lamp suits trailers, ute trays, light boards and service body panels where rear lighting space is tight. Because the lamp uses a slim recessed body, it helps keep the rear panel clean while still giving a clear amber turn signal.
