Description

Overview

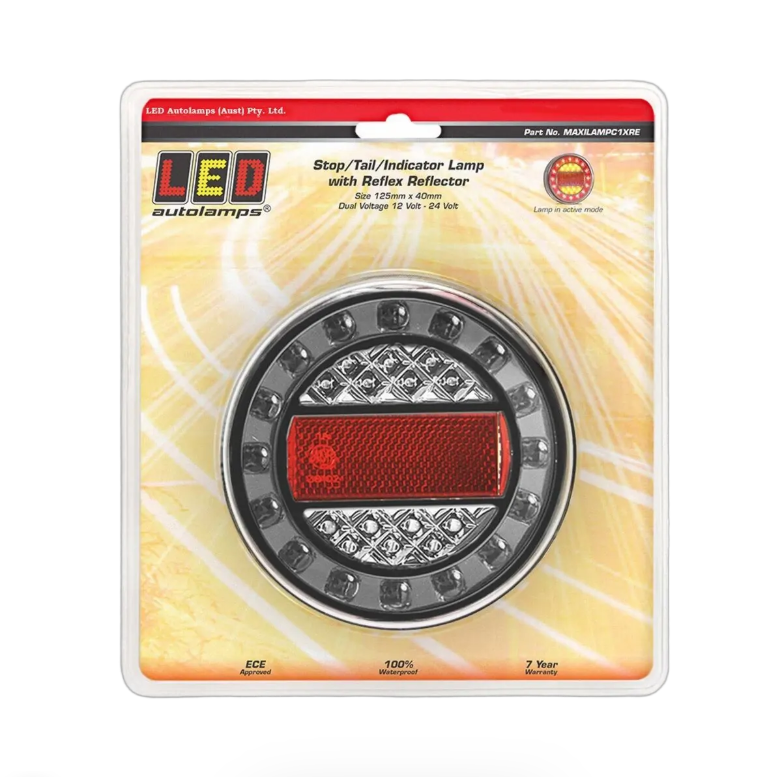

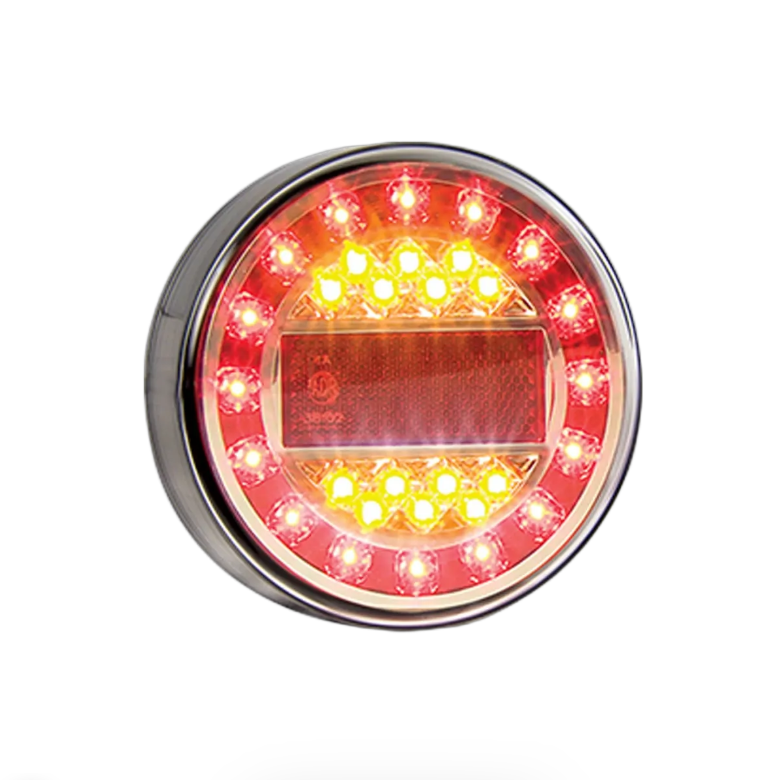

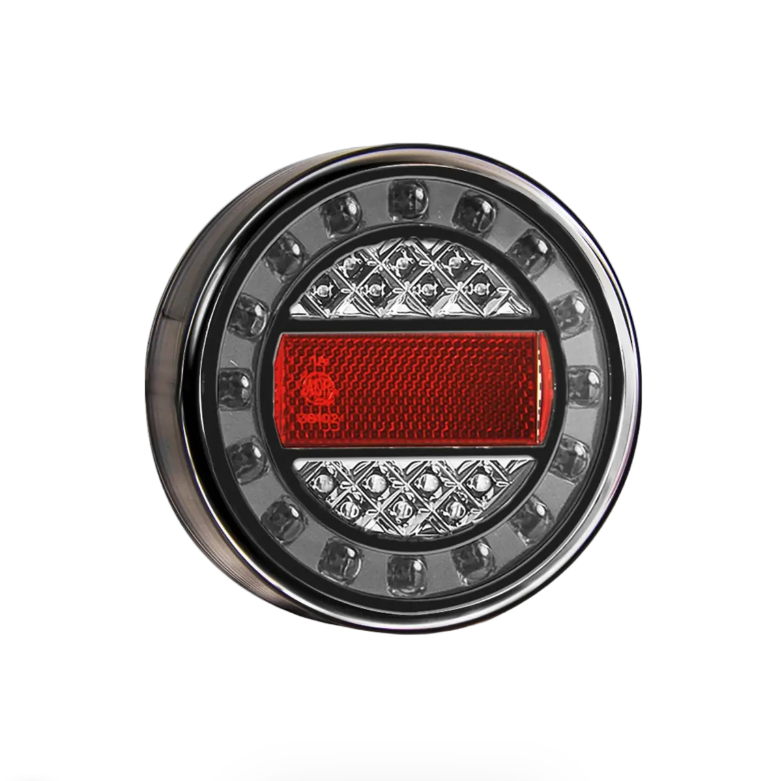

Round rear combination lamp handles stop, tail, indicator and reflector functions in one 125mm rear lighting unit. The black chrome finish and clear lens suit trailer and vehicle body builds that need a surface mounted lamp with a sharper custom look.

Features

• Stop, tail, indicator and reflector functions in one round lamp.
• Black chrome design with clear lens and high brightness LEDs.
• 12-24V multivolt operation for trailer and vehicle body wiring.
• IP67 rated, ADR/ECE approved and covered by a 7 year warranty.

Specifications and Materials

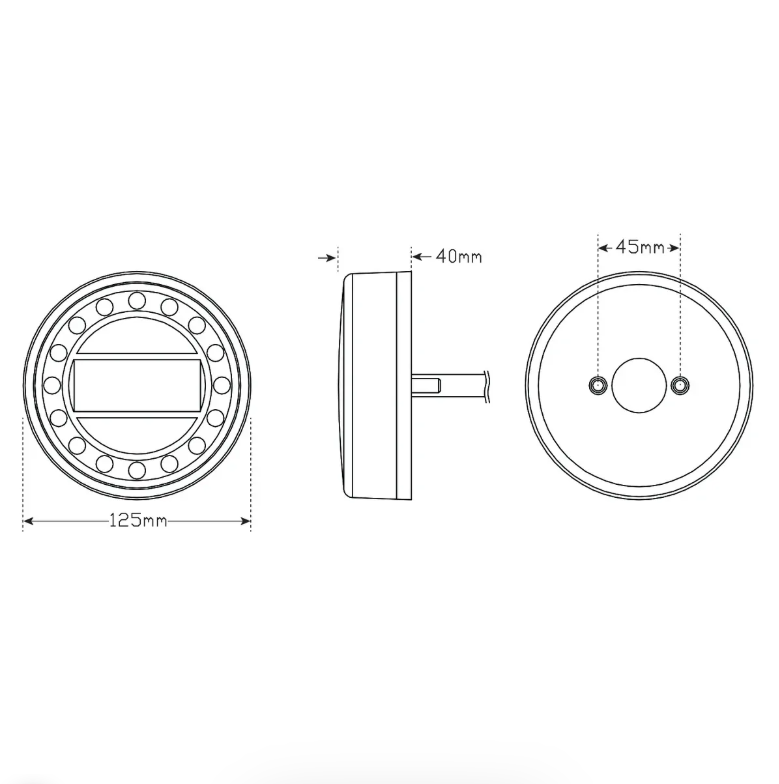

This round rear combination lamp measures 125mm diameter x 40mm and carries a 40cm cable. It uses 30 LEDs, with stop, tail, indicator and reflector functions built into the lamp body.

Part number: MAXILAMPC1XRE.

The lens uses PMMA acrylic and the base uses ABS.

See the manufacturer technical details

Compatibility and Fitment

Match the round rear combination lamp to the trailer voltage, rear lamp layout, finish and mounting surface before ordering. Mount the lamp horizontally onto a flat surface using the supplied bolts, then run the cable through the rear body panel.

Before drilling, check the lamp position against guards, tray edges, doors, ramps and rear body hardware. Also confirm the stop, tail, indicator and earth wiring before final fitment.

Compliance and Safety

Confirm the lamp functions, mounting orientation and rear visibility before the trailer returns to road use. For road registered trailer work, follow the applicable trailer lighting layout and ADR 13/00 mounting guidance.

Trailer Applications

Workshops fit a round rear combination lamp on trailers, ute trays, canopies, service bodies and custom rear panels where one lamp needs to cover multiple rear lighting functions. The black chrome finish suits builds where the lamp remains visible as part of the rear body styling.

Why Choose ICS Trailers

Rear lighting needs to match the voltage, body style, mounting surface and wiring layout before it goes on. ICS Trailers can help line up combination lamps, marker lamps and trailer electrical hardware for repair, refit and build work.
