Description

Overview

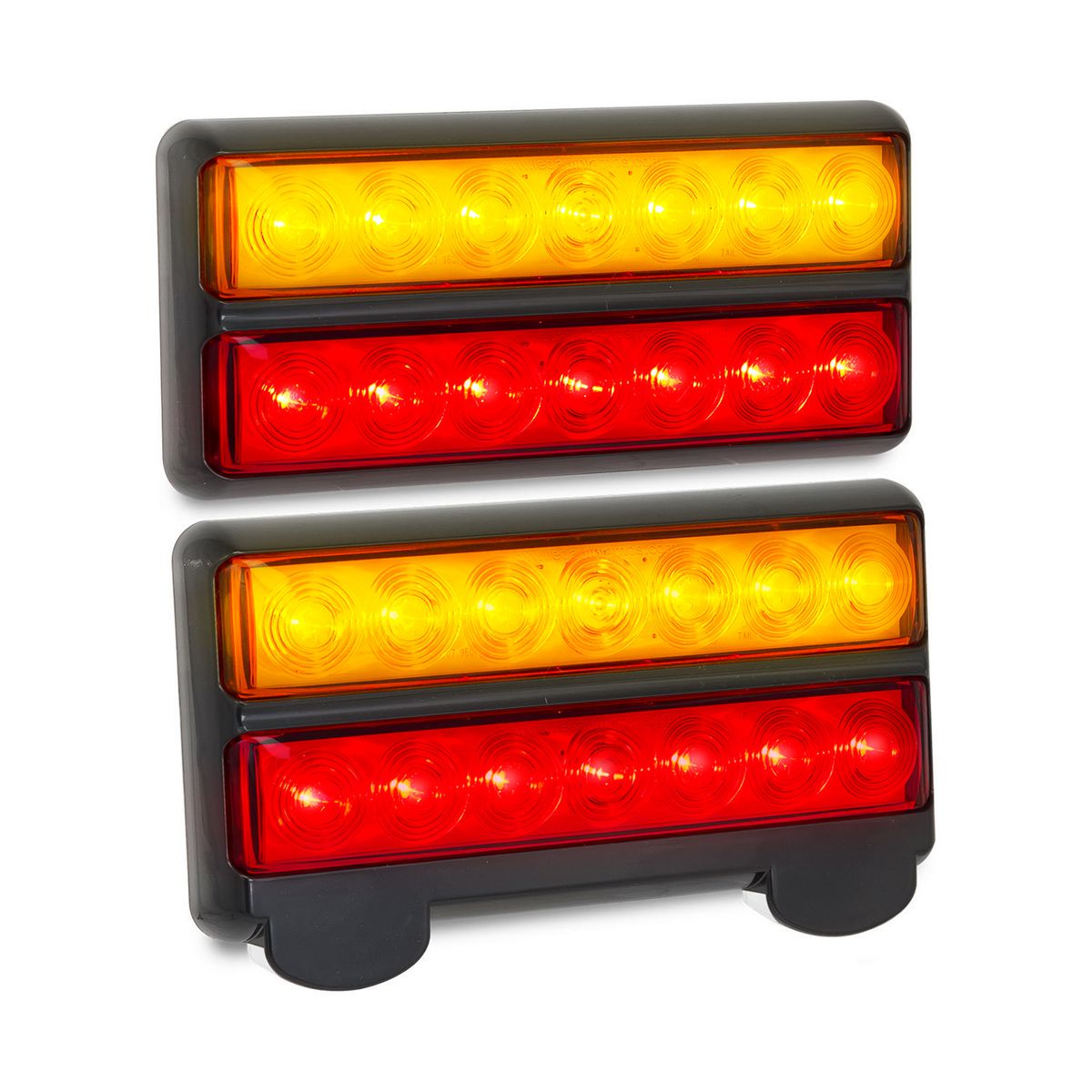

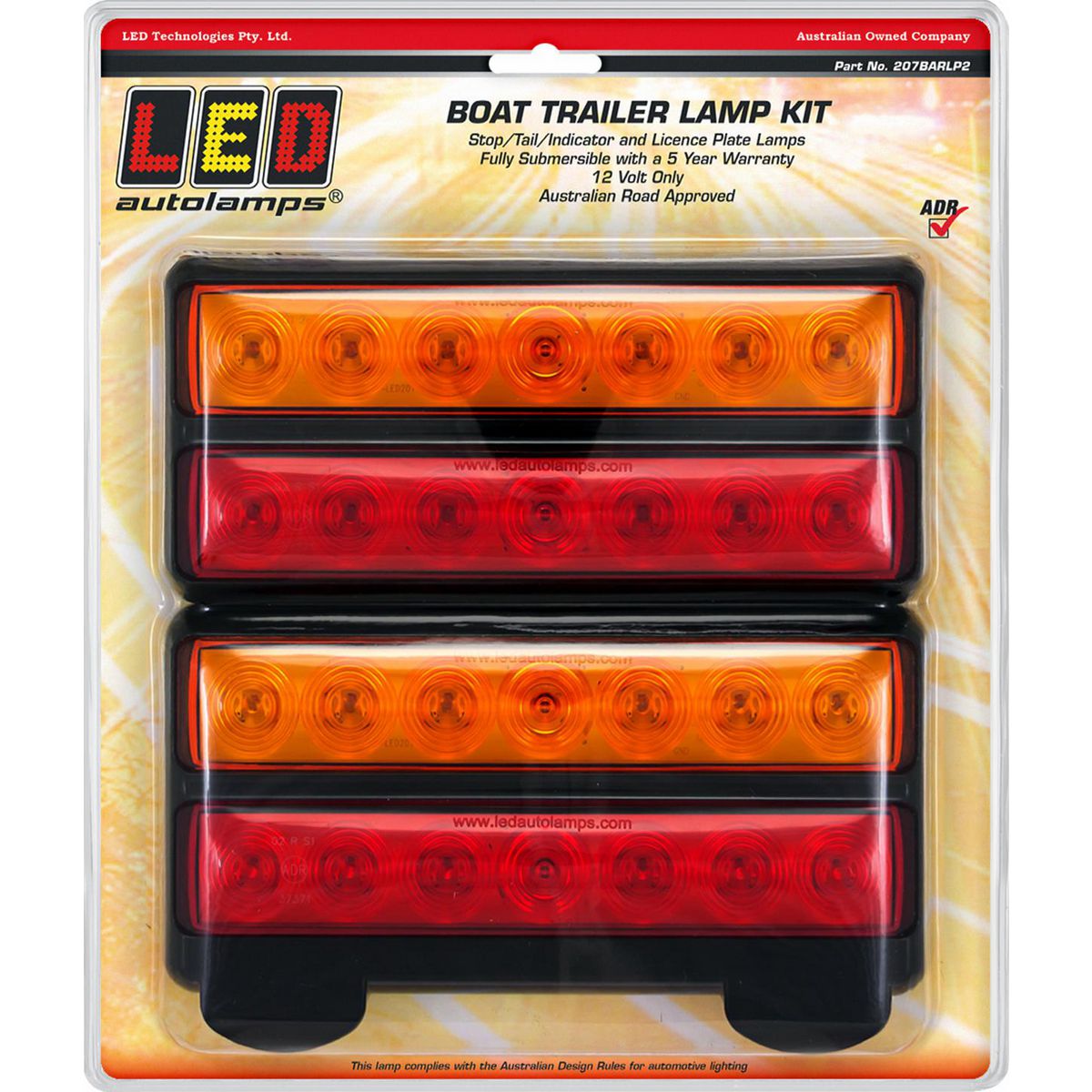

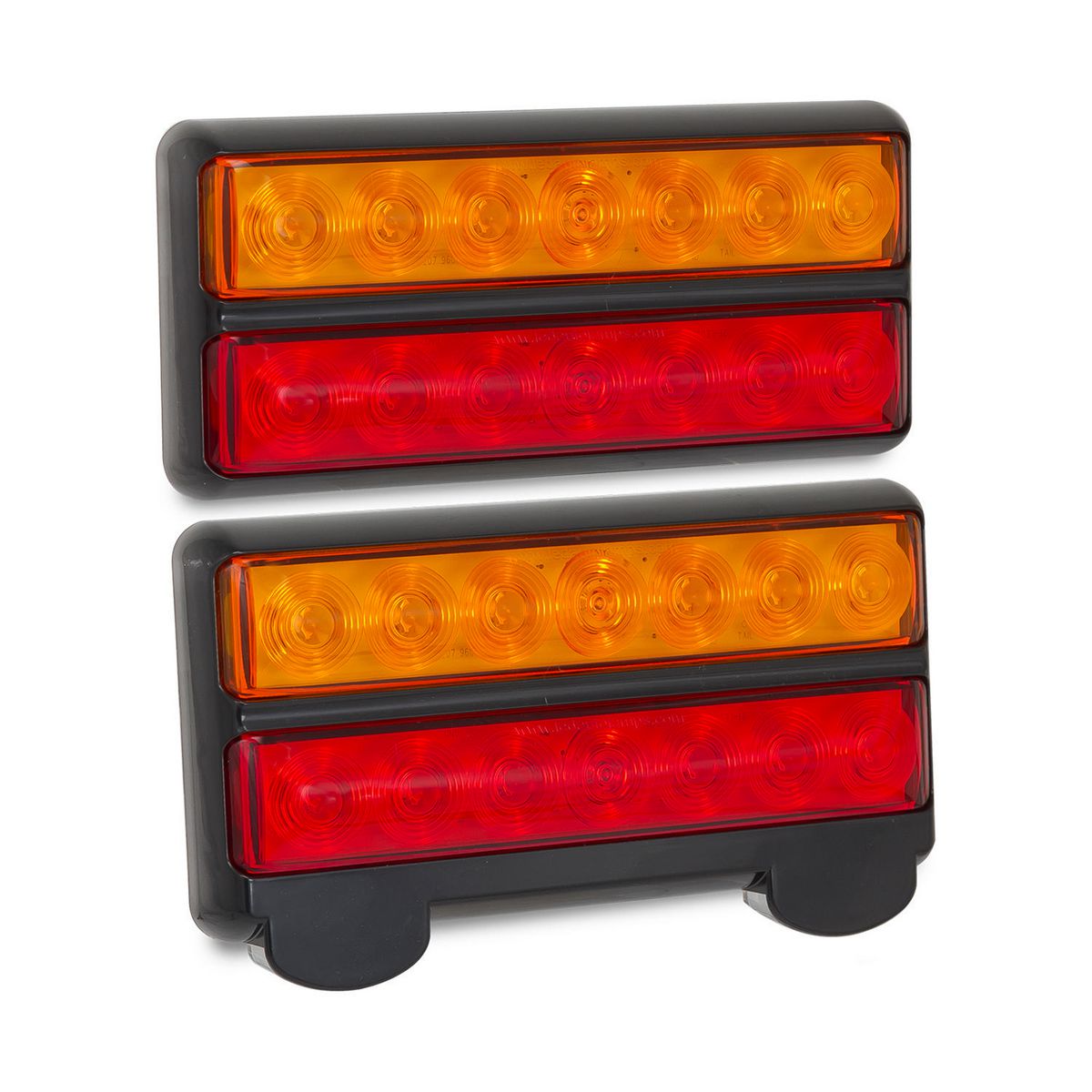

Boat trailer lamp kit covers rear stop, tail, indicator and licence plate lighting in a left and right 12V lamp pair. The fully submersible design suits boat trailer rear panels where the lamps need to handle wet launching conditions and plug-in cable wiring.

Features

• Left and right rear lamp pair for 12V boat trailer lighting.
• Stop, tail, indicator and licence plate functions in the kit.
• Plug-in cable design with 40cm cable and plug on each lamp.
• IP67 rated, ADR approved and covered by a 5 year warranty.

Specifications and Materials

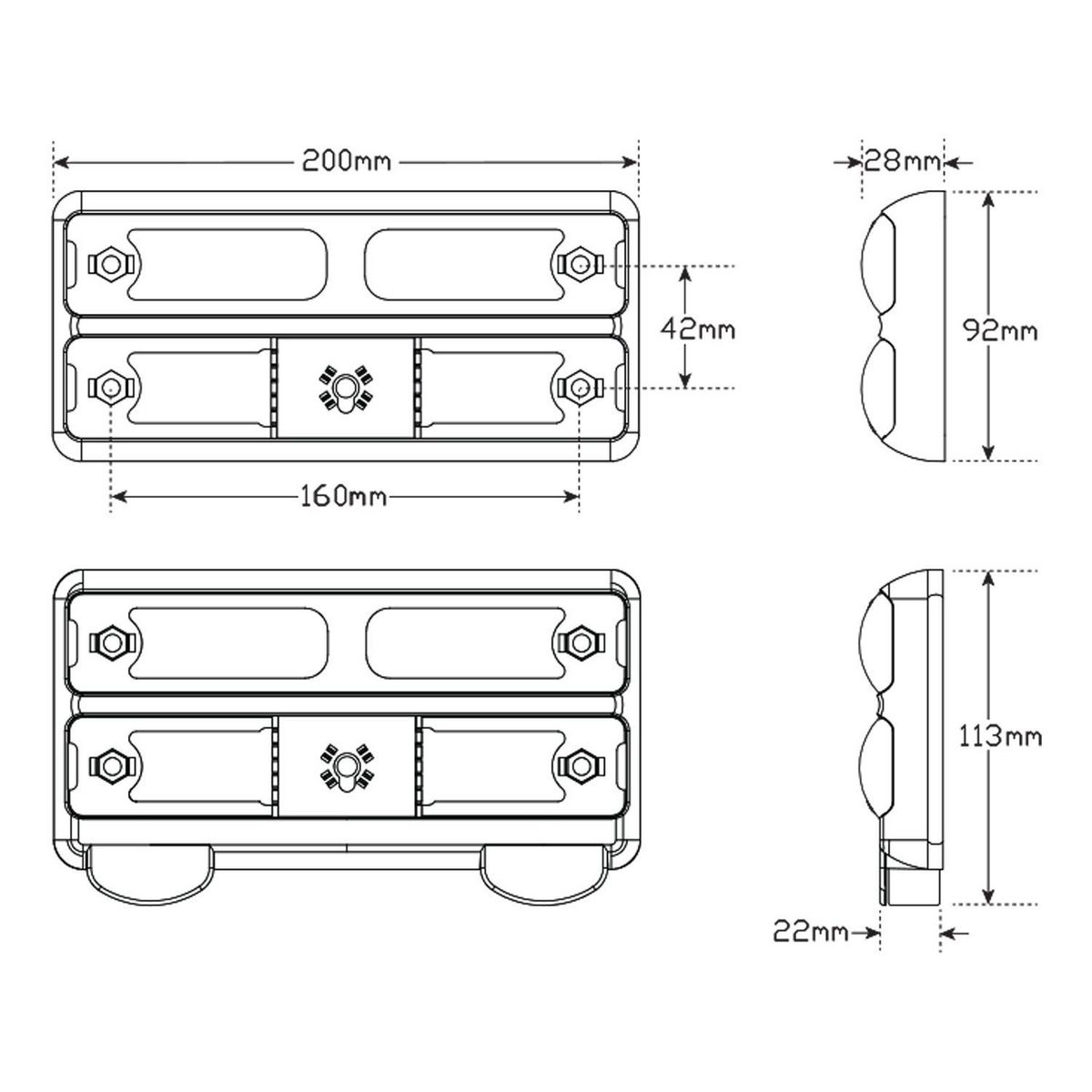

This boat trailer lamp kit includes a left and right lamp with 14 LEDs plus 4 LEDs for the licence plate function. The lamp sizes are 200mm x 92mm x 28mm and 200mm x 113mm x 28mm.

Part number: 207BARLP2.

The lamp body uses an ABS base with hardened acrylic lenses. Current draw at 13.8V is 0.18A stop, 0.07A tail, 0.10A indicator and 0.02A licence.

See the manufacturer technical details

Compatibility and Fitment

Match the boat trailer lamp kit to a 12V trailer lighting circuit, left and right rear lamp layout and plug-in cable setup before ordering. Surface mount the lamps horizontally on a flat rear surface, then run the cable through a 12mm hole.

Wire colours are red for stop, brown for tail and licence, yellow for indicator and white for earth. Check rear clearance, bolt position and number plate location before drilling.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Confirm stop, tail, indicator, licence and earth connections before final fitment. Also check that the licence lamp lines up with the number plate and that both rear lamps remain visible once the boat, guards and rear hardware sit in place.

Trailer Applications

Workshops fit a boat trailer lamp kit on small and medium boat trailers that need submersible rear lighting. Because the lamps use plug-in cable compatibility, they suit trailer rewiring jobs where the rear lights and cable harness need to be matched together.

Why Choose ICS Trailers

Boat trailer lighting needs to match the voltage, rear panel layout, cable system and number plate position before it goes on. ICS Trailers can help line up trailer lamps, cable kits and electrical hardware for repair, refit and build work.
