Round Rear Combination Lamp 125mm 12/24V
Round Rear Combination Lamp 125mm 12/24V
$116.00

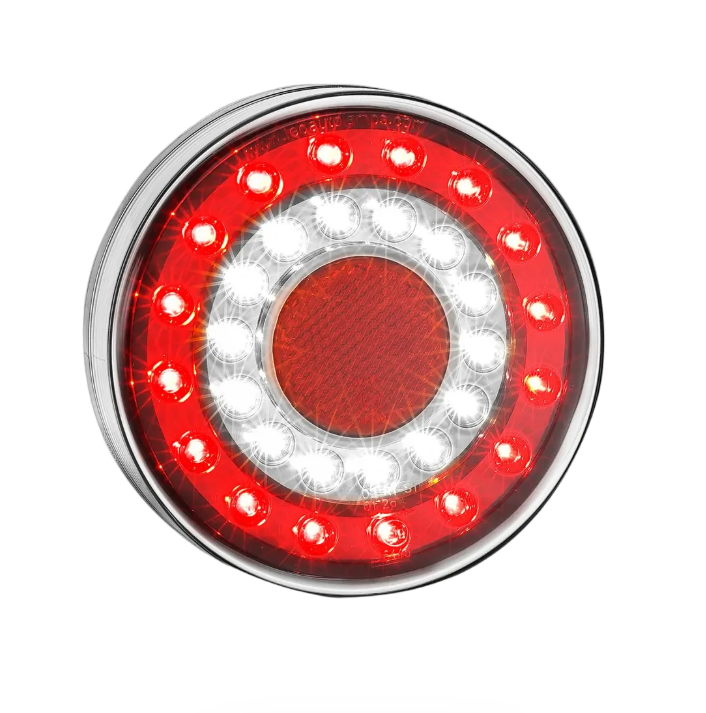

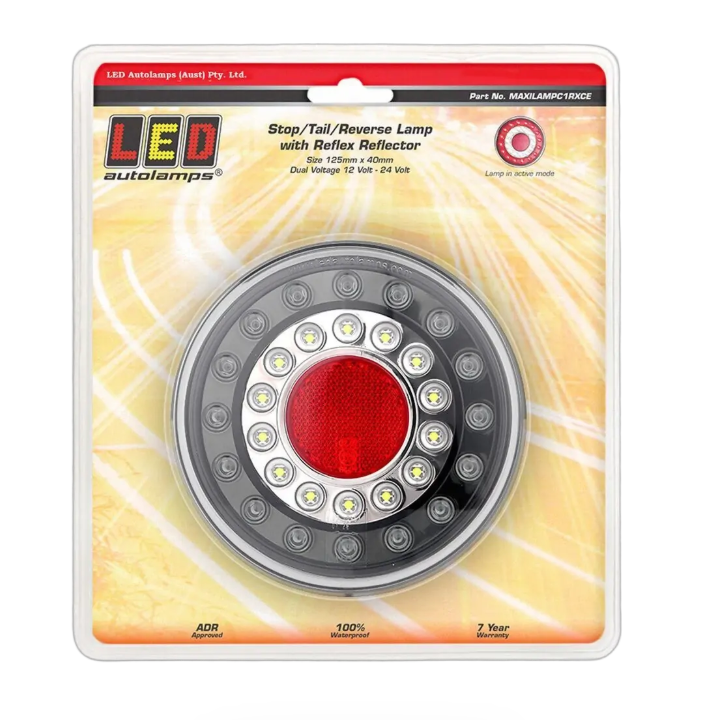

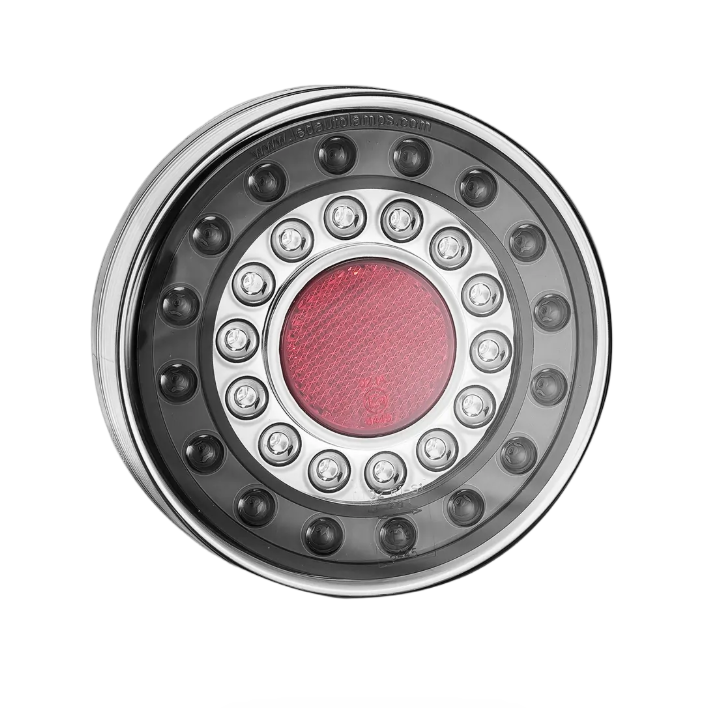

Rear combination lamp for 12/24V trailer and caravan rear lighting, with stop, tail, reverse and reflector functions, a 125mm round body, 40cm cable and clear lens black chrome finish for compact flat-panel mounting.
Part number MAXILAMPC1RXCE.
Description
Overview
Rear combination lamp restores 12/24V stop, tail, reverse and reflector lighting on trailers, caravans and light commercial rear bodywork. The 125mm round body suits flat rear panels where a compact single lamp needs to carry multiple rear lighting functions without a large rectangular housing.
Features
- Stop, tail, reverse and reflector functions in one round rear lamp.
- 125mm round x 40mm body suits compact rear panel mounting.
- 30 LEDs with a 40cm cable for wiring into the rear lighting circuit.
- PMMA acrylic lens and ABS base with IP67 protection.
Specifications and Materials

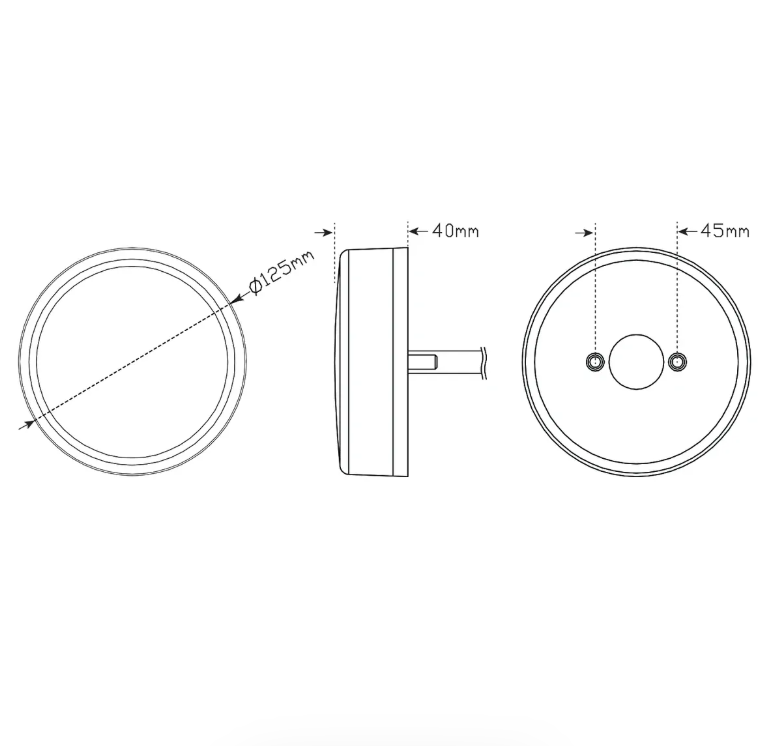

Each rear combination lamp measures 125mm round x 40mm and runs across 12/24V systems. The lamp draws 0.34A stop and 0.07A tail at 13.8V, then 0.17A stop and 0.06A tail at 28V. Reverse draw for this variant depends on the final lamp configuration.
Part number: MAXILAMPC1RXCE.
Manufacturer technical guide: official Maxilamp Single technical page
Compatibility and Fitment
Match this rear combination lamp to a 12V or 24V rear lighting circuit, then confirm the flat mounting face, cable path and bolt position before fitting. Wire the red lead to stop, brown to tail, black to reverse and white to earth.
Related Parts
Check the related service parts below against the trailer setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Related version | MAXILAMPC1RXRE | Red chrome stop, tail, reverse and reflector lamp |
| Related version | MAXILAMPC1XCE | Clear stop, tail, indicator and reflector lamp |
| Related version | MAXILAMP1XCWE | Reverse and reflector lamp |
| Related version | MAXILAMPC1XCE3M | 3M tape stop, tail, indicator and reflector lamp |
Compliance and Safety
Mount the lamp horizontally onto a flat surface using the supplied fixings. Do not over-tighten the bolts, and check ADR 13/00 mounting guidance so lamp position, visibility and wiring suit the vehicle or trailer before road use.
Trailer Applications
Repairers fit this round rear combination lamp when replacing compact rear lighting on trailers, caravans, trays and service bodies. Because the lamp combines stop, tail, reverse and reflector functions, it suits rear bodywork where space or styling rules out a larger lamp assembly.
Why Choose ICS Trailers
ICS Trailers can help match rear lamps with trailer wiring, mounting hardware and body repair work when a single round lamp has to replace the existing unit cleanly.
