Description

Overview

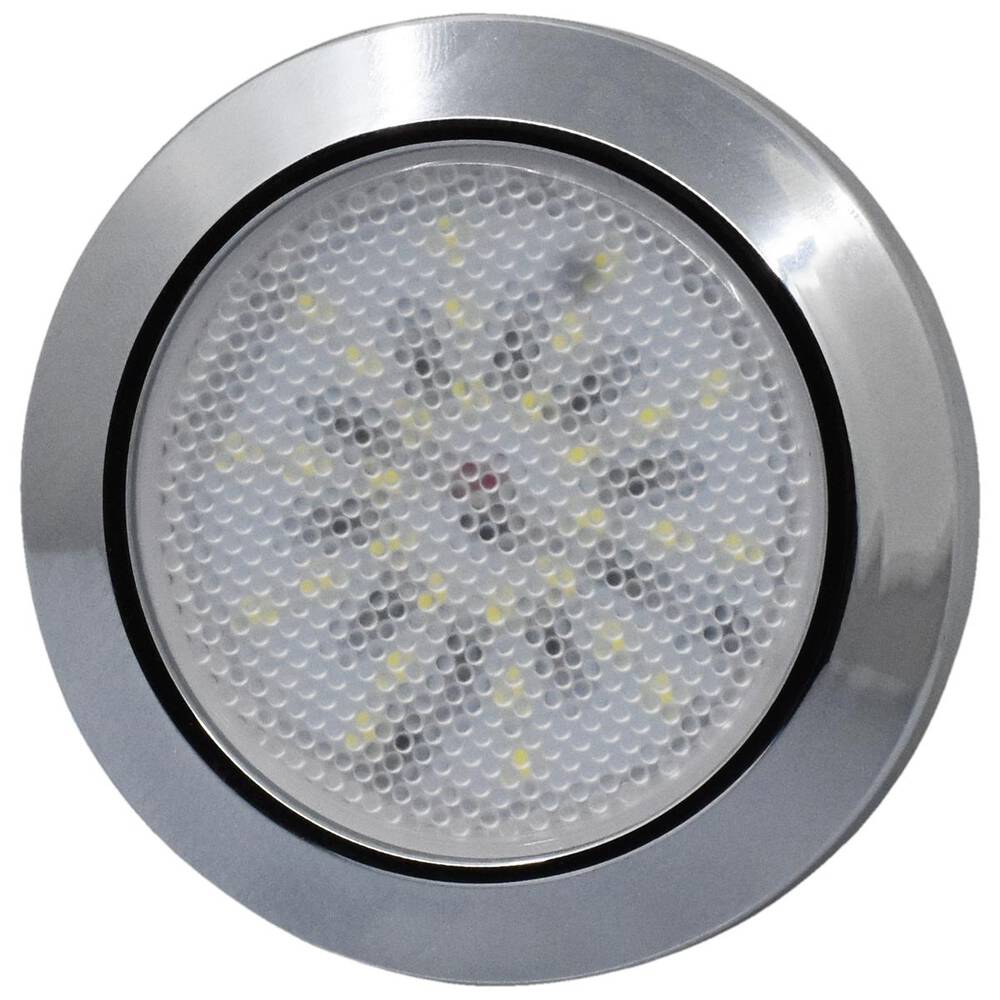

Round LED interior light gives compact ceiling and panel lighting for caravans, RVs, enclosed trailers, service bodies and vehicle interiors. The 70mm chrome-base body suits low-clearance areas where a larger bar light or oyster light would take up too much space. Because it runs on 12V, it suits common auxiliary lighting circuits in caravan and vehicle fit-outs.

Features

• 70mm round chrome-base interior lamp for compact ceiling and wall-panel spaces.
• 1.5W LED output gives crisp neutral white illumination without a bulky fitting.
• PMMA lens and ABS housing suit lightweight interior fit-outs.
• IP67 environmental rating supports cleaner sealing around exposed interior work areas.

Specifications and Materials

This round LED interior light runs on 12V and uses a surface-mount design with a snap-on flush-fit bezel. The lamp measures 69.2mm across the mounting face, with an 8.5mm body depth and 4mm rear projection shown on the technical drawing.

Part number: IL070LEDC.

See the Whitevision technical information

Compatibility and Fitment

Check the available mounting diameter, wiring route and ceiling or panel thickness before ordering. This round LED interior light suits 12V interior lighting circuits, so confirm the vehicle or trailer system voltage before fitting. Also compare the chrome bezel finish against nearby fittings if the job needs a matched interior look.

Compliance and Safety

Fit the lamp to a protected low-voltage circuit and keep wiring clear of sharp trim, moving hardware and heat. After installation, test polarity, switching, light output and mounting security before returning the trailer or vehicle to service.

Trailer Applications

Installers use this style of compact round lamp inside caravans, RVs, enclosed work trailers, service bodies, tool canopies and vehicle cabins. The shallow body works well where ceiling space is tight, while the chrome bezel gives the finished fit-out a cleaner trim appearance.

Why Choose ICS Trailers

ICS Trailers can supply interior lighting alongside cable, terminals, plugs, conduit and trailer electrical hardware, so the lamp can be matched with the rest of the wiring job.
