Description

Overview

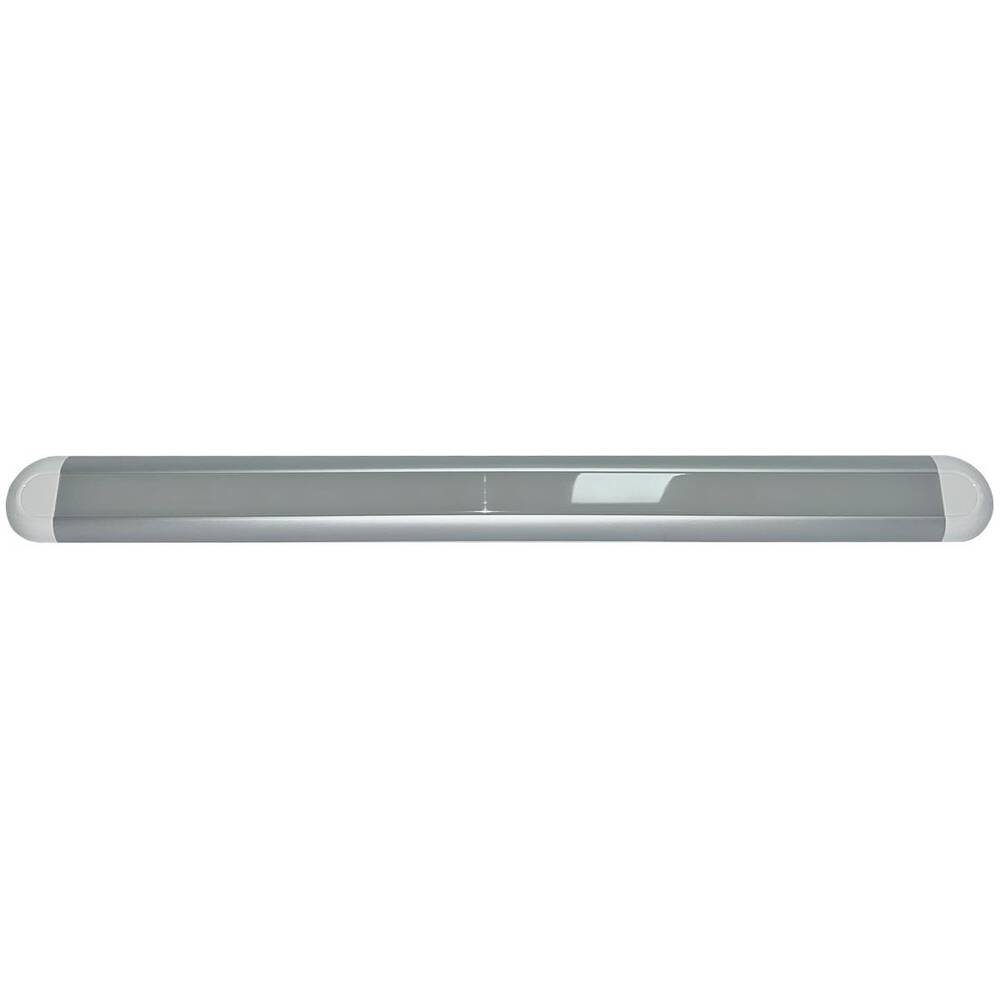

LED interior light supports bright internal lighting across enclosed trailer bodies, service vehicles, caravans, utes and workshop fit-outs. The slim 600mm surface-mount body gives installers a low-profile option where roof lining, wall panels or cabinet framing leave limited clearance. Because this version uses an external switching setup, it suits builds where the light circuit already runs through a separate wall switch, dimmer or control system.

Features

• 35W output with 794lm illumination for larger interior spaces.
• 10-30V DC Varivolt range suits common 12V and 24V vehicle systems.
• 600mm x 54mm slimline housing gives wide light spread without a bulky body.
• Hidden mounting fixtures keep the finished installation clean.

Specifications and Materials

This LED interior light uses high-grade SMD LED technology with a polycarbonate lens and ADC12 aluminium housing. The 600mm non-switch version suits externally switched lighting circuits and mounts directly to a flat interior surface.

Part number: IL054HC.

See the Whitevision technical information

Compatibility and Fitment

Check the available mounting length, wiring position and circuit control before ordering. This LED interior light measures 600mm x 54mm x 12mm, so confirm the surface has enough straight mounting area and enough rear access for the wiring exit. Also confirm whether the job needs the non-switch version or a separate touch-switch version from the same light series.

Compliance and Safety

Fit the lamp to a fused low-voltage circuit and protect the wiring from sharp edges, heat and moving hardware. After installation, test the light output, switching control, cable routing and mounting tension before handing the vehicle or trailer back into service.

Trailer Applications

Builders and repairers fit this style of bar light inside enclosed trailers, tool trailers, vans, caravans, service bodies and mobile workspaces. The low-profile housing helps keep the light out of the way when cargo, shelving or roof trim sits close to the mounting surface.

Why Choose ICS Trailers

ICS Trailers can supply LED lighting alongside plugs, cable, terminals, conduit and other trailer electrical hardware, so the light can be matched with the rest of the wiring repair or fit-out.
