Description

Overview

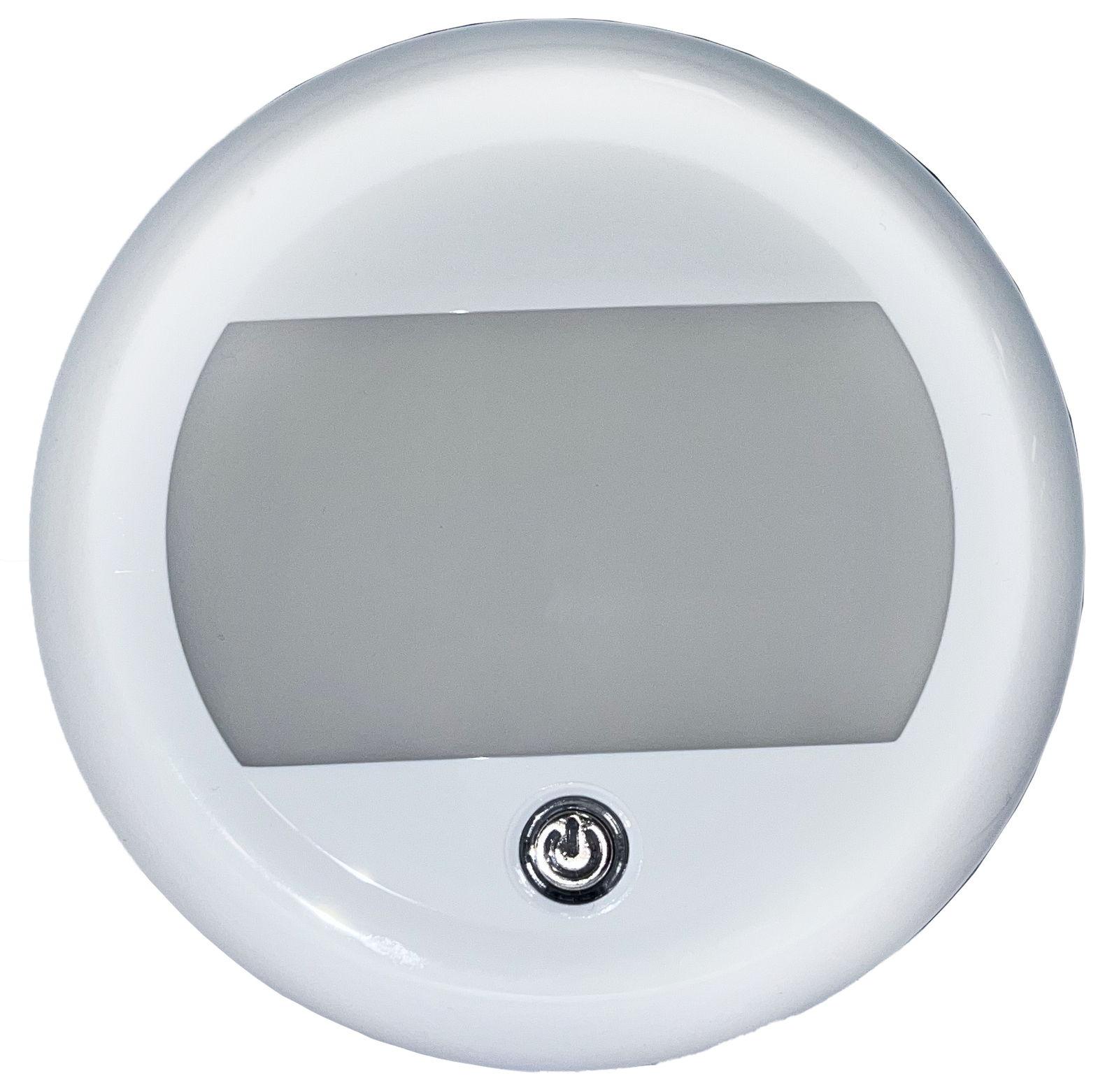

Round LED interior light delivers strong low-profile illumination for caravan, RV, enclosed trailer, service body and vehicle interior fit-outs. The 5 inch body gives installers a compact surface-mount lamp for ceiling and wall-panel areas where a longer bar light would not suit. Because it includes an in-built on/off touch switch with 3 brightness settings, the lamp gives the user direct light control at the fitting.

Features

• Integrated on/off touch switch with 100%, 70% and 30% brightness settings.
• 10-30V DC range suits common 12V and 24V vehicle electrical systems.
• 25.5W SMD LED output supports bright interior illumination in compact spaces.
• Hidden mounting fixture design keeps the finished installation clean.

Specifications and Materials

This round LED interior light uses a polycarbonate lens, ADC12 aluminium housing and smart surface-mount body. The lamp measures 130mm across the face and 18.5mm deep, so it suits low-profile interior trim work where clearance matters.

Part number: IL130LED.

See the Whitevision technical information

Compatibility and Fitment

Check the available mounting diameter, wiring route and system voltage before ordering. This round LED interior light suits 10-30V interior lighting circuits, so confirm the trailer, caravan or vehicle wiring matches that range. Also allow room behind the panel for cable exit and fastener placement.

Compliance and Safety

Fit the lamp to a protected low-voltage circuit and secure the wiring away from sharp trim, heat and moving hardware. After installation, test the touch switch, each brightness level, polarity, mounting tension and cable protection before release.

Trailer Applications

Installers use this style of round interior lamp inside caravans, RVs, enclosed trailers, service bodies, ute canopies and mobile workspaces. The touch-switch control suits areas where the user needs quick local control without adding a separate wall switch.

Why Choose ICS Trailers

ICS Trailers can supply interior LED lighting alongside cable, plugs, terminals, conduit and trailer electrical hardware, so the lighting fit-out can be matched with the rest of the wiring job.
