Description

Overview

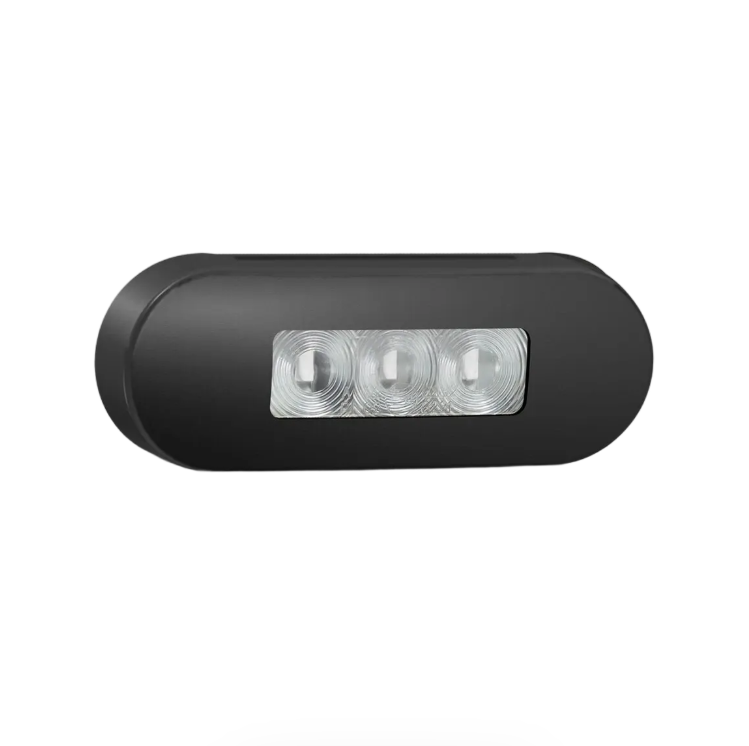

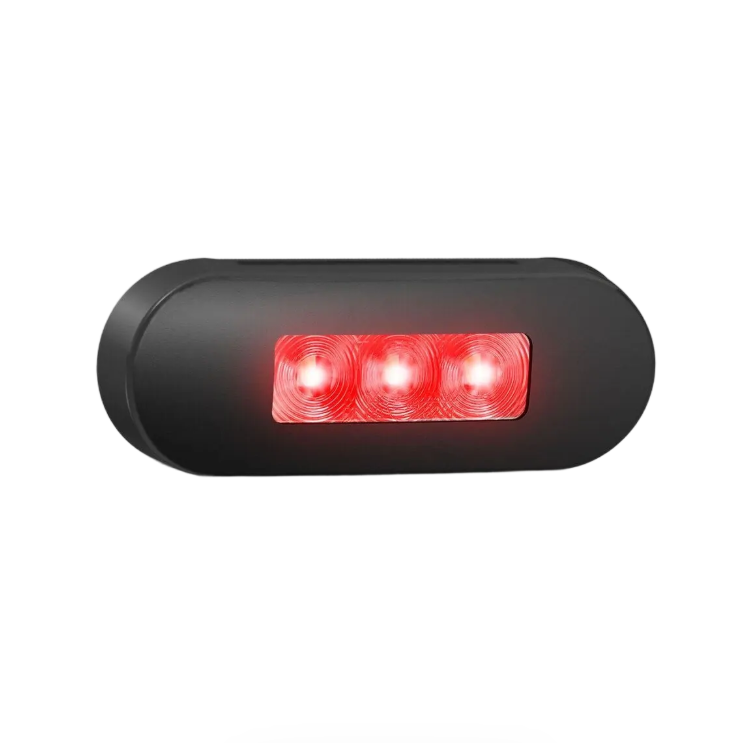

Rear end outline marker lamp marks the rear edge of trailers, vans and truck bodies with red LED clearance lighting. The clear lens keeps the lamp tidy when inactive, while the black low-profile bezel suits bodies where a compact surface-mounted marker looks cleaner than a larger lamp.

Features

• Red LED rear end marker function for trailer and truck body lighting.
• Clear lens with black low-profile bezel.
• 12-24V input suits mixed trailer and vehicle electrical systems.
• IP67 waterproof rating for exposed exterior mounting.

Specifications and Materials

This marker lamp measures 86mm x 31mm x 10mm and uses a 15cm cable for wiring through the rear of the lamp. The lens uses polycarbonate, and the base uses stainless steel for a firm clip-in bezel setup.

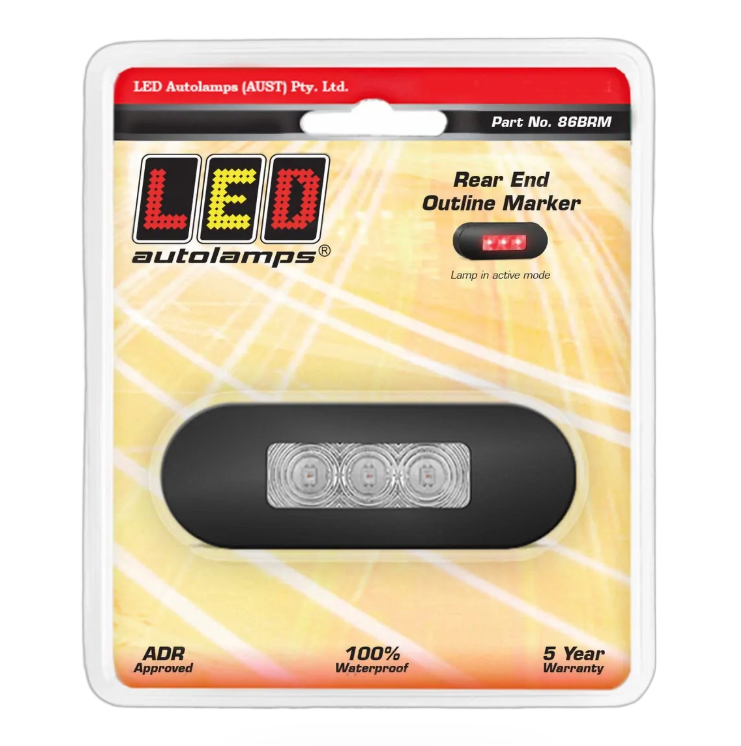

Part number: 86BRM.

The lamp uses 3 LEDs and carries ADR rear end 49/00 approval with CTA rear end category approval. Brown connects to power, while white connects to earth.

Use the manufacturer technical guide when checking series specifications and approval details

Compatibility and Fitment

Match this lamp to rear end outline marker positions that need a red LED, clear lens and 12-24V operation. For fitment, mount the rear end outline marker lamp horizontally on a flat surface, run the cable through the back, then remove and refit the bezel during screw mounting.

Compliance and Safety

Check the mounting position against the trailer lighting layout before drilling. Also inspect the earth connection, cable routing and rear marker operation after installation, because poor earthing or loose wiring can cause intermittent rear clearance lights.

Trailer Applications

Trailers use this style of rear marker on rear corners, van bodies, tray bodies, service bodies and light commercial setups where the lamp needs to sit low against the panel. The rear end outline marker lamp also suits workshop replacement when the existing compact rear marker has a cracked lens, damaged bezel or failed LED output.

Why Choose ICS Trailers

ICS Trailers supplies trailer lighting for repair work, body builds and fleet maintenance, so workshops can match compact rear markers with other electrical and trailer service parts. Browse more trailer lighting in our LED Lights range
