Description

Overview

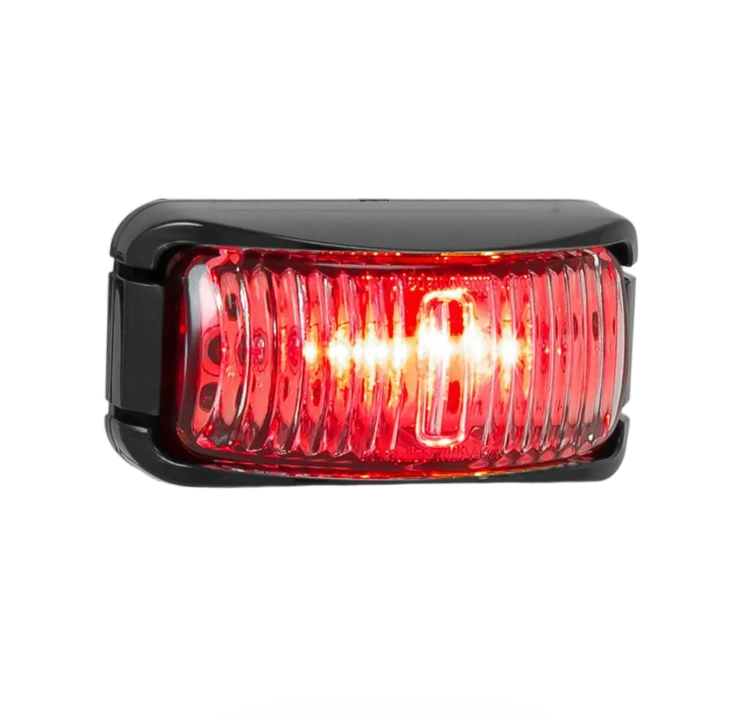

Rear end outline marker lamp supports rear visibility on truck and trailer bodies where red outline marking needs a compact 12-24V LED lamp. This bulk box contains 10 matching 42 Series single lamps, so it suits fleet repairs, workshop stock and multi-lamp fit-outs. The clear clip-in lens and black bracket keep the lamp compact, while the coloured LEDs provide the rear end marker function.

Features

• Box of 10 single rear end outline marker lamps
• 12-24V operation with 16cm bare-wire cable

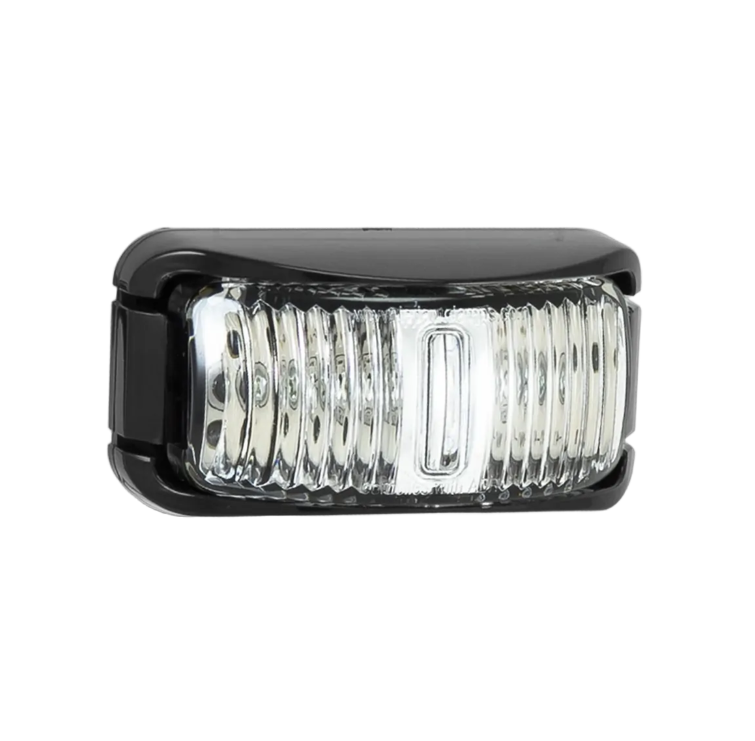

• Clear clip-in lens with black bracket
• ADR approved rear end function with IP67 rated protection

Specifications and Materials

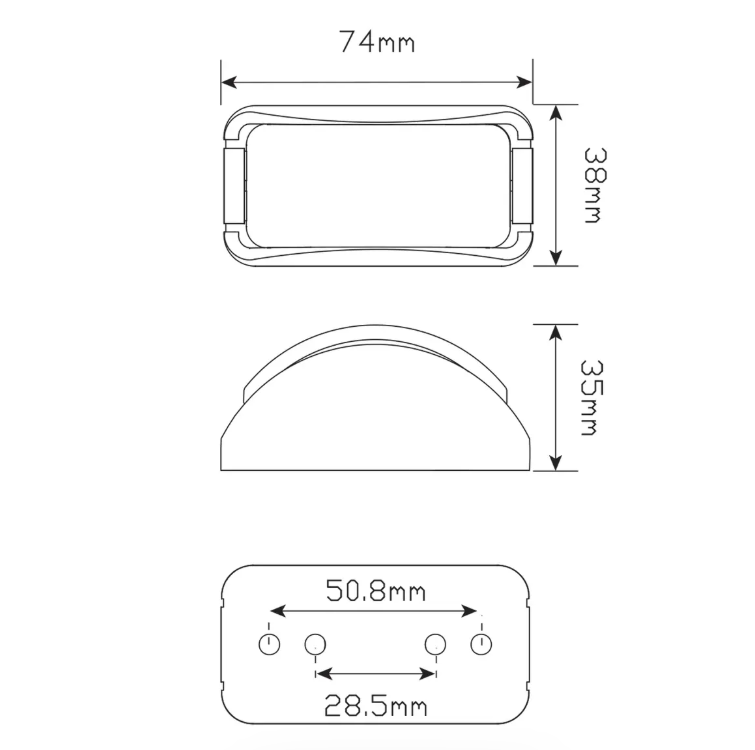

This rear end outline marker lamp measures 74mm × 38mm × 35mm and uses 2 LEDs. It draws 0.05A at 13.8V and 0.06A at 28V, so it suits both 12V and 24V vehicle electrical systems. The lens uses polycarbonate, and the base uses hardened acrylic. Part number: 42RMB.
Use the official 42 Series datasheet for electrical draw, dimensions and approval details.

Compatibility and Fitment

Match the rear end outline function, black bracket style, 16cm cable and mounting surface before ordering. Mount the bracket horizontally on a flat surface, then run the wires through the back and clip the lens into place. For position and legal fitment, follow ADR 13/00 mounting requirements before road use.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

IP67 rating supports exposed trailer positions, but the cable join, seals and mounting holes still need proper protection. Inspect the lens, bracket and wiring after fitting. If the lens cracks or the bracket loosens, replace the lamp rather than relying on the marker for road use.

Trailer Applications

Truck bodies, semi-trailers, rigid bodies and service trailers use rear end outline markers to help define the rear edge of the vehicle. This rear end outline marker lamp suits repairs where a compact black bracket lamp with red rear output and a short bare-wire tail matches the existing setup.

Why Choose ICS Trailers

ICS Trailers supplies trailer lighting for repairers matching marker lamps, plugs, cable runs and ADR-style placement in one job. When replacing multiple rear markers, ordering a bulk box keeps the set consistent across the body. Browse more trailer lighting parts in LED Lights
