Description

Overview

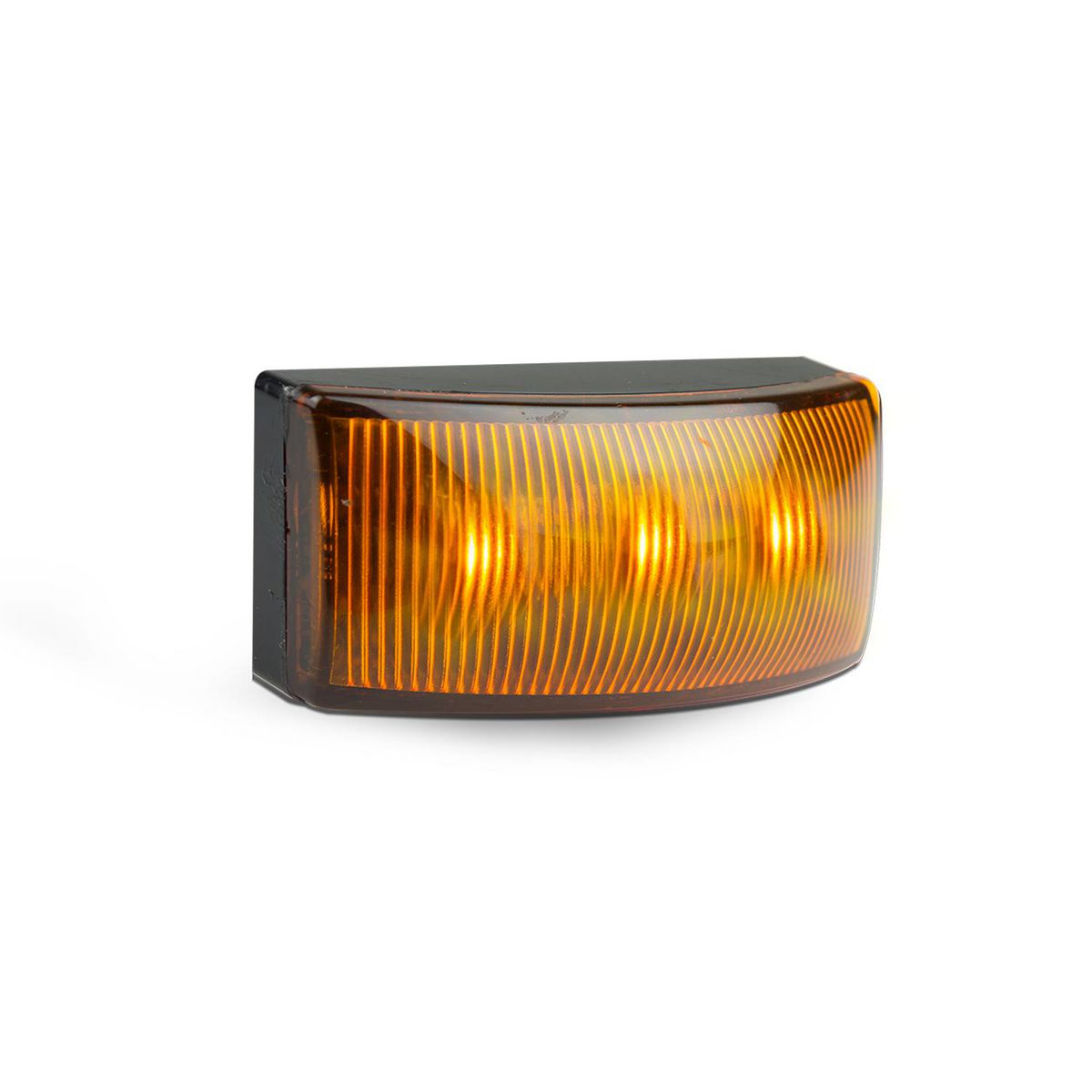

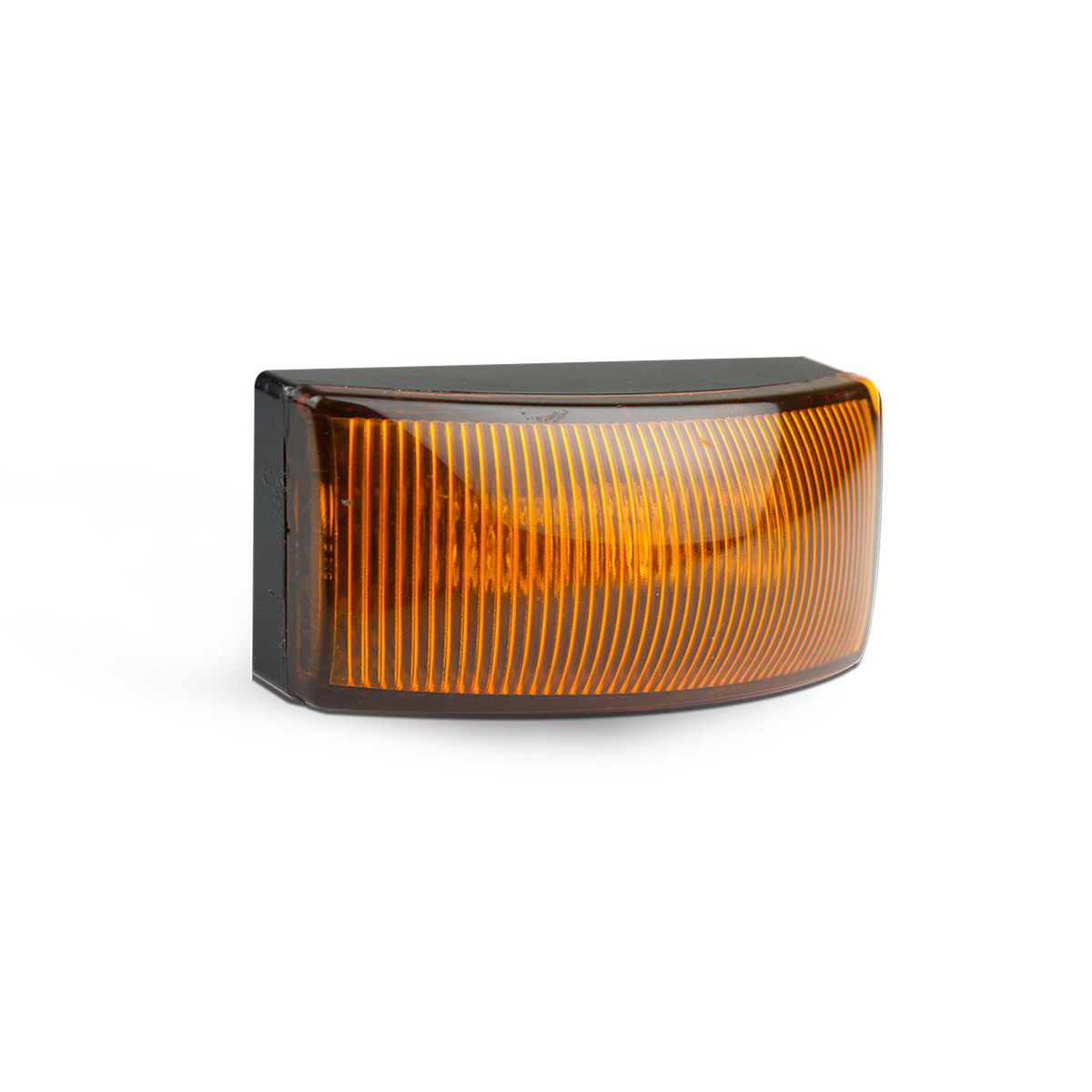

The amber LED side marker and direction lamp handles side marker, side direction and front outline duties in one compact lamp for trailers and trucks. It gives you a low-profile body, so it suits tighter side sections, guards and body panels where larger lamps take up too much room.

This lamp uses a non-fastener mount, which speeds up fitting and keeps the outside face clean. It also runs on 12V and 24V systems, so fleets can keep the same lamp style across different trailers and vehicles.

Features

• Combines side marker, side direction and front outline functions

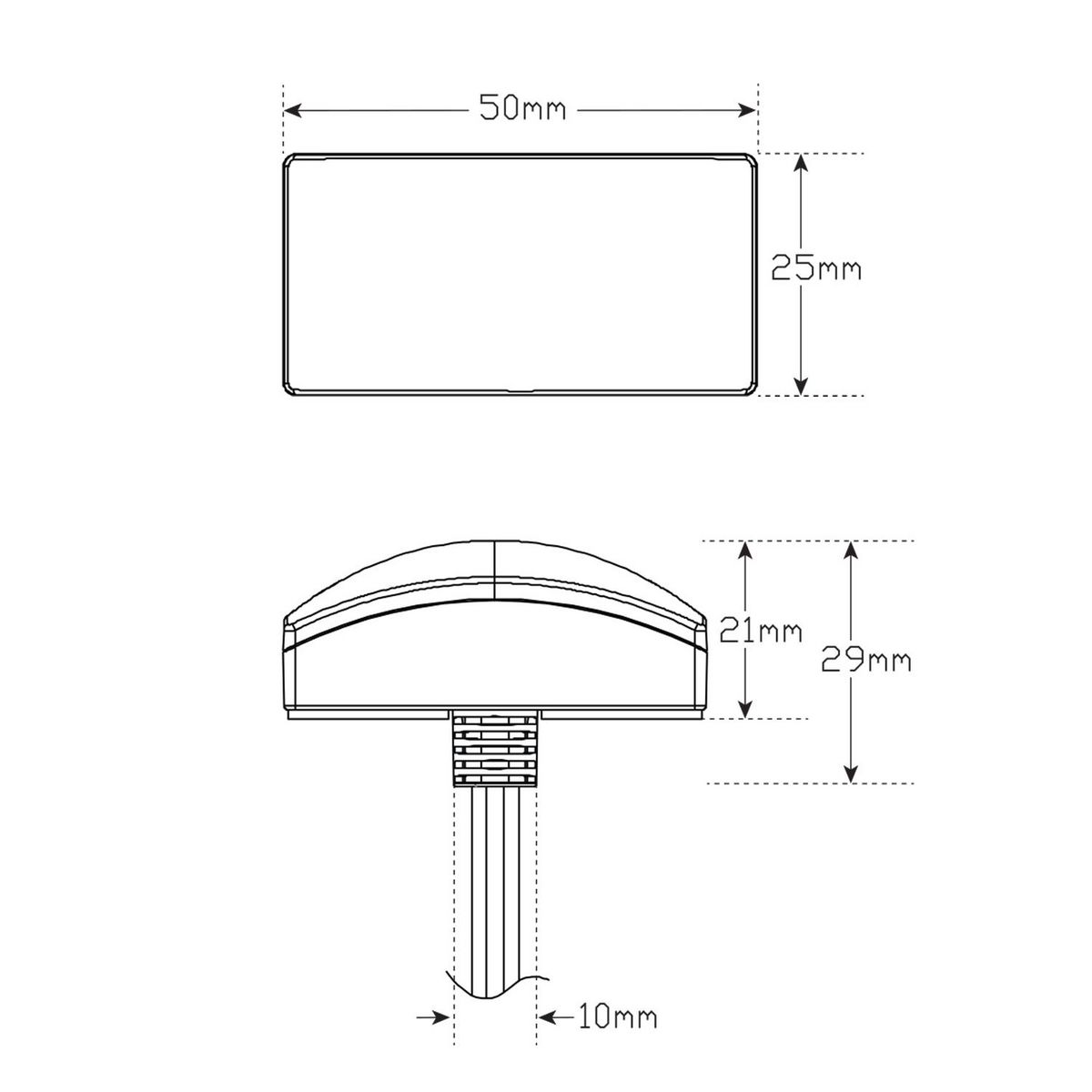

• Measures 50 x 25 x 21mm for compact lamp positions
• Runs on 12-24V systems with a 20cm cable and 3 LED output
• Uses a 10mm serrated plug, 3M tape and IP67 sealing

Specifications and Materials

This lamp uses a PMMA lens over an ABS base and carries three LEDs in a compact housing. Current draw stays at 0.029A at 13.8V and 28V. Part number: 5025AM2.

See the manufacturer technical guide for full series specifications and fitting details

Compatibility and Fitment

Match this amber LED side marker and direction lamp to 12V or 24V trailer and truck systems that need amber side marker, side direction and front outline coverage in one housing. Also check that the mounting point can take a 10mm hole for the serrated plug before ordering.

Allow room for the 20cm cable behind the panel, then line the lamp up carefully before pressing it into place. Because the body also mounts with 3M tape, clean and dry the surface first so the lamp seats properly and stays secure.

Compliance and Safety

Test the side marker, side direction and front outline functions after wiring, then confirm the lamp sits square on the panel. Keep the cable clear of sharp edges, because rubbing can damage the sheath over time.

If the lens, housing or cable gets damaged, replace the lamp before the trailer returns to service. Also check the adhesive face and plug fit during routine lighting inspections.

Trailer Applications

Workshops fit this amber LED side marker and direction lamp on trailers, truck bodies and equipment that need a compact side lamp with multiple amber functions. It suits narrow rails, mudguards and body corners where a larger lamp body can crowd the panel. The non-fastener mount also helps speed up repeat installs when fleets want a neat, low-profile finish.
