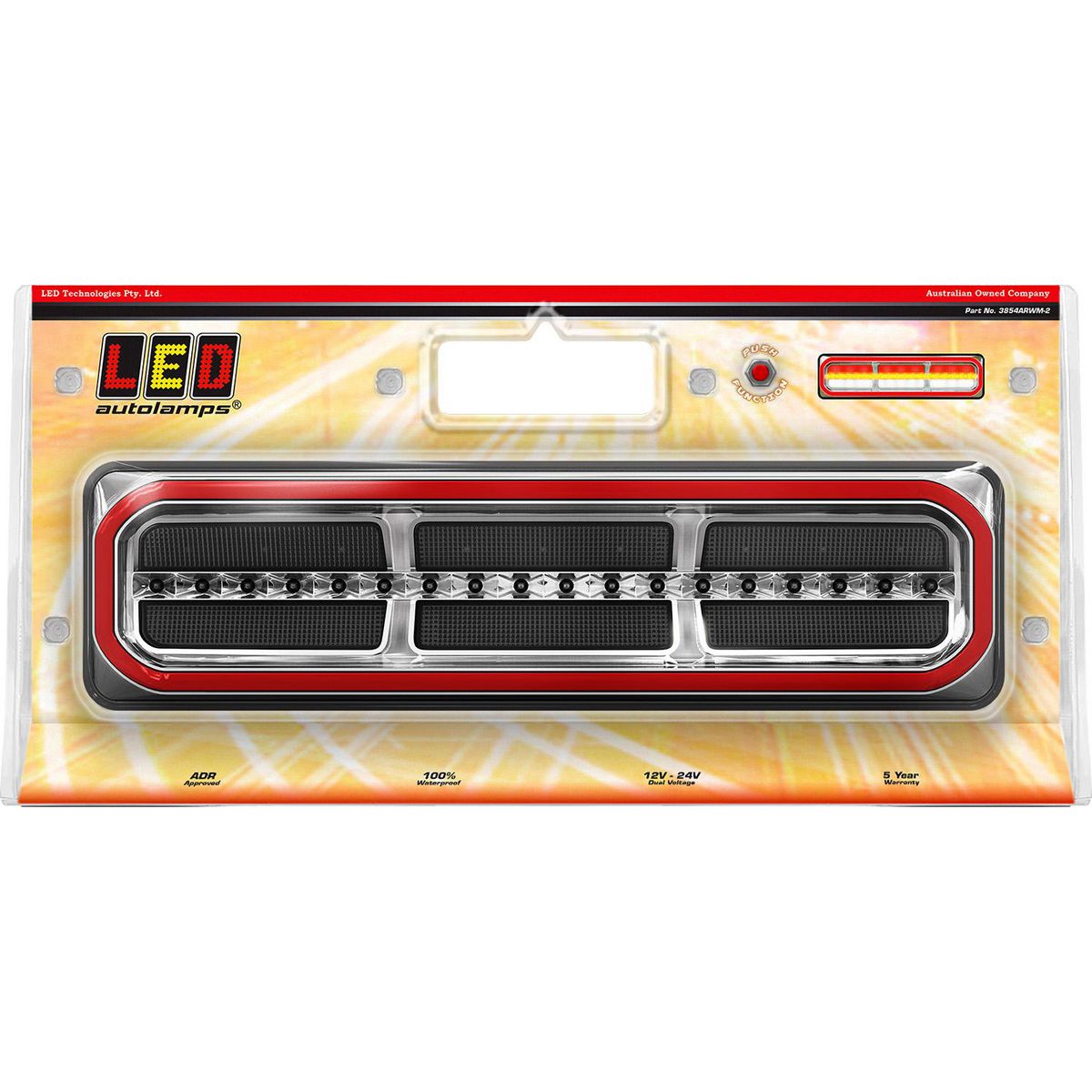

Rear Combination Lamp Twin Pack 3854 Series
Rear Combination Lamp Twin Pack 3854 Series
$367.00
Rear combination lamp twin pack for trailer and truck rear lighting, with stop, tail, sequential indicator and reverse functions, 12/24V operation, diffused tail output, IP67 rating and bracket mount fitting for clean rear panel installation.
Part number 3854ARWM-2.
Description
Overview

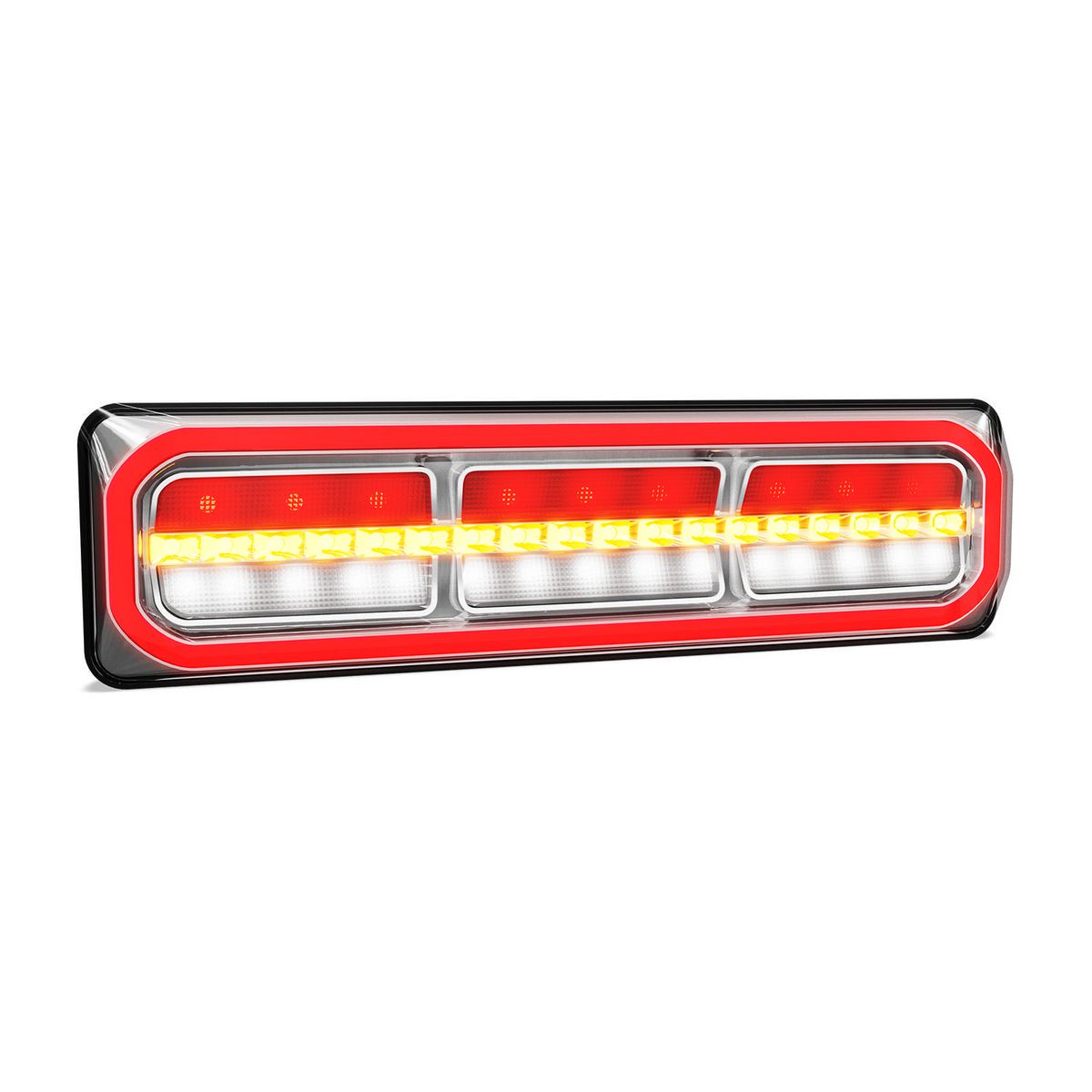

3854 Series rear combination lamp handles stop, tail, sequential indicator and reverse lighting in a twin pack for left and right rear trailer fitment. The diffused tail function gives the lamp a modern light spread, while the sequential indicator helps the rear signal stand out clearly. Because each lamp uses a hidden mounting base, the finished install stays clean without exposed front screws.
Features
- Twin pack rear combination lamp set for left and right rear mounting.
- Stop, tail, sequential indicator and reverse functions.
- 12/24V multivolt operation for trailer and truck electrical systems.
- IP67 rated lamp body with ADR approval and 5 year warranty.
Specifications and Materials

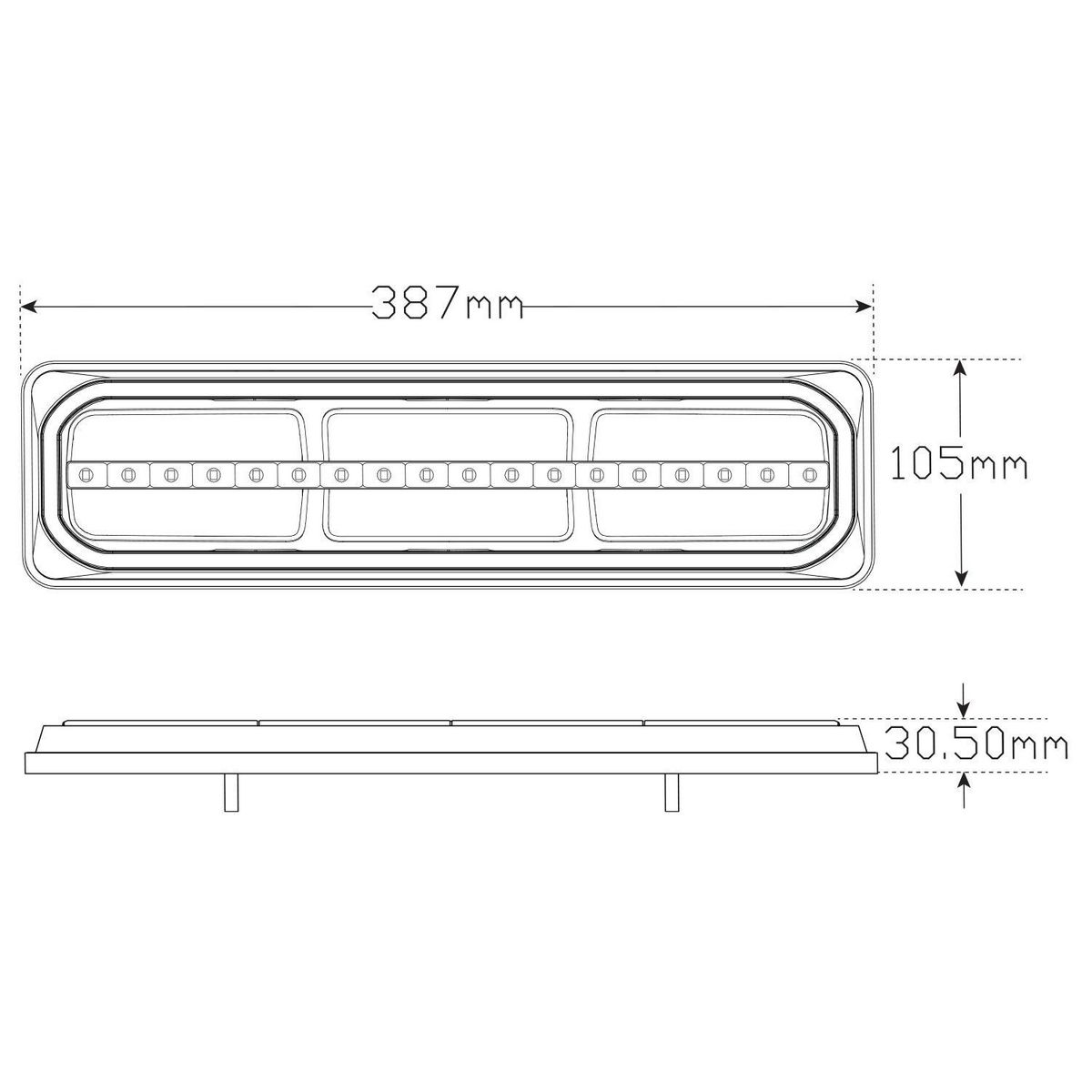

This 3854 Series rear combination lamp measures 387mm x 105mm x 30.5mm per lamp. The ARW version carries 102 LEDs, uses a 40cm cable, PMMA lens and ABS base, and covers stop, tail, indicator and reverse circuits.
Part number: 3854ARWM-2.
Use the official LED Autolamps 3854 Series technical page
Compatibility and Fitment
Check the lamp size, rear panel space, cable length, voltage range and reverse light requirement before ordering. For fitting, separate the base plate from the lamp, mount the base horizontally on a flat surface, run the wiring through the fixing surface, then clip the lamp into the base.
Related Parts
Check the related service parts below against the trailer setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Left plug version | 3854ARWMLCSB | Combination lamp with 7 core plug |
| Right plug version | 3854ARWMRCSB | Combination lamp with 7 core plug |
| No reverse version | 3854ARRM-2 | Stop tail indicator twin pack |
| No reverse bulk version | 3854ARRMB | Single stop tail indicator lamp |
Compliance and Safety
Confirm final lamp position against ADR 13/00 before installation. Also check the wire colour code and cable route before powering the circuit, especially where the harness passes through steel bodywork or trailer chassis sections.
Trailer Applications
Workshops fit a 3854 Series rear combination lamp to trailers, truck bodies, service bodies and custom rear panels that need a wide modern rear lamp. The twin pack suits builds replacing both rear lamps at once instead of mixing old and new light styles.
Why Choose ICS Trailers
Use the function set, lamp size, mounting style and cable layout to compare this twin pack against the trailer’s existing rear lighting setup.
