Description

Overview

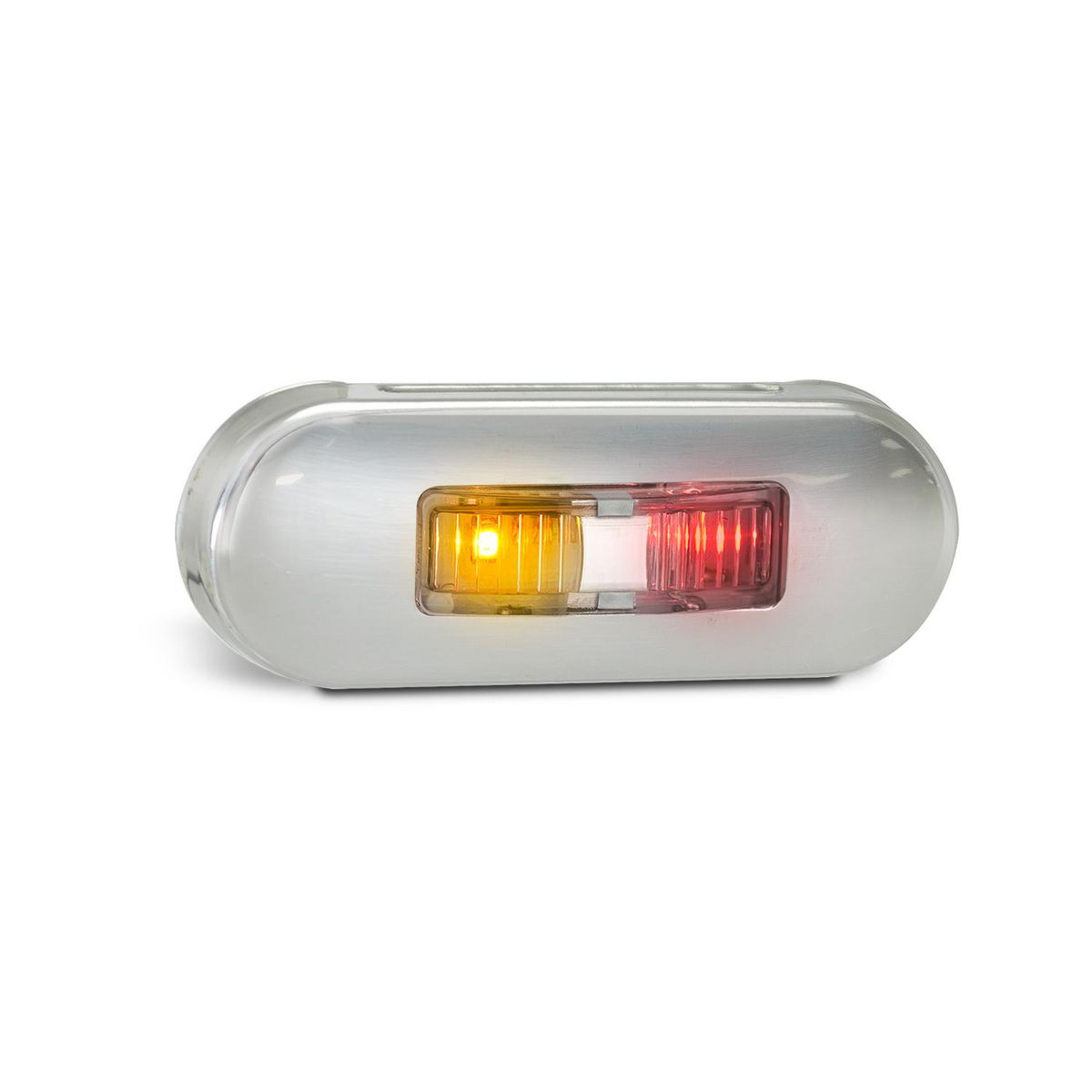

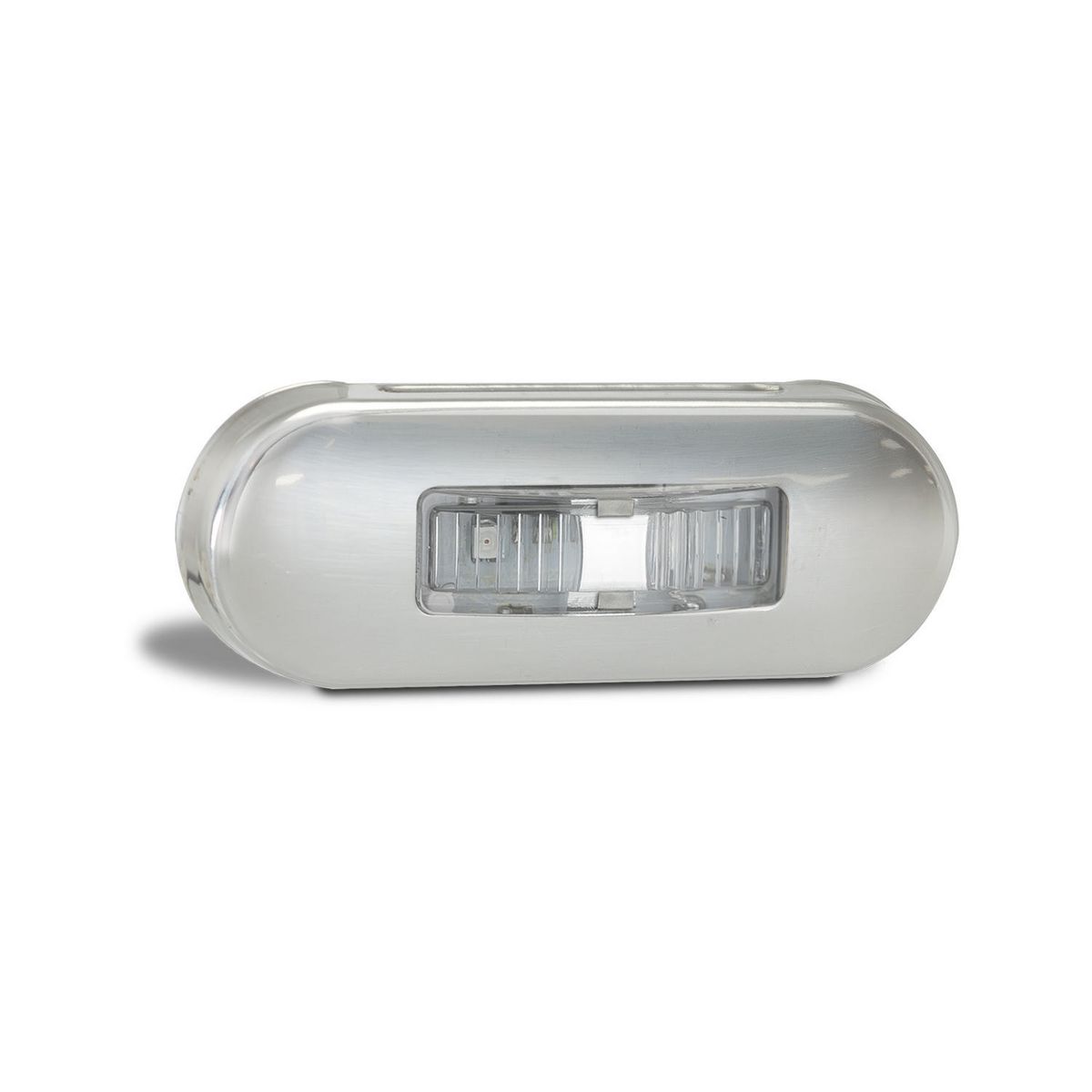

Amber red side marker lamp marks the side outline of trailers, truck bodies and long vehicle setups where amber and red side visibility matter. The low profile body keeps the lamp neat on side panels, while the clear lens uses coloured LEDs for the marker function.

Features

• Amber and red marker lamp for side outline lighting.
• Stainless steel bezel with low profile surface mount body.
• 12/24V multivolt operation for trailer and truck electrical systems.
• ADR approved, IP67 rated and backed by a 5 year warranty.

Specifications and Materials

This marker lamp measures 86mm x 31mm x 10mm across the listed lamp body. It uses a polycarbonate lens, stainless steel base, 2 LEDs and 15cm bare wire cable for standard hard-wired fitment.

Part number: 86ARMB.

Use the official 86 Series technical page

Compatibility and Fitment

Match the lamp colour, side marker position, voltage range and wiring type before ordering. For fitting, remove the stainless bezel, mount the lamp horizontally on a flat surface with screws, run the wires through the rear, then clip the bezel back into place.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Confirm the marker lamp position against the trailer layout before drilling. Also protect the cable where it passes through metal, because sharp panel edges can damage the insulation over time.

Trailer Applications

Use this lamp on side panels where the marker needs to show amber from one direction and red from the rear side view. Workshops also fit this style to truck bodies and long trailers that need compact side outline lighting.

Why Choose ICS Trailers

Use this lamp when the trailer needs a compact stainless bezel marker with clear lens styling, multivolt wiring and a low profile finish.
