Description

Overview

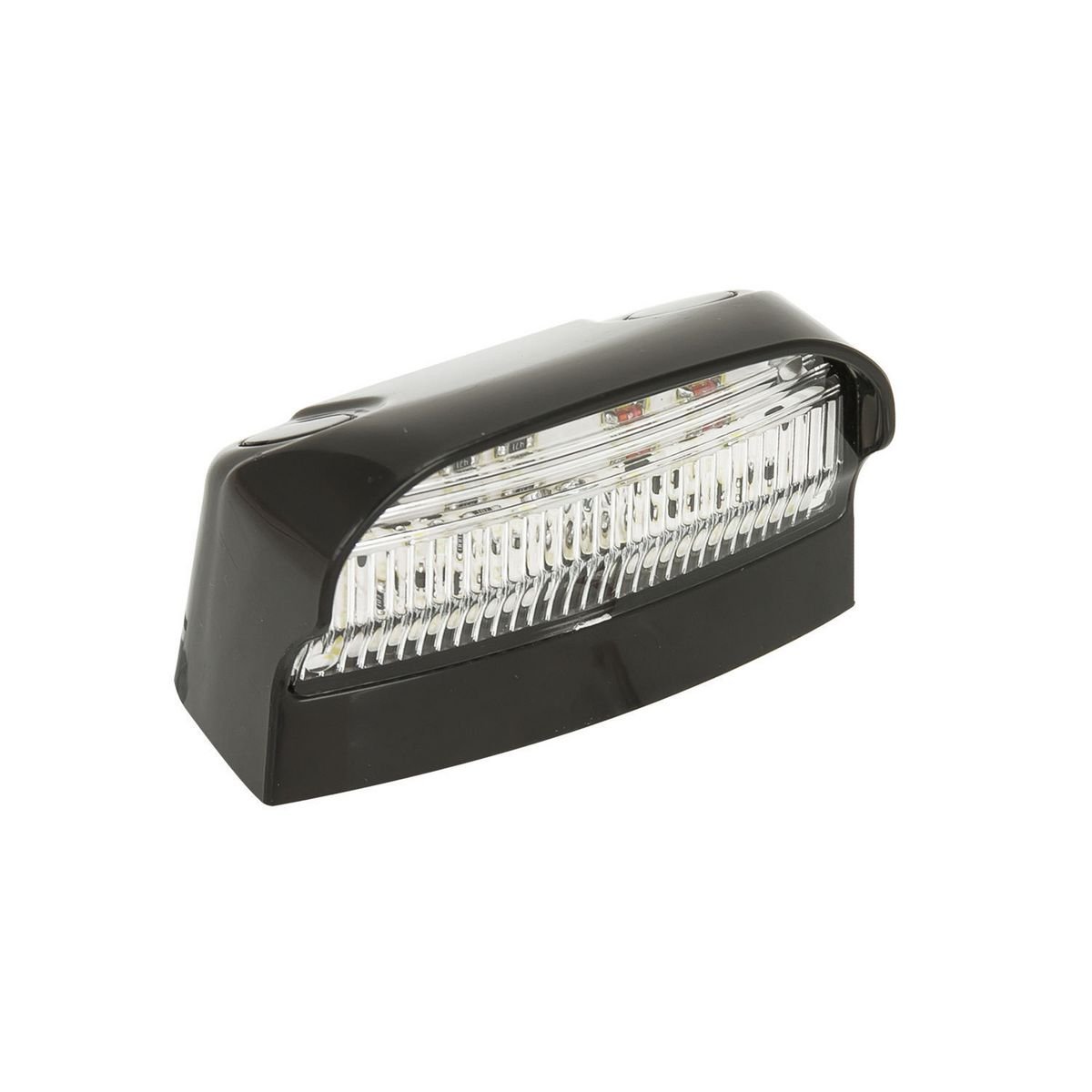

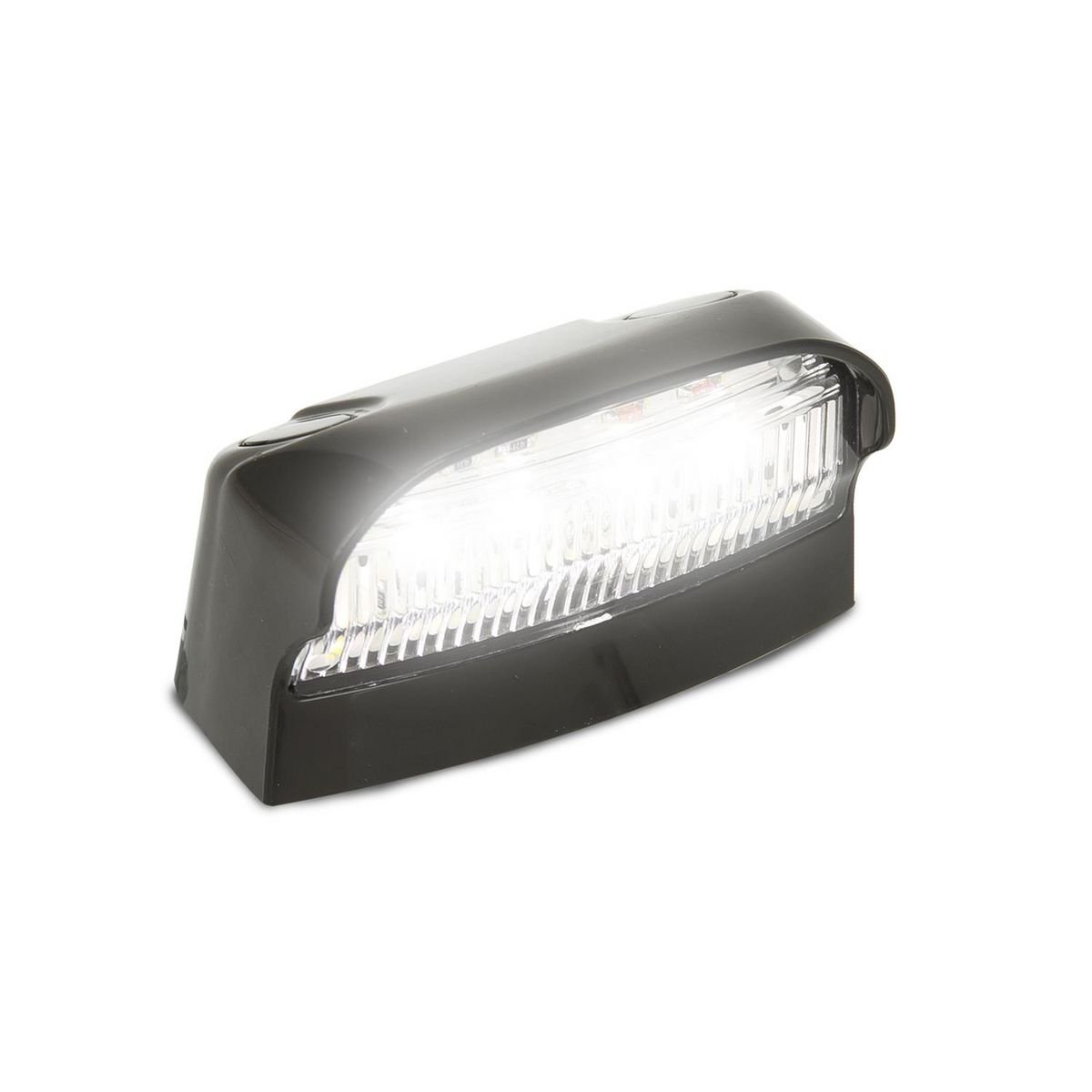

12/24V licence plate light illuminates rear number plates on trailers, trucks, caravans and service bodies with a compact 4 LED lamp.

The black housing suits exposed rear mounting positions where the lamp needs to sit close to the plate. Because two lamps are required for compliant plate illumination, check the rear panel layout and mounting position before ordering.

Features

• 4 LED licence plate lamp for 12-24V systems
• IP67 rated body for exterior rear lighting positions
• 23cm bare-wire cable on the bulk version
• Polycarbonate lens with ABS base

Specifications and Materials

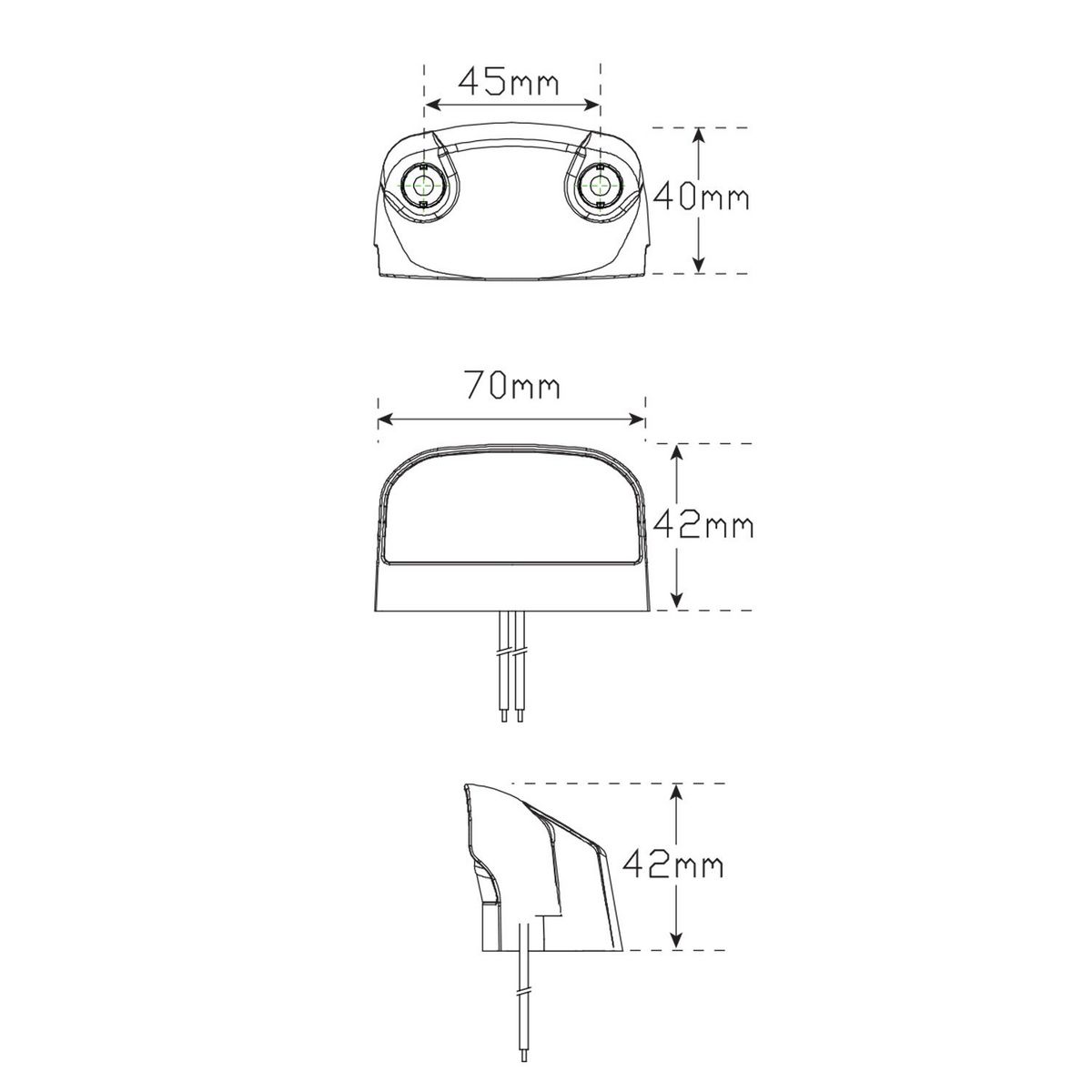

This 12/24V licence plate light measures 70mm x 42mm x 40mm and mounts to a flat surface near the licence plate. It draws 0.05A at 13.8V and 0.04A at 28V.

Part number: 41BLMB.

Use the manufacturer technical guide

Compatibility and Fitment

Check the 70mm x 42mm body size, cable style and mounting position before ordering. Mount the lamp 40mm from the top long or short edge of the plate, then confirm both lamps illuminate the plate evenly before road use.

Related Parts

Check the related 41 Series licence plate lamp versions below against the trailer or vehicle wiring setup before ordering.

Compliance and Safety

Fit two lamps and follow ADR 13/00 mounting guidance for licence plate illumination. Also check brown power and white earth wiring before final mounting, because poor polarity or earth connection can leave the plate light inactive.

Trailer Applications

Workshops fit this 12/24V licence plate light to trailers, trays, caravans, service bodies and heavy vehicle rear panels that need compact number plate lighting. The black housing suits simple surface-mount installs where the lamp sits close to the plate edge.
