Description

Overview

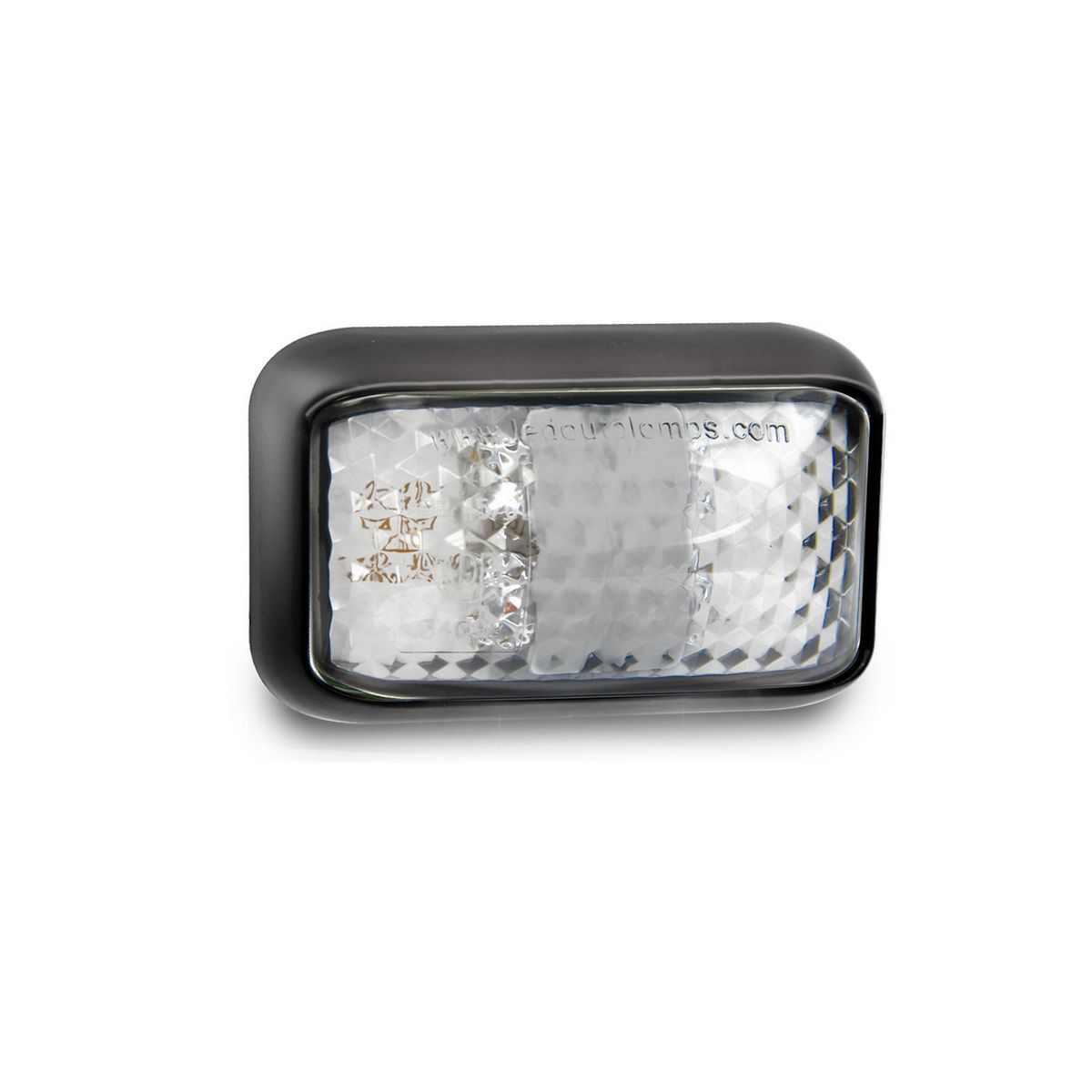

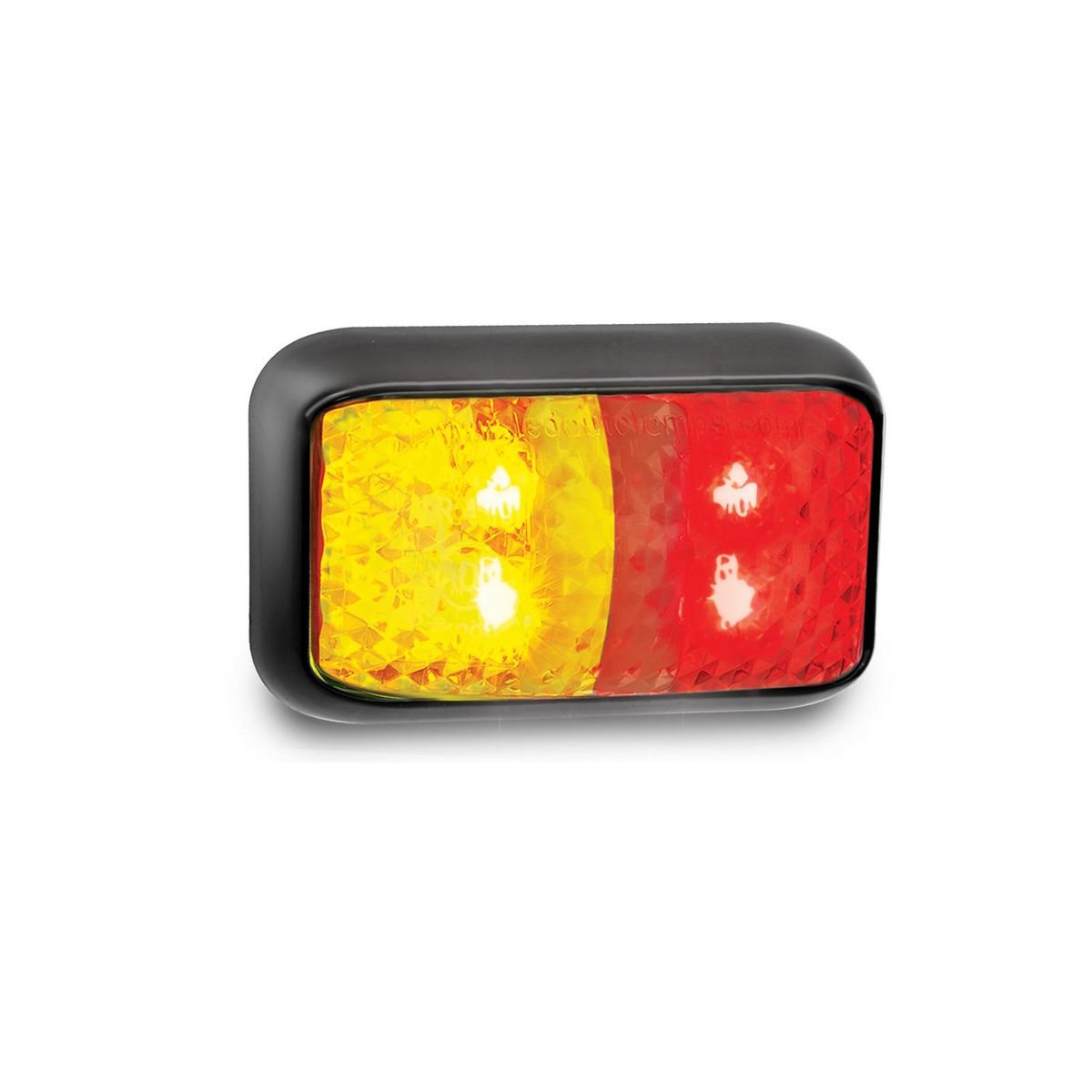

12/24V red amber side marker light supports trailer side visibility with amber and red LED output through a compact clear-lens marker lamp.

The 35 Series body fits tight side-panel positions where a low-profile surface-mount lamp suits the build better than a larger marker. Because it runs on 12-24V systems, it suits trailer, truck, caravan and service body lighting work.

Features

• Amber and red side marker output through a clear lens
• 4 LED lamp with 40cm bare-wire cable
• IP67 rated body for exterior marker light positions
• Clip-in replaceable lens for service access

Specifications and Materials

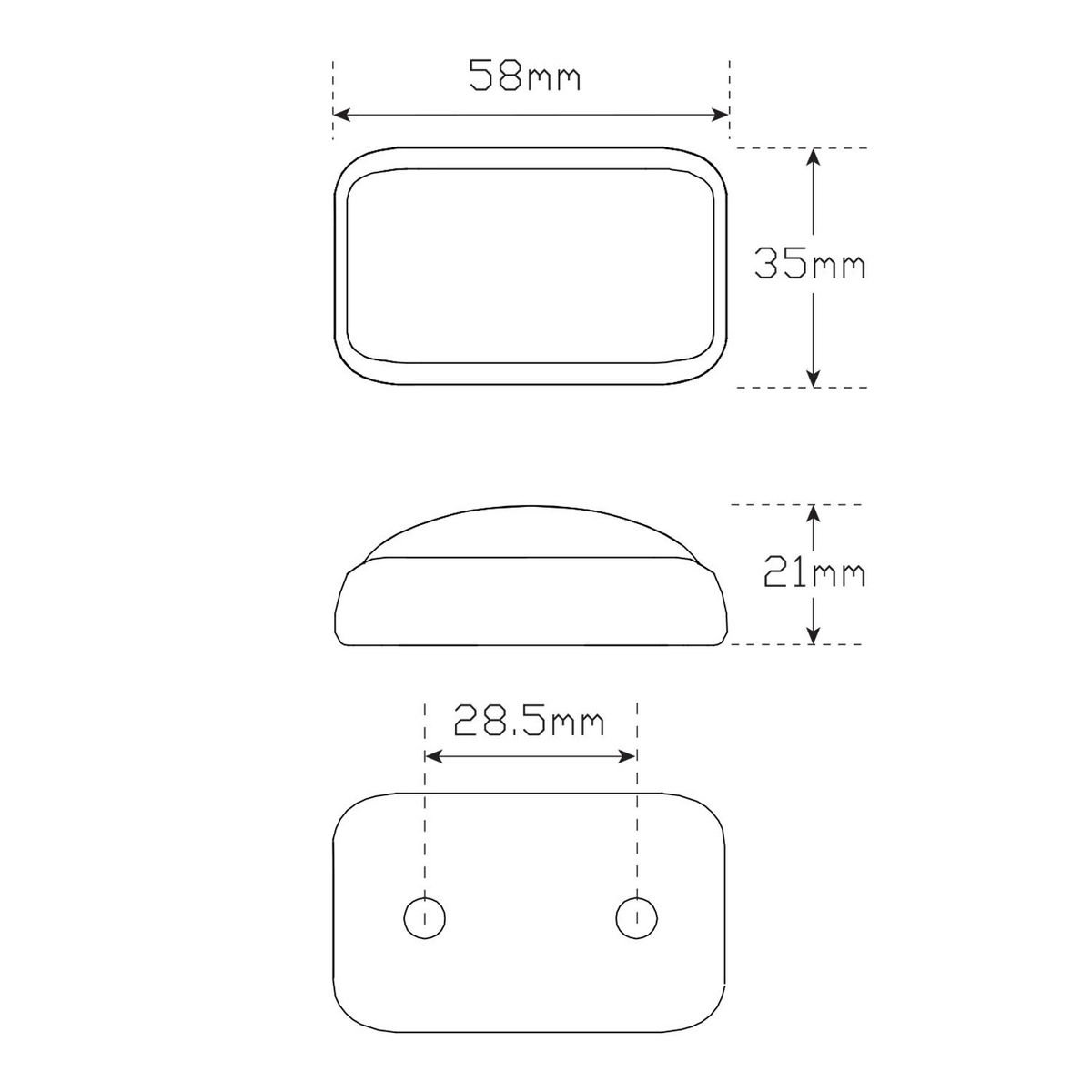

This 12/24V red amber side marker light measures 58mm x 35mm x 21mm and mounts to a flat surface. It uses a hardened acrylic lens with an ABS base, draws 0.10A at 13.8V and 0.07A at 28V.

Part number: 35ARMB.

Use the manufacturer technical guide

Compatibility and Fitment

Check the lamp size, voltage range, cable length and marker position before ordering. Surface mount the bracket horizontally, run the wires through the back, then clip the lens into place after the wiring checks out.

Related Parts

Check the related 35 Series marker lamp parts below against the trailer or vehicle lighting setup before ordering.

Compliance and Safety

Fit the marker lamp to suit ADR 13/00 mounting requirements for the trailer or vehicle body. Also confirm polarity, earth and cable routing before final assembly, because poor wiring can leave the marker lamp inactive or intermittent.

Trailer Applications

Workshops fit this 12/24V red amber side marker light to trailers, truck bodies, caravans, trays and service bodies that need compact side marker lighting. The 58mm x 35mm body suits tight mounting areas along side rails, guards and body panels.

Why Choose ICS Trailers

ICS Trailers supplies LED marker lights for trailer repairs, fleet servicing and new builds, with practical matching across marker lamps, brackets, plugs and wiring hardware.

Browse more LED Lights
