Description

Overview

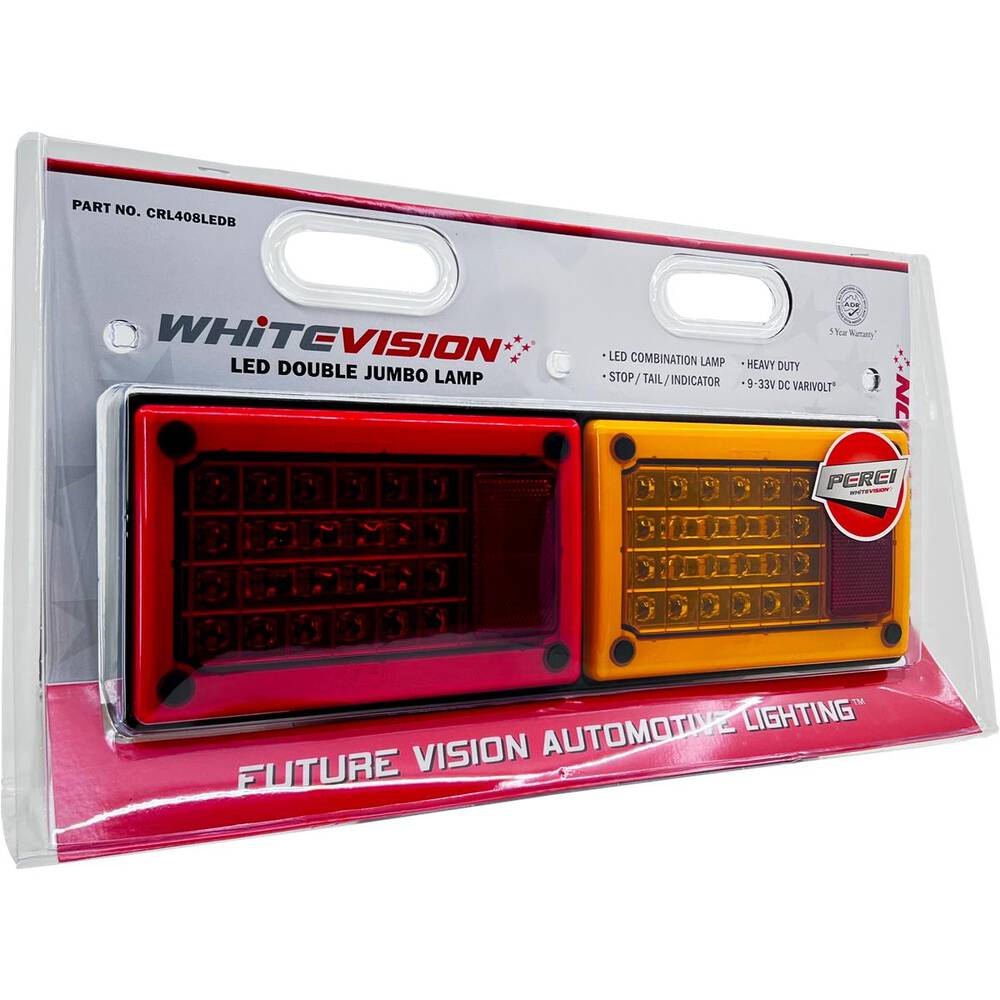

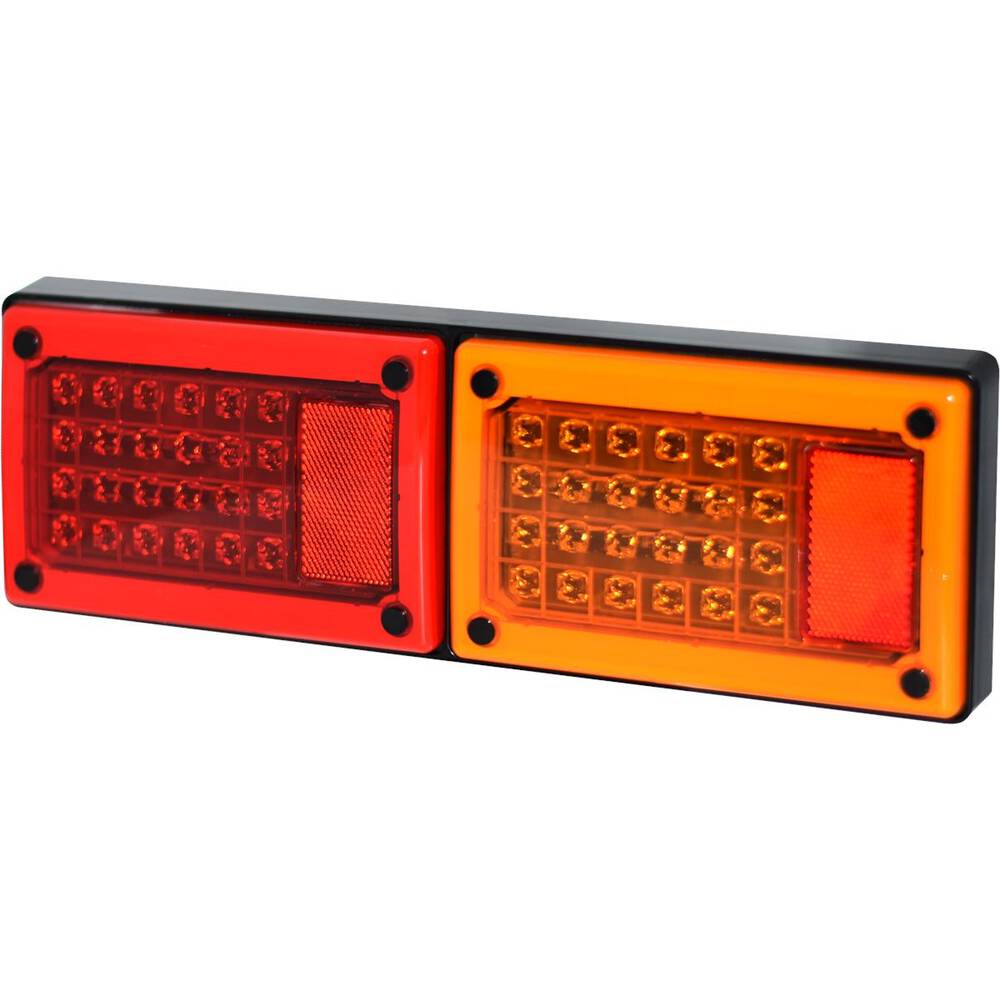

LED twin jumbo combination lamp handles stop, tail, direction indicator and reflector functions in one heavy-duty rear lighting assembly. It suits trucks, rigid bodies, buses, coaches, caravans, trailers and heavy vehicles that need a 9-33V rear lamp with modular LED construction.

Features

• Twin jumbo layout covers stop, tail, indicator and reflector functions
• Modular LED system supports individual service module replacement
• High heat and enhanced UV protective coating suits harsh operating conditions
• Stud mount with removable studs gives installers front or rear mounting options

Specifications and Materials

This LED twin jumbo combination lamp runs on 9-33V DC Varivolt systems and measures 403 x 132 x 37mm. It uses a polycarbonate lens with an ABS/PC housing, IP67 sealing and stud mounting. Power ratings are 2.4W stop, 0.4W/0.8W rear position and 2.8W indicator.

Part number: CRL408LEDB.

Use the Whitevision 408 Series technical details when checking the manufacturer product family.

Compatibility and Fitment

Match this lamp to 9-33V rear vehicle wiring before ordering. Also check the mounting face, available rear panel width and whether the job needs the red/amber twin version, clear-lens version or triple jumbo version. CRL405LED supersedes CRL408LEDB as the replacement lamp.

Related Parts

Check the superseding replacement and related service parts below against the trailer setup before ordering.

Compliance and Safety

The lamp supports ADR-compliant rear lighting when mounted in the correct rear position and wired correctly. Before fitting, inspect the panel, stud holes, cable route and sealing area so the lamp sits flat and the wiring avoids sharp edges.

Trailer Applications

Workshops fit this style of LED twin jumbo combination lamp to heavy trailers, rigid truck bodies, buses, coaches, caravans and OE vehicle builds. Because the lamp uses replaceable modules, damaged or failed lighting sections can be serviced without replacing the complete rear lamp assembly.

Why Choose ICS Trailers

ICS Trailers supplies heavy trailer and commercial vehicle lighting parts for repairs, refits and body builds, so buyers can match the voltage, mounting style, lamp functions and service modules before fitting. CRL405LED now supersedes CRL408LEDB, so ICS Trailers can also help identify the current replacement when updating an older installation.

For more trailer lighting options, browse the ICS Trailers LED Lights category
