LED Twin Jumbo Combination Lamp 9-33V
LED Twin Jumbo Combination Lamp 9-33V
$87.00

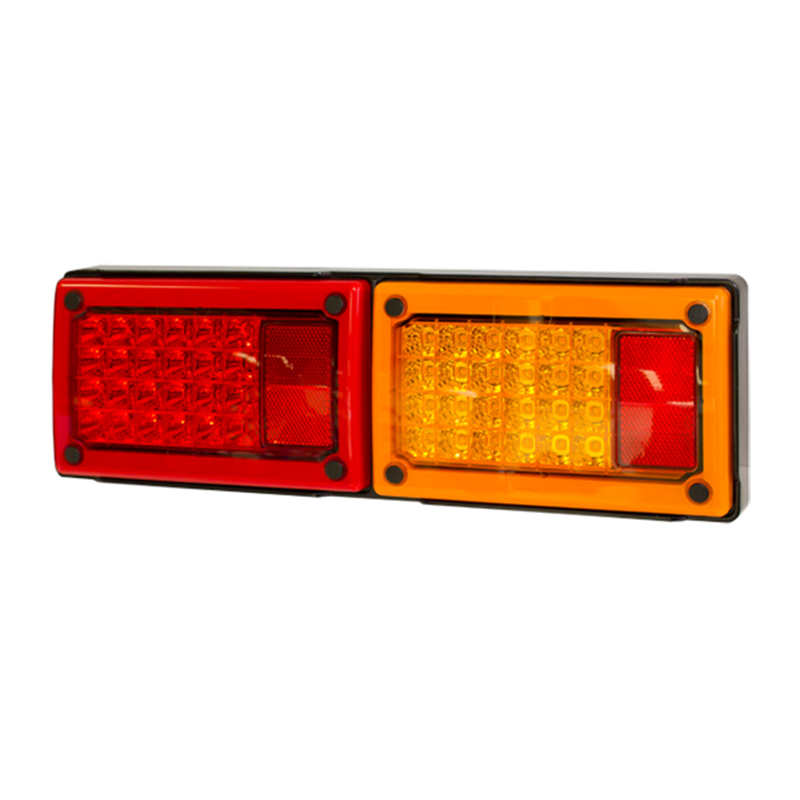

LED twin jumbo combination lamp for 9-33V truck, trailer and heavy vehicle rear lighting, with stop, rear position, indicator and reflector functions, IP67 sealing, rear bolt mounting and replaceable insert modules.
Part number CRL405LED.
Superseded by: CRL408LED (the same light)
Out of stock
Description
Overview
LED twin jumbo combination lamp handles stop, rear position, direction indicator and reflector functions in one heavy-duty rear lighting assembly. It suits trucks, rigid bodies, buses, coaches, trailers and heavy trailers that need a large-format 9-33V rear lamp with modular serviceable inserts.
Features
- Twin jumbo layout covers stop, rear position, direction indicator and reflector functions
- Modular design with security caps allows individual insert module replacement
- Polycarbonate lenses and ABS body suit heavy-duty commercial vehicle use
- 0.5m cable gives installers a short lead for connection into the rear loom
Specifications and Materials
This LED twin jumbo combination lamp runs on 9-33V DC Varivolt systems and uses rear bolt mounting. It measures 405 x 131 x 40mm, with a polycarbonate lens, ABS body and modular heavy-duty ABS base. Power ratings are 3W stop, 0.4W rear position and 3W indicator.
Part number: CRL405LED.
Use the Whitevision 405 Series technical details when checking the manufacturer product family.
Compatibility and Fitment
Match this lamp to 9-33V trailer or truck wiring before ordering. Also check the rear bolt mounting space, cable route and whether the job needs the twin stop, tail and indicator layout or a related triple jumbo version with extra modules.
Related Parts
Check the related service parts below against the trailer setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Replacement module | RL195DLED | Single indicator insert module |
| Replacement module | RL195SLED | Single stop tail insert module |
| Replacement module | RL195RLED | Single reverse insert module |
| Related module | RL205DLED | Indicator insert with single black base |
| Related module | RL205SLED | Stop tail insert with single black base |
| Related module | RL205RLED | Reverse insert with single black base |
| Related version | CRL605LED | Triple jumbo stop tail indicator lamp |
| Related version | CRL605RLED | Triple jumbo reverse combination lamp |
Compliance and Safety
The lamp supports ADR-compliant rear lighting when installed in the correct rear position and wired correctly. Before fitting, inspect the mounting face, bolt points, cable entry and sealing area so the body sits flat and the loom avoids sharp edges.
Trailer Applications
Heavy trailers, trucks, rigid bodies, buses and dangerous goods vehicles use this style of rear lamp where visibility and serviceability matter. Because the LED twin jumbo combination lamp uses replaceable modules, workshops can service individual lighting functions without replacing the whole rear assembly.
Why Choose ICS Trailers
ICS Trailers supplies heavy trailer and commercial vehicle lighting parts for repairs, refits and body builds, so buyers can match the voltage, mounting style, lamp functions and service modules before fitting. For more trailer lighting options, browse the ICS Trailers LED Lights category
