Description

Overview

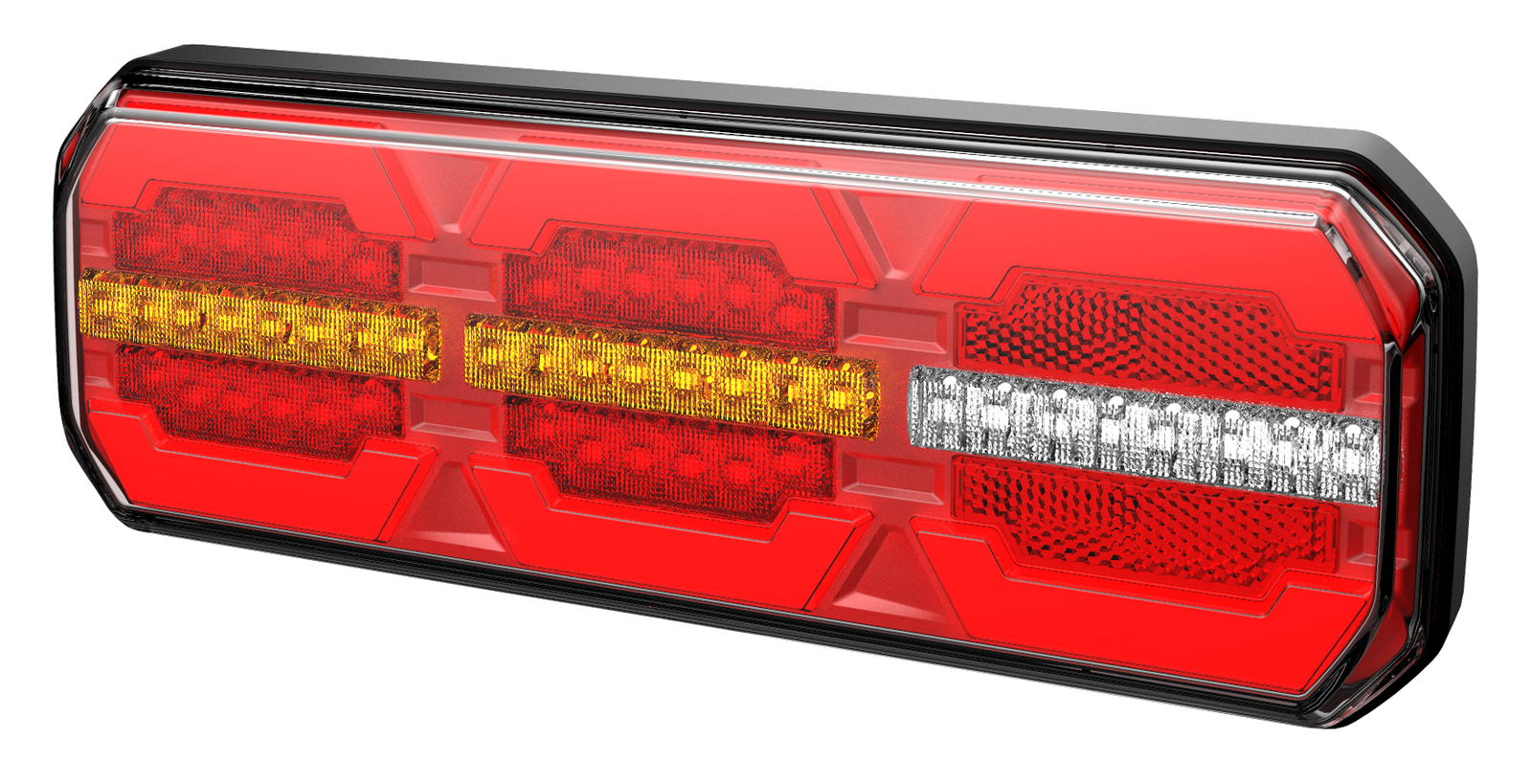

LED combination trailer lamp with sequential indicator and reverse handles stop, rear position, direction indicator, reverse and reflector functions in one rear lighting unit. It suits trailers, rigid bodies and commercial vehicle builds that need a 9-33V rear lamp with modern optics, sealed construction and a heavy duty Smart Clip mounting base.

Features

• Stop, diffused rear position, sequential indicator, reverse and reflex reflector functions
• 9-33V DC Varivolt range suits mixed trailer and vehicle electrical systems
• IP67 sealed body supports exposed rear trailer mounting
• Heavy duty Smart Clip base allows front or rear mounting

Specifications and Materials

This LED combination trailer lamp with sequential indicator and reverse uses a polycarbonate lens and heavy duty Smart Clip base. It measures 283 x 100 x 33mm, with 116mm or 195mm mounting centre options. Power ratings are 3.5W stop, 2.5W rear position, 2.6W indicator and 2.3W reverse.

Part number: CRL285RLED.

Use the Whitevision 285 Series technical details for product family information.

Compatibility and Fitment

Match this lamp to 9-33V trailer wiring and confirm the mounting centre option before ordering. Also check whether the job needs this box version, the blister pack version or the Deutsch connector version.

Related Parts

Check the related versions below against the trailer setup before ordering.

Compliance and Safety

The lamp supports ADR-compliant rear lighting when installed in the correct position and wired correctly. Before fitting, inspect the mounting panel, wiring entry and sealing points so the body sits flat and the cable route avoids sharp edges.

Trailer Applications

Trailers, rigid bodies, buses, coaches and custom commercial builds use this style of rear combination lamp for compact signalling. Because the LED combination trailer lamp with sequential indicator and reverse includes the reverse function, it suits rear corners where one housing needs to cover the main signal lamps and reversing light.

Why Choose ICS Trailers

ICS Trailers supplies trailer lighting parts for repair work, refits and new body builds, so buyers can match the voltage, mounting style and lamp functions before fitting. For more trailer lighting options, browse the ICS Trailers LED Lights category
