Description

Overview

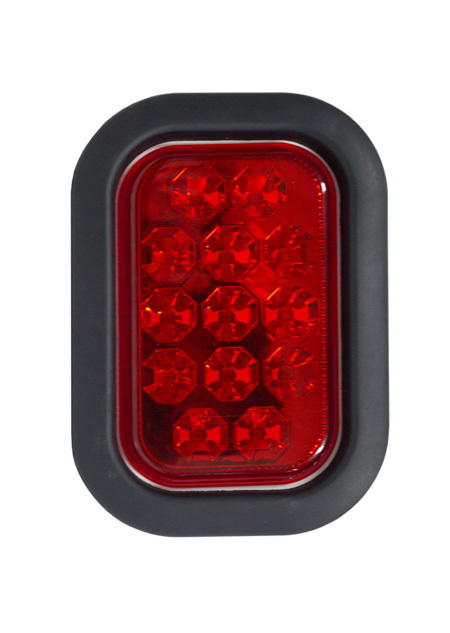

LED stop tail lamp restores the stop and rear position functions on trailers, trucks and commercial vehicles using rectangular rubber-mounted signal lamps. The red lens, plug, pigtail and rubber grommet format suit retrofit work where vibration resistance and a matching 90 Series rear lamp footprint matter.

Features

• Red stop and rear position functions for rear signalling layouts.
• 3W stop output and 0.4W rear position output.
• 9-33V operation suits common 12V and 24V trailer electrical systems.
• Includes plug, pigtail and rubber grommet for retrofit mounting.

Specifications and Materials

The LED stop tail lamp uses free-form optics, a polycarbonate lens and rubber insert mounting. It runs on 9-33V and suits rear lamp positions where the existing cut-out matches the 90 Series rectangular grommet format.

Part number: RL90SLED.

The grommet-mounted format measures 117 × 164 × 35mm overall, with the lamp insert measuring 87 × 134 × 25mm. It also carries ADR compliant series design for stop and rear position use.

Use the Whitevision RL90 technical sheet when matching the 90 Series rubber insert and lamp family

Compatibility and Fitment

Check the 9-33V supply range, rectangular cut-out, grommet seat and cable routing before ordering. Also compare the overall grommet size against the existing panel opening, because a loose or damaged mounting edge can let the lamp move under vibration.

Related Parts

Check the related 90 Series lamps below against the trailer setup before ordering.

Compliance and Safety

Confirm both stop and tail functions after fitting, then check the plug, pigtail, grommet seating and lens condition. If the old rubber insert has hardened or the panel edge has distorted, repair the mounting point before installing the new lamp.

Trailer Applications

Workshops fit this LED stop tail lamp during heavy trailer lighting repairs, truck body builds, fleet maintenance and older rectangular lamp replacements. The 90 Series format suits rear panels that need a vibration-resistant rectangular lamp instead of a screw-mounted body.
