Description

Overview

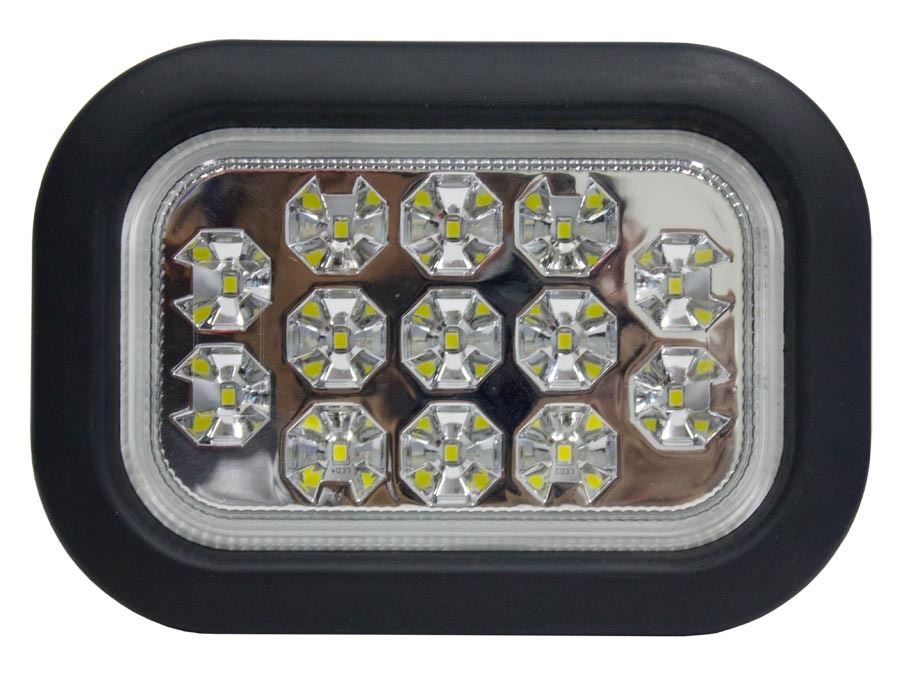

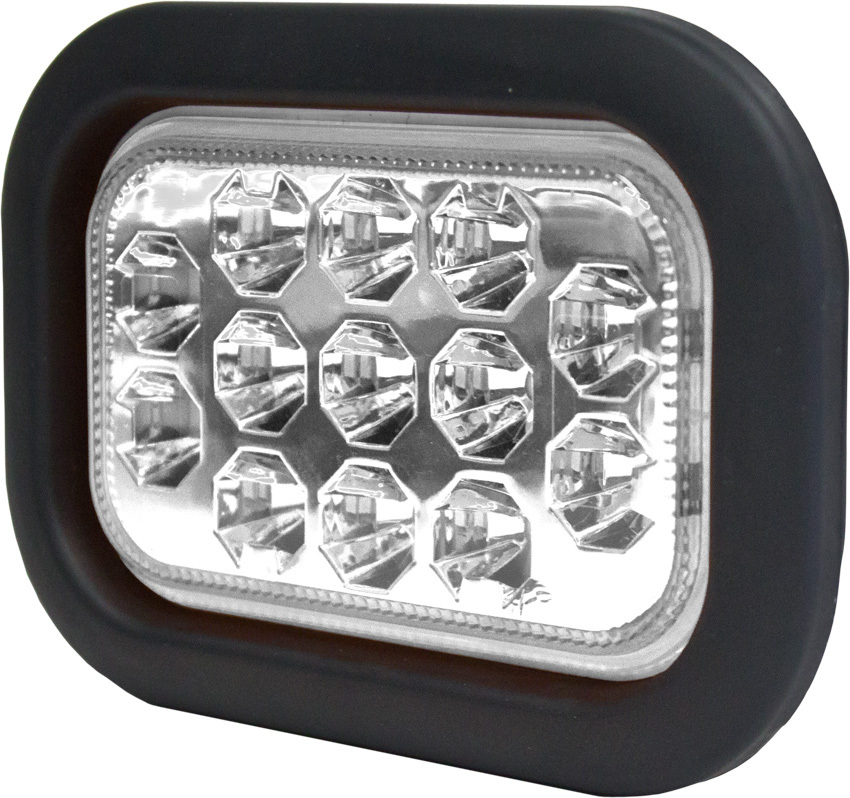

LED reverse lamp restores rear reversing light output on trailers, trucks and commercial vehicles using rectangular rubber-mounted signal lamps. The clear lens and rubber insert suit retrofit work where vibration resistance, sealed construction and a matching 90 Series lamp footprint matter.

Features

• Clear rear reverse function with 3W LED output.
• 9-33V operation suits common 12V and 24V trailer electrical systems.
• Includes plug, pigtail and rubber grommet for retrofit mounting.
• Polycarbonate lens and IP67 sealing suit heavy-duty rear lighting use.

Specifications and Materials

The LED reverse lamp uses free-form optics, a polycarbonate lens and rubber insert mounting. It runs on 9-33V, uses 3W for the reverse function and suits rear lamp positions where the existing cut-out matches the 90 Series rectangular grommet format.

Part number: RL90RLED.

The grommet-mounted format measures 117 × 164 × 35mm overall, with the lamp insert measuring 87 × 134 × 25mm. It also carries ADR compliant series design for reverse lamp use.

Use the Whitevision RL90 technical sheet when matching the 90 Series rubber insert and lamp family

Compatibility and Fitment

Check the 9-33V supply range, rectangular cut-out, grommet seat and cable routing before ordering. Also compare the overall grommet size against the existing panel opening, because a loose or damaged mounting edge can let the lamp move under vibration.

Related Parts

Check the related 90 Series lamps below against the trailer setup before ordering.

Compliance and Safety

Confirm the reverse lamp switches on correctly after fitting, then check the plug, pigtail, grommet seating and lens condition. If the old rubber insert has hardened or the panel edge has distorted, repair the mounting point before installing the new lamp.

Trailer Applications

Workshops fit this LED reverse lamp during heavy trailer lighting repairs, truck body builds, fleet maintenance and older rectangular lamp replacements. The 90 Series format suits rear panels that need a vibration-resistant rectangular lamp instead of a screw-mounted body.

Why Choose ICS Trailers

ICS Trailers supplies lighting parts for trailer repairs, fleet maintenance and body builds, so you can match lamp function, voltage, mounting style and rear lighting layout before ordering.

Browse more LED Lights for trailer repairs.
