Description

Overview

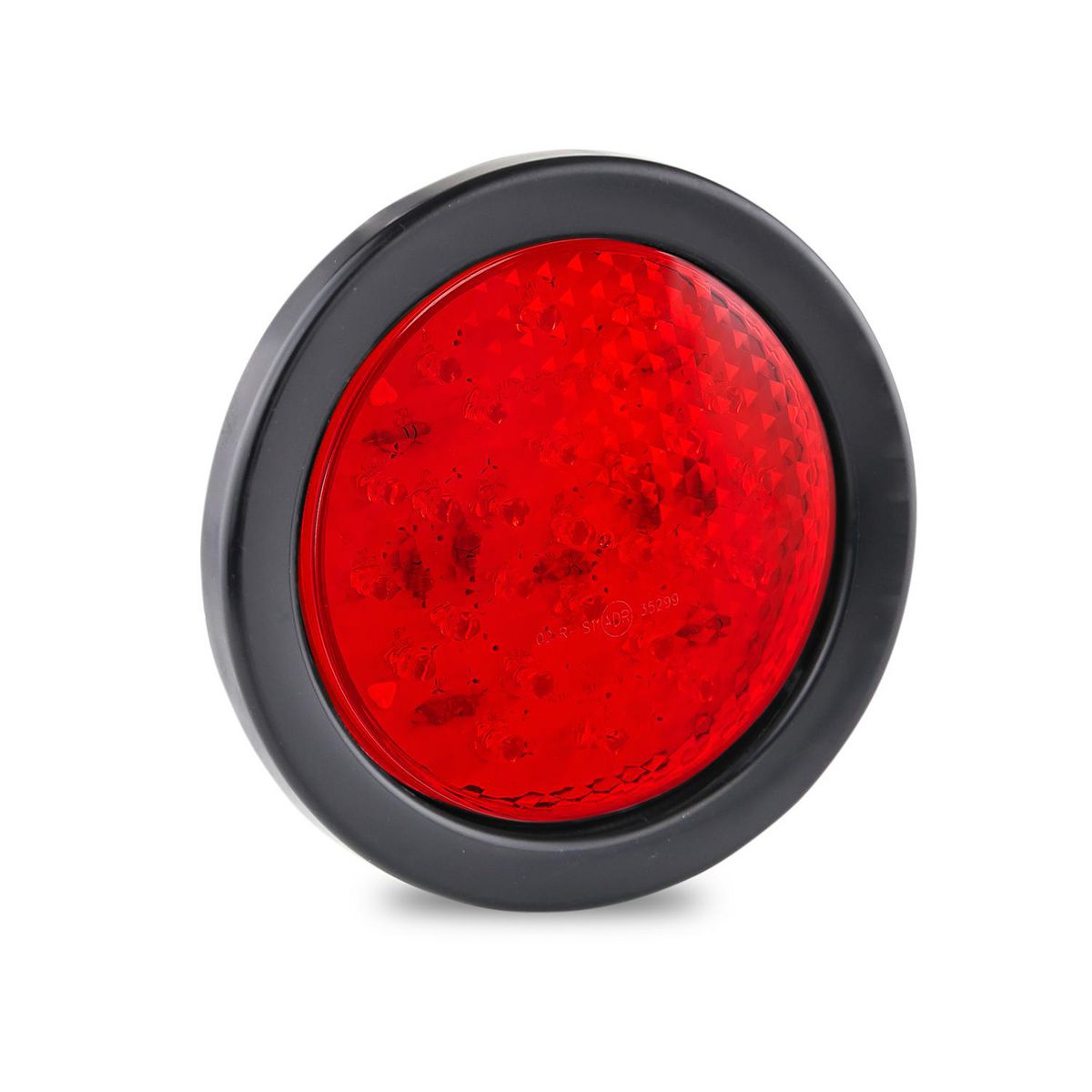

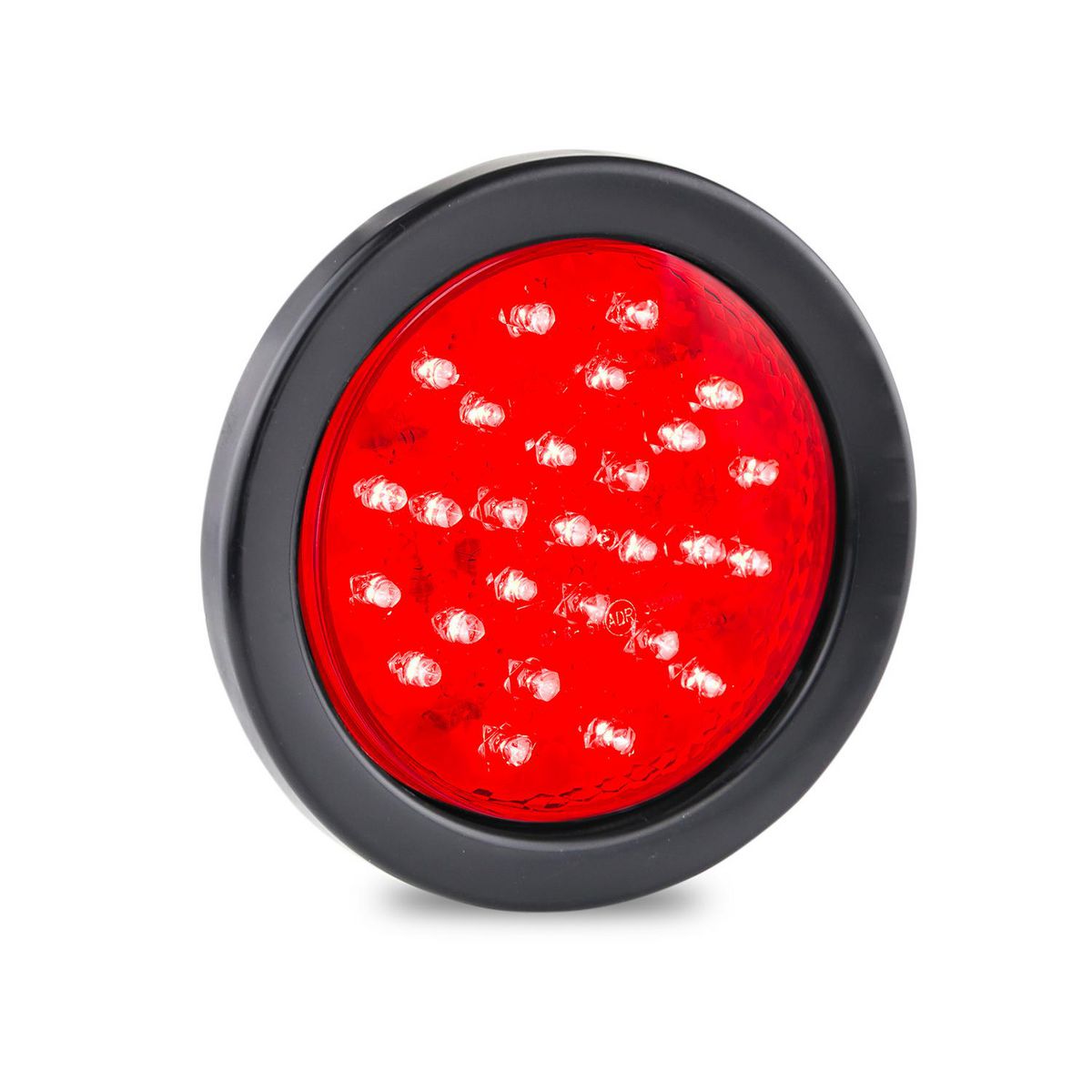

LED stop tail lamp handles rear red stop and tail lighting in a round recessed lamp body. The 110 Series format suits trailer, truck and service body panels where the lamp needs to sit into a rubber grommet instead of mounting on the surface.

Features

• Stop and tail light functions in one red rear lamp
• 12-24V operation for compatible trailer and vehicle systems

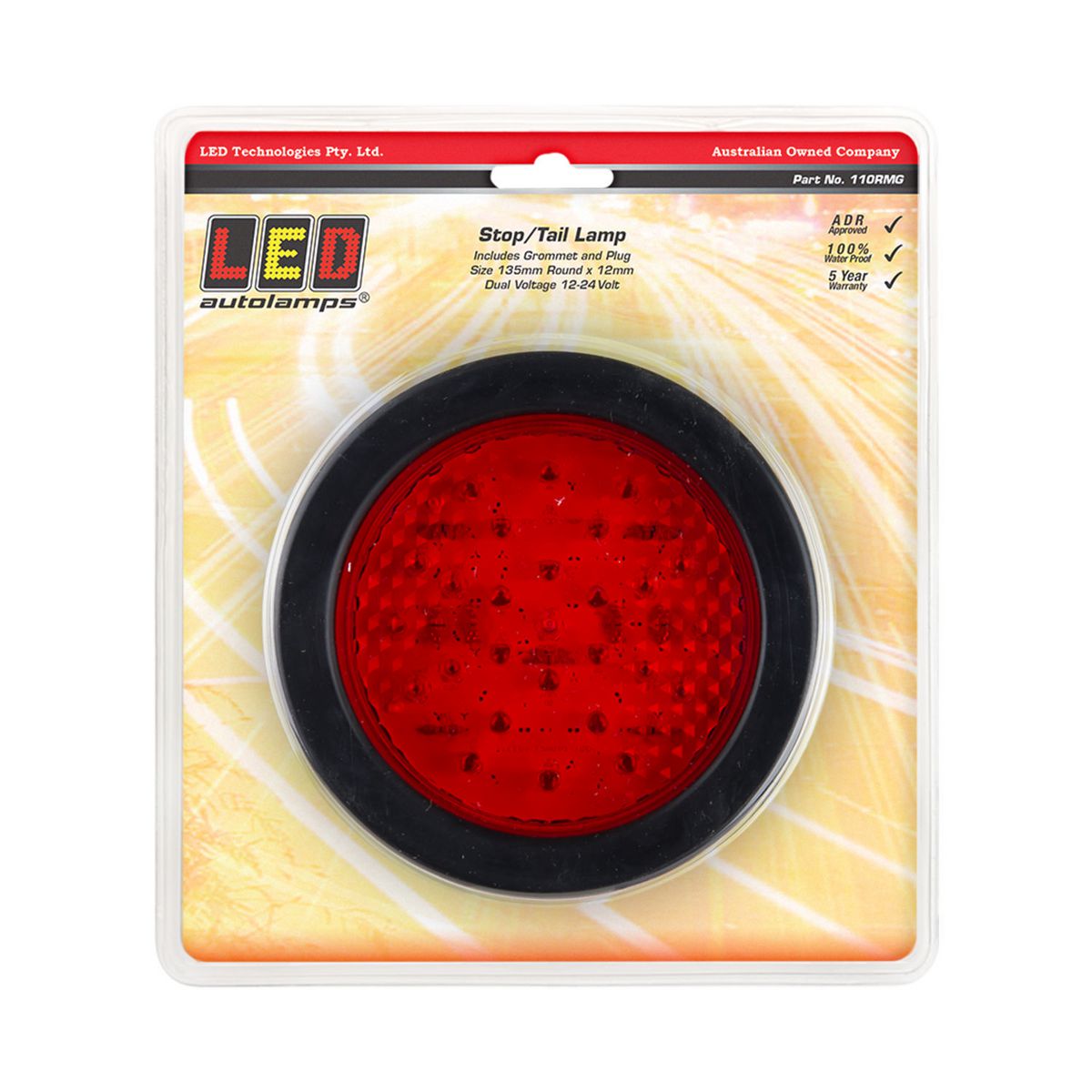

• Single blister pack includes grommet and 3 pin plug
• Low-profile recessed design with IP67 rating

Specifications and Materials

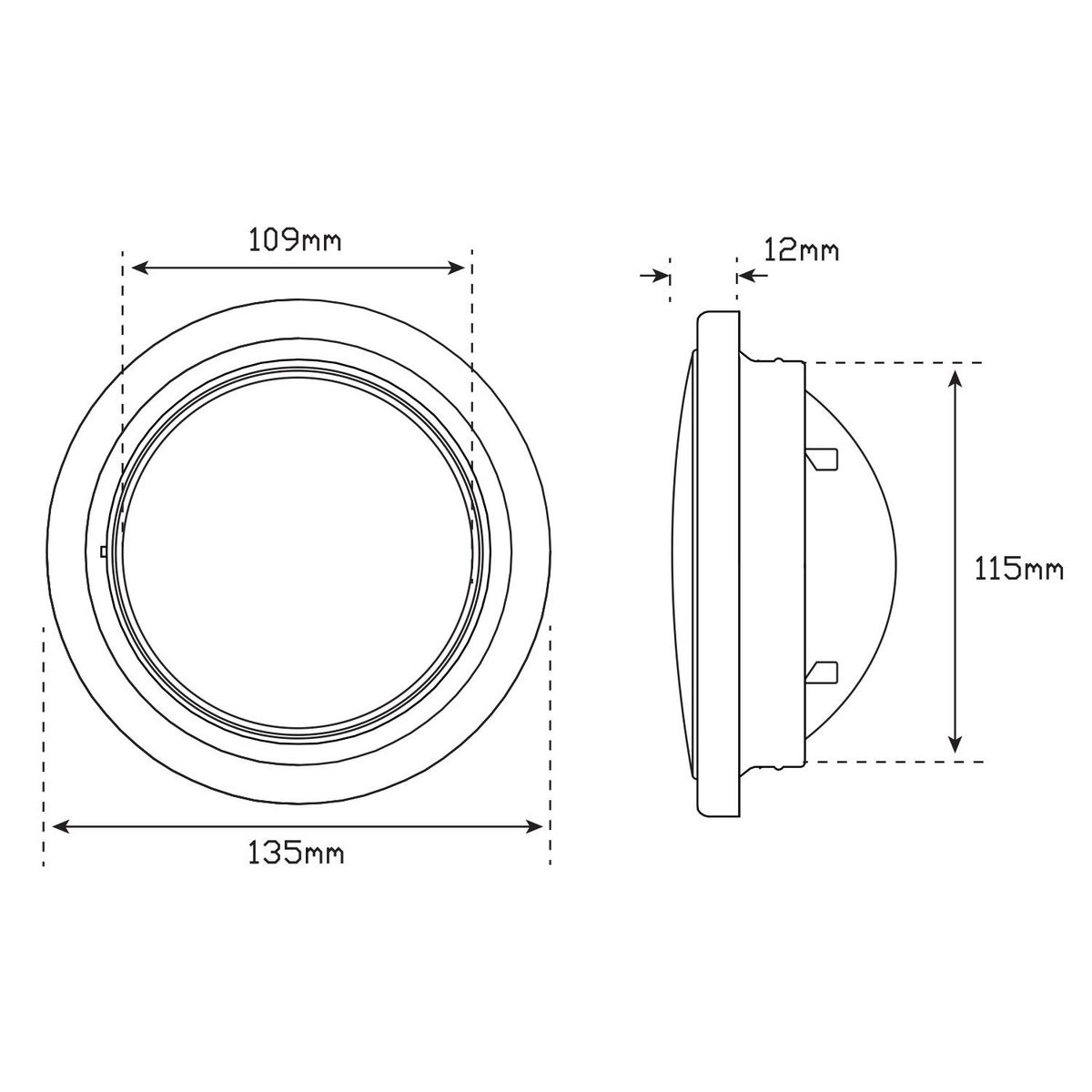

The LED stop tail lamp uses 27 LEDs, a hardened acrylic lens and plug 53102 for wiring. The grommet size is 135mm round, with a 115mm round cutout required when fitting with the rubber grommet.

Part number: 110RMG.

See the official manufacturer 110 Series specification sheet for technical data

Compatibility and Fitment

Check the stop/tail function, rear lamp position, cutout size, voltage system and plug connection before ordering. For grommet mounting, cut the panel to suit the rubber grommet, run the wiring through the rear, then seat the lamp firmly into the grommet.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Mount the lamp securely in the rear stop/tail position, then test the brake and tail light circuits from the towing vehicle. Also protect the cable and plug behind the panel so vibration cannot rub the wiring against sharp metal.

Trailer Applications

Workshops fit this LED stop tail lamp to trailers, truck bodies, trays and service bodies that use recessed round rear lighting. It also suits replacement work where the existing 110 Series lamp, grommet and plug layout need to match.
