Description

Overview

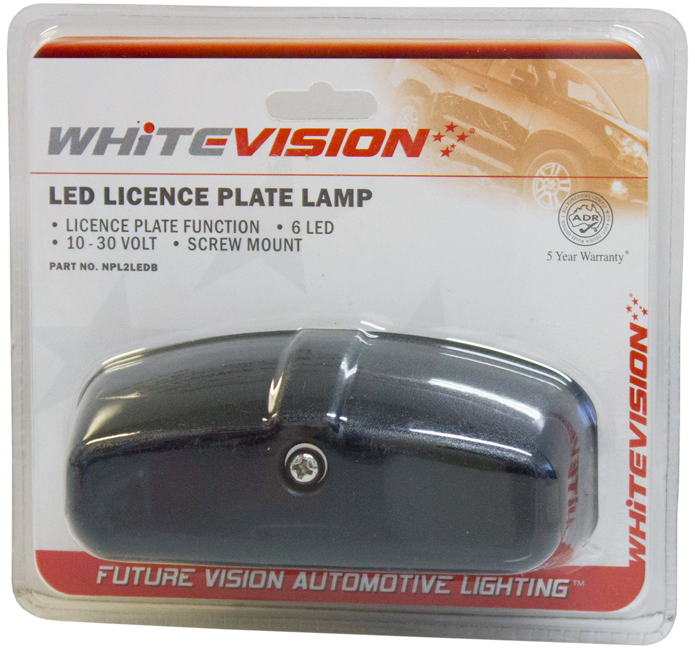

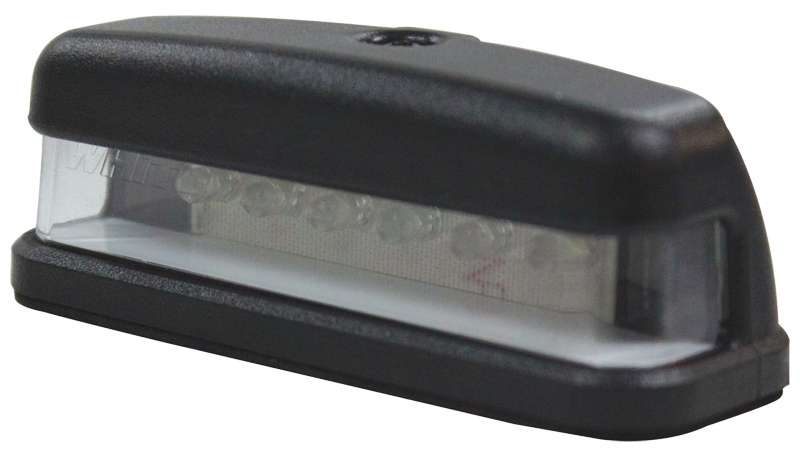

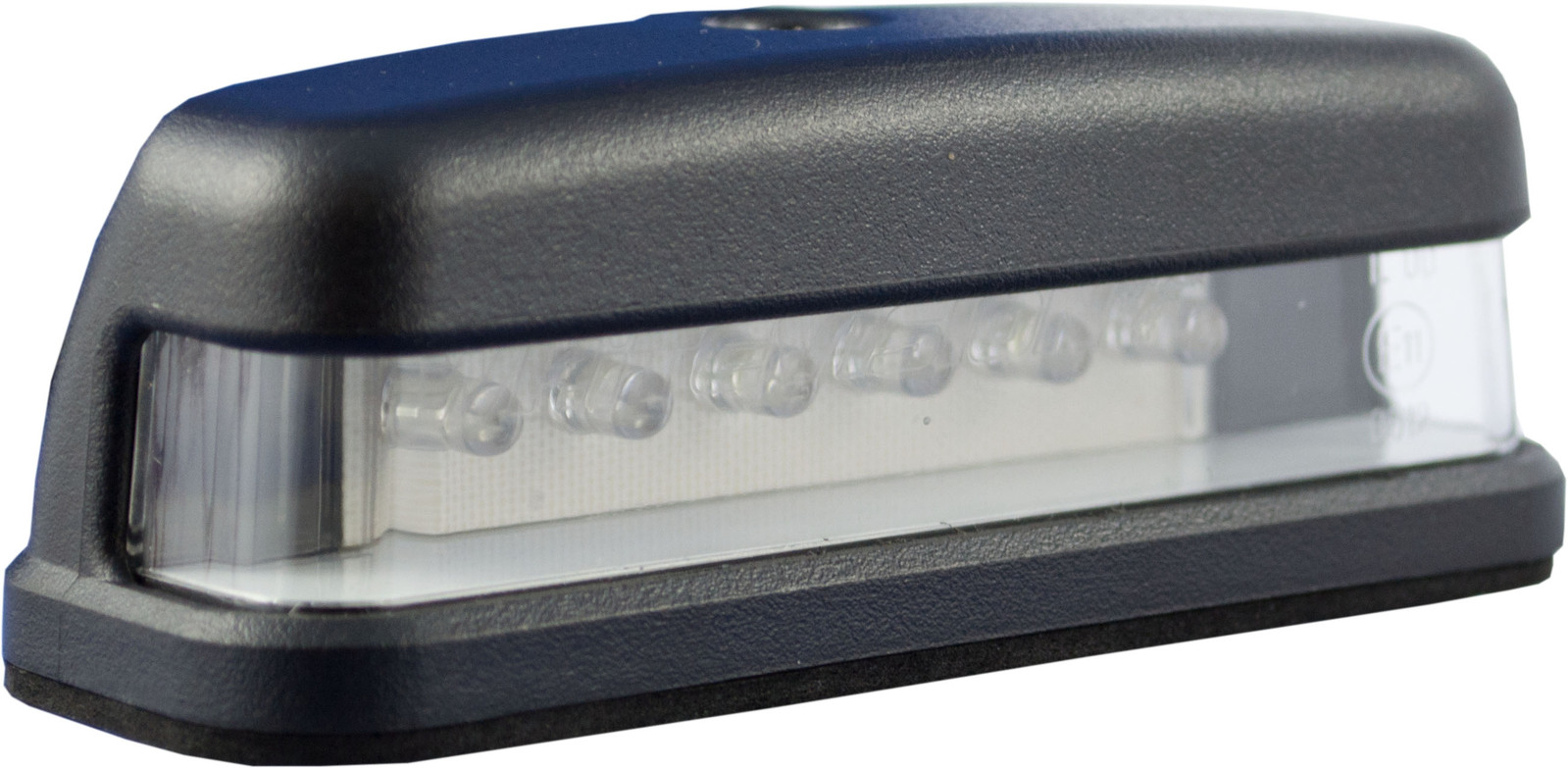

LED licence plate lamp restores clear number plate illumination on trailers and vehicles that need a compact retrofit lamp. It uses a classic lamp shape with modern LED output, so it suits replacement work where the existing position and mounting style matter.

Features

• Six LED optics spread light across the number plate area.
• Wide angle lens design helps improve plate visibility from normal viewing positions.
• Screw cap surface mount body suits retrofit and OEM fit-ups.
• 9-33V operation covers common 12V and 24V trailer electrical systems.

Specifications and Materials

The LED licence plate lamp runs on 9-33V and draws 1.0W. It uses a polycarbonate lens, ABS housing and surface mount screw cap body, with a 0.3m cable for connection.

Part number: NPL2LEDB.

Dimensions measure 105 × 48 × 37.5mm, with 87mm mounting centres. The lamp carries CTA-060506 approval reference and IP67 protection for sealed trailer lighting applications.

See the official datasheet for manufacturer lamp details.

Compatibility and Fitment

Match the voltage range, mounting centres, cable length and available body space before ordering. For retrofit work, compare the 105mm body length and 87mm mounting centres against the existing lamp position before drilling or reusing holes.

Compliance and Safety

Confirm the lamp position gives clear number plate illumination after fitting. Also check cable routing, sealing and polarity before finalising the installation, because poor wiring or water entry can shorten LED lamp life.

Trailer Applications

Workshops fit this LED licence plate lamp during trailer rebuilds, fleet lighting repairs, body builds and number plate lamp upgrades. It suits trailer and vehicle applications where a compact screw mount lamp, low power draw and sealed housing make the installation cleaner.

Why Choose ICS Trailers

ICS Trailers supplies trailer lighting parts for workshop repairs, fleet maintenance and body builds, so you can match voltage, mounting style and application quickly before ordering.
