Description

Overview

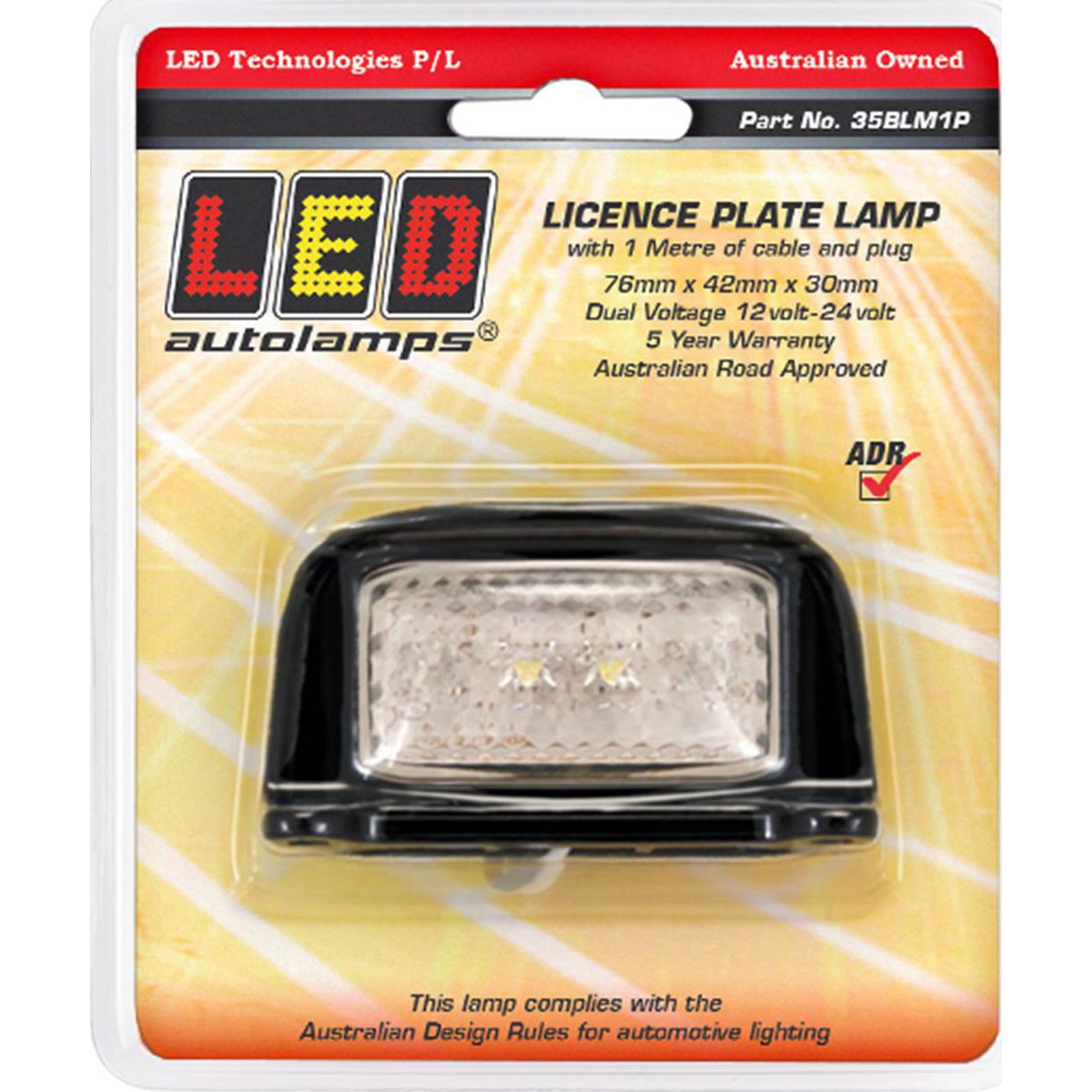

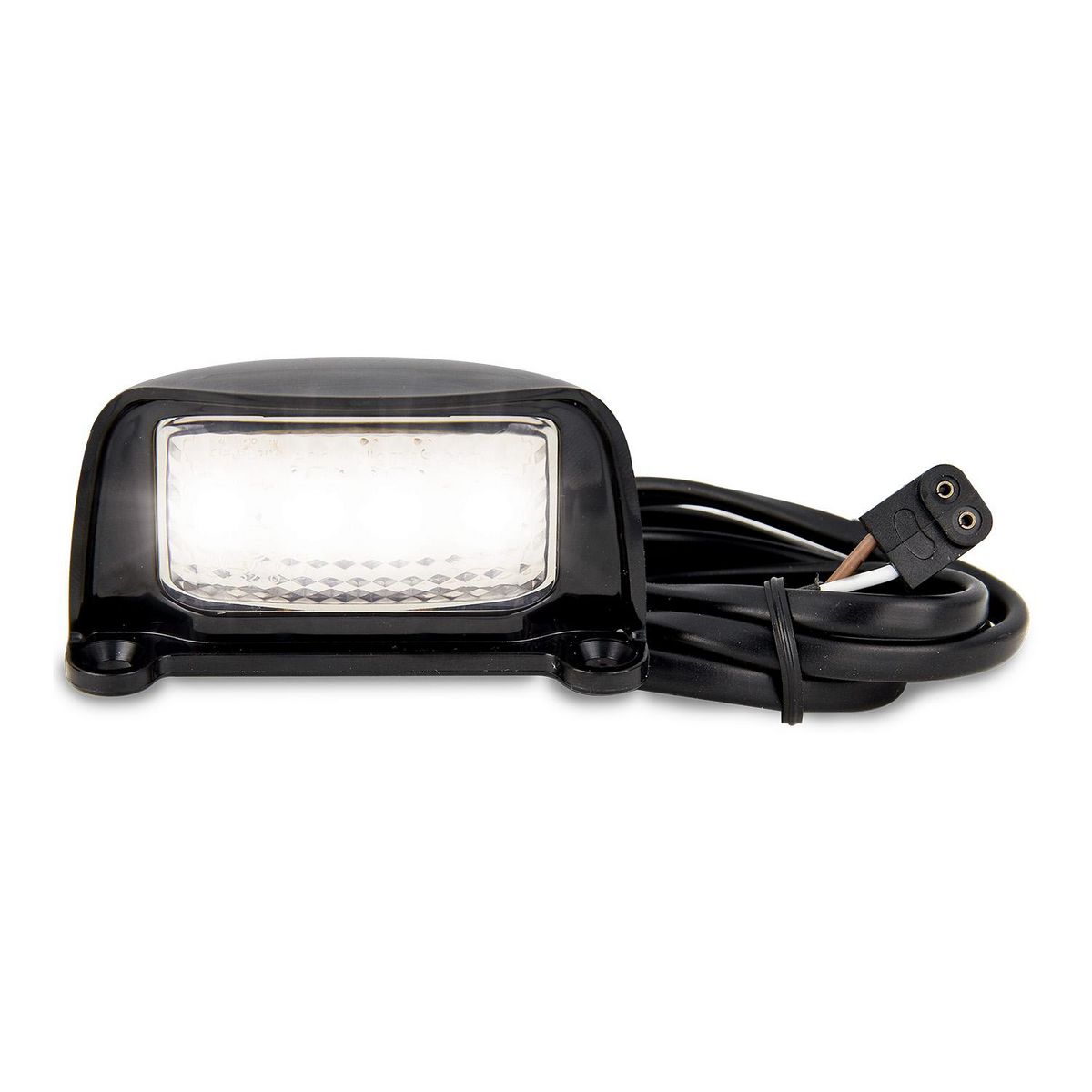

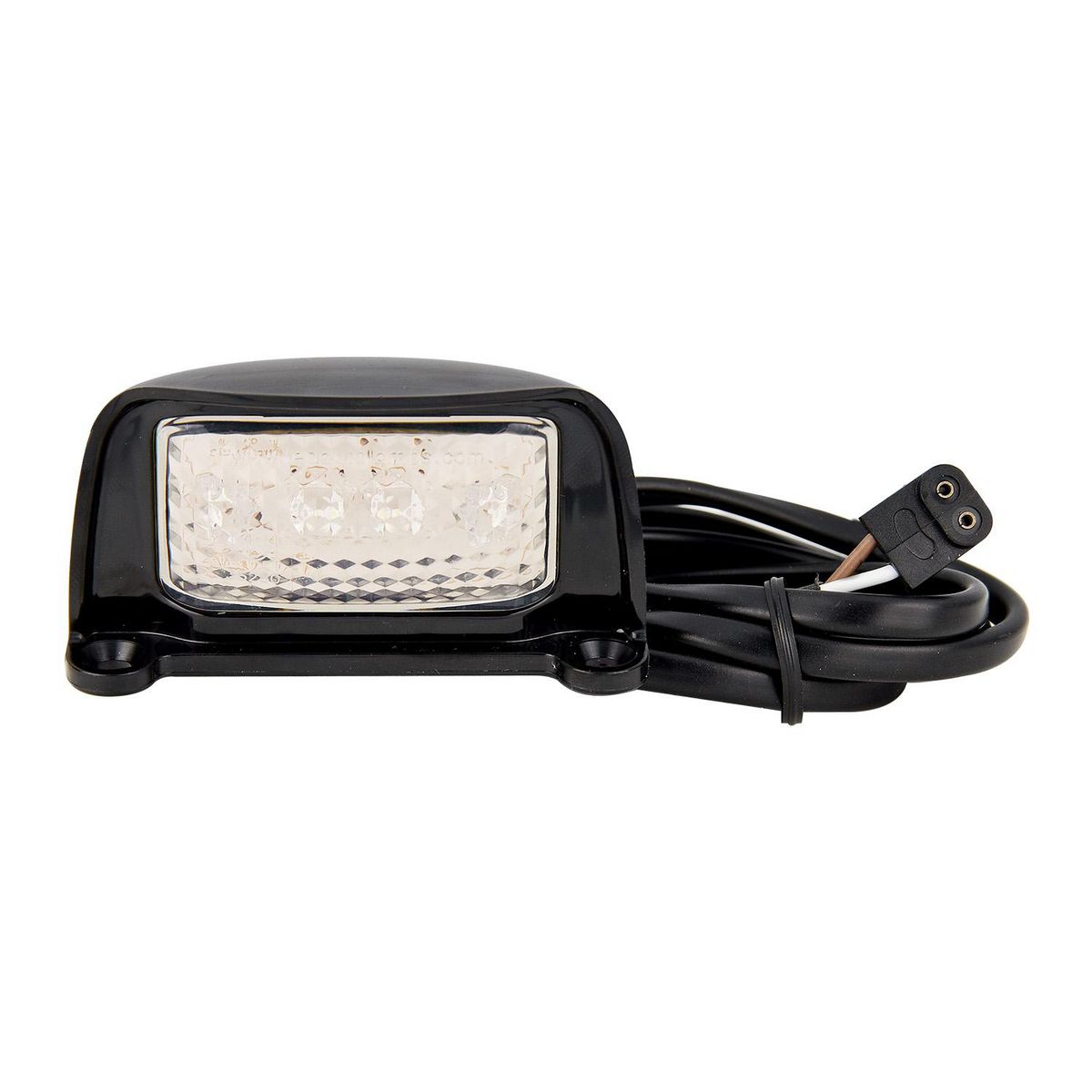

12/24V licence plate lamp lights the rear number plate on trailers, truck bodies, ute trays and service vehicles that need a compact surface-mount plate lamp.

The black bracket body suits rear plate lighting where the lamp needs to sit above or beside the plate without taking much panel space. Also, the 1m cable with 2 pin plug helps when connecting into compatible trailer lighting systems.

Features

• White LED licence plate lighting for rear number plate visibility
• 12-24V multivolt operation for trailer and vehicle systems
• 1m cable with 2 pin plug for compatible lamp harness setups
• IP67-rated ABS base and PMMA lens construction

Specifications and Materials

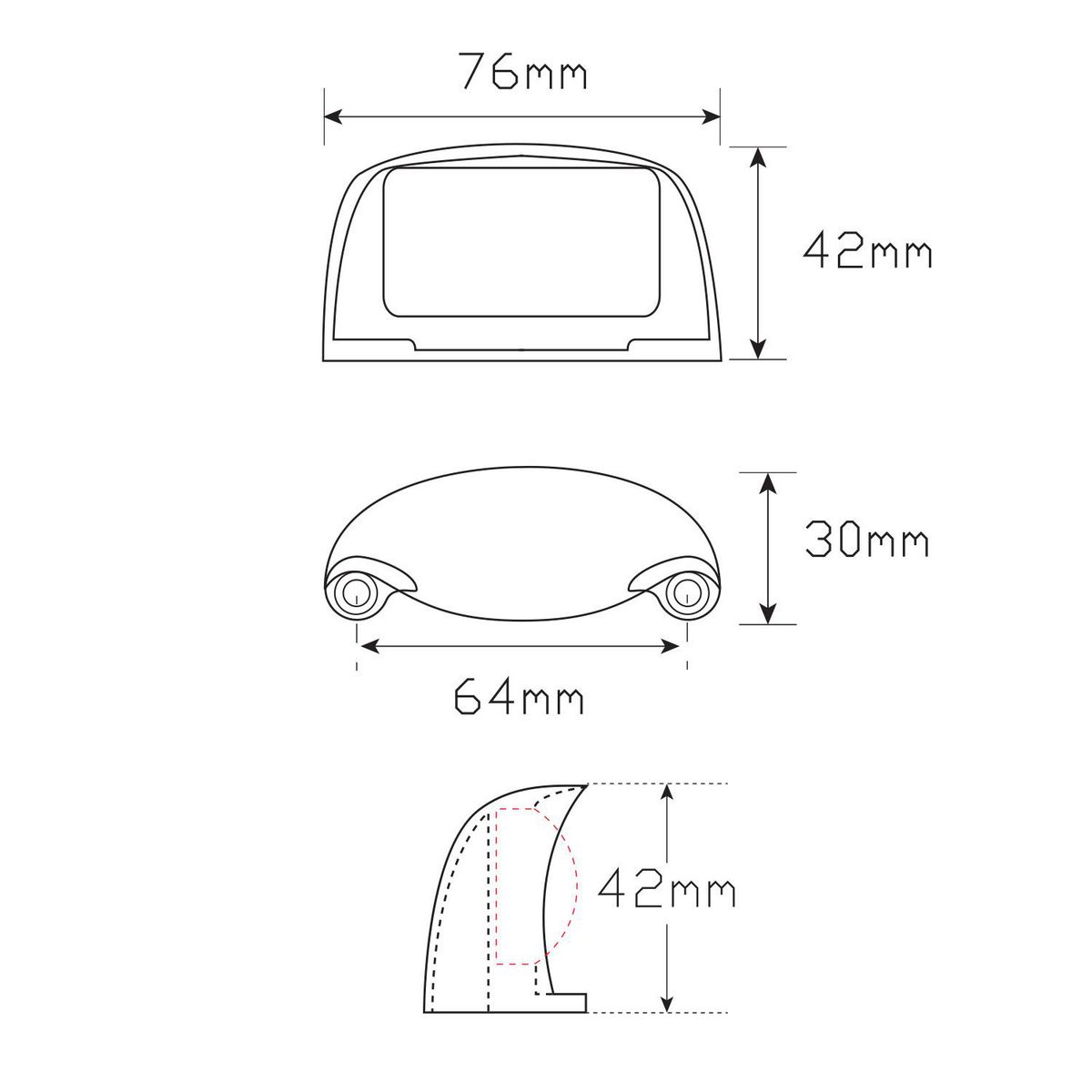

This 12/24V licence plate lamp measures 76mm x 42mm x 30mm and uses a 64mm mounting centre. The lamp has 4 LEDs, a PMMA lens, an ABS base and a black bracket housing.

Part number: 35BLM1P.

Current draw is 0.05A at 13.8V and 0.04A at 28V, with ECE 48/00 approval and CTA-060024 approval.

See the official LED Autolamps 35 Series technical guide

Compatibility and Fitment

Check the plate position, mounting face, voltage range and cable connection before ordering. This lamp screw mounts to a flat surface and suits top-mount or side-mount licence plate lighting layouts when installed in the correct position.

For side-mounted layouts, allow for the raised block setup required by the lamp family. The 2 pin plug connects into compatible LED Autolamps 100, 150 and 275 Series lamp systems.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Inspect the plate bracket, screw points and cable route before fitting the replacement lamp. If the old plate lamp failed through vibration, impact or water entry, repair the mounting area before installing the new lamp.

After fitting, test the plate lamp with the vehicle lighting circuit. Then confirm the number plate lights evenly and the cable stays protected from sharp edges, road spray and moving parts.

Trailer Applications

Workshops fit this 12/24V licence plate lamp to trailers, tray bodies, caravans, service bodies and truck bodies that need rear plate illumination.

The compact 35 Series body helps on tight rear panels where a larger licence lamp or bracket assembly would crowd the plate area.

Why Choose ICS Trailers

ICS Trailers supplies trailer lighting for repair, rewiring and body fit-out work. Match the voltage, plug type, mounting centre and plate position before ordering.

Find more trailer lighting in our LED Lights
