Description

Overview

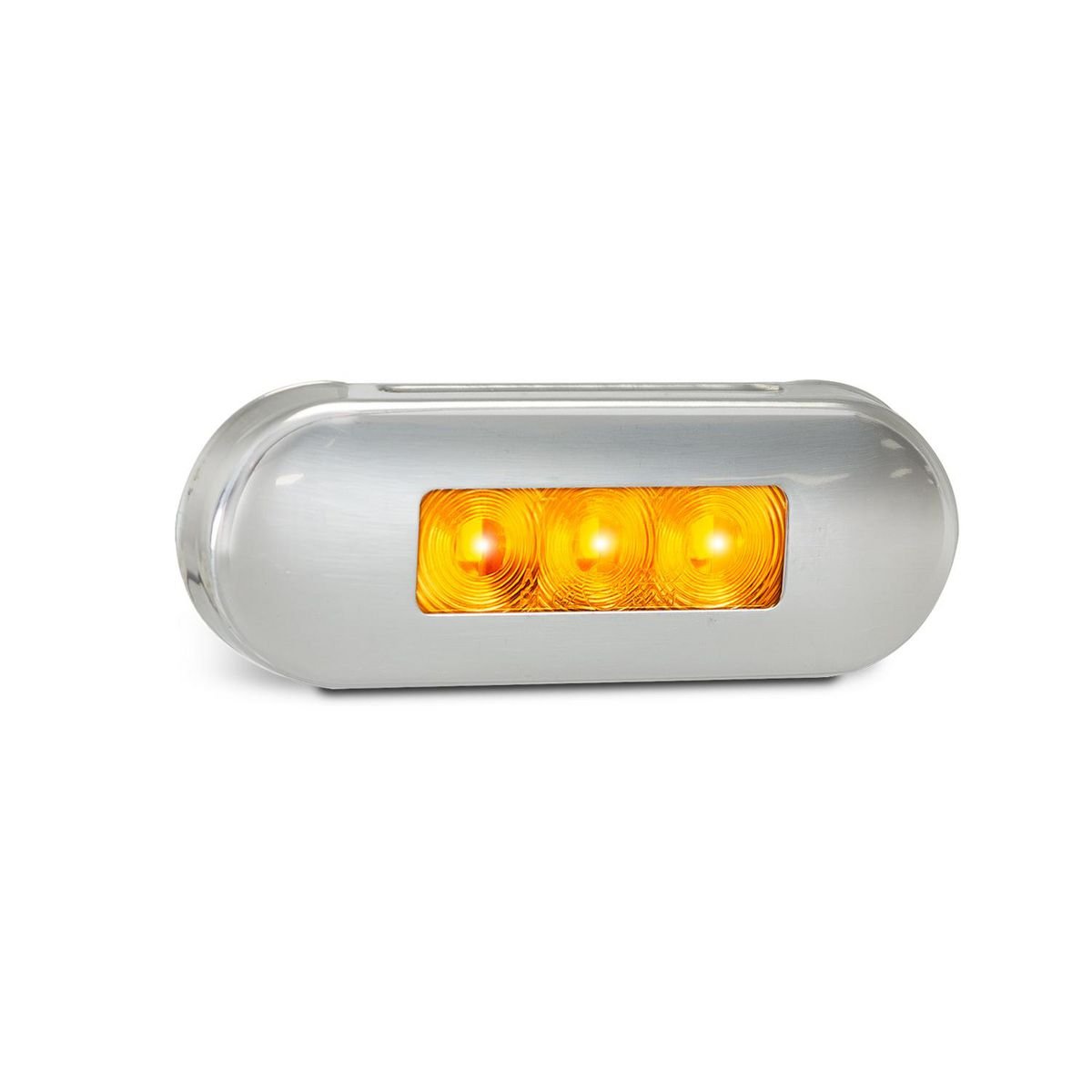

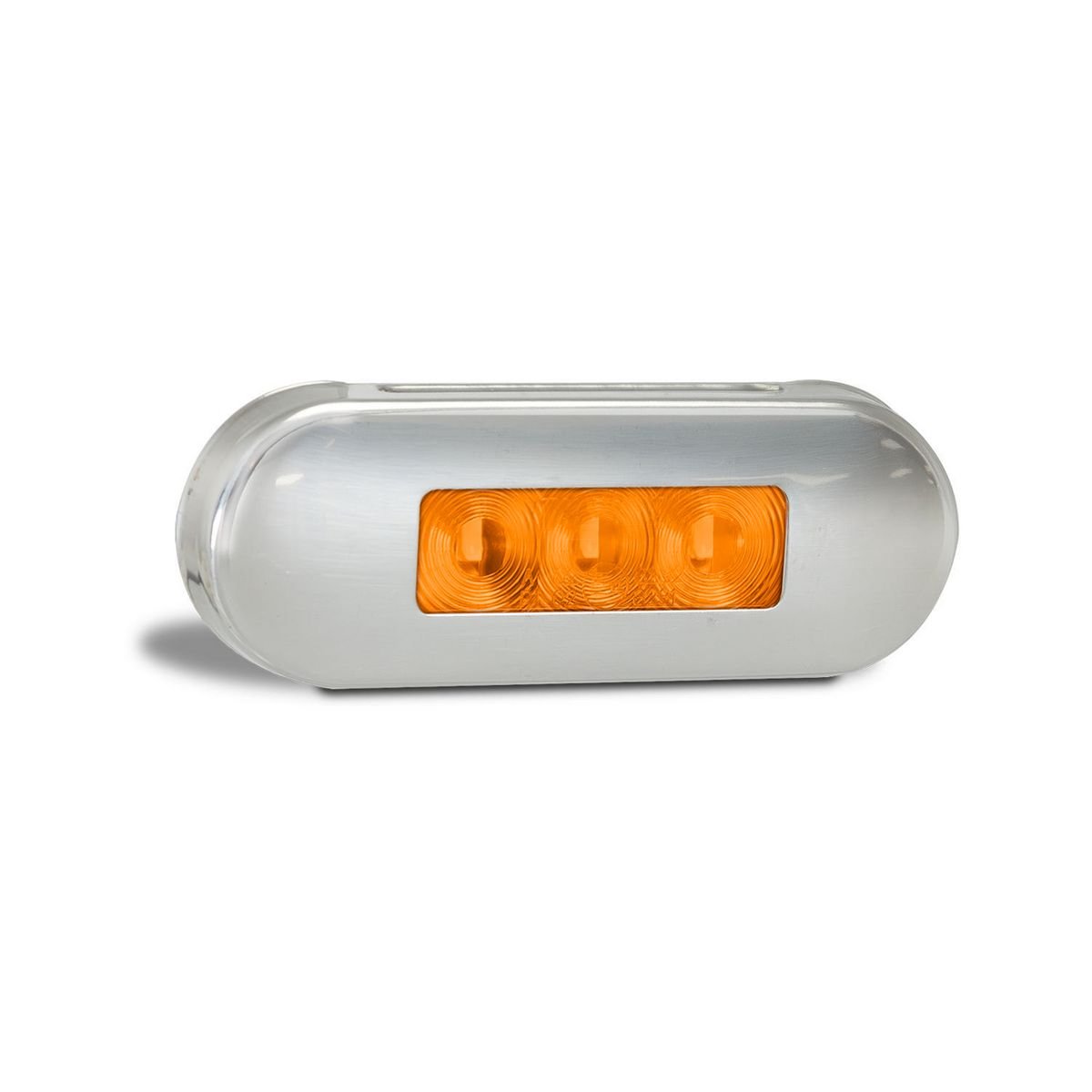

12/24V LED amber side marker lamp marks the side outline of trailers, truck bodies, ute trays and service bodies with a low-profile amber marker light.

The 86 Series body suits side marker replacement where a compact lamp with an amber lens and stainless steel bezel matches the existing panel layout. Also, the horizontal surface-mount design keeps the install simple on a flat side mounting face.

Features

• Amber side marker function for trailer and vehicle side outline lighting
• 12-24V multivolt operation for mixed vehicle and trailer systems
• 3 LED layout with 15cm bare-wire cable
• IP67-rated construction with polycarbonate lens and stainless steel base

Specifications and Materials

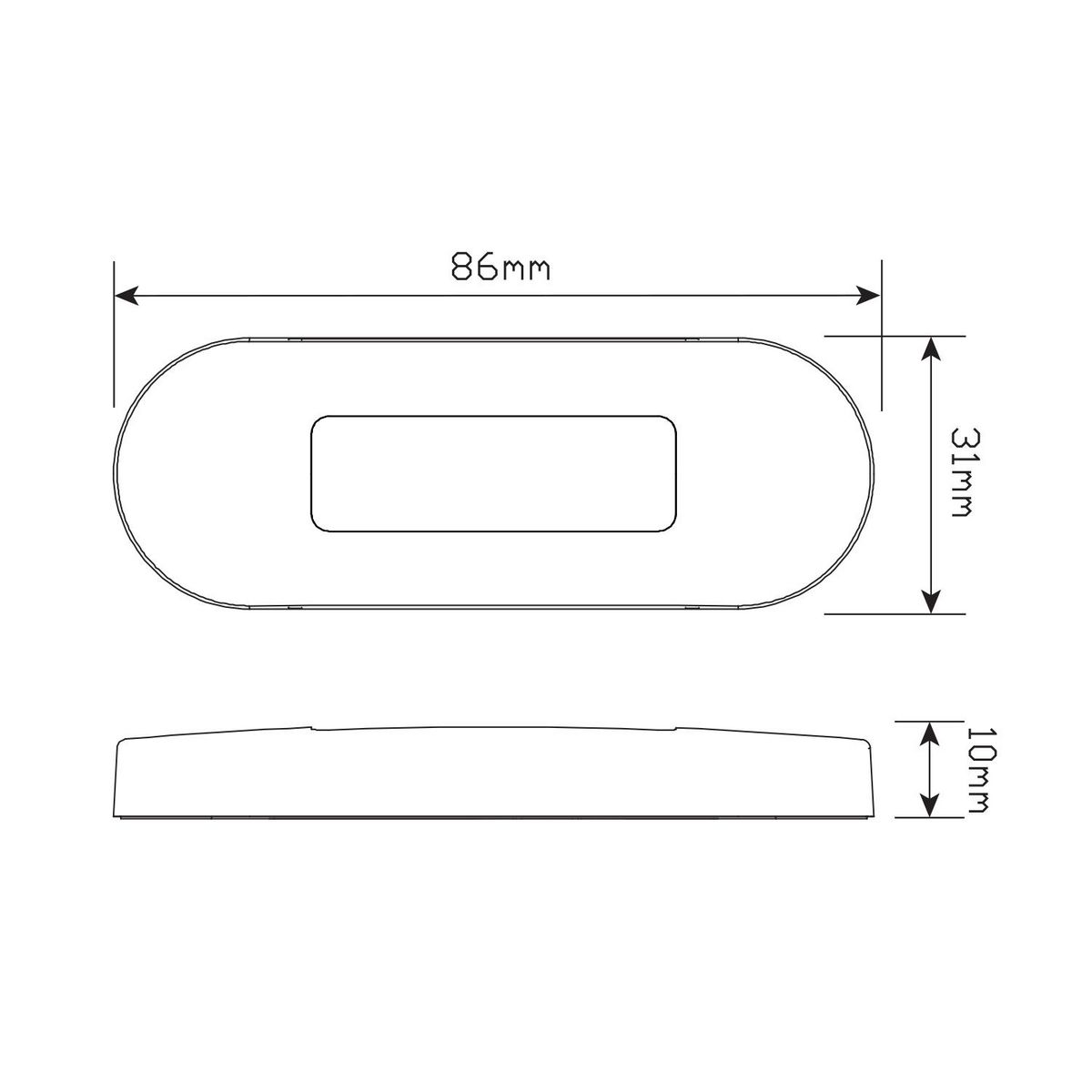

This 12/24V LED amber side marker lamp measures 86mm x 31mm x 10mm and uses a 15cm bare-wire cable. The lamp has an amber polycarbonate lens, stainless steel base and 3 LED side marker function.

Part number: 86AAMB.

Current draw is 0.10A at 13.8V and 0.04A at 28V, with ADR side marker category 74/00 approval and CTA-061261 approval.

See the official LED Autolamps 86 Series datasheet for manufacturer technical details

Compatibility and Fitment

Check the existing lamp size, side marker function, voltage range and mounting direction before ordering. This lamp mounts horizontally to a flat surface with screws, then the stainless steel bezel clips back over the body.

If the trailer has separate front, side and rear outline markers, match the correct lens colour and function to the lamp position. For side outline marking, use an amber side marker lamp.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Inspect the mounting face, cable route and screw points before fitting the replacement lamp. If the previous lamp failed from vibration, impact or water entry, fix the cause before installing the new marker.

After fitting, test the side marker circuit and confirm the amber light faces outward. Then check the bezel sits securely so the lamp stays protected during road use.

Trailer Applications

Workshops fit this 12/24V LED amber side marker lamp to trailers, truck bodies, trays, caravans and service bodies that need compact side outline lighting.

The low-profile 86mm body helps on side rails, guards and body panels where a larger marker lamp takes up too much space.

Why Choose ICS Trailers

ICS Trailers supplies side marker lamps for trailer repair, body fit-out and lighting replacement work. Match the side marker function, voltage and mounting face before ordering.

Find more trailer lighting in our LED Lights
