Description

Overview

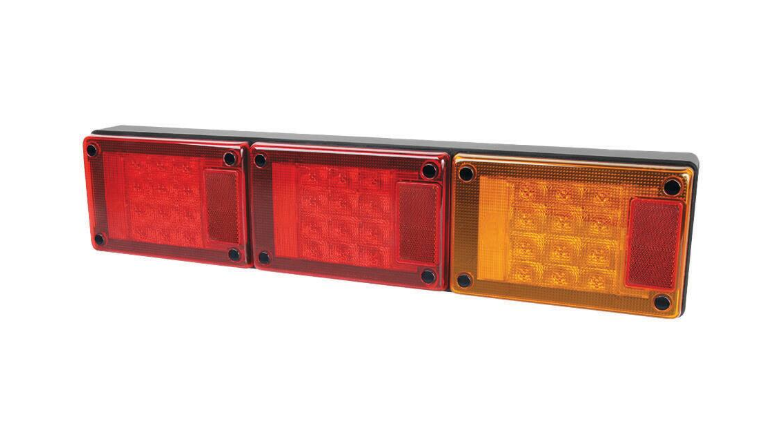

Jumbo-S LED triple module lamp combines stop, rear position and rear direction indicator functions in one pre-assembled rear lighting unit.

The assembly carries 23cm² red retro reflectors and suits rear combination lighting on trailers, trucks and heavy vehicle bodies.

Features

• Pre-assembled triple module with stop, rear position and rear direction indicator functions.
• Includes 2m sheathed multi-core cable for hard-wired installation.
• Mounting bolts supplied for surface mounting.
• Multivolt operation suits 12V and 24V vehicle systems.

Specifications and Materials

This Jumbo-S LED triple module lamp uses LED stop, rear position and rear direction indicator modules in a low-profile rear lamp housing.

The stop function draws 5W x 2, the rear position function draws 1W x 2, and the rear direction indicator draws 4W.

Part number: 2430.

The lamp has reverse polarity protection, 5000W transient voltage suppression, IP 6K7 dust and temporary immersion protection, and IP 6K9K high-pressure or steam jet cleaning protection.

manufacturer Jumbo-S lighting guide

Compatibility and Fitment

Match this Jumbo-S LED triple module lamp to rear stop, tail and indicator positions before ordering.

Check whether the trailer needs the standard pre-wired cable style, DT connection, HCS function or reverse lamp function, because those are different Jumbo-S variants.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 2VA 980 760-811, 2VA980760811

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Use this lamp only where the trailer lighting layout matches its rear stop, rear position and rear direction indicator functions.

Also confirm ADR 6/00 Cat 2a, ADR 47/00 and ADR 49/00 requirements against the vehicle position, then test each function before road use.

Trailer Applications

Workshops fit this Jumbo-S LED triple module lamp to semi-trailers, truck bodies and heavy vehicle rear lighting panels where a long three-module rear combination lamp is required.

Because the unit arrives pre-assembled and wired, it suits replacement work where the existing cable route and mounting footprint can be matched.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
