Description

Overview

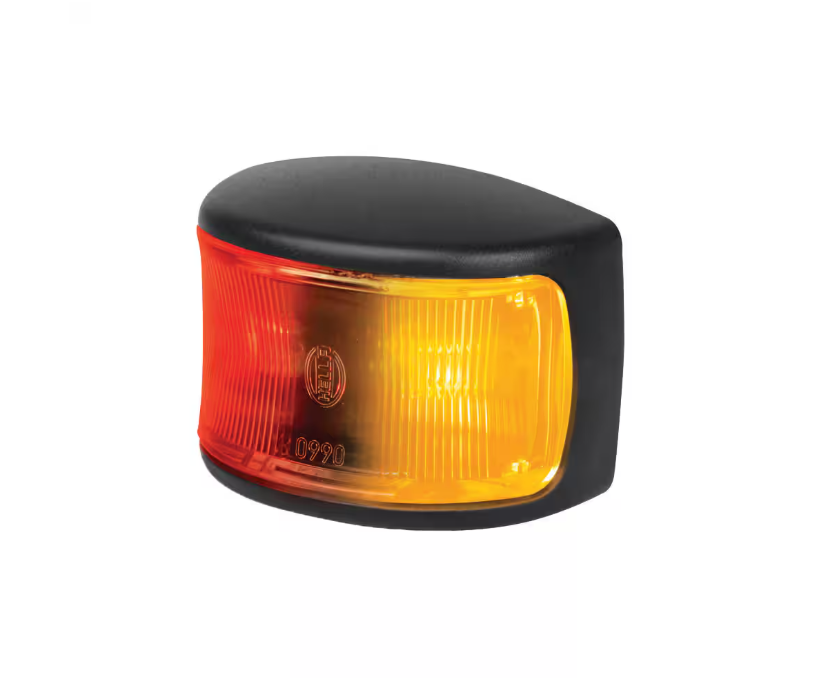

DuraLED side marker lamp provides red and amber LED side marker visibility for trailers, trucks and heavy vehicle body lighting.

The clear optic illuminates red to the rear and amber to the front, so the lamp keeps a clean appearance while still marking the vehicle side correctly in service.

Features

• Single red and amber LED side marker lamp.

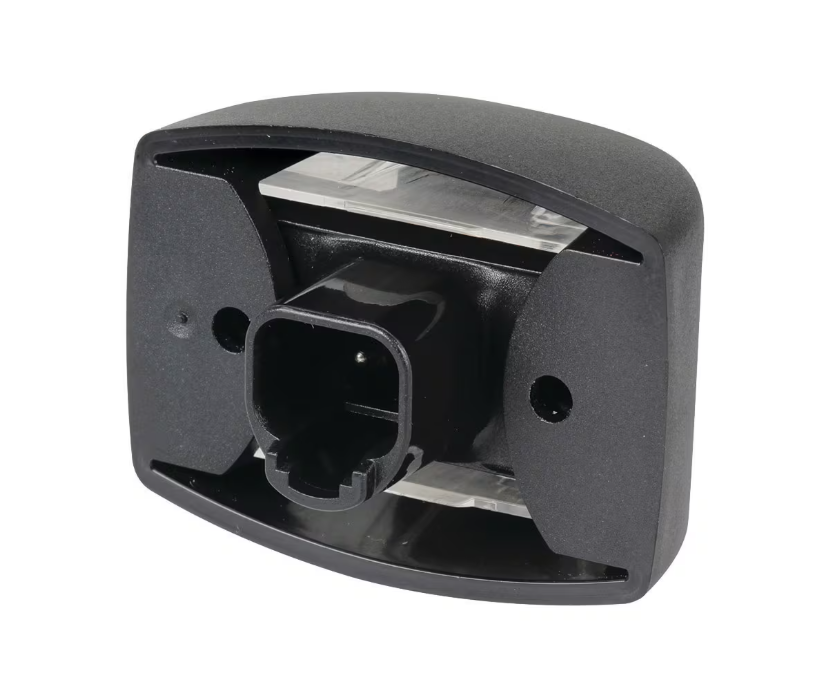

• Integrated DT connector suits sealed two-pole electrical connection.
• Grilamid nylon lens resists impact, UV exposure, chemicals and stress.
• Surface-mount format suits horizontal mounting on a flat vehicle surface.

Specifications and Materials

This DuraLED side marker lamp suits Multivolt 12V and 24V electrical systems, with power consumption under 1W.

The lamp uses a nylon housing, Grilamid lens, reverse polarity protection, IP 6K7 dust and temporary immersion protection, and IP 6K9K high-pressure or steam jet cleaning protection.

Part number: 2073.

Order the mating DT plug kit or cable separately if the existing trailer wiring does not already have the correct connector.

manufacturer technical page

Compatibility and Fitment

Match the DuraLED side marker lamp to ADR side marker positions, then confirm horizontal mounting, DT plug clearance and wiring polarity before installation.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 2PS 980 990-001, 2PS980990001, 980.990-001, 980990001

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Fit the lamp on a flat surface with the reference axis horizontal, and keep the red side facing the rear of the vehicle.

Also use Ø4mm screws or bolts with low-profile heads, protect the circuit with a fuse rated at 2A maximum, and confirm positive and earth pins before power-up.

Trailer Applications

Workshops fit this DuraLED side marker lamp to trailers, trucks, buses, caravans and specialty vehicles where compact sealed marker lighting needs a DT connector.

For fleet work, it suits repeat fitment where the same red and amber side marker lamp style runs across multiple trailers.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers can help match marker lamps to trailer wiring, connector type and ADR lighting position. If the trailer already runs DT marker lamp plugs, compare the connector and mounting hole clearance before ordering.

Find more trailer lighting parts in LED Lights
