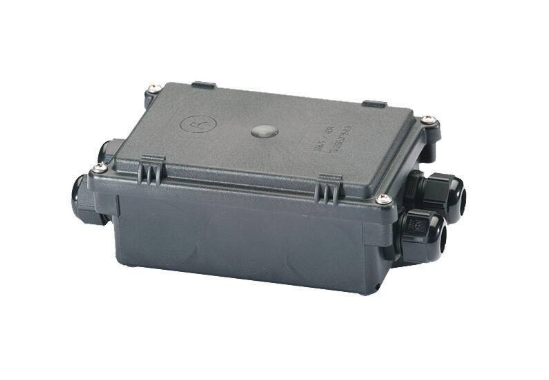

Cable junction box 4 outlet blade connector gives trailers and heavy vehicles a sealed wiring junction point for grouping multiple cable connections.

The compact housing suits underbody electrical work where trailer wiring needs a protected joiner box instead of exposed terminals or loose connector joins.

Features

• 4 outlet cable junction box for trailer and truck wiring.

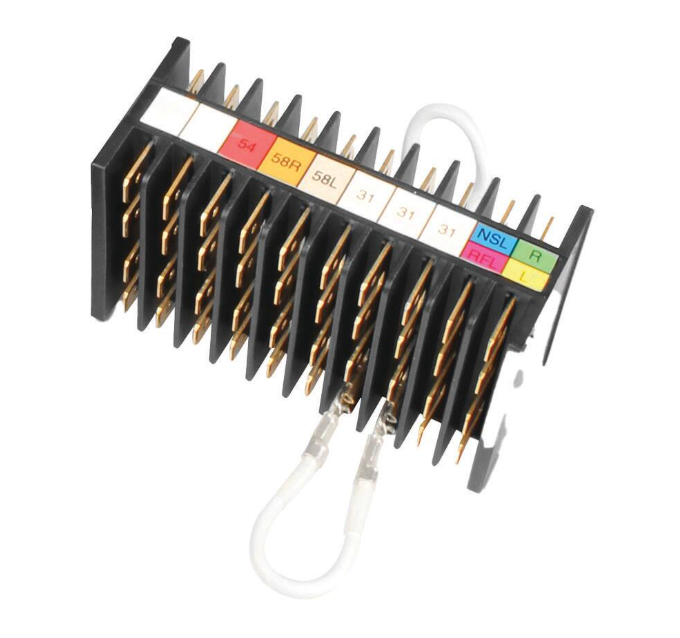

• Includes connecting cartridge with 14 separate connection groups.
• Uses 6.3mm flat blade connectors across 6 x 8-way and 8 x 4-way groups.
• Heavy duty nylon housing resists common underbody lubricants and high pressure washing.

Specifications and Materials

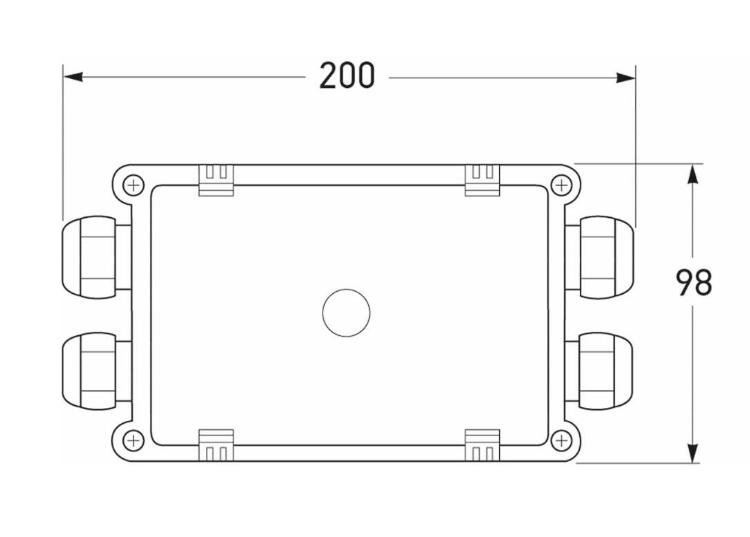

This cable junction box 4 outlet blade connector suits Ø13mm cable inlet and outlet positions.

It includes the connecting cartridge, so the box can group separate wiring circuits inside one protected housing.

Part number: 2770.

The manufacturer part number is 8KV 177 785-012, with 4 outlets and 14 connection groups.

The housing carries IP 69K protection against dust and high-pressure or steam jet cleaning.

manufacturer technical page

Compatibility and Fitment

Match this box to cable size, terminal type and the number of wiring groups required before ordering.

Use 6.3mm flat blade terminals, check gland sealing on each cable, and confirm the wiring layout before closing the housing.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 8KV 177 785-012, 8KV177785012

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Inspect each crimp, cable gland and terminal group before final assembly, because poor cable sealing can let water and road grime into the wiring junction.

Also secure the box away from heat, abrasion and moving suspension parts, then test every circuit after installation.

Trailer Applications

Workshops use this cable junction box 4 outlet blade connector when wiring trailer rear lighting, marker lighting, auxiliary circuits and heavy vehicle body electrical systems.

It suits service work where multiple cable runs need a neat, sealed junction point under a trailer or truck body.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers can help match electrical hardware to trailer wiring layout, cable size and service access. If the wiring setup needs more outlets, compare the 4 outlet and 12 outlet versions before ordering.

Find more trailer electrical parts in Electrical
