Description

Overview

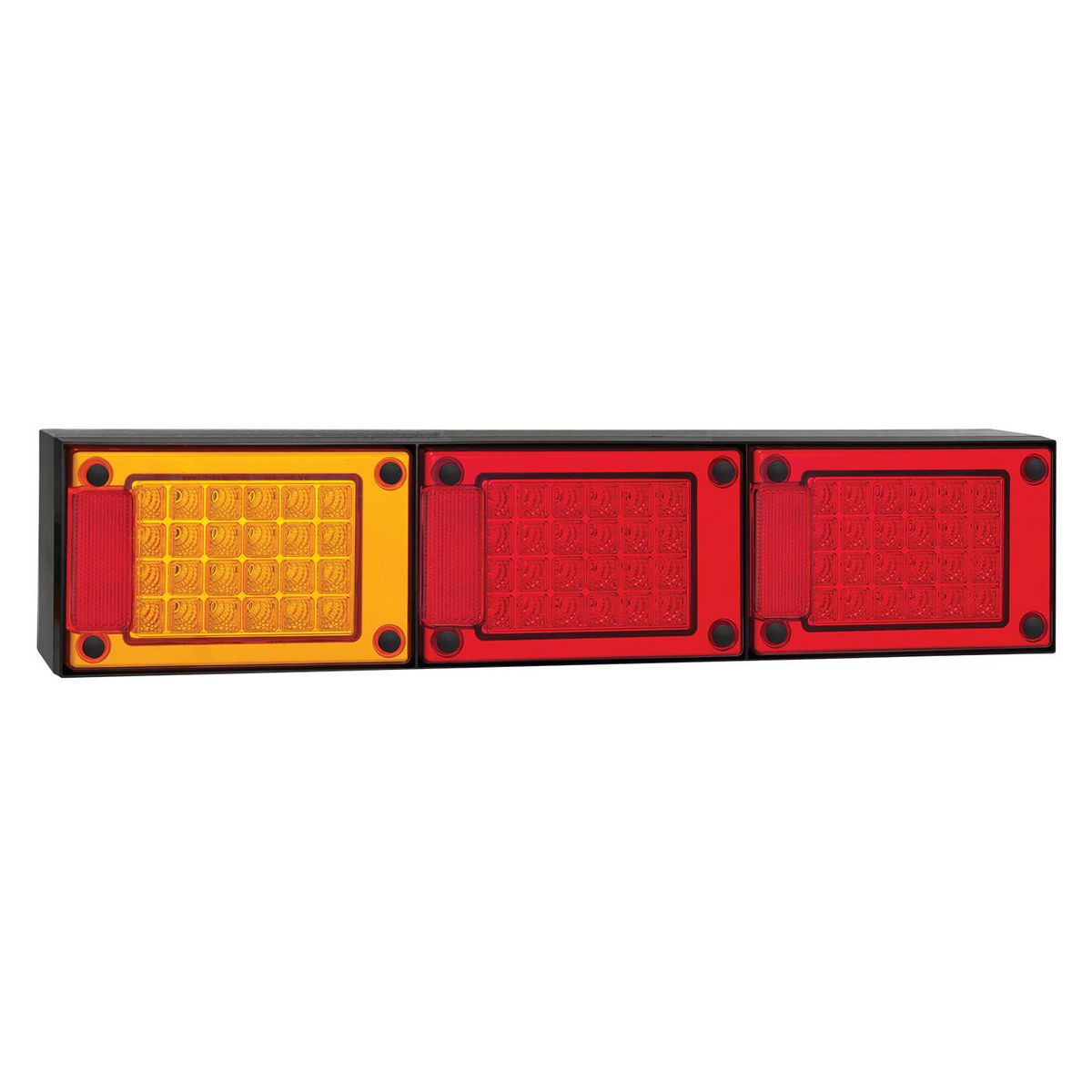

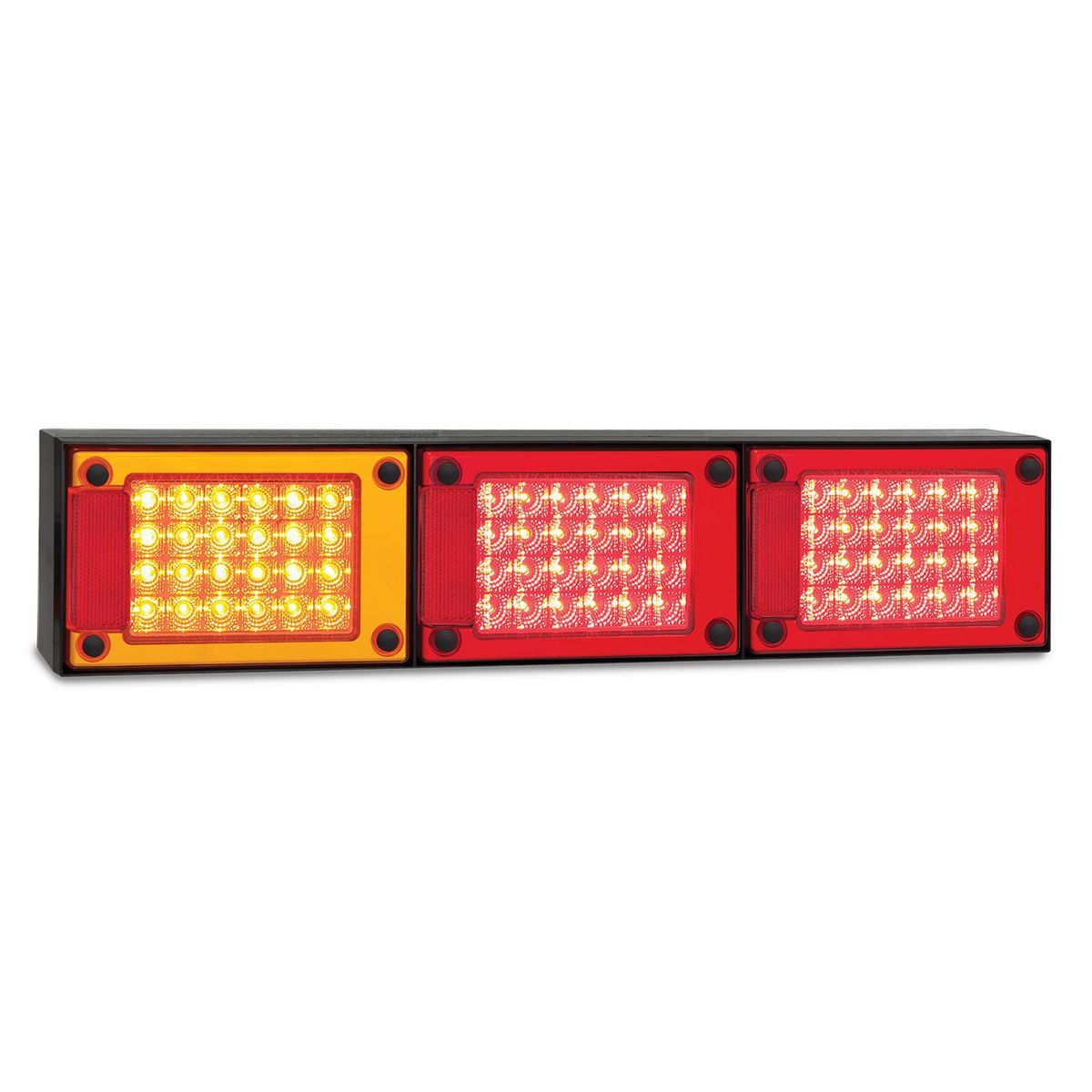

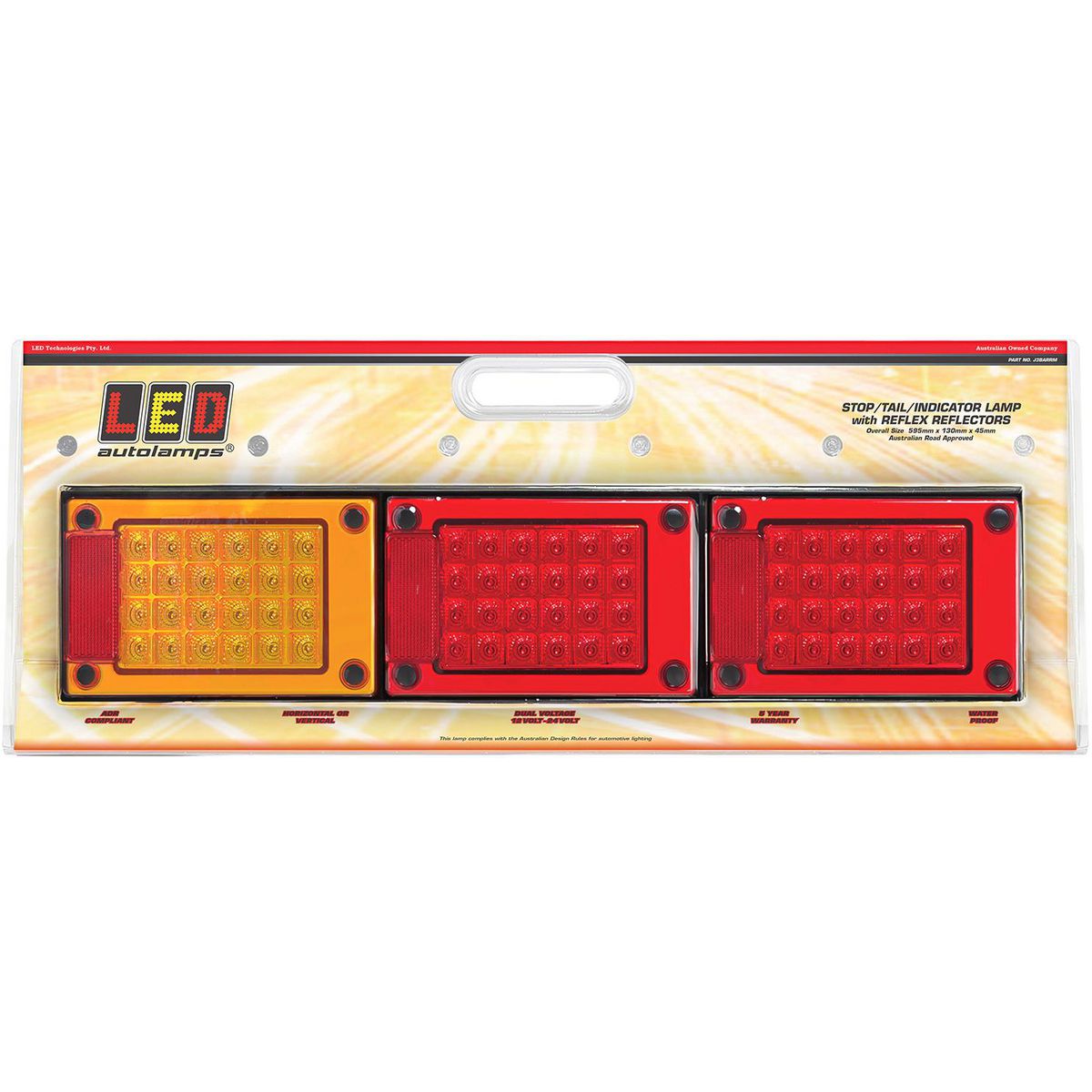

Jumbo LED stop tail indicator lamp combines rear stop, tail, indicator and reflector functions in one large trailer lamp assembly. The wide triple-module layout suits heavy trailer, truck body and service vehicle rear lighting where a full-size rectangular lamp gives clear function separation.

Features

• Stop, tail, indicator and reflex reflector functions in one rear lamp assembly
• 12-24V multivolt operation suits common trailer and heavy vehicle electrical systems
• 72 LEDs with a 1.2m bare-wire cable for hardwired installation
• IP67 rated body with hardened acrylic lenses and ABS base

Specifications and Materials

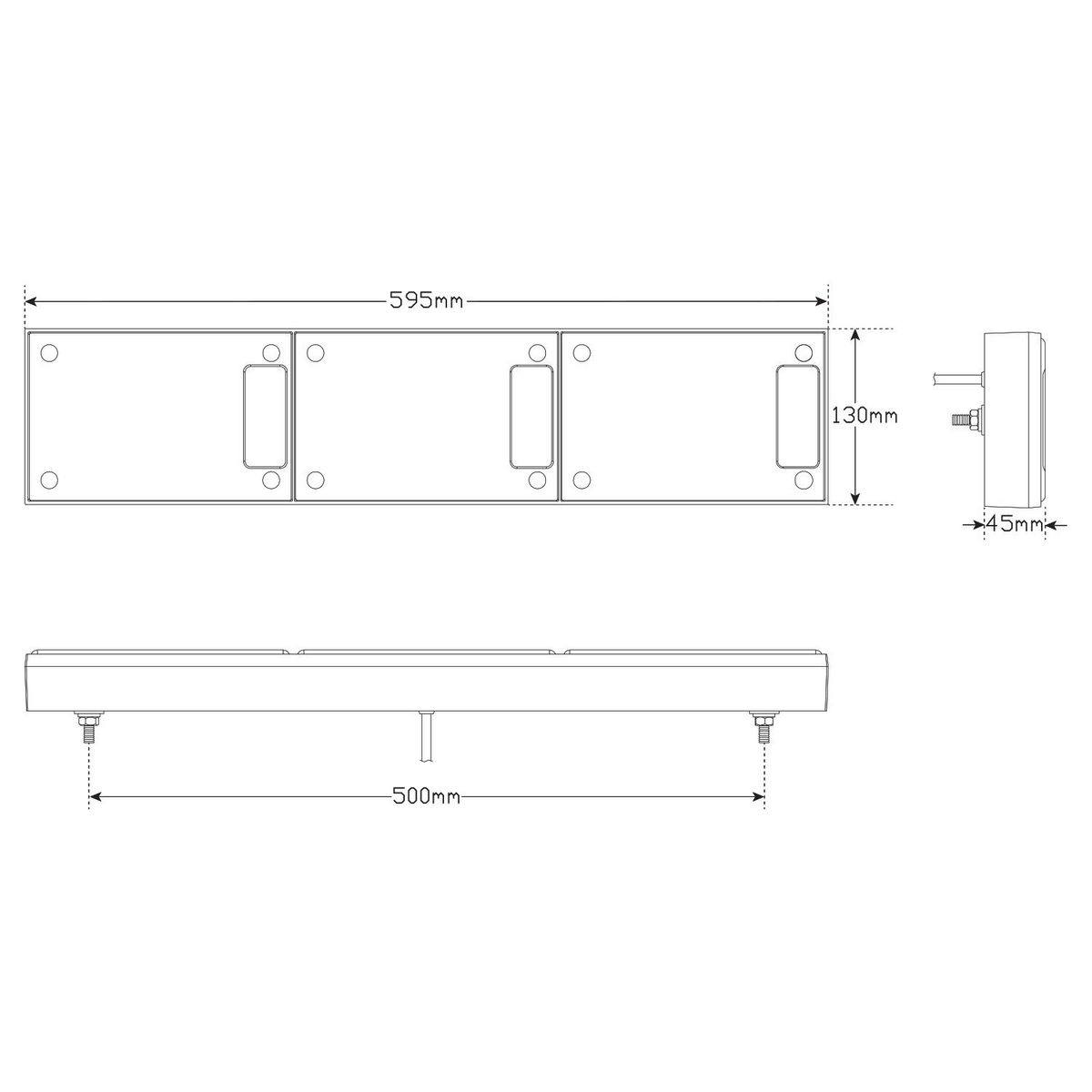

This jumbo LED stop tail indicator lamp measures 595mm x 130mm x 45mm, with 500mm between the mounting studs. It uses hardened acrylic lenses over an ABS base and carries 72 LEDs across the lamp assembly.

Part number: J3BARRM.

Current draw at 13.8V is 0.47A stop, 0.04A tail and 0.42A indicator. At 28V, current draw is 0.27A stop, 0.03A tail and 0.28A indicator.

The manufacturer J3 Series technical guide covers the lamp family, dimensions, approvals and fitting details

Compatibility and Fitment

Check the mounting footprint, 500mm stud spacing, 12-24V wiring and required rear functions before ordering. Surface mount the lamp to a flat panel, then run the cable through the fixing surface so the assembly seats cleanly against the trailer body.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Confirm the rear lighting position and mounting orientation against the trailer application before fitting. Also check the cable route, mounting surface and fasteners, because rear lamps cop vibration, spray and impact risk in daily trailer use.

Trailer Applications

Workshops fit this jumbo LED stop tail indicator lamp to trailers, truck bodies, caravans, utes and service vehicles that need a large rear combination lamp without a reverse function. The separate amber and red lamp sections make it straightforward to identify the required function during servicing.
