Disc Brake Rotor 377mm 8 Hole 196PCD
Disc Brake Rotor 377mm 8 Hole 196PCD
$250.00

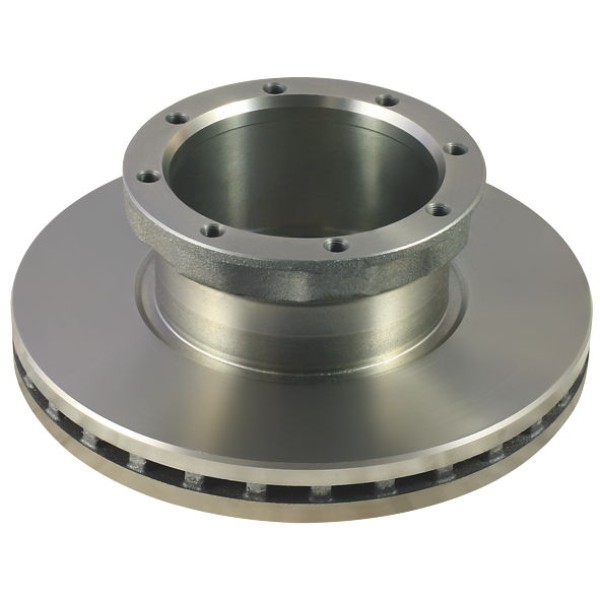

377mm disc brake rotor for Wabco Pan 19 trailer axle applications, with 8 x M14 holes, 196PCD, 45mm disc thickness, vented construction and fitting kit supplied so workshops can match the replacement rotor before teardown.
Part number AP3206.
Description
Overview
377mm disc brake rotor restores the braking friction surface on Wabco Pan 19 trailer disc brake axle setups. The vented rotor suits 8-hole hub mounting and gives workshops a direct rotor replacement path when the existing disc has reached service limits.
Features
- Vented rotor for Wabco Pan 19 trailer disc brake applications
- 377mm diameter with 196PCD and 8 x M14 mounting hole pattern
- 45mm disc thickness for matching against the existing rotor
- Supplied with fitting kit for rotor replacement work
Specifications and Materials

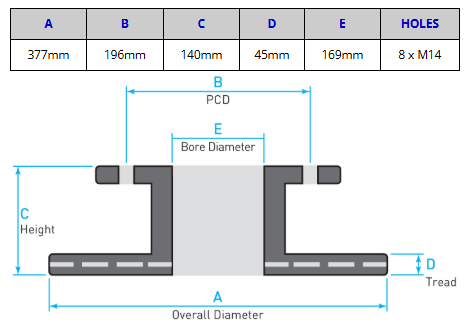

This 377mm disc brake rotor matches Wabco Pan 19 applications and uses an 8 x M14 mounting pattern on 196PCD. The dimension guide lists 377mm, 196mm, 140mm, 45mm and 169mm reference dimensions for matching the existing hub and brake assembly.
Part number: AP3206.
Check the rotor diameter, PCD, mounting holes, disc thickness and pad set before ordering, because Pan 19 trailer axle setups can vary by hub and ABS arrangement.
Use the TMC Pan 19 axle service manual for brake service information
Compatibility and Fitment
Match this rotor to Wabco Pan 19 trailer disc brake assemblies with 8 mounting holes, 196PCD and a 377mm rotor diameter. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 79787412, CDR1048, 79787402, 80360, 820105, BC8433, CT801, CT831, HT429, TRPDR003, WDR705, MBR5805
Related Parts
Check the related service parts below against the trailer setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Disc pads to suit | FB4691 | Disc brake pad set |
| Disc pads to suit | FB4691G | Genuine Disc brake pad set |
| Caliper service | FB2874 | Guide pin and seal set |
| Caliper service | FB2873 | Piston and seal set |
| Hub to rotor bolt | CH0667 | M14 x 60 rotor bolt |
| Hub to rotor bolt | CH0668 | M14 x 60 rotor bolt |
Compliance and Safety
Inspect the rotor, pads, caliper hardware and hub mounting faces before reassembly. When fitting the rotor to the hub, torque the M14 hub-to-rotor studs to the service specification and apply thread locker where the axle service procedure calls for it.
Trailer Applications
Workshops fit this 377mm disc brake rotor on Wabco Pan 19 trailer disc brake axle setups running 19.5″ and 22.5″ wheel rim applications. It suits repair work where the rotor diameter, 196PCD and 8-hole mount pattern match the trailer’s existing brake assembly.
Cross-reference and Suitability
This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
| 79787412 | CDR1048 | 79787402 |
| 80360 | 820105 | BC8433 |
| CT801 | CT831 | HT429 |
| TRPDR003 | WDR705 | MBR5805 |
Why Choose ICS Trailers
ICS Trailers keeps trailer brake, axle and wheel-end parts together so workshops can match rotors, pads and fitting hardware during the same repair. View more products in Foundation Brakes
