Front End Outline LED Lamp Amber DT Connector

Allan Davis on 23/06/2026

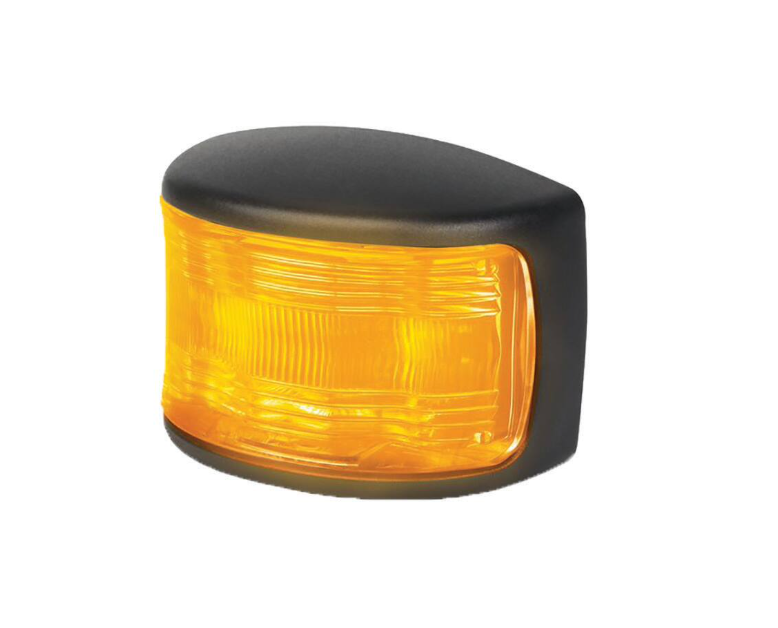

Amber front end outline LED lamp with DT connector for trailer marker lighting
Front End Outline LED Lamp Amber DT Connector - Image 2

Front End Outline LED Lamp Amber DT Connector

$17.60

Amber front end outline LED lamp for trailer marker lighting, with DT connector fitment, MultiVolt 12V/24V operation and a durable Grilamid nylon lens for exposed trailer positions.

Part number 2071Bulk.

Quick Quote

SKU: 2071Bulk Category: Tags: , , , , , , , , , , , , , , , , , Brand:
This field is for validation purposes and should be left unchanged.

Description

Overview

Front end outline LED lamp marks the amber front end outline position on trailers with a compact DuraLED marker lamp. The clear-look optic illuminates amber when powered, while the rear DT connector setup suits sealed trailer wiring layouts.

Features

  • Amber FEOL lamp for trailer front end outline marking.
  • MultiVolt operation suits 12V and 24V electrical systems.
  • Grilamid nylon lens resists impact, UV exposure, chemicals and stress.
  • Sealed against dust, temporary water immersion and high pressure cleaning.

Specifications and Materials

This front end outline LED lamp uses LED technology with power consumption below 1W. It mounts to a flat vertical surface and connects through a 2 pole DT socket interface.

Part number: 2071Bulk.

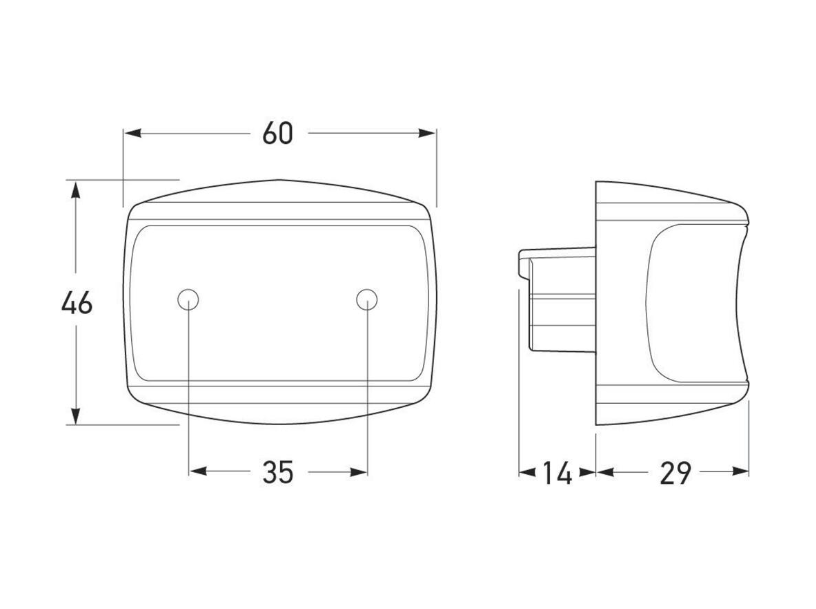

The lamp measures 60mm wide by 46mm high by 29mm deep, with 35mm mounting centres and a minimum 22.5mm rear clearance hole for the DT socket.

For manufacturer technical detail, see HELLA DuraLED lamp technical data

Compatibility and Fitment

Check the trailer lighting position, DT connector setup, mounting surface and ADR requirement before ordering. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 2071, 2PF 980 990-401, 2PF980990401, 980.990-401, 980990401.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Use Part number Part type
Plug to suit 4960-P 2 pole DT plug kit
Cable to suit 9.1557.05 2 pole plug with 2.0m cable



Compliance and Safety

Mount the lamp on a flat vertical surface with the reference axis horizontal. Also protect the lamp with the correct fuse and connect it to continuous 12V or 24V DC power, because modulated or alternating current can shorten LED lamp life.

Trailer Applications

Trailer builders and repairers fit this front end outline LED lamp on heavy trailers that need amber front end outline marking with a sealed DT connector lamp. It suits exposed trailer positions where lens durability, low power draw and sealed wiring matter.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

2071 2PF 980 990-401 2PF980990401
980.990-401 980990401



Why Choose ICS Trailers

ICS Trailers can help match the lamp function, connector type and mounting position before the trailer goes back into service. For more trailer LED lighting, browse the ICS LED Lights category
