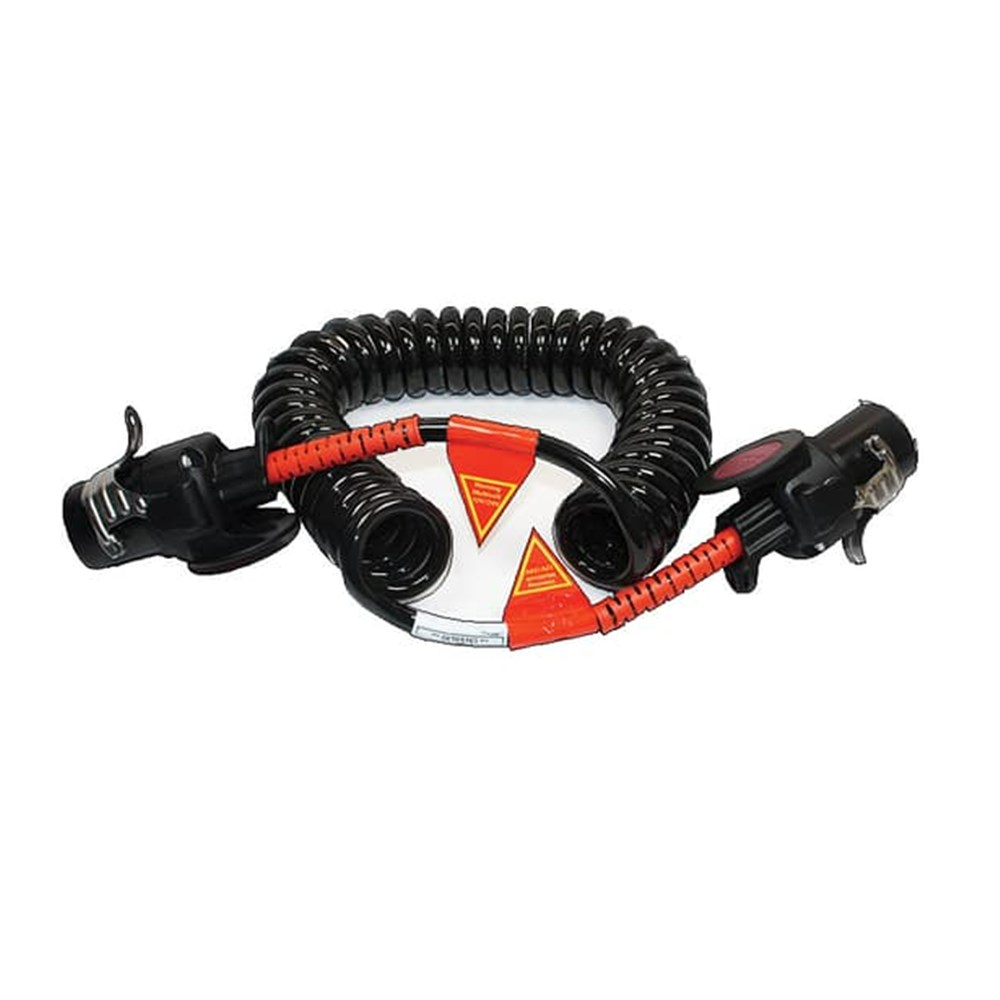

ABS/EBS Suzi Coil 7 Pin MultiVolt 4.5m
ABS/EBS Suzi Coil 7 Pin MultiVolt 4.5m
$236.00
7 pin ABS/EBS suzi coil for truck and trailer braking connections, with MultiVolt 12V/24V plugs, 4.5m working length and 50mm outer coil diameter, so match the ISO 7638-1/-2 connection and trailer voltage before ordering.
Part number 8KA227440081.
Description
Overview
ABS/EBS suzi coil connects the prime mover and trailer braking circuit through a 7 pin MultiVolt cable assembly. This 4.5m HELLA coil suits ISO 7638-1/-2 ABS/EBS connections, so it covers 12V and 24V trailer braking interfaces when the vehicle setup matches.
Features
- Includes 7 pin MultiVolt ABS/EBS plugs at both ends.
- 4.5m maximum working length with 300mm tail ends at both sides.
- 50mm outer coil diameter with 5 x 1.5mm² and 2 x 4.0mm² conductor cross section.
- Handles -40°C to 100°C conditions, plus weathering, oils and chemicals.
Specifications and Materials
This HELLA ABS/EBS suzi coil carries 7 pins and runs through ISO 7638-1/-2 MultiVolt plug ends. It handles truck and trailer ABS/EBS power supply connections where the prime mover and trailer voltage are compatible.
Part number: 8KA227440081.
For manufacturer technical data, see HELLA cable assembly technical data
Compatibility and Fitment
Match this ABS/EBS suzi coil to the 7 pin ISO 7638-1/-2 connection, vehicle voltage and required working length before ordering. If the trailer needs a longer tail, check the long tail version in the same connector range instead.
Related Parts
Check the related service parts below against the trailer setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Related version | 8KA 227 440-181 | 5.2m long tail ABS/EBS suzi coil |
| Plug to suit | 8JA 227 440-091 | 7 pin MultiVolt ABS/EBS plug |
| Park socket | 8HG 227 440-001 | Blank park socket |
| Socket tester | 8PD 004 508-031 | 7 pin ISO 7638-1 socket tester |
Compliance and Safety
Confirm voltage compatibility between the prime mover and trailer before connection. Also inspect the cable, plug bodies, seals and strain relief after any drag damage, kinking or pinching, because a damaged ABS/EBS lead can create braking faults.
Trailer Applications
Workshops fit this coil on heavy trailers that run ABS/EBS braking through a 7 pin ISO 7638 connection. Fleet maintenance teams also use it when replacing a stretched, oil-affected or weathered coil between the truck and trailer.
Why Choose ICS Trailers
ICS Trailers can help match the suzi coil, plug format and related trailer electrical parts to the vehicle setup before you order. For more trailer plugs, sockets and wiring support, browse the ICS Electrical category
