Description

Overview

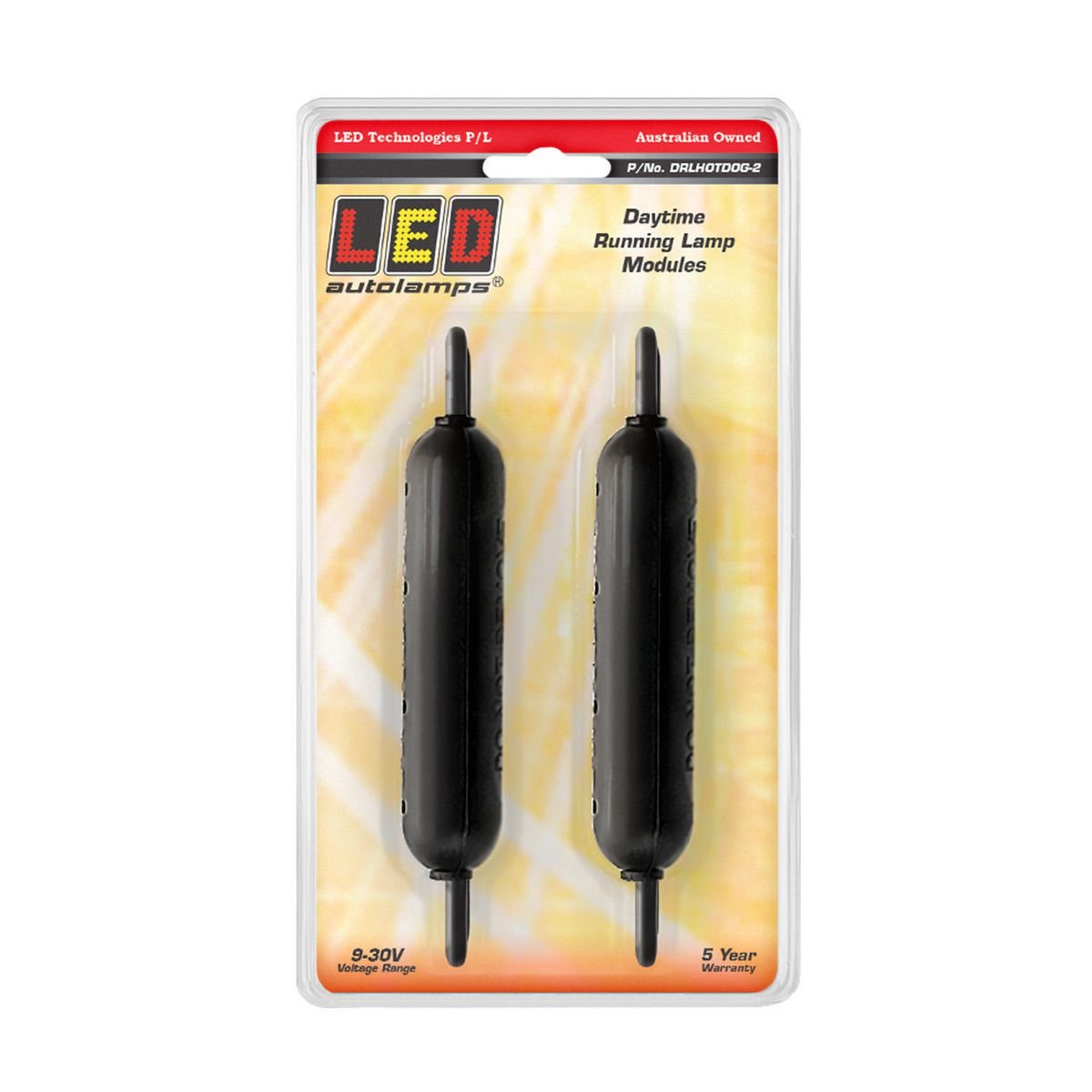

Daytime running lamp modules convert compatible front lamps into ECE approved daytime running lamp operation. The twin blister pack suits supported LED front lamp setups where the DRL function needs controlled dimming with indicator, headlight or park light operation.

Features

• Converts compatible lamps into ECE approved DRL function.
• Runs on 9-30V systems for 12V and 24V vehicle setups.
• 200mm cable on each side for connection into the lamp circuit.
• IP67 dust and waterproof rating for exposed vehicle wiring areas.

Specifications and Materials

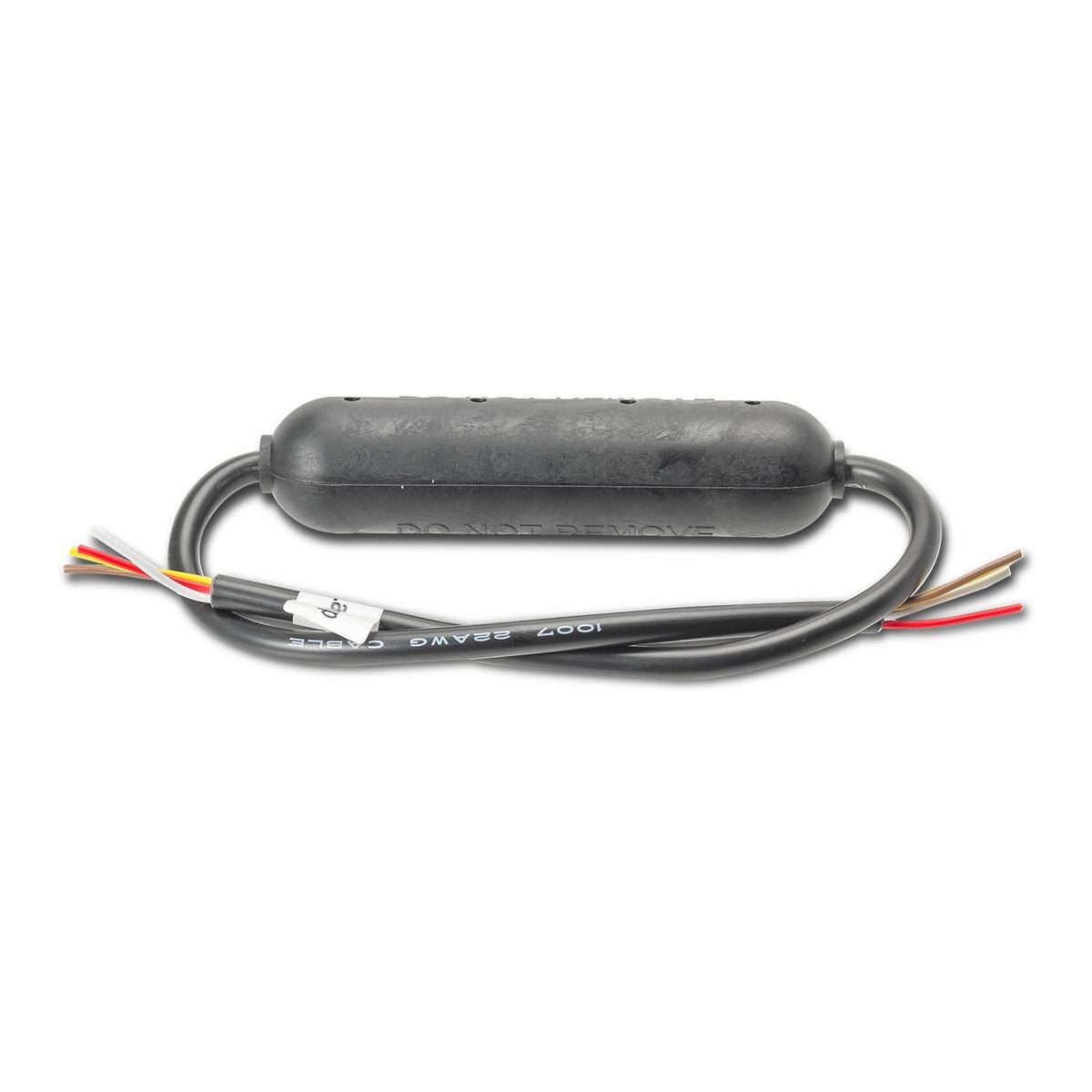

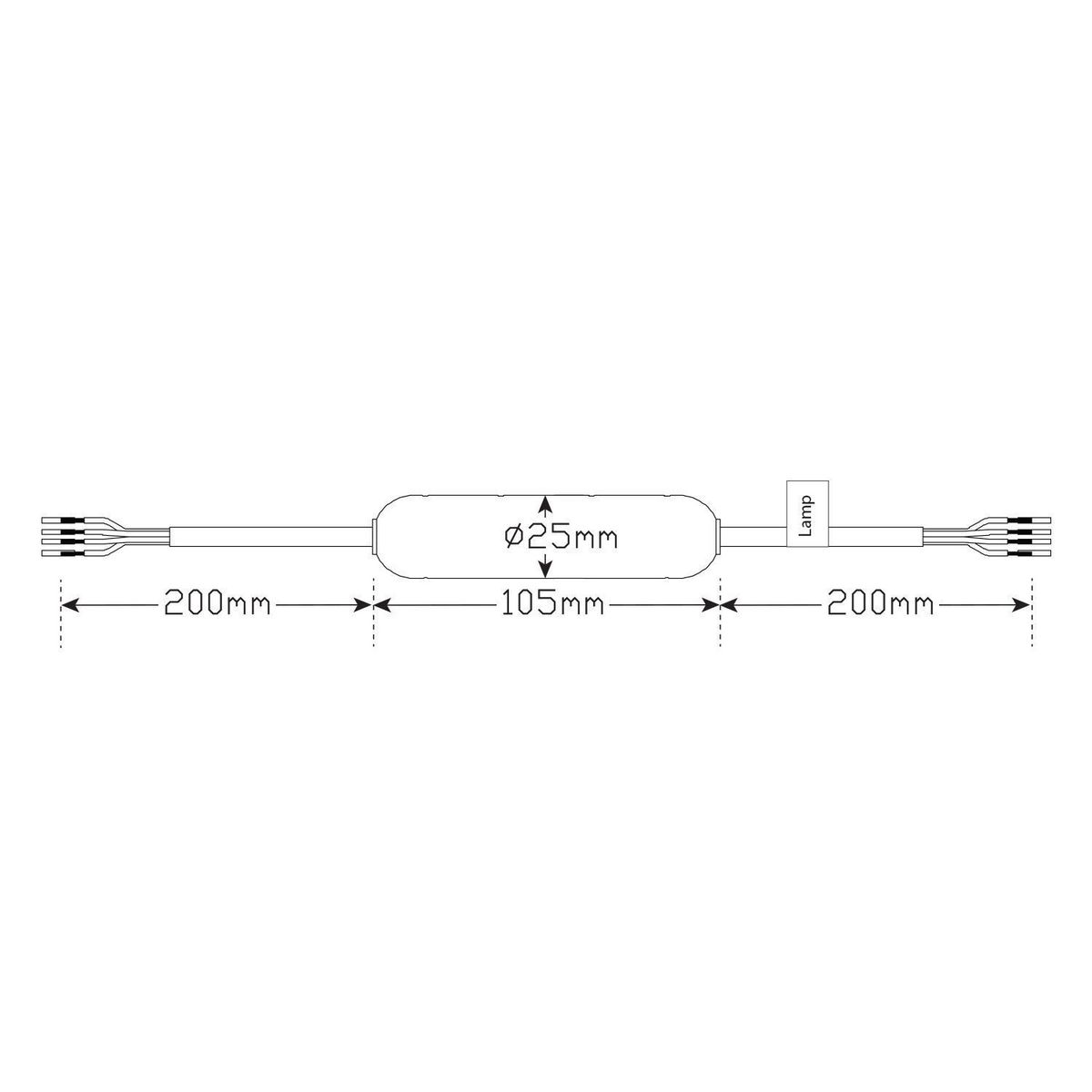

The module measures 105mm x 25mm and carries a 21W rating. It uses 22AWG tinned wire and a heavy duty body suited to vehicle lighting installations.

Part number: DRLHOTDOG-2.

Use the official datasheet when checking module dimensions and wiring colours

Compatibility and Fitment

Match these daytime running lamp modules to compatible DRL ready front lamp assemblies before ordering. The module suits 80AW and 175AWTB2 lamp setups, with red for DRL, brown for position or headlight, yellow for indicator and white for earth.

When wired correctly, the DRL turns on with vehicle start, then dims when the indicator, headlight or park light circuit operates. Because lighting circuits affect road visibility, use a qualified auto electrician for installation where required.

Related Parts

Check the related service parts below against the vehicle setup before ordering.

Compliance and Safety

Confirm the lamp position, wiring route and DRL behaviour before returning the vehicle to service. Also check that the module end connects to the lamp side correctly, because the dimming function depends on the DRL, indicator, park and earth circuits being wired to the right colours.

Trailer Applications

Workshops use this style of module on vehicle, 4×4 and trailer related front lighting work where a compatible lamp needs daytime running lamp operation. The daytime running lamp modules suit fitment jobs that need DRL control without changing the complete lamp assembly.
