Description

Overview

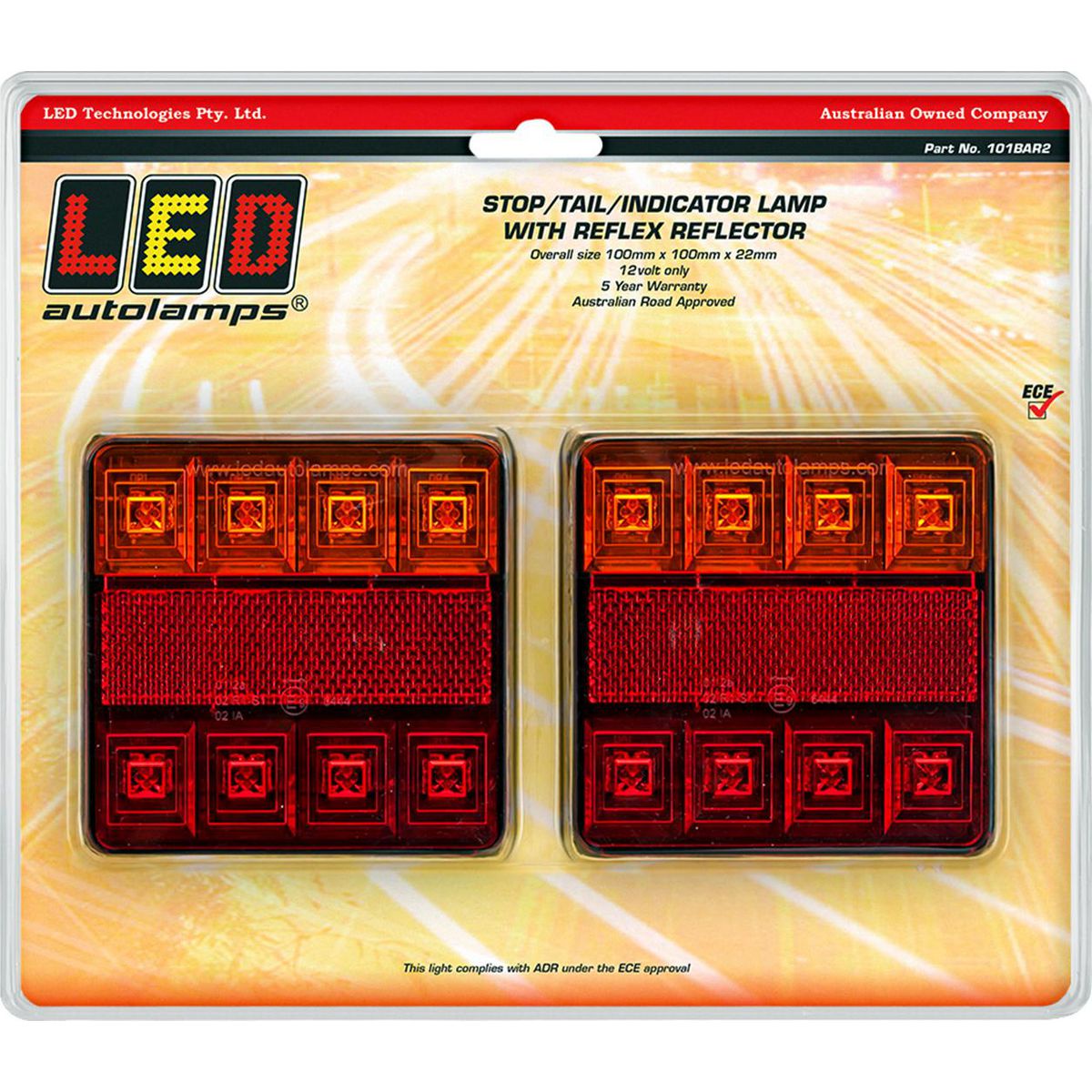

Stop tail indicator lamps 12V combine rear stop, tail, indicator and reflector functions in a compact twin pack for small trailers. The low profile square body suits tight rear mounting areas, while the inbuilt reflector reduces the need for a separate reflector on suitable trailer setups.

Features

• Stop, tail, indicator and reflector functions in each lamp.
• 100mm x 100mm x 22mm body suits compact rear mounting.

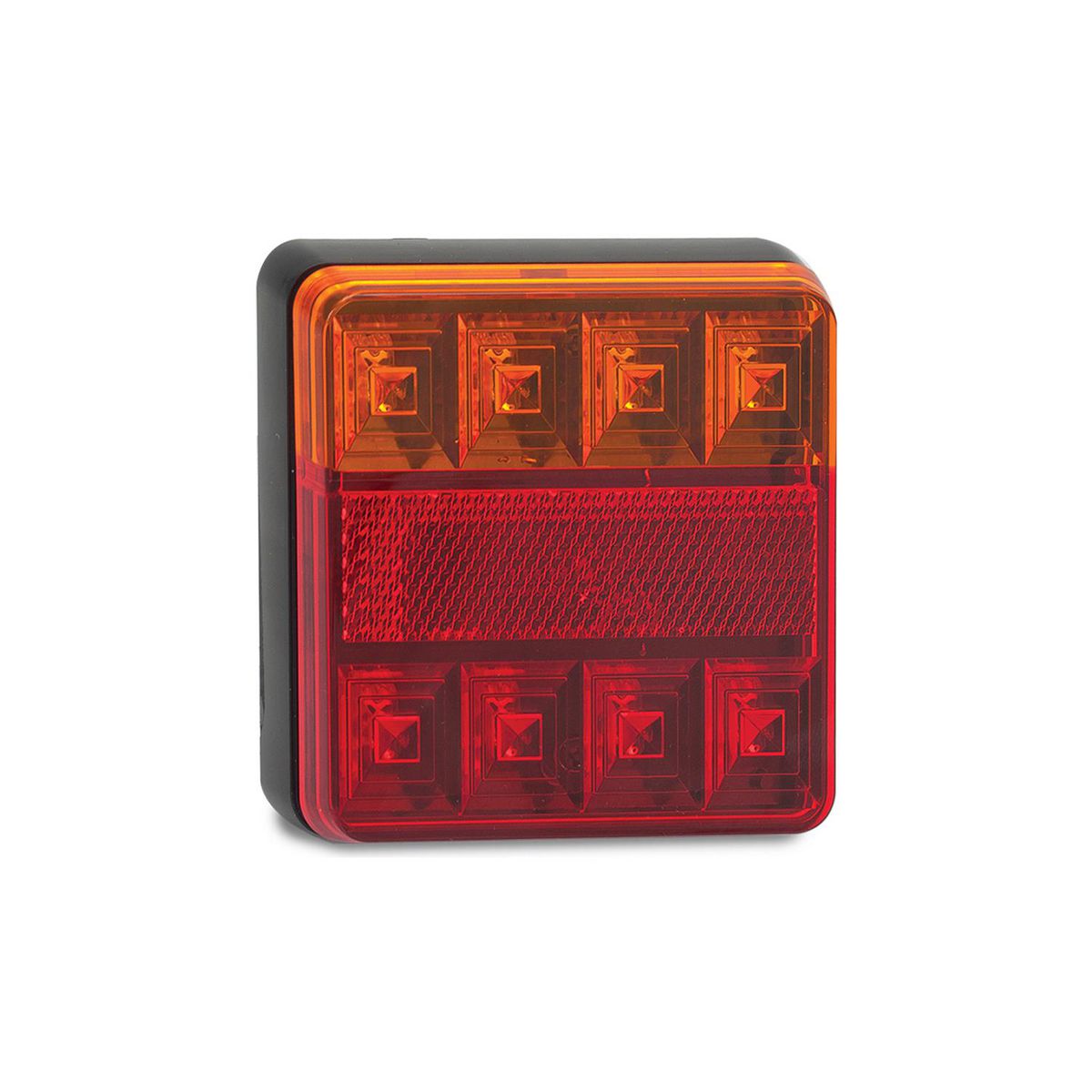

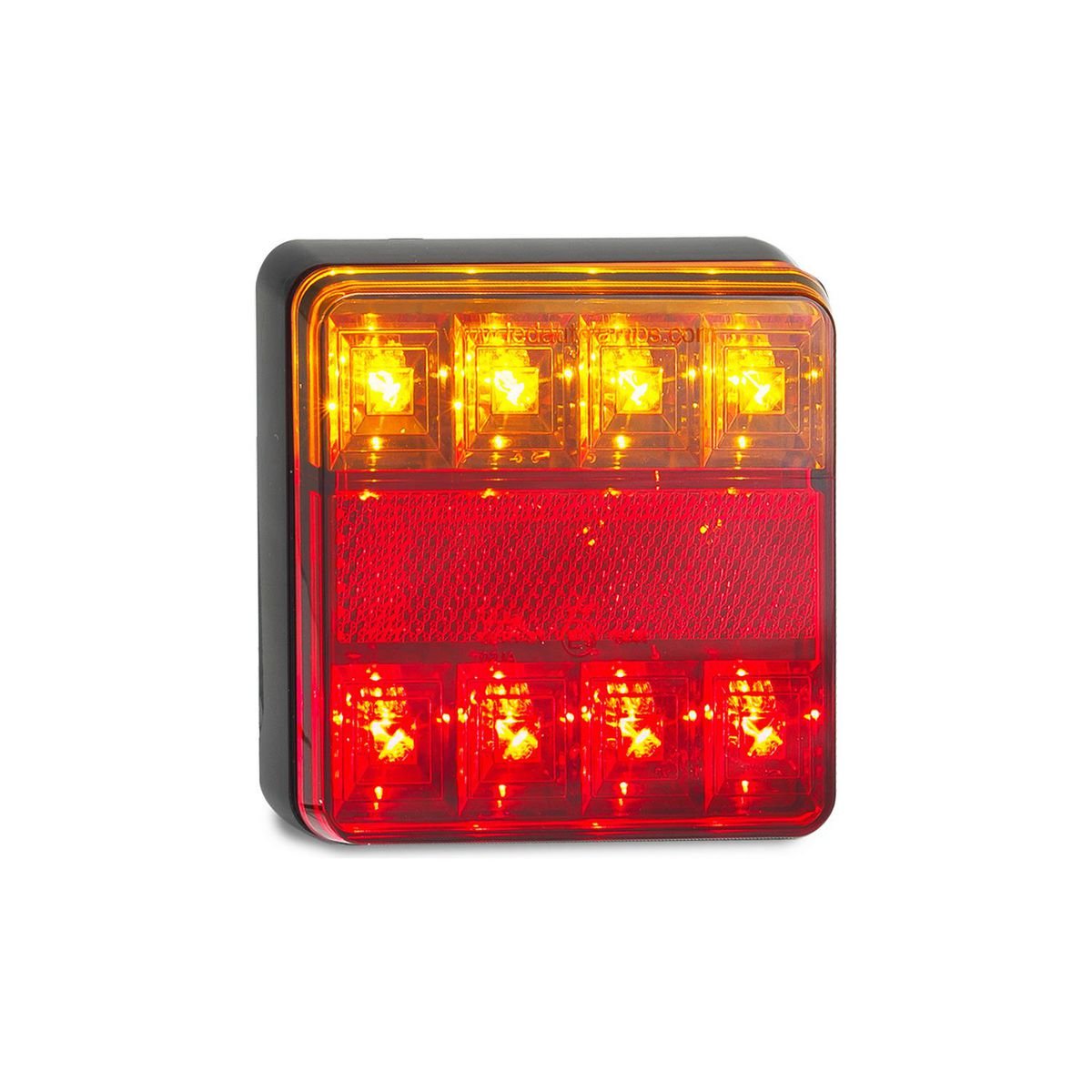

• 8 LEDs per lamp with amber and red lens sections.
• 40cm cable supports surface mounted trailer wiring.

Specifications and Materials

The lamps use a hardened acrylic lens and ABS base with a 12V electrical system. Current draw at 13.8V measures 0.13A for stop, 0.04A for tail and 0.12A for indicator.

Part number: 101BAR2.

Use the manufacturer product page to check the 101 Series dimensions, function and approvals.

Compatibility and Fitment

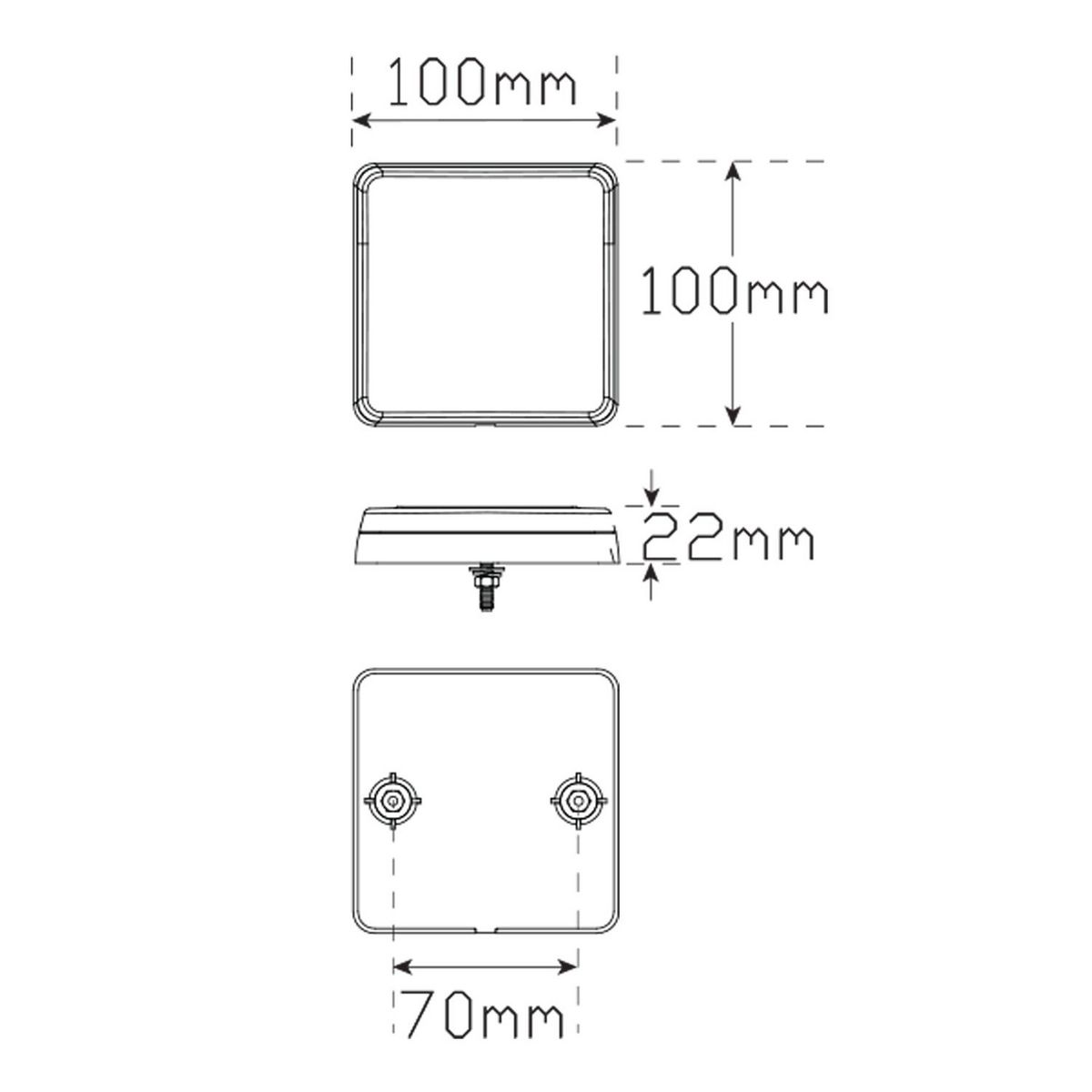

Match the 100mm square body, 22mm depth and 70mm mounting centres before ordering. These stop tail indicator lamps 12V surface mount vertically on a flat panel, with the indicator section at the top and the cable running through a 10mm hole in the fixing surface.

Because this is a 12V only lamp set, check the trailer voltage before fitting. Also inspect the earth points and cable route when replacing older trailer lamps, as poor earths can cause weak tail output or indicator faults.

Related Parts

Check the related version below against the trailer setup before ordering.

Compliance and Safety

Fit the lamps where the stop, tail and indicator signals stay visible from the rear of the trailer. When installing, tighten the mounting hardware evenly and keep the cable entry sealed so water and vibration do not damage the wiring.

Trailer Applications

Workshops fit this style of lamp to box trailers, small plant trailers, utility trailers and light service trailers that need compact rear combination lighting. The stop tail indicator lamps 12V suit replacement work where the existing lamp footprint, mounting centres and wiring layout match the 101 Series body.

Why Choose ICS Trailers

ICS Trailers supplies trailer lighting and electrical parts for workshop repairs, fleet maintenance and trailer builds.
